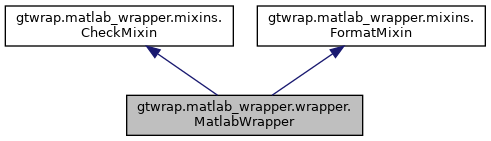

Inheritance diagram for gtwrap.matlab_wrapper.wrapper.MatlabWrapper:
Public Member Functions | |
| def | __init__ (self, module_name, top_module_namespace='', ignore_classes=(), use_boost_serialization=False) |
| def | add_class (self, instantiated_class) |
| def | class_comment (self, instantiated_class) |
| def | class_serialize_comment (self, class_name, static_methods) |
| def | generate_collector_function (self, func_id) |
| def | generate_content (self, cc_content, path) |
| def | generate_preamble (self) |
| def | generate_wrapper (self, namespace) |
| def | get_class_name (self, cls) |
| def | mex_function (self) |
| def | wrap (self, files, path) |
| def | wrap_class_constructors (self, namespace_name, inst_class, parent_name, ctors, is_virtual) |
| def | wrap_class_deconstructor (self, namespace_name, inst_class) |
| def | wrap_class_display (self) |
| def | wrap_class_methods (self, namespace_name, inst_class, methods, serialize=(False,)) |
| def | wrap_class_properties (self, str namespace_name, InstantiatedClass inst_class) |
| def | wrap_class_serialize_method (self, namespace_name, inst_class) |
| def | wrap_collector_function_deserialize (self, class_name, full_name='', namespace='') |
| def | wrap_collector_function_return (self, method, instantiated_class=None) |
| def | wrap_collector_function_return_types (self, return_type, func_id) |
| def | wrap_collector_function_serialize (self, class_name, full_name='', namespace='') |
| def | wrap_collector_function_shared_return (self, return_type_name, shared_obj, func_id, new_line=True) |
| def | wrap_collector_function_upcast_from_void (self, class_name, func_id, cpp_name) |
| def | wrap_collector_property_return (self, parser.Variable class_property, InstantiatedClass instantiated_class=None) |
| def | wrap_enum (self, enum) |
| def | wrap_global_function (self, function) |
| def | wrap_instantiated_class (self, instantiated_class, str namespace_name='') |
| def | wrap_method (self, methods) |
| def | wrap_methods (self, methods, global_funcs=False, global_ns=None) |
| def | wrap_namespace (self, namespace, add_mex_file=True) |
| def | wrap_properties_block (self, class_name, inst_class) |
| def | wrap_static_methods (self, namespace_name, instantiated_class, serialize) |
 Public Member Functions inherited from gtwrap.matlab_wrapper.mixins.CheckMixin | |
| def | can_be_pointer (self, parser.Type arg_type) |
| def | is_class_enum (self, parser.Type arg_type, parser.Class class_) |
| def | is_enum (self, parser.Type arg_type, parser.Class class_) |
| def | is_global_enum (self, parser.Type arg_type, parser.Class class_) |
| def | is_ptr (self, parser.Type arg_type) |
| def | is_ref (self, parser.Type arg_type) |
| def | is_shared_ptr (self, parser.Type arg_type) |
Public Attributes | |
| data_type | |
| data_type_param | |
| global_function_id | |
| ignore_classes | |
| module_name | |
| top_module_namespace | |
| use_boost_serialization | |
| verbose | |
| wrapper_file_headers | |
| wrapper_id | |
Private Member Functions | |
| def | _collector_return (self, str obj, parser.Type ctype, InstantiatedClass instantiated_class=None) |
| def | _format_varargout (cls, return_type, return_type_formatted) |
| def | _group_class_methods (self, methods) |
| def | _group_methods (self, methods) |
| def | _insert_spaces (self, x, y) |
| def | _qualified_name (self, names) |
| def | _unwrap_argument (self, arg, arg_id=0, instantiated_class=None) |
| def | _update_wrapper_id (self, collector_function=None, id_diff=0, str function_name=None) |
| def | _wrap_args (self, args) |
| def | _wrap_list_variable_arguments (self, args) |
| def | _wrap_method_check_statement (self, parser.ArgumentList args) |
| def | _wrap_variable_arguments (self, args, wrap_datatypes=True) |
| def | _wrapper_name (self) |
| def | _wrapper_unwrap_arguments (self, args, arg_id=0, instantiated_class=None) |
Static Private Member Functions | |
| def | _expand_default_arguments (method, save_backup=True) |
| def | _return_count (return_type) |
Additional Inherited Members | |
| Static Public Attributes inherited from gtwrap.matlab_wrapper.mixins.CheckMixin | |
| list | |
| Tuple | |
Detailed Description
Wrap the given C++ code into Matlab.
Attributes
module: the C++ module being wrapped
module_name: name of the C++ module being wrapped
top_module_namespace: C++ namespace for the top module (default '')
ignore_classes: A list of classes to ignore (default [])
Definition at line 23 of file wrapper.py.
Constructor & Destructor Documentation
◆ __init__()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.__init__ | ( | self, | |
| module_name, | |||
top_module_namespace = '', |
|||
ignore_classes = (), |
|||
use_boost_serialization = False |
|||
| ) |
Definition at line 33 of file wrapper.py.
Member Function Documentation
◆ _collector_return()
|
private |
Helper method to get the final statement before the return in the collector function.
Definition at line 1273 of file wrapper.py.
◆ _expand_default_arguments()
|
staticprivate |
Recursively expand all possibilities for optional default arguments. We create "overload" functions with fewer arguments, but since we have to "remember" what the default arguments are for later, we make a backup.
Definition at line 151 of file wrapper.py.
◆ _format_varargout()
|
private |
Determine format of return and varargout statements
Definition at line 833 of file wrapper.py.
◆ _group_class_methods()
|
private |
Group overloaded methods together
Definition at line 828 of file wrapper.py.
◆ _group_methods()
|
private |
Group overloaded methods together
Definition at line 185 of file wrapper.py.
◆ _insert_spaces()
|
private |
Insert spaces at the beginning of each line
Args:
x: the statement currently generated
y: the addition to add to the statement
Definition at line 141 of file wrapper.py.
◆ _qualified_name()
|
private |
Definition at line 138 of file wrapper.py.
◆ _return_count()
|
staticprivate |
The amount of objects returned by the given interface_parser.ReturnType.
Definition at line 432 of file wrapper.py.
◆ _unwrap_argument()
|
private |
Definition at line 344 of file wrapper.py.
◆ _update_wrapper_id()
|
private |
Get and define wrapper ids.
Generates the map of id -> collector function.
Args:
collector_function: tuple storing info about the wrapper function
(namespace, class instance, function name, function object)
id_diff: constant to add to the id in the map
function_name: Optional custom function_name.
Returns:
the current wrapper id
Definition at line 101 of file wrapper.py.
◆ _wrap_args()
|
private |
Wrap an interface_parser.ArgumentList into a list of arguments.
Returns:
A string representation of the arguments. For example:
'int x, double y'
Definition at line 204 of file wrapper.py.
◆ _wrap_list_variable_arguments()
|
private |
Wrap an interface_parser.ArgumentList into a list of argument
variables.
Returns:
A string representation of a list of variable arguments.
For example:
'varargin{1}, varargin{2}, varargin{3}'
Definition at line 269 of file wrapper.py.
◆ _wrap_method_check_statement()
|
private |
Wrap the given arguments into either just a varargout call or a call in an if statement that checks if the parameters are accurate. TODO Update this method so that default arguments are supported.
Definition at line 290 of file wrapper.py.
◆ _wrap_variable_arguments()
|
private |
Wrap an interface_parser.ArgumentList into a statement of argument
checks.
Returns:
A string representation of a variable arguments for an if
statement. For example:
' && isa(varargin{1},'double') && isa(varargin{2},'numeric')'
Definition at line 224 of file wrapper.py.
◆ _wrapper_name()
|
private |
Determine the name of wrapper function.
Definition at line 438 of file wrapper.py.
◆ _wrapper_unwrap_arguments()
|
private |
Format the interface_parser.Arguments.
Examples:
((a), unsigned char a = unwrap< unsigned char >(in[1]);),
((a), Test& t = *unwrap_shared_ptr< Test >(in[1], "ptr_Test");),
((a), std::shared_ptr<Test> p1 = unwrap_shared_ptr< Test >(in[1], "ptr_Test");)
Definition at line 381 of file wrapper.py.
◆ add_class()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.add_class | ( | self, | |
| instantiated_class | |||
| ) |
Add `instantiated_class` to the list of classes.
Definition at line 95 of file wrapper.py.
◆ class_comment()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.class_comment | ( | self, | |
| instantiated_class | |||
| ) |
Generate comments for the given class in Matlab.
Args
instantiated_class: the class being wrapped
ctors: a list of the constructors in the class
methods: a list of the methods in the class
Definition at line 467 of file wrapper.py.
◆ class_serialize_comment()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.class_serialize_comment | ( | self, | |
| class_name, | |||
| static_methods | |||
| ) |
Generate comments for serialize methods.
Definition at line 442 of file wrapper.py.
◆ generate_collector_function()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.generate_collector_function | ( | self, | |
| func_id | |||
| ) |
Generate the complete collector function that goes into the wrapper.cpp file. A collector function is the Mex function used to interact between the C++ object and the Matlab .m files.
Definition at line 1419 of file wrapper.py.
◆ generate_content()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.generate_content | ( | self, | |
| cc_content, | |||
| path | |||
| ) |
Generate files and folders from matlab wrapper content.
Args:
cc_content: The content to generate formatted as
(file_name, file_content) or
(folder_name, [(file_name, file_content)])
path: The path to the files parent folder within the main folder
Definition at line 1852 of file wrapper.py.
◆ generate_preamble()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.generate_preamble | ( | self | ) |
Generate the preamble of the wrapper file, which includes the Boost exports, typedefs for collectors, and the _deleteAllObjects and _RTTIRegister functions.
Definition at line 1683 of file wrapper.py.
◆ generate_wrapper()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.generate_wrapper | ( | self, | |
| namespace | |||
| ) |
Generate the c++ wrapper.
Definition at line 1750 of file wrapper.py.
◆ get_class_name()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.get_class_name | ( | self, | |
| cls | |||
| ) |
Get the name of the class `cls` taking template instantiations into account.
Definition at line 1672 of file wrapper.py.
◆ mex_function()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.mex_function | ( | self | ) |
Generate the wrapped MEX function.
Definition at line 1635 of file wrapper.py.
◆ wrap()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap | ( | self, | |
| files, | |||
| path | |||
| ) |
High level function to wrap the project.
Definition at line 1906 of file wrapper.py.
◆ wrap_class_constructors()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_class_constructors | ( | self, | |
| namespace_name, | |||
| inst_class, | |||
| parent_name, | |||
| ctors, | |||
| is_virtual | |||
| ) |
Wrap class constructor.
Args:
namespace_name: the name of the namespace ('' if it does not exist)
inst_class: instance of the class
parent_name: the name of the parent class if it exists
ctors: the interface_parser.Constructor in the class
is_virtual: whether the class is part of a virtual inheritance
chain
Definition at line 622 of file wrapper.py.
◆ wrap_class_deconstructor()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_class_deconstructor | ( | self, | |
| namespace_name, | |||
| inst_class | |||
| ) |
Generate the delete function for the Matlab class.
Definition at line 801 of file wrapper.py.
◆ wrap_class_display()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_class_display | ( | self | ) |
Generate the display function for the Matlab class.
Definition at line 818 of file wrapper.py.
◆ wrap_class_methods()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_class_methods | ( | self, | |
| namespace_name, | |||
| inst_class, | |||
| methods, | |||
serialize = (False, ) |
|||
| ) |
Wrap the methods in the class.
Args:
namespace_name: the name of the class's namespace
inst_class: the instantiated class whose methods to wrap
methods: the methods to wrap in the order to wrap them
serialize: mutable param storing if one of the methods is serialize
Definition at line 844 of file wrapper.py.
◆ wrap_class_properties()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_class_properties | ( | self, | |
| str | namespace_name, | ||
| InstantiatedClass | inst_class | ||
| ) |
Generate wrappers for the setters & getters of class properties.
Args:
inst_class: The instantiated class whose properties we wish to wrap.
Definition at line 761 of file wrapper.py.
◆ wrap_class_serialize_method()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_class_serialize_method | ( | self, | |
| namespace_name, | |||
| inst_class | |||
| ) |
Wrap the serizalize method of the class.
Definition at line 1819 of file wrapper.py.
◆ wrap_collector_function_deserialize()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_collector_function_deserialize | ( | self, | |
| class_name, | |||
full_name = '', |
|||
namespace = '' |
|||
| ) |
Wrap the deserizalize collector function.
Definition at line 1842 of file wrapper.py.
◆ wrap_collector_function_return()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_collector_function_return | ( | self, | |
| method, | |||
instantiated_class = None |
|||
| ) |
Wrap the complete return type of the function.
Definition at line 1340 of file wrapper.py.
◆ wrap_collector_function_return_types()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_collector_function_return_types | ( | self, | |
| return_type, | |||
| func_id | |||
| ) |
Wrap the return type of the collector function when a std::pair is returned.
Definition at line 1240 of file wrapper.py.
◆ wrap_collector_function_serialize()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_collector_function_serialize | ( | self, | |
| class_name, | |||
full_name = '', |
|||
namespace = '' |
|||
| ) |
Wrap the serizalize collector function.
Definition at line 1832 of file wrapper.py.
◆ wrap_collector_function_shared_return()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_collector_function_shared_return | ( | self, | |
| return_type_name, | |||
| shared_obj, | |||
| func_id, | |||
new_line = True |
|||
| ) |
Wrap the collector function which returns a shared pointer.
Definition at line 1225 of file wrapper.py.
◆ wrap_collector_function_upcast_from_void()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_collector_function_upcast_from_void | ( | self, | |
| class_name, | |||
| func_id, | |||
| cpp_name | |||
| ) |
Add function to upcast type from void type.
Definition at line 1411 of file wrapper.py.
◆ wrap_collector_property_return()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_collector_property_return | ( | self, | |
| parser.Variable | class_property, | ||
| InstantiatedClass | instantiated_class = None |
||
| ) |
Get the last collector function statement before return for a property.
Definition at line 1399 of file wrapper.py.
◆ wrap_enum()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_enum | ( | self, | |
| enum | |||
| ) |
Wrap an enum definition as a Matlab class.
Args:
enum: The interface_parser.Enum instance
Definition at line 1136 of file wrapper.py.
◆ wrap_global_function()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_global_function | ( | self, | |
| function | |||
| ) |
Wrap the given global function.
Definition at line 571 of file wrapper.py.
◆ wrap_instantiated_class()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_instantiated_class | ( | self, | |
| instantiated_class, | |||
| str | namespace_name = '' |
||
| ) |
Generate comments and code for given class.
Args:
instantiated_class: template_instantiator.InstantiatedClass
instance storing the class to wrap
namespace_name: the name of the namespace if there is one
Definition at line 1023 of file wrapper.py.
◆ wrap_method()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_method | ( | self, | |
| methods | |||
| ) |
Wrap methods in the body of a class.
Definition at line 538 of file wrapper.py.
◆ wrap_methods()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_methods | ( | self, | |
| methods, | |||
global_funcs = False, |
|||
global_ns = None |
|||
| ) |
Wrap a sequence of methods/functions. Groups methods with the same names together. If global_funcs is True then output every method into its own file.
Definition at line 547 of file wrapper.py.
◆ wrap_namespace()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_namespace | ( | self, | |
| namespace, | |||
add_mex_file = True |
|||
| ) |
Wrap a namespace by wrapping all of its components.
Args:
namespace: the interface_parser.namespace instance of the namespace
add_cpp_file: Flag indicating whether the mex file should be added
Definition at line 1159 of file wrapper.py.
◆ wrap_properties_block()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_properties_block | ( | self, | |
| class_name, | |||
| inst_class | |||
| ) |
Generate Matlab properties block of the class.
E.g.
```
properties
ptr_gtsamISAM2Params = 0
relinearizeSkip
end
```
Args:
class_name: Class name with namespace to assign unique pointer.
inst_class: The instantiated class whose properties we want to wrap.
Returns:
str: The `properties` block in a Matlab `classdef`.
Definition at line 726 of file wrapper.py.
◆ wrap_static_methods()
| def gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrap_static_methods | ( | self, | |
| namespace_name, | |||
| instantiated_class, | |||
| serialize | |||
| ) |
Wrap the static methods in the class.
Definition at line 939 of file wrapper.py.
Member Data Documentation
◆ data_type
| gtwrap.matlab_wrapper.wrapper.MatlabWrapper.data_type |
Definition at line 44 of file wrapper.py.
◆ data_type_param
| gtwrap.matlab_wrapper.wrapper.MatlabWrapper.data_type_param |
Definition at line 56 of file wrapper.py.
◆ global_function_id
| gtwrap.matlab_wrapper.wrapper.MatlabWrapper.global_function_id |
Definition at line 82 of file wrapper.py.
◆ ignore_classes
| gtwrap.matlab_wrapper.wrapper.MatlabWrapper.ignore_classes |
Definition at line 38 of file wrapper.py.
◆ module_name
| gtwrap.matlab_wrapper.wrapper.MatlabWrapper.module_name |
Definition at line 36 of file wrapper.py.
◆ top_module_namespace
| gtwrap.matlab_wrapper.wrapper.MatlabWrapper.top_module_namespace |
Definition at line 37 of file wrapper.py.
◆ use_boost_serialization
| gtwrap.matlab_wrapper.wrapper.MatlabWrapper.use_boost_serialization |
Definition at line 40 of file wrapper.py.
◆ verbose
| gtwrap.matlab_wrapper.wrapper.MatlabWrapper.verbose |
Definition at line 39 of file wrapper.py.
◆ wrapper_file_headers
| gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrapper_file_headers |
Definition at line 89 of file wrapper.py.
◆ wrapper_id
| gtwrap.matlab_wrapper.wrapper.MatlabWrapper.wrapper_id |
Definition at line 70 of file wrapper.py.
The documentation for this class was generated from the following file:
