http2_settings.cc File Reference

#include <grpc/support/port_platform.h>
#include "src/core/ext/transport/chttp2/transport/http2_settings.h"
#include "src/core/lib/gpr/useful.h"
#include "src/core/lib/transport/http2_errors.h"

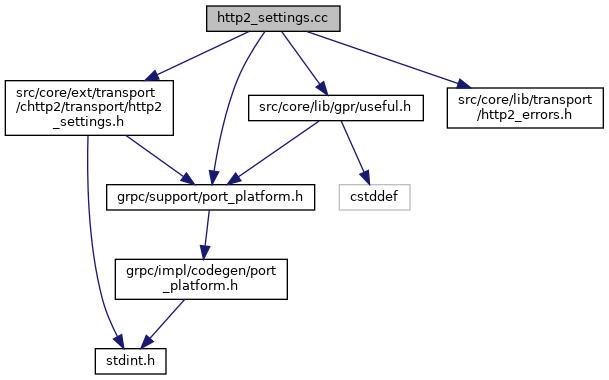

Include dependency graph for http2_settings.cc:

Go to the source code of this file.

Functions
bool	grpc_wire_id_to_setting_id (uint32_t wire_id, grpc_chttp2_setting_id *out)

Variables
const grpc_chttp2_setting_parameters	grpc_chttp2_settings_parameters [GRPC_CHTTP2_NUM_SETTINGS]
const uint16_t	grpc_setting_id_to_wire_id [] = {1, 2, 3, 4, 5, 6, 65027}

Function Documentation

grpc_wire_id_to_setting_id()

bool grpc_wire_id_to_setting_id	(	uint32_t	wire_id,
		grpc_chttp2_setting_id *	out
	)

Definition at line 30 of file http2_settings.cc.

Variable Documentation

grpc_chttp2_settings_parameters

const grpc_chttp2_setting_parameters grpc_chttp2_settings_parameters[GRPC_CHTTP2_NUM_SETTINGS]

Initial value:

= {
        {"HEADER_TABLE_SIZE", 4096u, 0u, 4294967295u,
         GRPC_CHTTP2_CLAMP_INVALID_VALUE, GRPC_HTTP2_PROTOCOL_ERROR},
        {"ENABLE_PUSH", 1u, 0u, 1u, GRPC_CHTTP2_DISCONNECT_ON_INVALID_VALUE,
         GRPC_HTTP2_PROTOCOL_ERROR},
        {"MAX_CONCURRENT_STREAMS", 4294967295u, 0u, 4294967295u,
         GRPC_CHTTP2_DISCONNECT_ON_INVALID_VALUE, GRPC_HTTP2_PROTOCOL_ERROR},
        {"INITIAL_WINDOW_SIZE", 65535u, 0u, 2147483647u,
         GRPC_CHTTP2_DISCONNECT_ON_INVALID_VALUE,
         GRPC_HTTP2_FLOW_CONTROL_ERROR},
        {"MAX_FRAME_SIZE", 16384u, 16384u, 16777215u,
         GRPC_CHTTP2_DISCONNECT_ON_INVALID_VALUE, GRPC_HTTP2_PROTOCOL_ERROR},
        {"MAX_HEADER_LIST_SIZE", 16777216u, 0u, 16777216u,
         GRPC_CHTTP2_CLAMP_INVALID_VALUE, GRPC_HTTP2_PROTOCOL_ERROR},
        {"GRPC_ALLOW_TRUE_BINARY_METADATA", 0u, 0u, 1u,
         GRPC_CHTTP2_CLAMP_INVALID_VALUE, GRPC_HTTP2_PROTOCOL_ERROR},
}

Definition at line 46 of file http2_settings.cc.

grpc_setting_id_to_wire_id

const uint16_t grpc_setting_id_to_wire_id[] = {1, 2, 3, 4, 5, 6, 65027}

Definition at line 28 of file http2_settings.cc.
