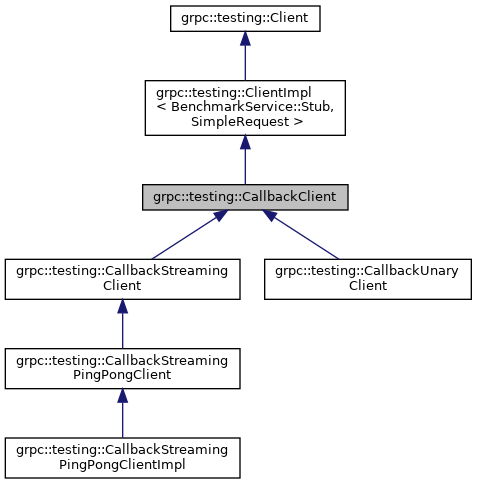

Inheritance diagram for grpc::testing::CallbackClient:

[legend]

Public Member Functions
	CallbackClient (const ClientConfig &config)

gpr_timespec	NextRPCIssueTime ()

void	NotifyMainThreadOfThreadCompletion ()

	~CallbackClient () override

Public Member Functions inherited from grpc::testing::ClientImpl< BenchmarkService::Stub, SimpleRequest >
	ClientImpl (const ClientConfig &config, std::function< std::unique_ptr< BenchmarkService::Stub >(std::shared_ptr< Channel >)> create_stub)

const SimpleRequest *	request ()

void	WaitForChannelsToConnect ()

	~ClientImpl () override

Public Member Functions inherited from grpc::testing::Client
void	AwaitThreadsCompletion ()

	Client ()

double	GetLatencyCollectionIntervalInSeconds ()

virtual int	GetPollCount ()

bool	IsClosedLoop ()

ClientStats	Mark (bool reset)

gpr_timespec	NextIssueTime (int thread_idx)

bool	ThreadCompleted ()

virtual	~Client ()

Protected Member Functions
virtual void	InitThreadFuncImpl (size_t thread_idx)=0

void	ThreadFunc (size_t thread_idx, Thread *t) override

virtual bool	ThreadFuncImpl (Thread *t, size_t thread_idx)=0

Protected Member Functions inherited from grpc::testing::Client
void	CompleteThread ()

void	EndThreads ()

void	MaybeStartRequests ()

std::function< gpr_timespec()>	NextIssuer (int thread_idx)

void	SetupLoadTest (const ClientConfig &config, size_t num_threads)

void	StartThreads (size_t num_threads)

Protected Attributes
std::vector< std::unique_ptr< CallbackClientRpcContext > >	ctx_

size_t	num_threads_

size_t	rpcs_done_

std::condition_variable	shutdown_cv_

std::mutex	shutdown_mu_

size_t	total_outstanding_rpcs_

Protected Attributes inherited from grpc::testing::ClientImpl< BenchmarkService::Stub, SimpleRequest >
std::vector< ClientChannelInfo >	channels_

const int	cores_

std::function< std::unique_ptr< BenchmarkService::Stub >const std::shared_ptr< Channel > &)>	create_stub_

SimpleRequest	request_

Protected Attributes inherited from grpc::testing::Client
bool	closed_loop_

InterarrivalTimer	interarrival_timer_

int	last_reset_poll_count_

double	median_latency_collection_interval_seconds_

std::vector< gpr_timespec >	next_time_

gpr_event	start_requests_

bool	started_requests_

std::mutex	thread_completion_mu_

gpr_atm	thread_pool_done_

std::vector< std::unique_ptr< Thread > >	threads_

std::condition_variable	threads_complete_

size_t	threads_remaining_

std::unique_ptr< UsageTimer >	timer_

Private Member Functions
void	DestroyMultithreading () final

int	NumThreads (const ClientConfig &config)

Private Attributes
std::mutex	next_issue_time_mu_

Detailed Description

Definition at line 64 of file test/cpp/qps/client_callback.cc.

Constructor & Destructor Documentation

◆ CallbackClient()

grpc::testing::CallbackClient::CallbackClient ( const ClientConfig & config )

inlineexplicit

Definition at line 67 of file test/cpp/qps/client_callback.cc.

◆ ~CallbackClient()

grpc::testing::CallbackClient::~CallbackClient ( )

inlineoverride

Definition at line 80 of file test/cpp/qps/client_callback.cc.

Member Function Documentation

◆ DestroyMultithreading()

void grpc::testing::CallbackClient::DestroyMultithreading ( )

inlinefinalprivatevirtual

Wait until all outstanding Callback RPCs are done

Implements grpc::testing::Client.

Definition at line 136 of file test/cpp/qps/client_callback.cc.

◆ InitThreadFuncImpl()

virtual void grpc::testing::CallbackClient::InitThreadFuncImpl ( size_t thread_idx )

protectedpure virtual

Implemented in grpc::testing::CallbackStreamingPingPongClientImpl, and grpc::testing::CallbackUnaryClient.

◆ NextRPCIssueTime()

gpr_timespec grpc::testing::CallbackClient::NextRPCIssueTime ( )

inline

Definition at line 96 of file test/cpp/qps/client_callback.cc.

◆ NotifyMainThreadOfThreadCompletion()

void grpc::testing::CallbackClient::NotifyMainThreadOfThreadCompletion ( )

inline

The main thread of the benchmark will be waiting on DestroyMultithreading. Increment the rpcs_done_ variable to signify that the Callback RPC after thread completion is done. When the last outstanding rpc increments the counter it should also signal the main thread's conditional variable.

Definition at line 88 of file test/cpp/qps/client_callback.cc.
