Detailed Description

Abstract base class for tropospheric models. The wet and hydrostatic (dry) components of the tropospheric delay are each the product of a zenith delay and a mapping function. Usually the zenith delay depends only on the weather (temperature, pressure and humidity), while the mapping function depends only on the satellite elevation, i.e. the geometry of satellite and receiver. This may not be true in complex models.

The full tropospheric delay is the sum of the wet and hydrostatic (dry) components. A TropModel is valid only when all the necessary information (weather + whatever else the model requires) is specified; An InvalidTropModel exception will be thrown when any correction() or zenith_delay() or mapping_function() routine is called for an invalid TropModel.

Definition at line 105 of file TropModel.hpp.

#include <TropModel.hpp>

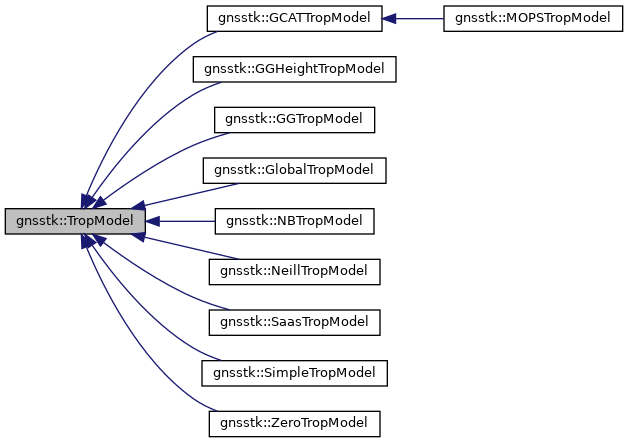

Inheritance diagram for gnsstk::TropModel:

[legend]

Public Member Functions
virtual double	correction (const Position &RX, const Position &SV, const CommonTime &tt)

virtual double	correction (const Xvt &RX, const Xvt &SV, const CommonTime &tt)

virtual double	correction (double elevation) const

virtual double	dry_mapping_function (double elevation) const =0

virtual double	dry_zenith_delay () const =0

bool	isValid ()
	Return validity of model. More...

virtual std::string	name ()
	Return the name of the model. More...

double	SaasDryDelay (const double pr, const double lat, const double ht) const

virtual void	setDayOfYear (const int &d)

virtual void	setReceiverHeight (const double &ht)

virtual void	setReceiverLatitude (const double &lat)

virtual void	setReceiverLongitude (const double &lon)

virtual void	setWeather (const double &T, const double &P, const double &H)

virtual void	setWeather (const WxObservation &wx)

virtual double	wet_mapping_function (double elevation) const =0

virtual double	wet_zenith_delay () const =0

virtual	~TropModel ()
	Destructor. More...

Static Public Member Functions
static void	weatherByStandardAtmosphereModel (const double &ht, double &T, double &P, double &H)

Static Public Attributes
static const GNSSTK_EXPORT double	CELSIUS_TO_KELVIN = 273.15

Protected Attributes
double	humid
	latest value of relative humidity (percent) More...

double	press
	latest value of pressure (millibars) More...

double	temp
	latest value of temperature (kelvin or celsius) More...

bool	valid
	true only if current model parameters are valid More...

Constructor & Destructor Documentation

◆ ~TropModel()

virtual gnsstk::TropModel::~TropModel ( )

inlinevirtual

Destructor.

Definition at line 111 of file TropModel.hpp.

Member Function Documentation

◆ correction() [1/3]

double gnsstk::TropModel::correction	(	const Position &	RX,
		const Position &	SV,
		const CommonTime &	tt
	)

virtual

Compute and return the full tropospheric delay, in meters, given the positions of receiver and satellite and the time tag. This version is most useful within positioning algorithms, where the receiver position and timetag may vary; it computes the elevation (and other receiver location information) and passes them to appropriate set...() routines and the correction(elevation) routine.

Parameters

RX	Receiver position
SV	Satellite position
tt	Time tag of the signal

Returns: The tropospheric delay (meters)

Exceptions

InvalidTropModel

Reimplemented in gnsstk::ZeroTropModel, gnsstk::GlobalTropModel, gnsstk::NeillTropModel, gnsstk::MOPSTropModel, gnsstk::NBTropModel, gnsstk::GCATTropModel, gnsstk::SaasTropModel, and gnsstk::GGHeightTropModel.

Definition at line 66 of file TropModel.cpp.

◆ correction() [2/3]

virtual double gnsstk::TropModel::correction	(	const Xvt &	RX,
		const Xvt &	SV,
		const CommonTime &	tt
	)

inlinevirtual

Compute and return the full tropospheric delay, in meters, given the positions of receiver and satellite and the time tag.

Deprecated:: This method is deprecated. Use correction(const Position&,const Position&,const CommonTime&) instead.

This version is most useful within positioning algorithms, where the receiver position and timetag may vary; it computes the elevation (and other receiver location information) and passes them to appropriate set...() routines and the correction(elevation) routine.

Parameters

RX	Receiver position in ECEF cartesian coordinates (meters)
SV	Satellite position in ECEF cartesian coordinates (meters)
tt	Time tag of the signal

Returns: The tropospheric delay (meters)

Exceptions

InvalidTropModel

Reimplemented in gnsstk::ZeroTropModel, gnsstk::NeillTropModel, gnsstk::MOPSTropModel, gnsstk::NBTropModel, gnsstk::GCATTropModel, gnsstk::SaasTropModel, and gnsstk::GGHeightTropModel.

Definition at line 164 of file TropModel.hpp.

◆ correction() [3/3]

double gnsstk::TropModel::correction ( double elevation ) const

virtual

Compute and return the full tropospheric delay, in meters

Parameters

elevation Elevation of satellite as seen at receiver, in degrees

Returns: The tropospheric delay (meters)

Exceptions

InvalidTropModel

Reimplemented in gnsstk::ZeroTropModel, gnsstk::GlobalTropModel, gnsstk::NBTropModel, gnsstk::NeillTropModel, gnsstk::MOPSTropModel, gnsstk::SaasTropModel, gnsstk::GGHeightTropModel, and gnsstk::GCATTropModel.

Definition at line 53 of file TropModel.cpp.

◆ dry_mapping_function()

virtual double gnsstk::TropModel::dry_mapping_function ( double elevation ) const

pure virtual

Compute and return the mapping function for hydrostatic (dry) component of the troposphere, in meters.

Parameters

elevation Elevation of satellite as seen at receiver, in degrees

Exceptions

InvalidTropModel

Implemented in gnsstk::ZeroTropModel, gnsstk::NeillTropModel, gnsstk::GlobalTropModel, gnsstk::GCATTropModel, gnsstk::NBTropModel, gnsstk::SaasTropModel, gnsstk::GGHeightTropModel, gnsstk::GGTropModel, and gnsstk::SimpleTropModel.

◆ dry_zenith_delay()

virtual double gnsstk::TropModel::dry_zenith_delay ( ) const

pure virtual

Compute and return the zenith delay for hydrostatic (dry) component of the troposphere, in meters.

Exceptions

InvalidTropModel

Implemented in gnsstk::ZeroTropModel, gnsstk::NeillTropModel, gnsstk::MOPSTropModel, gnsstk::GlobalTropModel, gnsstk::NBTropModel, gnsstk::GCATTropModel, gnsstk::SaasTropModel, gnsstk::GGHeightTropModel, gnsstk::GGTropModel, and gnsstk::SimpleTropModel.

◆ isValid()

bool gnsstk::TropModel::isValid ( )

inline

Return validity of model.

Definition at line 114 of file TropModel.hpp.

◆ name()

virtual std::string gnsstk::TropModel::name ( )

inlinevirtual

Return the name of the model.

Reimplemented in gnsstk::ZeroTropModel, gnsstk::GlobalTropModel, gnsstk::NBTropModel, gnsstk::NeillTropModel, gnsstk::MOPSTropModel, gnsstk::SaasTropModel, gnsstk::GGHeightTropModel, gnsstk::GCATTropModel, gnsstk::GGTropModel, and gnsstk::SimpleTropModel.

Definition at line 118 of file TropModel.hpp.

◆ SaasDryDelay()

double gnsstk::TropModel::SaasDryDelay	(	const double	pr,
		const double	lat,
		const double	ht
	)		const

inline

Saastamoinen hydrostatic zenith delay as modified by Davis for gravity. Used by multiple models. Ref. Leick, 3rd ed, pg 197, Leick, 4th ed, pg 482, and Saastamoinen 1973 Atmospheric correction for the troposphere and stratosphere in radio ranging of satellites. The use of artificial satellites for geodesy, Geophys. Monogr. Ser. 15, Amer. Geophys. Union, pp. 274-251, 1972. Davis, J.L, T.A. Herring, I.I. Shapiro, A.E.E. Rogers, and G. Elgered, Geodesy by Radio Interferometry: Effects of Atmospheric Modeling Errors on Estimates of Baseline Length, Radio Science, Vol. 20, No. 6, pp. 1593-1607, 1985.

Parameters

pr	pressure in millibars
lat	latitude in degrees
ht	ellipsoid height in meters

Definition at line 262 of file TropModel.hpp.

◆ setDayOfYear()

virtual void gnsstk::TropModel::setDayOfYear ( const int & d )

inlinevirtual

Define the day of year; this is required by some models before calling correction() or any of the zenith_delay or mapping_function routines.

Parameters

d	Day of year.

Reimplemented in gnsstk::NeillTropModel, gnsstk::GlobalTropModel, gnsstk::MOPSTropModel, gnsstk::NBTropModel, and gnsstk::SaasTropModel.

Definition at line 242 of file TropModel.hpp.

◆ setReceiverHeight()

virtual void gnsstk::TropModel::setReceiverHeight ( const double & ht )

inlinevirtual

Define the receiver height; this is required by some models before calling correction() or any of the zenith_delay or mapping_function routines.

Parameters

ht	Height of the receiver above mean sea level, in meters.

Reimplemented in gnsstk::NeillTropModel, gnsstk::GlobalTropModel, gnsstk::MOPSTropModel, gnsstk::GCATTropModel, gnsstk::NBTropModel, gnsstk::GGHeightTropModel, and gnsstk::SaasTropModel.

Definition at line 222 of file TropModel.hpp.

◆ setReceiverLatitude()

virtual void gnsstk::TropModel::setReceiverLatitude ( const double & lat )

inlinevirtual

Define the latitude of the receiver; this is required by some models before calling correction() or any of the zenith_delay or mapping_function routines.

Parameters

lat	Latitude of the receiver in degrees.

Reimplemented in gnsstk::NeillTropModel, gnsstk::MOPSTropModel, gnsstk::GlobalTropModel, gnsstk::NBTropModel, and gnsstk::SaasTropModel.

Definition at line 229 of file TropModel.hpp.

◆ setReceiverLongitude()

virtual void gnsstk::TropModel::setReceiverLongitude ( const double & lon )

inlinevirtual

Define the receiver longitude; this is required by some models before calling correction() or any of the zenith_delay routines.

Parameters

lon	Longitude of receiver, in degrees East.

Reimplemented in gnsstk::GlobalTropModel.

Definition at line 235 of file TropModel.hpp.

◆ setWeather() [1/2]

void gnsstk::TropModel::setWeather	(	const double &	T,
		const double &	P,
		const double &	H
	)

virtual

Re-define the tropospheric model with explicit weather data. Typically called just before correction().

Parameters

T	temperature in degrees Celsius
P	atmospheric pressure in millibars
H	relative humidity in percent

Exceptions

InvalidParameter

Reimplemented in gnsstk::NeillTropModel, gnsstk::MOPSTropModel, gnsstk::GlobalTropModel, gnsstk::GCATTropModel, gnsstk::NBTropModel, gnsstk::SaasTropModel, gnsstk::GGHeightTropModel, gnsstk::GGTropModel, and gnsstk::SimpleTropModel.

Definition at line 85 of file TropModel.cpp.

◆ setWeather() [2/2]

void gnsstk::TropModel::setWeather ( const WxObservation & wx )

virtual

Re-define the tropospheric model with explicit weather data. Typically called just before correction().

Parameters

wx	the weather to use for this correction

Exceptions

InvalidParameter

Reimplemented in gnsstk::NeillTropModel, gnsstk::MOPSTropModel, gnsstk::GlobalTropModel, gnsstk::GCATTropModel, gnsstk::NBTropModel, gnsstk::GGHeightTropModel, gnsstk::SaasTropModel, gnsstk::GGTropModel, and gnsstk::SimpleTropModel.

Definition at line 120 of file TropModel.cpp.

◆ weatherByStandardAtmosphereModel()

void gnsstk::TropModel::weatherByStandardAtmosphereModel	(	const double &	ht,
		double &	T,
		double &	P,
		double &	H
	)

static

Get weather data by a standard atmosphere model reference to white paper of Bernese 5.0, P243

Parameters

ht	height of the receiver in meters.
T	temperature in degrees Celsius
P	atmospheric pressure in millibars
H	relative humidity in percent

Definition at line 144 of file TropModel.cpp.

◆ wet_mapping_function()

virtual double gnsstk::TropModel::wet_mapping_function ( double elevation ) const

pure virtual

Compute and return the mapping function for wet component of the troposphere, in meters.

Parameters

elevation Elevation of satellite as seen at receiver, in degrees

Exceptions

InvalidTropModel

Implemented in gnsstk::ZeroTropModel, gnsstk::NeillTropModel, gnsstk::GlobalTropModel, gnsstk::GCATTropModel, gnsstk::NBTropModel, gnsstk::SaasTropModel, gnsstk::GGHeightTropModel, gnsstk::GGTropModel, and gnsstk::SimpleTropModel.

◆ wet_zenith_delay()

virtual double gnsstk::TropModel::wet_zenith_delay ( ) const

pure virtual

Compute and return the zenith delay for wet component of the troposphere, in meters.

Exceptions

InvalidTropModel

Implemented in gnsstk::ZeroTropModel, gnsstk::NeillTropModel, gnsstk::MOPSTropModel, gnsstk::GlobalTropModel, gnsstk::GCATTropModel, gnsstk::NBTropModel, gnsstk::SaasTropModel, gnsstk::GGHeightTropModel, gnsstk::GGTropModel, and gnsstk::SimpleTropModel.

Member Data Documentation

◆ CELSIUS_TO_KELVIN

const double gnsstk::TropModel::CELSIUS_TO_KELVIN = 273.15

static

Definition at line 108 of file TropModel.hpp.

◆ humid

double gnsstk::TropModel::humid

protected

latest value of relative humidity (percent)

Definition at line 282 of file TropModel.hpp.

◆ press

double gnsstk::TropModel::press

protected

latest value of pressure (millibars)

Definition at line 281 of file TropModel.hpp.

◆ temp

double gnsstk::TropModel::temp

protected

latest value of temperature (kelvin or celsius)

Definition at line 280 of file TropModel.hpp.

◆ valid

bool gnsstk::TropModel::valid

protected

true only if current model parameters are valid

Definition at line 279 of file TropModel.hpp.

The documentation for this class was generated from the following files:
