Detailed Description

Class containing data elements unique to BDS D1NAV ephemerides.

Note: The standard xmitTime data member (in OrbitDataKepler) corresponds to the transmit time of subframe 1.

Definition at line 52 of file BDSD1NavEph.hpp.

#include <BDSD1NavEph.hpp>

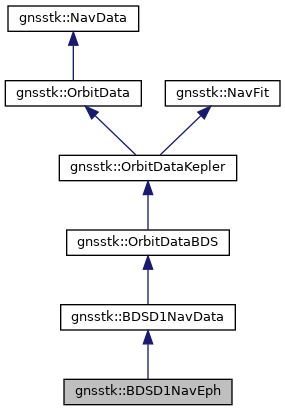

Inheritance diagram for gnsstk::BDSD1NavEph:

[legend]

Public Member Functions
	BDSD1NavEph ()
	Sets the nav message type and all other data members to 0. More...

NavDataPtr	clone () const override
	Create a deep copy of this object. More...

void	dumpSVStatus (std::ostream &s) const override

void	fixFit ()

CommonTime	getUserTime () const override

bool	validate () const override

Public Member Functions inherited from gnsstk::BDSD1NavData
	BDSD1NavData ()
	Initialize data members. More...

Public Member Functions inherited from gnsstk::OrbitDataBDS
bool	getXvt (const CommonTime &when, Xvt &xvt, const ObsID &oid=ObsID()) override

	OrbitDataBDS ()

double	svRelativity (const CommonTime &when) const override

Public Member Functions inherited from gnsstk::OrbitDataKepler
std::list< std::string >	compare (const NavDataPtr &right) const override

void	dump (std::ostream &s, DumpDetail dl) const override

virtual void	dumpClock (std::ostream &s) const

virtual void	dumpHarmonics (std::ostream &s) const

virtual void	dumpOrbit (std::ostream &s) const

virtual std::string	getDataType () const

CommonTime	getNearTime () const override

bool	getXvt (const CommonTime &when, const EllipsoidModel &ell, Xvt &xvt, const ObsID &oid=ObsID())

bool	isSameData (const NavDataPtr &right) const override

	OrbitDataKepler ()
	Initialize all data members to 0. More...

double	svClockBias (const CommonTime &when) const

double	svClockDrift (const CommonTime &when) const

virtual double	svRelativity (const CommonTime &when, const EllipsoidModel &ell) const

Public Member Functions inherited from gnsstk::NavData
virtual std::string	getClassName () const

std::string	getDumpTime (DumpDetail dl, const CommonTime &t) const

std::string	getDumpTimeHdr (DumpDetail dl) const

std::string	getSignalString () const

bool	getSVN (const SatID &sat, const gnsstk::CommonTime &when, std::string &svn) const

	NavData ()
	Initialize internal data fields. More...

Static Public Member Functions
static unsigned	getAOD (uint8_t aod)

Static Public Member Functions inherited from gnsstk::NavData
static gnsstk::SatMetaDataStore *	getSatMetaDataStore ()
	Accessor for python. More...

static void	setSatMetaDataStore (gnsstk::SatMetaDataStore *smds)
	Accessor for python. More...

Public Attributes
uint8_t	aodc
	Age of data - clock. More...

uint8_t	aode
	Age of data - ephemeris. More...

uint32_t	pre2
	The preamble from the start of subframe 2. More...

uint32_t	pre3
	The preamble from the start of subframe 3. More...

uint32_t	rev2
	The rev field from word 1 of subframe 2. More...

uint32_t	rev3
	The rev field from word 1 of subframe 3. More...

bool	satH1
	Autonomous satellite health flag. More...

uint32_t	sow2
	Seconds of week from word 1-2 of subframe 2. More...

uint32_t	sow3

double	tgd1
	Group delay differential on B1I. More...

double	tgd2
	Group delay differential on B2I. More...

uint8_t	uraIndex
	4-bit URA index from subframe 1. More...

CommonTime	xmit2
	Transmit time for subframe 2. More...

CommonTime	xmit3
	Transmit time for subframe 3. More...

Public Attributes inherited from gnsstk::BDSD1NavData
uint8_t	fraID
	The subframe ID (FraID) from word 1 of the subframe. More...

uint32_t	pre
	The preamble from word 1 of the subframe. More...

uint32_t	rev
	The rev field from word 1 of the subframe. More...

uint32_t	sow
	Seconds of week from word 1-2 of the subframe. More...

Public Attributes inherited from gnsstk::OrbitDataKepler
double	A
	Semi-major axis (m) More...

double	Adot
	Rate of semi-major axis (m/sec) More...

double	af0
	SV clock error (sec) More...

double	af1
	SV clock drift (sec/sec) More...

double	af2
	SV clock drift rate (sec/sec**2) More...

double	Ahalf
	Square Root of semi-major axis (m**.5) More...

double	Cic
	Cosine inclination (rad) More...

double	Cis
	Sine inclination (rad) More...

double	Crc
	Cosine radius (m) More...

double	Crs
	Sine radius (m) More...

double	Cuc
	Cosine latitude (rad) More...

double	Cus
	Sine latitude (rad) More...

double	dn
	Correction to mean motion (rad/sec) More...

double	dndot
	Rate of correction to mean motion (rad/sec/sec) More...

double	ecc
	Eccentricity. More...

RefFrameSys	frame

SVHealth	health
	SV health status. More...

double	i0
	Inclination (rad) More...

double	idot
	Rate of inclination angle (rad/sec) More...

double	M0
	Mean anomaly (rad) More...

double	OMEGA0
	Longitude of ascending node at weekly epoch (rad) More...

double	OMEGAdot
	Rate of Rt ascension (rad/sec) More...

CommonTime	Toc
	Clock epoch. More...

CommonTime	Toe
	Orbit epoch. More...

double	w
	Argument of perigee (rad) More...

CommonTime	xmitTime
	Time of transmission of the start of the data. More...

Public Attributes inherited from gnsstk::NavData
NavMessageID	signal
	Source signal identification for this navigation message data. More...

CommonTime	timeStamp

std::string	weekFmt

Public Attributes inherited from gnsstk::NavFit
CommonTime	beginFit
	Time at beginning of fit interval. More...

CommonTime	endFit
	Time at end of fit interval. More...

Additional Inherited Members
Static Public Attributes inherited from gnsstk::BDSD1NavData
static constexpr double	refioffset = 0.3
	inclination offset, this + delta i = i0, defined in SIS-ICD. More...

Static Public Attributes inherited from gnsstk::OrbitDataKepler
static const size_t	fw = 16
	Field width of floating point numbers (precision + 8). More...

static const size_t	precision = 8
	Precision used when printing floating point numbers. More...

Static Public Attributes inherited from gnsstk::NavData
static const GNSSTK_EXPORT std::string	dumpTimeFmt
	Time format used for the dump method (Full). More...

static const GNSSTK_EXPORT std::string	dumpTimeFmtBrief
	Time format used for the dump method (Brief). More...

static GNSSTK_EXPORT gnsstk::SatMetaDataStore *	satMetaDataStore = nullptr
	Set this to a valid store to get PRN->SVN translations in dump(). More...

Protected Attributes inherited from gnsstk::NavData
double	msgLenSec

Constructor & Destructor Documentation

◆ BDSD1NavEph()

gnsstk::BDSD1NavEph::BDSD1NavEph ( )

Sets the nav message type and all other data members to 0.

Definition at line 50 of file BDSD1NavEph.cpp.

Member Function Documentation

◆ clone()

NavDataPtr gnsstk::BDSD1NavEph::clone ( ) const

inlineoverridevirtual

Create a deep copy of this object.

Implements gnsstk::NavData.

Definition at line 58 of file BDSD1NavEph.hpp.

◆ dumpSVStatus()

void gnsstk::BDSD1NavEph::dumpSVStatus ( std::ostream & s ) const

overridevirtual

Dump SV status information (e.g. health).

Parameters

[in,out] s The stream to write the data to.

Reimplemented from gnsstk::OrbitDataKepler.

Definition at line 100 of file BDSD1NavEph.cpp.

◆ fixFit()

void gnsstk::BDSD1NavEph::fixFit ( )

Fill the beginFit and endFit values for this object. The fit interval isn't specified in the ICD, so we chose to set the fit interval based on empirical data, which is +/- 2 hours for a URE of 2m [johnson]

Precondition: Toe and xmitTime must be set.

Postcondition: beginFit and endFit are set.

Todo:: Determine if this is an appropriate adjustment

Definition at line 87 of file BDSD1NavEph.cpp.

◆ getAOD()

unsigned gnsstk::BDSD1NavEph::getAOD ( uint8_t aod )

static

Get age of data in hours from AODC.

Parameters

[in] aod The AODC or AODE value from the subframe.

Returns: The AOD in hours. (unsigned)-1 is returned if the input aod is >=32 which is beyond the valid range of the navigation data.

Definition at line 137 of file BDSD1NavEph.cpp.

◆ getUserTime()

CommonTime gnsstk::BDSD1NavEph::getUserTime ( ) const

overridevirtual

Returns the time when the navigation message would have first been available to the user equipment, i.e. the time at which the final bit of a given broadcast navigation message is received. This is used by NavDataFactoryWithStore::find() in User mode.

Returns: most recent transmit time + 6s.

Reimplemented from gnsstk::NavData.

Definition at line 80 of file BDSD1NavEph.cpp.

◆ validate()

bool gnsstk::BDSD1NavEph::validate ( ) const

overridevirtual

Checks the contents of this message against known validity rules as defined in the appropriate ICD.

Todo:: implement some checking.

Returns: true if this message is valid according to ICD criteria.

Reimplemented from gnsstk::BDSD1NavData.

Definition at line 71 of file BDSD1NavEph.cpp.

Member Data Documentation

◆ aodc

uint8_t gnsstk::BDSD1NavEph::aodc

Age of data - clock.

Definition at line 104 of file BDSD1NavEph.hpp.

◆ aode

uint8_t gnsstk::BDSD1NavEph::aode

Age of data - ephemeris.

Definition at line 105 of file BDSD1NavEph.hpp.

◆ pre2

uint32_t gnsstk::BDSD1NavEph::pre2

The preamble from the start of subframe 2.

Definition at line 96 of file BDSD1NavEph.hpp.

◆ pre3

uint32_t gnsstk::BDSD1NavEph::pre3

The preamble from the start of subframe 3.

Definition at line 97 of file BDSD1NavEph.hpp.

◆ rev2

uint32_t gnsstk::BDSD1NavEph::rev2

The rev field from word 1 of subframe 2.

Definition at line 98 of file BDSD1NavEph.hpp.

◆ rev3

uint32_t gnsstk::BDSD1NavEph::rev3

The rev field from word 1 of subframe 3.

Definition at line 99 of file BDSD1NavEph.hpp.

◆ satH1

bool gnsstk::BDSD1NavEph::satH1

Autonomous satellite health flag.

Note: The health flag is true if unhealthy.

Definition at line 103 of file BDSD1NavEph.hpp.

◆ sow2

uint32_t gnsstk::BDSD1NavEph::sow2

Seconds of week from word 1-2 of subframe 2.

Definition at line 100 of file BDSD1NavEph.hpp.

◆ sow3

uint32_t gnsstk::BDSD1NavEph::sow3

Seconds of week from word 1-2 of subframe 3.

Definition at line 101 of file BDSD1NavEph.hpp.

◆ tgd1

double gnsstk::BDSD1NavEph::tgd1

Group delay differential on B1I.

Definition at line 113 of file BDSD1NavEph.hpp.

◆ tgd2

double gnsstk::BDSD1NavEph::tgd2

Group delay differential on B2I.

Definition at line 114 of file BDSD1NavEph.hpp.

◆ uraIndex

uint8_t gnsstk::BDSD1NavEph::uraIndex

4-bit URA index from subframe 1.

Note: The BeiDou D1 URA indices match the GPS URA index->URA mappings, which are defined in SV_ACCURACY_GPS_MIN_INDEX and SV_ACCURACY_GPS_MAX_INDEX.

Definition at line 110 of file BDSD1NavEph.hpp.

◆ xmit2

CommonTime gnsstk::BDSD1NavEph::xmit2

Transmit time for subframe 2.

Definition at line 111 of file BDSD1NavEph.hpp.

◆ xmit3

CommonTime gnsstk::BDSD1NavEph::xmit3

Transmit time for subframe 3.

Definition at line 112 of file BDSD1NavEph.hpp.

The documentation for this class was generated from the following files:
