dynamicgraph::sot::Task Class Reference

Class that defines the basic elements of a task. More...

#include "Definition"

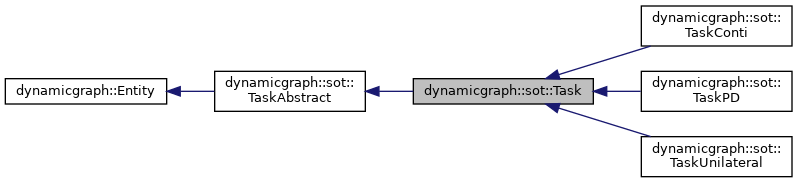

Inheritance diagram for dynamicgraph::sot::Task:
Inheritance graph
[legend]

Public Types

typedef std::list< FeatureAbstract * > FeatureList_t

- Public Types inherited from dynamicgraph::Entity
typedef std::map< const std::string, command::Command * > CommandMap_t

typedef std::map< std::string, SignalBase< sigtime_t > * > SignalMap


Public Member Functions

void addControlSelection (const Flags &act)

void addFeature (FeatureAbstract &s)

void addFeatureFromName (const std::string &name)

void clearControlSelection (void)

void clearFeatureList (void)

dynamicgraph::VectorcomputeError (dynamicgraph::Vector &error, sigtime_t time)

dynamicgraph::VectorcomputeErrorTimeDerivative (dynamicgraph::Vector &res, sigtime_t time)

dynamicgraph::MatrixcomputeJacobian (dynamicgraph::Matrix &J, sigtime_t time)

VectorMultiBoundcomputeTaskExponentialDecrease (VectorMultiBound &errorRef, sigtime_t time)

void display (std::ostream &os) const

FeatureList_tgetFeatureList (void)

bool getWithDerivative (void)

void initCommands (void)

void setControlSelection (const Flags &act)

void setWithDerivative (const bool &s)

 Task (const std::string &n)

virtual std::ostream & writeGraph (std::ostream &os) const

- Public Member Functions inherited from dynamicgraph::sot::TaskAbstract
 TaskAbstract (const std::string &n)

- Public Member Functions inherited from dynamicgraph::Entity
std::ostream & displaySignalList (std::ostream &os) const

 Entity (const std::string &name)

virtual const std::string & getClassName () const

const std::string & getCommandList () const

virtual std::string getDocString () const

LoggerVerbosity getLoggerVerbosityLevel ()

LoggerVerbosity getLoggerVerbosityLevel ()

const std::string & getName () const

command::CommandgetNewStyleCommand (const std::string &cmdName)

CommandMap_t getNewStyleCommandMap ()

SignalBase< sigtime_t > & getSignal (const std::string &signalName)

const SignalBase< sigtime_t > & getSignal (const std::string &signalName) const

SignalMap getSignalMap () const

double getStreamPrintPeriod ()

double getStreamPrintPeriod ()

double getTimeSample ()

double getTimeSample ()

bool hasSignal (const std::string &signame) const

Loggerlogger ()

Loggerlogger ()

const Loggerlogger () const

const Loggerlogger () const

void sendMsg (const std::string &msg, MsgType t=MSG_TYPE_INFO, const std::string &lineId="")

void sendMsg (const std::string &msg, MsgType t=MSG_TYPE_INFO, const std::string &lineId="")

void setLoggerVerbosityLevel (LoggerVerbosity lv)

void setLoggerVerbosityLevel (LoggerVerbosity lv)

bool setStreamPrintPeriod (double t)

bool setStreamPrintPeriod (double t)

bool setTimeSample (double t)

bool setTimeSample (double t)

virtual SignalBase< sigtime_t > * test ()

virtual void test2 (SignalBase< sigtime_t > *)

virtual std::ostream & writeCompletionList (std::ostream &os) const

virtual ~Entity ()


Public Attributes

dynamicgraph::SignalPtr< double, sigtime_tcontrolGainSIN

dynamicgraph::SignalPtr< Flags, sigtime_tcontrolSelectionSIN

dynamicgraph::SignalPtr< double, sigtime_tdampingGainSINOUT

dynamicgraph::SignalTimeDependent< dynamicgraph::Vector, sigtime_terrorSOUT

dynamicgraph::SignalTimeDependent< dynamicgraph::Vector, sigtime_terrorTimeDerivativeSOUT

- Public Attributes inherited from dynamicgraph::sot::TaskAbstract
dynamicgraph::SignalTimeDependent< dynamicgraph::Matrix, sigtime_tjacobianSOUT

MemoryTaskAbstractmemoryInternal

dynamicgraph::SignalTimeDependent< VectorMultiBound, sigtime_ttaskSOUT


Protected Member Functions

 DYNAMIC_GRAPH_ENTITY_DECL ()

- Protected Member Functions inherited from dynamicgraph::sot::TaskAbstract
void taskRegistration (void)

- Protected Member Functions inherited from dynamicgraph::Entity
void addCommand (const std::string &name, command::Command *command)

void entityDeregistration ()

void entityRegistration ()

void signalDeregistration (const std::string &name)

void signalRegistration (const SignalArray< sigtime_t > &signals)


Protected Attributes

FeatureList_t featureList

bool withDerivative

- Protected Attributes inherited from dynamicgraph::Entity
CommandMap_t commandMap

Logger logger_

std::string name

SignalMap signalMap


Detailed Description

Class that defines the basic elements of a task.

A task is defined as $ {\bf s} ={\bf e}({\bf q}) $ where ${\bf s} $ is a set of features and ${\bf q}$ the actuated joints of the robot.
It is assumes that $ \dot{\bf e} = - \lambda {\bf e} $. Moreover as it assumed that this task can provide: $ {\bf J} = \frac{\delta f}{\delta {\bf q}} $ It then possible to compute $ \dot{\bf q} = -\lambda {\bf J}^{\#} \dot{\bf e}$ with $ \dot{\bf e} = {\bf s}^{des} - {\bf s}^* $, and $ {\bf s}^{des}$ the desired feature and $ {\bf s}^* $ the one currently measured.

It is possible to add features or clear the list of features. This class makes also possible to select some of the listed of features to compute the control law through setControlSelection, addControlSelection, clearControlSelection.

Definition at line 72 of file task.hh.

Member Typedef Documentation

◆ FeatureList_t

Definition at line 74 of file task.hh.

Constructor & Destructor Documentation

◆ Task()

Task::Task ( const std::string &  n)

Definition at line 34 of file task.cpp.

Member Function Documentation

◆ addControlSelection()

void Task::addControlSelection ( const Flags act)

Definition at line 135 of file task.cpp.

◆ addFeature()

void Task::addFeature ( FeatureAbstract s)

Definition at line 109 of file task.cpp.

◆ addFeatureFromName()

void Task::addFeatureFromName ( const std::string &  name)

Definition at line 116 of file task.cpp.

◆ clearControlSelection()

void Task::clearControlSelection ( void  )

Definition at line 140 of file task.cpp.

◆ clearFeatureList()

void Task::clearFeatureList ( void  )

Definition at line 122 of file task.cpp.

◆ computeError()

dynamicgraph::Vector & Task::computeError ( dynamicgraph::Vector error,
sigtime_t  time
)

Definition at line 149 of file task.cpp.

◆ computeErrorTimeDerivative()

dynamicgraph::Vector & Task::computeErrorTimeDerivative ( dynamicgraph::Vector res,
sigtime_t  time
)

Definition at line 215 of file task.cpp.

◆ computeJacobian()

dynamicgraph::Matrix & Task::computeJacobian ( dynamicgraph::Matrix J,
sigtime_t  time
)

Definition at line 253 of file task.cpp.

◆ computeTaskExponentialDecrease()

VectorMultiBound & Task::computeTaskExponentialDecrease ( VectorMultiBound errorRef,
sigtime_t  time
)

Definition at line 233 of file task.cpp.

◆ display()

void Task::display ( std::ostream &  os) const
virtual

Reimplemented from dynamicgraph::Entity.

Definition at line 321 of file task.cpp.

◆ DYNAMIC_GRAPH_ENTITY_DECL()

dynamicgraph::sot::Task::DYNAMIC_GRAPH_ENTITY_DECL ( )
protected

◆ getFeatureList()

FeatureList_t& dynamicgraph::sot::Task::getFeatureList ( void  )
inline

Definition at line 89 of file task.hh.

◆ getWithDerivative()

bool Task::getWithDerivative ( void  )

Definition at line 143 of file task.cpp.

◆ initCommands()

void Task::initCommands ( void  )

Definition at line 69 of file task.cpp.

◆ setControlSelection()

void Task::setControlSelection ( const Flags act)

Definition at line 134 of file task.cpp.

◆ setWithDerivative()

void Task::setWithDerivative ( const bool &  s)

Definition at line 142 of file task.cpp.

◆ writeGraph()

std::ostream & Task::writeGraph ( std::ostream &  os) const
virtual

Reimplemented from dynamicgraph::Entity.

Definition at line 331 of file task.cpp.

Member Data Documentation

◆ controlGainSIN

dynamicgraph::SignalPtr<double, sigtime_t> dynamicgraph::sot::Task::controlGainSIN

Definition at line 110 of file task.hh.

◆ controlSelectionSIN

dynamicgraph::SignalPtr<Flags, sigtime_t> dynamicgraph::sot::Task::controlSelectionSIN

Definition at line 112 of file task.hh.

◆ dampingGainSINOUT

dynamicgraph::SignalPtr<double, sigtime_t> dynamicgraph::sot::Task::dampingGainSINOUT

Definition at line 111 of file task.hh.

◆ errorSOUT

Definition at line 113 of file task.hh.

◆ errorTimeDerivativeSOUT

dynamicgraph::SignalTimeDependent<dynamicgraph::Vector, sigtime_t> dynamicgraph::sot::Task::errorTimeDerivativeSOUT

Definition at line 115 of file task.hh.

◆ featureList

FeatureList_t dynamicgraph::sot::Task::featureList
protected

Definition at line 77 of file task.hh.

◆ withDerivative

bool dynamicgraph::sot::Task::withDerivative
protected

Definition at line 78 of file task.hh.


The documentation for this class was generated from the following files:
