This file implements the base interface for all Serial and Ethernet ports. More...

#include <sbgCommon.h>

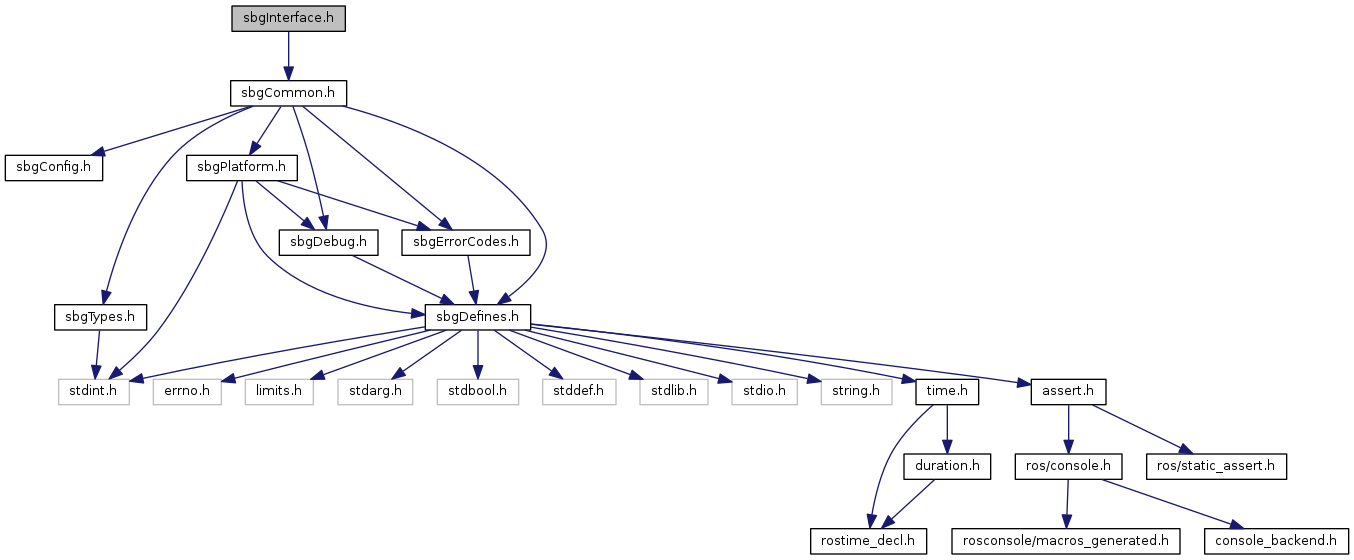

Include dependency graph for sbgInterface.h:

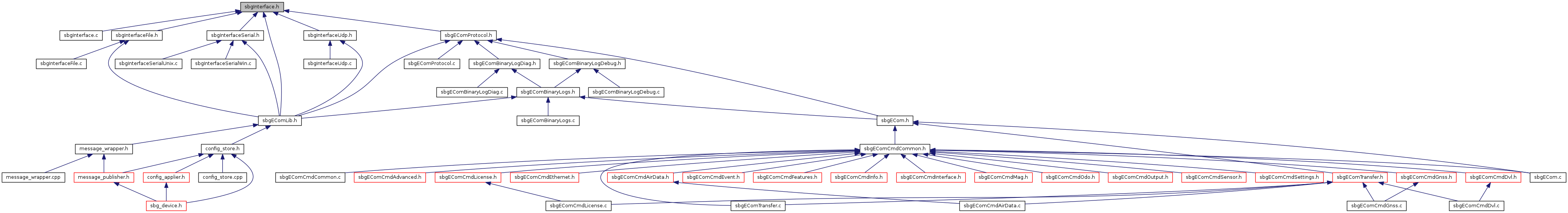

This graph shows which files directly or indirectly include this file:

Classes
struct	_SbgInterface

Macros
#define	SBG_IF_NAME_MAX_SIZE (48)

#define	SBG_IF_TYPE_ETH_TCP_IP (3)

#define	SBG_IF_TYPE_ETH_UDP (2)

#define	SBG_IF_TYPE_FILE (4)

#define	SBG_IF_TYPE_LAST_RESERVED (999)

#define	SBG_IF_TYPE_SERIAL (1)

#define	SBG_IF_TYPE_UNKNOW (0)

Typedefs
typedef struct _SbgInterface	SbgInterface

typedef SbgErrorCode(*	SbgInterfaceFlushFunc) (SbgInterface *pHandle)

typedef uint32_t(*	SbgInterfaceGetDelayFunc) (SbgInterface *pHandle, size_t numBytes)

typedef void *	SbgInterfaceHandle

typedef SbgErrorCode(*	SbgInterfaceReadFunc) (SbgInterface pHandle, void pBuffer, size_t *pReadBytes, size_t bytesToRead)

typedef SbgErrorCode(*	SbgInterfaceWriteFunc) (SbgInterface pHandle, const void pBuffer, size_t bytesToWrite)

Functions
SBG_INLINE SbgErrorCode	sbgInterfaceFlush (SbgInterface *pHandle)

SBG_INLINE uint32_t	sbgInterfaceGetDelay (SbgInterface *pHandle, size_t numBytes)

SBG_INLINE const char *	sbgInterfaceNameGet (const SbgInterface *pInterface)

SBG_COMMON_LIB_API void	sbgInterfaceNameSet (SbgInterface pInterface, const char pName)

SBG_INLINE SbgErrorCode	sbgInterfaceRead (SbgInterface pHandle, void pBuffer, size_t *pReadBytes, size_t bytesToRead)

SBG_INLINE uint32_t	sbgInterfaceTypeGet (const SbgInterface *pInterface)

SBG_COMMON_LIB_API const char *	sbgInterfaceTypeGetAsString (const SbgInterface *pInterface)

SBG_INLINE SbgErrorCode	sbgInterfaceWrite (SbgInterface pHandle, const void pBuffer, size_t bytesToWrite)

SBG_COMMON_LIB_API void	sbgInterfaceZeroInit (SbgInterface *pHandle)

Detailed Description

This file implements the base interface for all Serial and Ethernet ports.

Author: SBG Systems (Raphael Siryani)

Date: 10 December 2012

An interface is used to provide a common API for both serial and ethernet ports. An interface can be opened/closed and some data can be written or read from it.

Copyright Notice

This source code is intended for use only by SBG Systems SAS and those that have explicit written permission to use it from SBG Systems SAS.

THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.

Definition in file sbgInterface.h.

Macro Definition Documentation

#define SBG_IF_NAME_MAX_SIZE (48)

Maximum size in bytes for the interface name string

Definition at line 41 of file sbgInterface.h.

#define SBG_IF_TYPE_ETH_TCP_IP (3)

The interface is an TCP/IP one.

Definition at line 49 of file sbgInterface.h.

#define SBG_IF_TYPE_ETH_UDP (2)

The interface is an UDP one.

Definition at line 48 of file sbgInterface.h.

#define SBG_IF_TYPE_FILE (4)

The interface is a file.

Definition at line 50 of file sbgInterface.h.

#define SBG_IF_TYPE_LAST_RESERVED (999)

Last reserved value for standard types.

Definition at line 51 of file sbgInterface.h.

#define SBG_IF_TYPE_SERIAL (1)

The interface is a serial com port.

Definition at line 47 of file sbgInterface.h.

#define SBG_IF_TYPE_UNKNOW (0)

Type values reserved for standard interface types.The interface type is not defined.

Definition at line 46 of file sbgInterface.h.

Typedef Documentation

typedef struct _SbgInterface SbgInterface

Interface structure pre-definition.

Definition at line 60 of file sbgInterface.h.

typedef SbgErrorCode(* SbgInterfaceFlushFunc) (SbgInterface *pHandle)

Make an interface flush all pending input or output data.

Parameters

[in] pHandle Valid handle on an initialized interface.

Returns: SBG_NO_ERROR if successful.

Definition at line 104 of file sbgInterface.h.

typedef uint32_t(* SbgInterfaceGetDelayFunc) (SbgInterface *pHandle, size_t numBytes)

Compute and return the delay needed by the interface to transmit / receive X number of bytes.

This method isn't applicable to all interfaces and as such should return a default delay of zero.

Parameters

[in]	pHandle	Valid handle on an initialized interface.
[in]	numBytes	The number of bytes to transmit / receive to evaluate the needed delay.

Returns: The expected delay in us needed to transmit / receive the specified number of bytes or 0 if not applicable.

Definition at line 115 of file sbgInterface.h.

typedef void* SbgInterfaceHandle

Handle that stores the internal interface handle (ie Serial or Ethernet)

Definition at line 65 of file sbgInterface.h.

typedef SbgErrorCode(* SbgInterfaceReadFunc) (SbgInterface *pHandle, void *pBuffer, size_t *pReadBytes, size_t bytesToRead)

Method to implement to read data from an interface.

This method returns an error only if there is a 'low level' error on the interface. If no byte is read at all or less bytes than bytesToRead, this method returns SBG_NO_ERROR. You have to check pReadBytes field to know the number of bytes actually read.

Parameters

[in]	pHandle	Valid handle on an initialized interface.
[in]	pBuffer	Pointer on an allocated buffer that can hold at least bytesToRead bytes of data.
[out]	pReadBytes	Returns the number of bytes actually read (can be zero and up to bytesToRead).
[in]	bytesToRead	Maximum number of bytes to try to read on the interface.

Returns: SBG_NO_ERROR if zero or some bytes have been read successfully.

Definition at line 97 of file sbgInterface.h.

typedef SbgErrorCode(* SbgInterfaceWriteFunc) (SbgInterface *pHandle, const void *pBuffer, size_t bytesToWrite)

Method to implement to write a buffer to an interface.

This method should return an error only if all bytes were not written successfully. If you try to write zero byte, the method shouldn't return any error.

Parameters

[in]	pHandle	Valid handle on an initialized interface.
[in]	pBuffer	Pointer on an allocated buffer that contains the data to write
[in]	bytesToWrite	Number of bytes we would like to write (can be zero).

Returns: SBG_NO_ERROR if exactly bytesToWrite have been written successfully.

Definition at line 82 of file sbgInterface.h.

Function Documentation

SBG_INLINE SbgErrorCode sbgInterfaceFlush ( SbgInterface * pHandle )

Make an interface flush all pending input or output data.

This method isn't applicable to all interfaces and as such if no implementation is provided it does nothing.

Parameters

[in] pHandle Valid handle on an initialized interface.

Returns: SBG_NO_ERROR if successful.

Definition at line 211 of file sbgInterface.h.

SBG_INLINE uint32_t sbgInterfaceGetDelay	(	SbgInterface *	pHandle,
		size_t	numBytes
	)

Compute and return the delay needed by the interface to transmit / receive X number of bytes.

This method isn't applicable to all interfaces and as such if no implementation is provided a default delay of zero.

Parameters

[in]	pHandle	Valid handle on an initialized interface.
[in]	numBytes	The number of bytes to transmit / receive to evaluate the needed delay.

Returns: The expected delay in us needed to transmit / receive the specified number of bytes or 0 if not applicable.

Definition at line 244 of file sbgInterface.h.

SBG_INLINE const char* sbgInterfaceNameGet ( const SbgInterface * pInterface )

Returns the interface name string.

Parameters

[in] pInterface Interface instance

Returns: The interface name as a NULL terminated C string.

Definition at line 289 of file sbgInterface.h.

SBG_COMMON_LIB_API void sbgInterfaceNameSet	(	SbgInterface *	pInterface,
		const char *	pName
	)

Define the interface name as a NULL terminated C string.

This method make sure that the provided string will always fit within the allocated name buffer.

If the interface name you would like to set is too long, only the end of the string will be kept.

Parameters

[in]	pInterface	Interface instance
[in]	pName	The interface name to set as a NULL terminated C string

Definition at line 61 of file sbgInterface.c.

SBG_INLINE SbgErrorCode sbgInterfaceRead	(	SbgInterface *	pHandle,
		void *	pBuffer,
		size_t *	pReadBytes,
		size_t	bytesToRead
	)

Try to read some data from an interface.

This method returns an error only if there is a 'low level' error on the interface. If no byte is read at all or less bytes than bytesToRead, this method returns SBG_NO_ERROR. You have to check pReadBytes field to know the number of bytes actually read.

Parameters

[in]	pHandle	Valid handle on an initialized interface.
[in]	pBuffer	Pointer on an allocated buffer that can hold at least bytesToRead bytes of data.
[out]	pReadBytes	Returns the number of bytes actually read (can be zero and up to bytesToRead).
[in]	bytesToRead	Maximum number of bytes to try to read on the interface.

Returns: SBG_NO_ERROR if zero or some bytes have been read successfully.

Definition at line 190 of file sbgInterface.h.

SBG_INLINE uint32_t sbgInterfaceTypeGet ( const SbgInterface * pInterface )

Returns the interface type.

Parameters

[in] pInterface Interface instance

Returns: The interface type.

Definition at line 268 of file sbgInterface.h.

SBG_COMMON_LIB_API const char* sbgInterfaceTypeGetAsString ( const SbgInterface * pInterface )

Returns the interface as string.

Parameters

[in] pInterface Interface instance

Returns: The interface type.

Definition at line 46 of file sbgInterface.c.

SBG_INLINE SbgErrorCode sbgInterfaceWrite	(	SbgInterface *	pHandle,
		const void *	pBuffer,
		size_t	bytesToWrite
	)

Write some data to an interface.

This method should return an error only if all bytes were not written successfully. If you try to write zero byte, the method shouldn't return any error.

Parameters

[in]	pHandle	Valid handle on an initialized interface.
[in]	pBuffer	Pointer on an allocated buffer that contains the data to write
[in]	bytesToWrite	Number of bytes we would like to write (can be zero).

Returns: SBG_NO_ERROR if exactly bytesToWrite have been written successfully.

Definition at line 165 of file sbgInterface.h.

SBG_COMMON_LIB_API void sbgInterfaceZeroInit ( SbgInterface * pHandle )

Initialize an interface instance to zero.

Parameters

[in] pHandle Handle on an allocated interface to initialize to zero.

Definition at line 24 of file sbgInterface.c.
