sbgEComCmdOdo.c File Reference

This file implements SbgECom commands related to Odometer module. More...

#include "sbgEComCmdOdo.h"
#include <streamBuffer/sbgStreamBuffer.h>

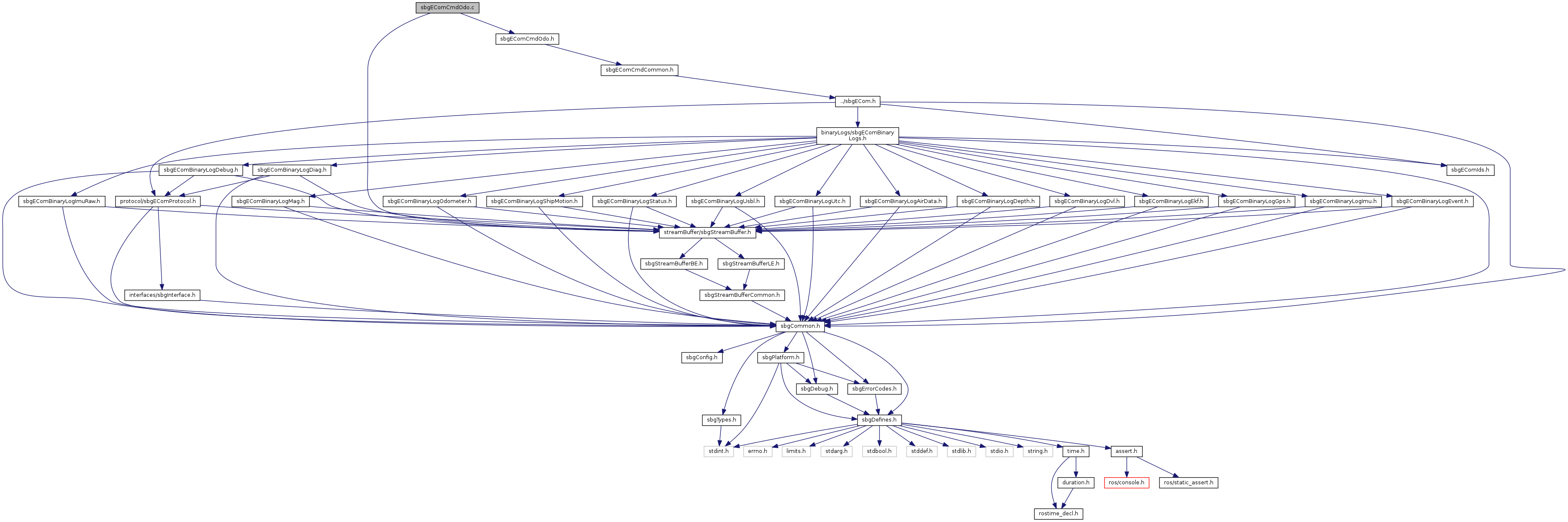

Include dependency graph for sbgEComCmdOdo.c:

Go to the source code of this file.

Functions
SbgErrorCode	sbgEComCmdOdoCanGetConf (SbgEComHandle *pHandle, SbgEComCmdOdoCanChannel canChannel, SbgEComCmdOdoCanConf *pOdoCanConf)
SbgErrorCode	sbgEComCmdOdoCanSetConf (SbgEComHandle *pHandle, SbgEComCmdOdoCanChannel canChannel, const SbgEComCmdOdoCanConf *pOdoCanConf)
SbgErrorCode	sbgEComCmdOdoGetConf (SbgEComHandle *pHandle, SbgEComOdoConf *pOdometerConf)
SbgErrorCode	sbgEComCmdOdoGetLeverArm (SbgEComHandle *pHandle, float leverArm[3])
SbgErrorCode	sbgEComCmdOdoGetRejection (SbgEComHandle *pHandle, SbgEComOdoRejectionConf *pRejectConf)
SbgErrorCode	sbgEComCmdOdoSetConf (SbgEComHandle *pHandle, const SbgEComOdoConf *pOdometerConf)
SbgErrorCode	sbgEComCmdOdoSetLeverArm (SbgEComHandle *pHandle, const float leverArm[3])
SbgErrorCode	sbgEComCmdOdoSetRejection (SbgEComHandle *pHandle, const SbgEComOdoRejectionConf *pRejectConf)

Detailed Description

This file implements SbgECom commands related to Odometer module.

Author

SBG Systems

Copyright Notice

Copyright (C) 2007-2019, SBG Systems SAS. All rights reserved.

This source code is intended for use only by SBG Systems SAS and those that have explicit written permission to use it from SBG Systems SAS.

THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.

Definition in file sbgEComCmdOdo.c.

Function Documentation

SbgErrorCode sbgEComCmdOdoCanGetConf	(	SbgEComHandle *	pHandle,
		SbgEComCmdOdoCanChannel	canChannel,
		SbgEComCmdOdoCanConf *	pOdoCanConf
	)

Retrieve the CAN odometer configuration for a specific CAN information channel

Parameters

[in]	pHandle	A valid sbgECom handle.
[in]	canChannel	The CAN channel to retreive associated DBC configuration.
[out]	pOdoCanConf	Struct to hold configuration of the CAN odometer.

Returns

SBG_NO_ERROR if the command has been executed successfully.

Definition at line 415 of file sbgEComCmdOdo.c.

SbgErrorCode sbgEComCmdOdoCanSetConf	(	SbgEComHandle *	pHandle,
		SbgEComCmdOdoCanChannel	canChannel,
		const SbgEComCmdOdoCanConf *	pOdoCanConf
	)

Set the CAN odometer configuration for a specific CAN information channel

Parameters

[in]	pHandle	A valid sbgECom handle.
[in]	canChannel	The CAN channel to define associated DBC configuration.
[in]	pOdoCanConf	Struct holding configuration for the CAN odometer.

Returns

SBG_NO_ERROR if the command has been executed successfully.

Definition at line 499 of file sbgEComCmdOdo.c.

SbgErrorCode sbgEComCmdOdoGetConf	(	SbgEComHandle *	pHandle,
		SbgEComOdoConf *	pOdometerConf
	)

For quadrature and/or pulse based odometer, retrieve the configuration.

Parameters

[in]	pHandle	A valid sbgECom handle.
[out]	pOdometerConf	Pointer to a SbgEComOdoConf struct to hold configuration of the odometer module.

Returns

SBG_NO_ERROR if the command has been executed successfully.

Definition at line 26 of file sbgEComCmdOdo.c.

SbgErrorCode sbgEComCmdOdoGetLeverArm	(	SbgEComHandle *	pHandle,
		float	leverArm[3]
	)

Retrieve the lever arm applicable for both quadrature or CAN based odometer.

Parameters

[in]	pHandle	A valid sbgECom handle.
[out]	leverArm	Array of three values, one for each axis.

Returns

SBG_NO_ERROR if the command has been executed successfully.

Definition at line 157 of file sbgEComCmdOdo.c.

SbgErrorCode sbgEComCmdOdoGetRejection	(	SbgEComHandle *	pHandle,
		SbgEComOdoRejectionConf *	pRejectConf
	)

Retrieve the velocity rejection configuration for both quadrature or CAN based odometer.

Parameters

[in]	pHandle	A valid sbgECom handle.
[out]	pRejectConf	Pointer to a SbgEComOdoRejectionConf struct to hold rejection configuration of the odometer module.

Returns

SBG_NO_ERROR if the command has been executed successfully.

Definition at line 288 of file sbgEComCmdOdo.c.

SbgErrorCode sbgEComCmdOdoSetConf	(	SbgEComHandle *	pHandle,
		const SbgEComOdoConf *	pOdometerConf
	)

For quadrature and/or pulse base odometer, define the configuration.

Parameters

[in]	pHandle	A valid sbgECom handle.
[in]	pOdometerConf	Pointer to a SbgEComOdoConf struct holding configuration for the odometer module.

Returns

SBG_NO_ERROR if the command has been executed successfully.

Definition at line 92 of file sbgEComCmdOdo.c.

SbgErrorCode sbgEComCmdOdoSetLeverArm	(	SbgEComHandle *	pHandle,
		const float	leverArm[3]
	)

Set the lever arm applicable for both quadrature or CAN based odometer.

Parameters

[in]	pHandle	A valid sbgECom handle.
[in]	leverArm	Array of three values, one for each axis.

Returns

SBG_NO_ERROR if the command has been executed successfully.

Definition at line 223 of file sbgEComCmdOdo.c.

SbgErrorCode sbgEComCmdOdoSetRejection	(	SbgEComHandle *	pHandle,
		const SbgEComOdoRejectionConf *	pRejectConf
	)

Set the velocity rejection configuration for both quadrature or CAN based odometer.

Parameters

[in]	pHandle	A valid sbgECom handle.
[in]	pRejectConf	Pointer to a SbgEComOdoRejectionConf struct holding rejection configuration for the odometer module.

Returns

SBG_NO_ERROR if the command has been executed successfully.

Definition at line 352 of file sbgEComCmdOdo.c.
