ompl_interface_ros::OMPLDynamicReconfigureConfig::ParamDescription< T > Class Template Reference

#include <OMPLDynamicReconfigureConfig.h>

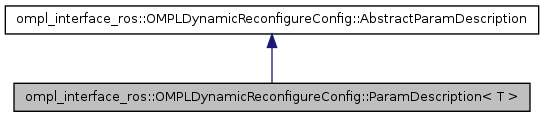

Inheritance diagram for ompl_interface_ros::OMPLDynamicReconfigureConfig::ParamDescription< T >:

List of all members.

Public Member Functions
virtual void	calcLevel (uint32_t &comb_level, const OMPLDynamicReconfigureConfig &config1, const OMPLDynamicReconfigureConfig &config2) const
virtual void	clamp (OMPLDynamicReconfigureConfig &config, const OMPLDynamicReconfigureConfig &max, const OMPLDynamicReconfigureConfig &min) const
template<>
void	clamp (OMPLDynamicReconfigureConfig &config, const OMPLDynamicReconfigureConfig &max, const OMPLDynamicReconfigureConfig &min) const
virtual bool	fromMessage (const dynamic_reconfigure::Config &msg, OMPLDynamicReconfigureConfig &config) const
virtual void	fromServer (const ros::NodeHandle &nh, OMPLDynamicReconfigureConfig &config) const
virtual void	getValue (const OMPLDynamicReconfigureConfig &config, boost::any &val) const
	ParamDescription (std::string name, std::string type, uint32_t level, std::string description, std::string edit_method, T OMPLDynamicReconfigureConfig::*f)
virtual void	toMessage (dynamic_reconfigure::Config &msg, const OMPLDynamicReconfigureConfig &config) const
virtual void	toServer (const ros::NodeHandle &nh, const OMPLDynamicReconfigureConfig &config) const
Public Attributes
TOMPLDynamicReconfigureConfig::*	field

---

Detailed Description

template<class T>
class ompl_interface_ros::OMPLDynamicReconfigureConfig::ParamDescription< T >

Definition at line 95 of file OMPLDynamicReconfigureConfig.h.

---

Constructor & Destructor Documentation

template<class T >

ompl_interface_ros::OMPLDynamicReconfigureConfig::ParamDescription< T >::ParamDescription	(	std::string	name,
		std::string	type,
		uint32_t	level,
		std::string	description,
		std::string	edit_method,
		T OMPLDynamicReconfigureConfig::*	f
	)		[inline]

Definition at line 98 of file OMPLDynamicReconfigureConfig.h.

---

Member Function Documentation

template<class T >

virtual void ompl_interface_ros::OMPLDynamicReconfigureConfig::ParamDescription< T >::calcLevel	(	uint32_t &	comb_level,
		const OMPLDynamicReconfigureConfig &	config1,
		const OMPLDynamicReconfigureConfig &	config2
	)		const [inline, virtual]

Implements ompl_interface_ros::OMPLDynamicReconfigureConfig::AbstractParamDescription.

Definition at line 115 of file OMPLDynamicReconfigureConfig.h.

template<class T >

virtual void ompl_interface_ros::OMPLDynamicReconfigureConfig::ParamDescription< T >::clamp	(	OMPLDynamicReconfigureConfig &	config,
		const OMPLDynamicReconfigureConfig &	max,
		const OMPLDynamicReconfigureConfig &	min
	)		const [inline, virtual]

Implements ompl_interface_ros::OMPLDynamicReconfigureConfig::AbstractParamDescription.

Definition at line 106 of file OMPLDynamicReconfigureConfig.h.

template<>

void ompl_interface_ros::OMPLDynamicReconfigureConfig::ParamDescription< std::string >::clamp	(	OMPLDynamicReconfigureConfig &	config,
		const OMPLDynamicReconfigureConfig &	max,
		const OMPLDynamicReconfigureConfig &	min
	)		const [inline, virtual]

Implements ompl_interface_ros::OMPLDynamicReconfigureConfig::AbstractParamDescription.

Definition at line 408 of file OMPLDynamicReconfigureConfig.h.

template<class T >

virtual bool ompl_interface_ros::OMPLDynamicReconfigureConfig::ParamDescription< T >::fromMessage	(	const dynamic_reconfigure::Config &	msg,
		OMPLDynamicReconfigureConfig &	config
	)		const [inline, virtual]

Implements ompl_interface_ros::OMPLDynamicReconfigureConfig::AbstractParamDescription.

Definition at line 131 of file OMPLDynamicReconfigureConfig.h.

template<class T >

virtual void ompl_interface_ros::OMPLDynamicReconfigureConfig::ParamDescription< T >::fromServer	(	const ros::NodeHandle &	nh,
		OMPLDynamicReconfigureConfig &	config
	)		const [inline, virtual]

Implements ompl_interface_ros::OMPLDynamicReconfigureConfig::AbstractParamDescription.

Definition at line 121 of file OMPLDynamicReconfigureConfig.h.

template<class T >

virtual void ompl_interface_ros::OMPLDynamicReconfigureConfig::ParamDescription< T >::getValue	(	const OMPLDynamicReconfigureConfig &	config,
		boost::any &	val
	)		const [inline, virtual]

Implements ompl_interface_ros::OMPLDynamicReconfigureConfig::AbstractParamDescription.

Definition at line 141 of file OMPLDynamicReconfigureConfig.h.

template<class T >

virtual void ompl_interface_ros::OMPLDynamicReconfigureConfig::ParamDescription< T >::toMessage	(	dynamic_reconfigure::Config &	msg,
		const OMPLDynamicReconfigureConfig &	config
	)		const [inline, virtual]

Implements ompl_interface_ros::OMPLDynamicReconfigureConfig::AbstractParamDescription.

Definition at line 136 of file OMPLDynamicReconfigureConfig.h.

template<class T >

virtual void ompl_interface_ros::OMPLDynamicReconfigureConfig::ParamDescription< T >::toServer	(	const ros::NodeHandle &	nh,
		const OMPLDynamicReconfigureConfig &	config
	)		const [inline, virtual]

Implements ompl_interface_ros::OMPLDynamicReconfigureConfig::AbstractParamDescription.

Definition at line 126 of file OMPLDynamicReconfigureConfig.h.

---

Member Data Documentation

template<class T >

TOMPLDynamicReconfigureConfig::* ompl_interface_ros::OMPLDynamicReconfigureConfig::ParamDescription< T >::field

Definition at line 104 of file OMPLDynamicReconfigureConfig.h.

---

The documentation for this class was generated from the following file:

• OMPLDynamicReconfigureConfig.h
