#include <katana_openrave_kinematics.h>

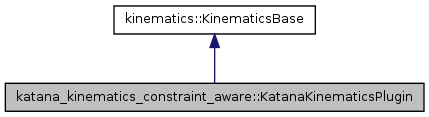

Inheritance diagram for katana_kinematics_constraint_aware::KatanaKinematicsPlugin:

Public Member Functions
std::string	getBaseFrame ()
	Return the frame in which the kinematics is operating.
std::vector< std::string >	getJointNames ()
	Return all the joint names in the order they are used internally.
std::vector< std::string >	getLinkNames ()
	Return all the link names in the order they are represented internally.
bool	getPositionFK (const std::vector< std::string > &link_names, const std::vector< double > &joint_angles, std::vector< geometry_msgs::Pose > &poses)
	Given a set of joint angles and a set of links, compute their pose.
bool	getPositionIK (const geometry_msgs::Pose &ik_pose, const std::vector< double > &ik_seed_state, std::vector< double > &solution, int &error_code)
	Given a desired pose of the end-effector, compute the joint angles to reach it.
std::string	getToolFrame ()
	Return the links for which kinematics can be computed.
bool	initialize (std::string name)
	Initialization function for the kinematics.
bool	isActive ()
	Specifies if the node is active or not.
	KatanaKinematicsPlugin ()
bool	searchPositionIK (const geometry_msgs::Pose &ik_pose, const std::vector< double > &ik_seed_state, const double &timeout, std::vector< double > &solution, int &error_code)
	Given a desired pose of the end-effector, search for the joint angles required to reach it. This particular method is intended for "searching" for a solutions by stepping through the redundancy (or other numerical routines).
bool	searchPositionIK (const geometry_msgs::Pose &ik_pose, const std::vector< double > &ik_seed_state, const double &timeout, std::vector< double > &solution, const boost::function< void(const geometry_msgs::Pose &ik_pose, const std::vector< double > &ik_solution, int &error_code)> &desired_pose_callback, const boost::function< void(const geometry_msgs::Pose &ik_pose, const std::vector< double > &ik_solution, int &error_code)> &solution_callback, int &error_code)
	Given a desired pose of the end-effector, search for the joint angles required to reach it. This particular method is intended for "searching" for a solutions by stepping through the redundancy (or other numerical routines).
Protected Member Functions
void	desiredPoseCallback (const std::vector< double > &joint_angles, const geometry_msgs::Pose &ik_pose, arm_navigation_msgs::ArmNavigationErrorCodes &error_code)
void	jointSolutionCallback (const std::vector< double > &joint_angles, const geometry_msgs::Pose &ik_pose, arm_navigation_msgs::ArmNavigationErrorCodes &error_code)
Protected Attributes
bool	active_
boost::function< void(const geometry_msgs::Pose &ik_pose, const std::vector< double > &ik_solution, int &error_code)>	desiredPoseCallback_
int	dimension_
ros::ServiceClient	fk_service_
kinematics_msgs::KinematicSolverInfo	fk_solver_info_
ros::ServiceClient	fk_solver_info_service_
ros::ServiceClient	ik_service_
kinematics_msgs::KinematicSolverInfo	ik_solver_info_
ros::ServiceClient	ik_solver_info_service_
ros::NodeHandle	node_handle_
urdf::Model	robot_model_
ros::NodeHandle	root_handle_
std::string	root_name_
boost::function< void(const geometry_msgs::Pose &ik_pose, const std::vector< double > &ik_solution, int &error_code)>	solutionCallback_
tf::TransformListener	tf_

Detailed Description

Definition at line 49 of file katana_openrave_kinematics.h.

Constructor & Destructor Documentation

katana_kinematics_constraint_aware::KatanaKinematicsPlugin::KatanaKinematicsPlugin ( )

Definition at line 41 of file katana_kinematics_plugin.cpp.

Member Function Documentation

void katana_kinematics_constraint_aware::KatanaKinematicsPlugin::desiredPoseCallback	(	const std::vector< double > &	joint_angles,
		const geometry_msgs::Pose &	ik_pose,
		arm_navigation_msgs::ArmNavigationErrorCodes &	error_code
	)		`[protected]`

Definition at line 226 of file katana_kinematics_plugin.cpp.

std::string katana_kinematics_constraint_aware::KatanaKinematicsPlugin::getBaseFrame ( ) [virtual]

Return the frame in which the kinematics is operating.

Returns:: the string name of the frame in which the kinematics is operating

Implements kinematics::KinematicsBase.

Definition at line 424 of file katana_kinematics_plugin.cpp.

std::vector< std::string > katana_kinematics_constraint_aware::KatanaKinematicsPlugin::getJointNames ( ) [virtual]

Return all the joint names in the order they are used internally.

Implements kinematics::KinematicsBase.

Definition at line 445 of file katana_kinematics_plugin.cpp.

std::vector< std::string > katana_kinematics_constraint_aware::KatanaKinematicsPlugin::getLinkNames ( ) [virtual]

Return all the link names in the order they are represented internally.

Implements kinematics::KinematicsBase.

Definition at line 456 of file katana_kinematics_plugin.cpp.

bool katana_kinematics_constraint_aware::KatanaKinematicsPlugin::getPositionFK	(	const std::vector< std::string > &	link_names,
		const std::vector< double > &	joint_angles,
		std::vector< geometry_msgs::Pose > &	poses
	)		`[virtual]`

Given a set of joint angles and a set of links, compute their pose.

Parameters:

request	- the request contains the joint angles, set of links for which poses are to be computed and a timeout
response	- the response contains stamped pose information for all the requested links

Returns:: True if a valid solution was found, false otherwise

Implements kinematics::KinematicsBase.

Definition at line 367 of file katana_kinematics_plugin.cpp.

bool katana_kinematics_constraint_aware::KatanaKinematicsPlugin::getPositionIK	(	const geometry_msgs::Pose &	ik_pose,
		const std::vector< double > &	ik_seed_state,
		std::vector< double > &	solution,
		int &	error_code
	)		`[virtual]`

Given a desired pose of the end-effector, compute the joint angles to reach it.

Parameters:

ik_link_name	- the name of the link for which IK is being computed
ik_pose	the desired pose of the link
ik_seed_state	an initial guess solution for the inverse kinematics

Returns:: True if a valid solution was found, false otherwise

Implements kinematics::KinematicsBase.

Definition at line 131 of file katana_kinematics_plugin.cpp.

std::string katana_kinematics_constraint_aware::KatanaKinematicsPlugin::getToolFrame ( ) [virtual]

Return the links for which kinematics can be computed.

Implements kinematics::KinematicsBase.

Definition at line 434 of file katana_kinematics_plugin.cpp.

bool katana_kinematics_constraint_aware::KatanaKinematicsPlugin::initialize ( std::string name ) [virtual]

Initialization function for the kinematics.

Returns:: True if initialization was successful, false otherwise

Implements kinematics::KinematicsBase.

Definition at line 53 of file katana_kinematics_plugin.cpp.

bool katana_kinematics_constraint_aware::KatanaKinematicsPlugin::isActive ( )

Specifies if the node is active or not.

Returns:: True if the node is active, false otherwise.

Definition at line 46 of file katana_kinematics_plugin.cpp.

void katana_kinematics_constraint_aware::KatanaKinematicsPlugin::jointSolutionCallback	(	const std::vector< double > &	joint_angles,
		const geometry_msgs::Pose &	ik_pose,
		arm_navigation_msgs::ArmNavigationErrorCodes &	error_code
	)		`[protected]`

Definition at line 241 of file katana_kinematics_plugin.cpp.

bool katana_kinematics_constraint_aware::KatanaKinematicsPlugin::searchPositionIK	(	const geometry_msgs::Pose &	ik_pose,
		const std::vector< double > &	ik_seed_state,
		const double &	timeout,
		std::vector< double > &	solution,
		int &	error_code
	)		`[virtual]`

Given a desired pose of the end-effector, search for the joint angles required to reach it. This particular method is intended for "searching" for a solutions by stepping through the redundancy (or other numerical routines).

Parameters:

ik_pose	the desired pose of the link
ik_seed_state	an initial guess solution for the inverse kinematics

Returns:: True if a valid solution was found, false otherwise

Implements kinematics::KinematicsBase.

Definition at line 178 of file katana_kinematics_plugin.cpp.

bool katana_kinematics_constraint_aware::KatanaKinematicsPlugin::searchPositionIK	(	const geometry_msgs::Pose &	ik_pose,
		const std::vector< double > &	ik_seed_state,
		const double &	timeout,
		std::vector< double > &	solution,
		const boost::function< void(const geometry_msgs::Pose &ik_pose, const std::vector< double > &ik_solution, int &error_code)> &	desired_pose_callback,
		const boost::function< void(const geometry_msgs::Pose &ik_pose, const std::vector< double > &ik_solution, int &error_code)> &	solution_callback,
		int &	error_code
	)		`[virtual]`

Given a desired pose of the end-effector, search for the joint angles required to reach it. This particular method is intended for "searching" for a solutions by stepping through the redundancy (or other numerical routines).

Parameters:
