#include <unistd.h>
#include <stdio.h>
#include <stdlib.h>
#include <ctype.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <sys/time.h>
#include <netdb.h>
#include <arpa/inet.h>
#include <errno.h>
#include "xssocket.h"

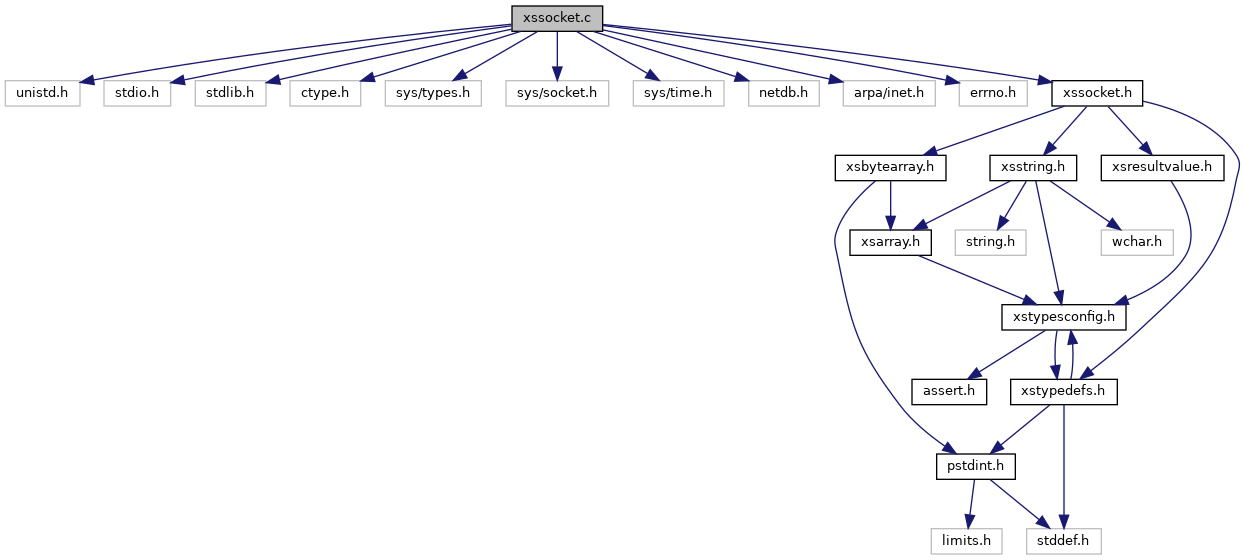

Include dependency graph for xssocket.c:

Classes
struct	XsSocketPrivate

Macros
#define	INVALID_SOCKET ((int32_t)-1)

#define	MSG_NOSIGNAL 0

#define	PEEKBUFSIZE 32768

#define	SOCKET int32_t

#define	SOCKET_ERROR -1

Typedefs
typedef int(*	lookupTestFunction) (XsSocket thisPtr, SOCKET currentSocket, struct addrinfo const info)

Functions
static int	binder (XsSocket thisPtr, SOCKET currentSocket, struct addrinfo const info)

static int	closesocket (SOCKET s)

static int	connector (XsSocket thisPtr, SOCKET currentSocket, struct addrinfo const info)

static int	defaultLookupTest (XsSocket thisPtr, SOCKET currentSocket, struct addrinfo const info)

static void	getRemoteHostAddress (const struct sockaddr_storage remote, XsString address)
	Get the IP address of remote. More...

int	isIPv4Address (XsString const *hostname)

static int	peekPendingDataSize (XsSocket *thisPtr)

static XsResultValue	setLastResult (XsSocket *thisPtr, XsResultValue retval, int systemError)

static int	socketIsUsable (SOCKET s)

static XsResultValue	translateAndReturnSocketError (XsSocket *thisPtr, int functionResult)

static void	translateSocketError (XsSocket *thisPtr, int functionResult)

XsSocket *	XsSocket_accept (XsSocket *thisPtr, int mstimeout)
	Accept an incoming connection. More...

XsSocket *	XsSocket_allocate ()
	Dynamically allocate an XsSocket. More...

XsResultValue	XsSocket_bind (XsSocket thisPtr, const XsString hostname, uint16_t port)
	Bind to the hostname and port combination. More...

int	XsSocket_broadcast (XsSocket thisPtr, const void data, XsSize size, uint16_t port)
	Broadcast data over the socket to the port indicated by port. More...

XsResultValue	XsSocket_connect (XsSocket thisPtr, const XsString host, uint16_t port)
	Connect to hostame on port. More...

void	XsSocket_create (XsSocket *thisPtr, enum NetworkLayerProtocol ip, enum IpProtocol protocol)
	Create socket thisPtr for IP version ip with protocol protocol. More...

void	XsSocket_createFromNativeSocket (XsSocket thisPtr, SOCKET nativeSocket, struct sockaddr const theirInfo, socklen_t infolen, XsDataFlags flags)

void	XsSocket_destroy (XsSocket *thisPtr)
	Destroy the given socket. More...

void	XsSocket_fixupHostname (XsSocket const thisPtr, XsString hostname)

void	XsSocket_flush (XsSocket *thisPtr)
	Flush the incoming data. More...

void	XsSocket_free (XsSocket *thisPtr)
	Free a socket returned from XsSocket_accept() or XsSocket_allocate() More...

int	XsSocket_getLastSystemError (const XsSocket *thisPtr)
	Return the system error code of the last socket operation. More...

void	XsSocket_getRemoteAddress (const XsSocket thisPtr, XsString address)
	Get the numeric IP address of remote host of this socket. More...

static void	XsSocket_initialize (XsSocket *thisPtr, XsDataFlags flags)

static XsResultValue	XsSocket_internalLookup (XsSocket thisPtr, const XsString hostname, uint16_t port, int hints_flags, lookupTestFunction tester, struct sockaddr info, socklen_t addrlen)

int	XsSocket_isUsable (const XsSocket *thisPtr)
	Return non-zero if the socket is usable for reading and writing data. More...

XsResultValue	XsSocket_listen (XsSocket *thisPtr, int maxPending)
	Start listening for incoming connections on this socket. More...

static XsResultValue	XsSocket_lookup (XsSocket thisPtr, const XsString hostname, uint16_t port, struct sockaddr info, socklen_t addrlen)
	Perform a lookup. More...

XSOCKET	XsSocket_nativeDescriptor (XsSocket const *thisPtr)
	Return the native file descriptor. More...

int	XsSocket_read (XsSocket thisPtr, void dest, XsSize size, int timeout)
	Read size data into dest. More...

int	XsSocket_read2ByteArray (XsSocket thisPtr, XsByteArray dest, int timeout)
	Read size data into dest. More...

int	XsSocket_readFrom (XsSocket thisPtr, void dest, XsSize size, XsString hostname, uint16_t port, int timeout)
	Read size data into dest. More...

int	XsSocket_readFrom2ByteArray (XsSocket thisPtr, XsByteArray dest, XsString hostname, uint16_t port, int timeout)
	Read size data into dest. More...

int	XsSocket_write (XsSocket thisPtr, const void data, XsSize size)
	Write data to the socket. More...

int	XsSocket_writeTo (XsSocket thisPtr, const void data, XsSize size, const XsString *hostname, uint16_t port)
	Write data to the socket to the host indicated by hostname, port. More...

Macro Definition Documentation

◆ INVALID_SOCKET

#define INVALID_SOCKET ((int32_t)-1)

Definition at line 85 of file xssocket.c.

◆ MSG_NOSIGNAL

#define MSG_NOSIGNAL 0

Definition at line 102 of file xssocket.c.

◆ PEEKBUFSIZE

#define PEEKBUFSIZE 32768

Definition at line 108 of file xssocket.c.

◆ SOCKET

#define SOCKET int32_t

Definition at line 83 of file xssocket.c.

◆ SOCKET_ERROR

#define SOCKET_ERROR -1

Definition at line 84 of file xssocket.c.

Typedef Documentation

◆ lookupTestFunction

typedef int(* lookupTestFunction) (XsSocket *thisPtr, SOCKET currentSocket, struct addrinfo const *info)

Definition at line 728 of file xssocket.c.

Function Documentation

◆ binder()

static int binder	(	XsSocket *	thisPtr,
		SOCKET	currentSocket,
		struct addrinfo const *	info
	)

static

Definition at line 1188 of file xssocket.c.

◆ closesocket()

static int closesocket ( SOCKET s )

static

Definition at line 88 of file xssocket.c.

◆ connector()

static int connector	(	XsSocket *	thisPtr,
		SOCKET	currentSocket,
		struct addrinfo const *	info
	)

static

Definition at line 1269 of file xssocket.c.

◆ defaultLookupTest()

static int defaultLookupTest	(	XsSocket *	thisPtr,
		SOCKET	currentSocket,
		struct addrinfo const *	info
	)

static

Definition at line 839 of file xssocket.c.

◆ getRemoteHostAddress()

static void getRemoteHostAddress	(	const struct sockaddr_storage *	remote,
		XsString *	address
	)

static

Get the IP address of remote.

Parameters

[in]	remote	the socket address info of the remote peer
[in,out]	address	XsString to return the host IP address in.

Definition at line 145 of file xssocket.c.

◆ isIPv4Address()

int isIPv4Address ( XsString const * hostname )

Definition at line 677 of file xssocket.c.

◆ peekPendingDataSize()

static int peekPendingDataSize ( XsSocket * thisPtr )

static

Definition at line 551 of file xssocket.c.

◆ setLastResult()

static XsResultValue setLastResult	(	XsSocket *	thisPtr,
		XsResultValue	retval,
		int	systemError
	)

static

Definition at line 171 of file xssocket.c.

◆ socketIsUsable()

static int socketIsUsable ( SOCKET s )

static

Definition at line 134 of file xssocket.c.

◆ translateAndReturnSocketError()

static XsResultValue translateAndReturnSocketError	(	XsSocket *	thisPtr,
		int	functionResult
	)

static

Definition at line 185 of file xssocket.c.

◆ translateSocketError()

static void translateSocketError	(	XsSocket *	thisPtr,
		int	functionResult
	)

static

Definition at line 324 of file xssocket.c.

◆ XsSocket_accept()

XsSocket* XsSocket_accept	(	XsSocket *	thisPtr,
		int	mstimeout
	)

Accept an incoming connection.

This function requires that XsSocket_listen() has already been called.

The returned pointer should be freed using XsSocket_freeAcceptedSocket().

\param[in] mstimeout the timeout in milliseconds

\returns a pointer to a newly created socket for the new connection. NULL on error.
\relates XsSocket

Definition at line 1084 of file xssocket.c.

◆ XsSocket_allocate()

XsSocket* XsSocket_allocate ( )

Dynamically allocate an XsSocket.

After calling this function, it is still required to call
XsSocket_create or the internal function XsSocket_createFromNativeSocket

Use XsSocket_free to safely free the returned XsSocket.

\returns a pointer to a newly allocated XsSocket, or NULL on error

Definition at line 1126 of file xssocket.c.

◆ XsSocket_bind()

XsResultValue XsSocket_bind	(	XsSocket *	thisPtr,
		const XsString *	hostname,
		uint16_t	port
	)

Bind to the hostname and port combination.

\param[in] hostname the hostname to bind to, may be NULL, in which we will bind to any address
\param[in] port the port to bind to. Must be a value above 1023, unless we have elevated privileges

\return an XsResultValue indicating the result of the operation, possibly pointing towards a cause
\relates XsSocket

Definition at line 1220 of file xssocket.c.

◆ XsSocket_broadcast()

int XsSocket_broadcast	(	XsSocket *	thisPtr,
		const void *	data,
		XsSize	size,
		uint16_t	port
	)

Broadcast data over the socket to the port indicated by port.

\param[in] data the data to write
\param[in] size the size of the data
\param[in] port the port to send data to

\returns the number of bytes written, -1 on error, depending on whether the majority of sub broadcasts succeeded or failed.
\relates XsSocket

Definition at line 924 of file xssocket.c.

◆ XsSocket_connect()

XsResultValue XsSocket_connect	(	XsSocket *	thisPtr,
		const XsString *	host,
		uint16_t	port
	)

Connect to hostame on port.

\param[in] host the hostname to connect to
\param[in] port the port to connect to

\returns an XsResultValue indicating the result of the operation
\relates XsSocket

Definition at line 1296 of file xssocket.c.

◆ XsSocket_create()

void XsSocket_create	(	XsSocket *	thisPtr,
		enum NetworkLayerProtocol	ip,
		enum IpProtocol	protocol
	)

Create socket thisPtr for IP version ip with protocol protocol.

\param[in] ip the IP version
\param[in] protocol the protocol. Currently supported are TCP and UDP
\relates XsSocket

Definition at line 350 of file xssocket.c.

◆ XsSocket_createFromNativeSocket()

void XsSocket_createFromNativeSocket	(	XsSocket *	thisPtr,
		SOCKET	nativeSocket,
		struct sockaddr const *	theirInfo,
		socklen_t	infolen,
		XsDataFlags	flags
	)

Definition at line 369 of file xssocket.c.

◆ XsSocket_destroy()

void XsSocket_destroy ( XsSocket * thisPtr )

Destroy the given socket.

After calling this function, the XsSocket will no longer be usable for socket communications.

It is safe to call this function twice on the same XsSocket.

If the socket was created from a file descriptor using
XsSocket_createFromFileDescriptor and had the XSDF_Managed flag set then
the underlying socket will be closed.

\relates XsSocket

Definition at line 457 of file xssocket.c.

◆ XsSocket_fixupHostname()

void XsSocket_fixupHostname	(	XsSocket const *	thisPtr,
		XsString *	hostname
	)

Definition at line 713 of file xssocket.c.

◆ XsSocket_flush()

void XsSocket_flush ( XsSocket * thisPtr )

Flush the incoming data.

Flush all data from the incoming buffer.

\relates XsSocket

Definition at line 1063 of file xssocket.c.

◆ XsSocket_free()

void XsSocket_free ( XsSocket * thisPtr )

Free a socket returned from XsSocket_accept() or XsSocket_allocate()

Use this function only on sockets returned from XsSocket_accept().

This function calls XsSocket_destroy() before freeing the memory.

\see XsSocket_destroy
\relates XsSocket

Definition at line 1140 of file xssocket.c.

◆ XsSocket_getLastSystemError()

int XsSocket_getLastSystemError ( const XsSocket * thisPtr )

Return the system error code of the last socket operation.

Returns: The error code

Definition at line 1324 of file xssocket.c.

◆ XsSocket_getRemoteAddress()

void XsSocket_getRemoteAddress	(	const XsSocket *	thisPtr,
		XsString *	address
	)

Get the numeric IP address of remote host of this socket.

Parameters

[in,out] address XsString to return the remote host IP address in

Definition at line 1315 of file xssocket.c.

◆ XsSocket_initialize()

static void XsSocket_initialize	(	XsSocket *	thisPtr,
		XsDataFlags	flags
	)

static

Definition at line 333 of file xssocket.c.

◆ XsSocket_internalLookup()

static XsResultValue XsSocket_internalLookup	(	XsSocket *	thisPtr,
		const XsString *	hostname,
		uint16_t	port,
		int	hints_flags,
		lookupTestFunction	tester,
		struct sockaddr *	info,
		socklen_t *	addrlen
	)

static

Definition at line 744 of file xssocket.c.

◆ XsSocket_isUsable()

int XsSocket_isUsable ( const XsSocket * thisPtr )

Return non-zero if the socket is usable for reading and writing data.

\returns non-zero if the socket is usable for reading and writing data, zero otherwise
\relates XsSocket

Definition at line 1306 of file xssocket.c.

◆ XsSocket_listen()

XsResultValue XsSocket_listen	(	XsSocket *	thisPtr,
		int	maxPending
	)

Start listening for incoming connections on this socket.

\param[in] maxPending the maximum amount of pending connections

\return an XsResultValue indicating the result of the operation
\relates XsSocket

Definition at line 1259 of file xssocket.c.

◆ XsSocket_lookup()

static XsResultValue XsSocket_lookup	(	XsSocket *	thisPtr,
		const XsString *	hostname,
		uint16_t	port,
		struct sockaddr *	info,
		socklen_t *	addrlen
	)

static

Perform a lookup.

Definition at line 846 of file xssocket.c.

◆ XsSocket_nativeDescriptor()

XSOCKET XsSocket_nativeDescriptor ( XsSocket const * thisPtr )

Return the native file descriptor.

 The native socket descriptor returned from this function should only be
 passed to third party libraries. However, it is possible to select, read and
 write on it, if you know what you're doing. Do remember that this object
 still manages the lifetime of the file descriptor.

Definition at line 422 of file xssocket.c.

◆ XsSocket_read()

int XsSocket_read	(	XsSocket *	thisPtr,
		void *	dest,
		XsSize	size,
		int	timeout
	)

Read size data into dest.

\param[in,out] dest a pointer to a data buffer
\param[in] size the size of the buffer \a dest points to
\param[in] timeout the amount of time in milliseconds to wait for data

\returns the size of the data read from the socket, -1 on error.
\relates XsSocket

Definition at line 545 of file xssocket.c.

◆ XsSocket_read2ByteArray()

int XsSocket_read2ByteArray	(	XsSocket *	thisPtr,
		XsByteArray *	dest,
		int	timeout
	)

Read size data into dest.

\param[in,out] dest a pointer to a data buffer XsByteArray, may be NULL, in which case only the size of the pending data is reported.
\param[in] timeout the amount of time in milliseconds to wait for data

\returns the size of the data read from the socket, -1 on error.
\relates XsSocket

Definition at line 609 of file xssocket.c.

◆ XsSocket_readFrom()

int XsSocket_readFrom	(	XsSocket *	thisPtr,
		void *	dest,
		XsSize	size,
		XsString *	hostname,
		uint16_t *	port,
		int	timeout
	)

Read size data into dest.

\param[in,out] dest a pointer to a data buffer, may be NULL, in which case only the size of the pending data is reported.
\param[in] size the size of the buffer \a dest points to
\param[in,out] hostname a pointer to a string that contains the hostname of the sender after returning from this function. May be NULL.
\param[in,out] port a pointer that will contain the port of the sender after returning from this function. May be NULL.
\param[in] timeout the amount of time in milliseconds to wait for data

\returns the size of the data read from the socket, -1 on error.
\relates XsSocket

Definition at line 574 of file xssocket.c.

◆ XsSocket_readFrom2ByteArray()

int XsSocket_readFrom2ByteArray	(	XsSocket *	thisPtr,
		XsByteArray *	dest,
		XsString *	hostname,
		uint16_t *	port,
		int	timeout
	)

Read size data into dest.

\param[in,out] dest a pointer to a data buffer XsByteArray, may be NULL, in which case only the size of the pending data is reported.
\param[in,out] hostname a pointer to a string that contains the hostname of the sender after returning from this function. May be NULL.
\param[in,out] port a pointer that will contain the port of the sender after returning from this function. May be NULL.
\param[in] timeout the amount of time in milliseconds to wait for data

\returns the size of the data read from the socket, -1 on error.
\relates XsSocket

Definition at line 624 of file xssocket.c.

◆ XsSocket_write()

int XsSocket_write	(	XsSocket *	thisPtr,
		const void *	data,
		XsSize	size
	)

Write data to the socket.

\param[in] data a pointer to the data to write
\param[in] size the size of the data to write

\returns the number of bytes written, -1 or 0 on error
\relates XsSocket

Definition at line 665 of file xssocket.c.

◆ XsSocket_writeTo()

int XsSocket_writeTo	(	XsSocket *	thisPtr,
		const void *	data,
		XsSize	size,
		const XsString *	hostname,
		uint16_t	port
	)

Write data to the socket to the host indicated by hostname, port.

\param[in] data the data to write
\param[in] size the size of the data
\param[in] hostname the name of the host to send data to
\param[in] port the port to send data to

\returns the number of bytes written, -1 on error.
\relates XsSocket

Definition at line 861 of file xssocket.c.

Classes

Macros

Typedefs

Functions

Macro Definition Documentation

◆ INVALID_SOCKET

◆ MSG_NOSIGNAL

◆ PEEKBUFSIZE

◆ SOCKET

◆ SOCKET_ERROR

Typedef Documentation

◆ lookupTestFunction

Function Documentation

◆ binder()

◆ closesocket()

◆ connector()

◆ defaultLookupTest()

◆ getRemoteHostAddress()

◆ isIPv4Address()

◆ peekPendingDataSize()

◆ setLastResult()

◆ socketIsUsable()

◆ translateAndReturnSocketError()

◆ translateSocketError()

◆ XsSocket_accept()

◆ XsSocket_allocate()

◆ XsSocket_bind()

◆ XsSocket_broadcast()

◆ XsSocket_connect()

◆ XsSocket_create()

◆ XsSocket_createFromNativeSocket()

◆ XsSocket_destroy()

◆ XsSocket_fixupHostname()

◆ XsSocket_flush()

◆ XsSocket_free()

◆ XsSocket_getLastSystemError()

◆ XsSocket_getRemoteAddress()

◆ XsSocket_initialize()

◆ XsSocket_internalLookup()

◆ XsSocket_isUsable()

◆ XsSocket_listen()

◆ XsSocket_lookup()

◆ XsSocket_nativeDescriptor()

◆ XsSocket_read()

◆ XsSocket_read2ByteArray()

◆ XsSocket_readFrom()

◆ XsSocket_readFrom2ByteArray()

◆ XsSocket_write()

◆ XsSocket_writeTo()
