Performs restore communication procedure with a provided COM port. More...

#include <restorecommunication.h>

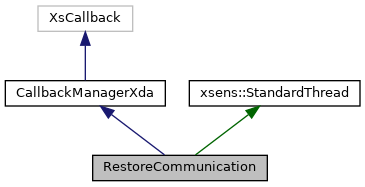

Inheritance diagram for RestoreCommunication:

[legend]

Public Member Functions
	RestoreCommunication (XsControl *control)
	Constructor. More...

XsResultValue	start (const XsString &portName)
	Starts the restore communication procedure. More...

void	stop ()
	Stops the restore communication procedure. More...

	~RestoreCommunication ()
	Destructor. More...

Public Member Functions inherited from CallbackManagerXda
void	addCallbackHandler (XsCallbackPlainC *cb, bool chain=true)
	Add a handler to the list. More...

void	addChainedManager (CallbackManagerXda *cm)
	Add a chained manager to the list. More...

	CallbackManagerXda ()
	Constructor, initializes the callback list. More...

void	clearCallbackHandlers (bool chain=true)
	Clear the callback list. More...

void	clearChainedManagers ()
	Clear the chained manager list. More...

void	copyCallbackHandlersFrom (CallbackManagerXda *cm, bool chain=true)
	Copy all handlers from cm into this manager. More...

void	copyCallbackHandlersTo (CallbackManagerXda *cm, bool chain=true)
	Copy all handlers from this manager into cm. More...

void	onAllBufferedDataAvailable (XsDevicePtrArray devs, const XsDataPacketPtrArray packets) override
	The XsCallback::onAllBufferedDataAvailable() callback forwarding function. More...

void	onAllDataAvailable (XsDevicePtrArray devs, const XsDataPacketPtrArray packets) override
	The XsCallback::onAllDataAvailable() callback forwarding function. More...

void	onAllLiveDataAvailable (XsDevicePtrArray devs, const XsDataPacketPtrArray packets) override
	The XsCallback::onAllLiveDataAvailable() callback forwarding function. More...

void	onAllRecordedDataAvailable (XsDevicePtrArray devs, const XsDataPacketPtrArray packets) override
	The XsCallback::onAllRecordedDataAvailable() callback forwarding function. More...

void	onBufferedDataAvailable (XsDevice dev, const XsDataPacket data) override
	The XsCallback::onBufferedDataAvailable() callback forwarding function. More...

void	onConnectivityChanged (XsDevice *dev, XsConnectivityState newState) override
	The XsCallback::onConnectivityChanged() callback forwarding function. More...

void	onDataAvailable (XsDevice dev, const XsDataPacket data) override
	The XsCallback::onDataAvailable() callback forwarding function. More...

void	onDataUnavailable (XsDevice *dev, int64_t packetId) override
	The XsCallback::onDataUnavailable() callback forwarding function. More...

void	onDeviceStateChanged (XsDevice *dev, XsDeviceState newState, XsDeviceState oldState) override
	The XsCallback::onDeviceStateChanged() callback forwarding function. More...

void	onError (XsDevice *dev, XsResultValue error) override
	The Xscallback::onError() callback forwarding function. More...

void	onInfoResponse (XsDevice *dev, XsInfoRequest request) override
	The XsCallback::onInfoResponse() callback forwarding function. More...

void	onLiveDataAvailable (XsDevice dev, const XsDataPacket packet) override
	The XsCallback::onLiveDataAvailable() callback forwarding function. More...

void	onMessageDetected (XsDevice dev, XsProtocolType type, XsByteArray const rawMessage) override
	The Xscallback::onMessageReceivedFromDevice() callback forwarding function. More...

void	onMessageReceivedFromDevice (XsDevice dev, XsMessage const message) override
	The Xscallback::onMessageReceivedFromDevice() callback forwarding function. More...

void	onMessageSentToDevice (XsDevice dev, XsMessage const message) override
	The Xscallback::onMessageSentToDevice() callback forwarding function. More...

void	onMissedPackets (XsDevice *dev, int count, int first, int last) override
	The XsCallback::onMissedPackets() callback forwarding function. More...

void	onNonDataMessage (XsDevice dev, XsMessage const message) override
	The Xscallback::onNonDataMessage() callback forwarding function. More...

void	onProgressUpdated (XsDevice dev, int current, int total, const XsString identifier) override
	The XsCallback::onProgressUpdated() callback forwarding function. More...

void	onRecordedDataAvailable (XsDevice dev, const XsDataPacket data) override
	The XsCallback::onRecordedDataAvailable() callback forwarding function. More...

void	onRestoreCommunication (const XsString *portName, XsResultValue result) override
	The Xscallback::onRestoreCommunication callback forwarding function. More...

void	onTransmissionRequest (int channelId, const XsByteArray *data) override

void	onWakeupReceived (XsDevice *dev) override
	The XsCallback::onWakeupReceived() callback forwarding function. More...

int	onWriteMessageToLogFile (XsDevice dev, const XsMessage message) override
	The XsCallback::onWriteMessageToLogFile() callback forwarding function. More...

void	removeCallbackHandler (XsCallbackPlainC *cb, bool chain=true)
	Remove a handler from the list. More...

void	removeChainedManager (CallbackManagerXda *cm)
	Remove achained manager from the list. More...

	~CallbackManagerXda ()
	Destructor, clears the callback list. More...

Protected Member Functions
int32_t	innerFunction (void) override
	Inner function for an execution on a thread. More...

Protected Member Functions inherited from xsens::StandardThread
virtual void	exitFunction (void)
	Virtual exit function. More...

virtual void	initFunction (void)
	Virtual initialization function. More...

XsThread	threadHandle () const
	Return the thread handle. More...

XsThreadId	getThreadId (void) const

bool	isAlive (void) volatile const noexcept

bool	isRunning (void) volatile const noexcept
	Returns whether the thread is currently running. More...

bool	isTerminating () volatile const noexcept
	Returns whether the thread should (have) terminate(d) More...

bool	setPriority (XsThreadPriority pri)
	Sets the priority of the thread. More...

virtual void	signalStopThread (void)
	Tells the thread to stop but does not wait for it to end. More...

	StandardThread ()

bool	startThread (const char *name=NULL)
	Starts the thread. More...

void	stopThread (void) noexcept
	Tells the thread to stop and waits for it to end. More...

virtual	~StandardThread ()

Private Member Functions
XsResultValue	openComPort (const XsPortInfo &portInfo)
	Tries to open COM port. More...

Private Attributes
XsControl *	m_control

volatile std::atomic< bool >	m_isRestoring

XsString	m_portName

SerialInterface *	m_serialInterface

Additional Inherited Members
Protected Attributes inherited from xsens::StandardThread
pthread_attr_t	m_attr
	Duplicates m_stop functionality for external dependent classes such as Semaphore. More...

bool	m_running
	Indicates that the thread is running. More...

volatile std::atomic_bool	m_stop
	Indicates that the thread should stop. Derived classes should check isTerminating() instead of directly polling this value when checking if the thread should stop. However, there are some cases (tests, SignallingThread) where direct access from within the class is desired, which is why the vlaue is protected instead of private. More...

volatile std::atomic_bool	m_yieldOnZeroSleep
	When true, a sleep value of 0 returned by innerFunction will trigger a thread yield operation. When false, the next cycle is started immediately. More...

Detailed Description

Performs restore communication procedure with a provided COM port.

When started it will repeatedly send the reset byte (0xDE) at 115k2 until a specific answer is received.

Note: The procedure is executed on a separate thread and call a callback on completion/error.

Definition at line 75 of file restorecommunication.h.

Constructor & Destructor Documentation

◆ RestoreCommunication()

RestoreCommunication::RestoreCommunication ( XsControl * control )

Constructor.

Uses XsControl object to call a callback and creates a serial interface.

Parameters

control A pointer to XsControl object.

Definition at line 81 of file restorecommunication.cpp.

◆ ~RestoreCommunication()

RestoreCommunication::~RestoreCommunication ( )

Destructor.

Stops restoring the communication before destruction.

Definition at line 91 of file restorecommunication.cpp.

Member Function Documentation

◆ innerFunction()

int32_t RestoreCommunication::innerFunction ( void )

overrideprotectedvirtual

Inner function for an execution on a thread.

Returns: 0.

Reimplemented from xsens::StandardThread.

Definition at line 144 of file restorecommunication.cpp.

◆ openComPort()

XsResultValue RestoreCommunication::openComPort ( const XsPortInfo & portInfo )

private

Tries to open COM port.

If the port was open it will retry.

Parameters

portInfo A port info to open.

Returns: XRV_OK if was successful.

Definition at line 197 of file restorecommunication.cpp.

◆ start()

XsResultValue RestoreCommunication::start ( const XsString & portName )

Starts the restore communication procedure.

Tries to open COM port and starts a thread for the execution.

Parameters

portName A string with a port name.

Returns: XRV_OK if the procedure started successfully

Definition at line 108 of file restorecommunication.cpp.

◆ stop()

void RestoreCommunication::stop ( )

Stops the restore communication procedure.

Stops the thread and closes a serial interface.

Definition at line 135 of file restorecommunication.cpp.

Member Data Documentation

◆ m_control

XsControl* RestoreCommunication::m_control

private

Definition at line 90 of file restorecommunication.h.

◆ m_isRestoring

volatile std::atomic<bool> RestoreCommunication::m_isRestoring

private

Definition at line 94 of file restorecommunication.h.

◆ m_portName

XsString RestoreCommunication::m_portName

private

Definition at line 92 of file restorecommunication.h.

◆ m_serialInterface

SerialInterface* RestoreCommunication::m_serialInterface

private

Definition at line 91 of file restorecommunication.h.

The documentation for this class was generated from the following files:
