uartinterface.h File Reference

This file contains the linux-uart interface prototypes. More...

#include "toposens/sensor_lib.h"

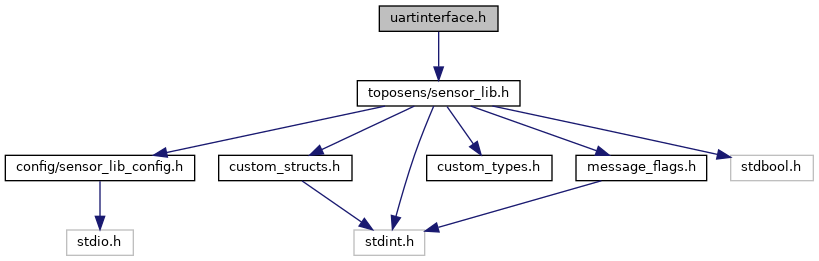

Include dependency graph for uartinterface.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
int	DeinitUARTPort ()
	Called from the can-library, this function will close the socket and take care of ReceiverThread termination. More...
void	RegisterUARTReadCallback (void(*Callback)(uint8_t *UARTMsg_pu8, uint16_t UARTMsgSize_u16, uint8_t InterfaceId_u8))
	This function is called by the library to set a callback function for incoming can-traffic. More...
int	SetupUARTPort (char *InterfaceName_cp, uint32_t InterfaceBitrate_u32, uint8_t InterfaceId_u8)
	Called from the library, this function will take care of all linux-related uart-setup, socket configuration and starting of the receiver thread. More...
int	WriteUARTPayload (uint8_t *Payload_pu8, uint8_t Length_u8, uint8_t InterfaceId_u8)
	Called to send messages to can socket. More...

Detailed Description

This file contains the linux-uart interface prototypes.

---

Copyright

Copyright (c) Toposens GmbH 2021. All rights reserved.

Definition in file uartinterface.h.

Function Documentation

DeinitUARTPort()

int DeinitUARTPort

(

)

Called from the can-library, this function will close the socket and take care of ReceiverThread termination.

---

Returns

int 0 if deinit was successful int 1 in case of an error

Definition at line 204 of file uartinterface.c.

RegisterUARTReadCallback()

void RegisterUARTReadCallback

(

void(*)(uint8_t *UARTMsg_pu8, uint16_t UARTMsgSize_u16, uint8_t InterfaceId_u8)

Callback

)

This function is called by the library to set a callback function for incoming can-traffic.

---

Parameters

[in]

(*Callback)

Function Pointer to function that shall be called-back if a can-frame was revived

Definition at line 126 of file uartinterface.c.

SetupUARTPort()

int SetupUARTPort	(	char *	InterfaceName_cp,
		uint32_t	InterfaceBitrate_u32,
		uint8_t	InterfaceId_u8
	)

Called from the library, this function will take care of all linux-related uart-setup, socket configuration and starting of the receiver thread.

---

Parameters

[in]	*InterfaceName_cp	interface-name that shall be configured
[in]	InterfaceBitrate_u32	Bitrate the interface should be working with
[in]	InterfaceId_u8

Returns

int 0 if setup was successful int 1 in case of an error

Definition at line 189 of file uartinterface.c.

WriteUARTPayload()

int WriteUARTPayload	(	uint8_t *	Payload_pu8,
		uint8_t	Length_u8,
		uint8_t	InterfaceId_u8
	)

Called to send messages to can socket.

---

Parameters

[in]	*Payload_pu8	pointer to payload that should be send
[in]	Length_u8
[in]	InterfaceId_u8

Returns

int 0 if the writing was successful int 1 in case of an error

Definition at line 140 of file uartinterface.c.
