custom_types.h File Reference

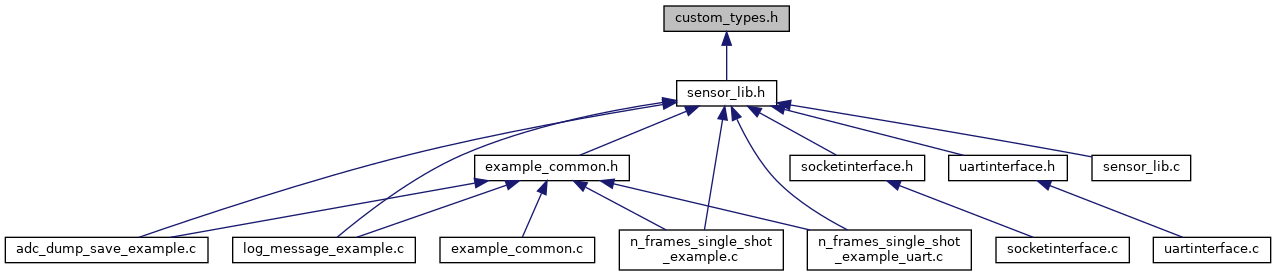

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef enum BootloaderStatus_t	BootloaderStatus_t
typedef enum CalibrationIssueByte_t	CalibrationIssueByte_t
typedef enum CalibrationStageByte_t	CalibrationStageByte_t
typedef enum CommsInterfaceType_t	CommsInterfaceType_t
typedef enum LogCategoryByte_t	LogCategoryByte_t
typedef enum LogLevel_t	LogLevel_t
typedef enum RecordType_t	RecordType_t
typedef enum ResetReason_t	ResetReason_t
typedef enum SelfCheckError_t	SelfCheckError_t
typedef enum SensorMode_t	SensorMode_t
typedef enum SensorModel_t	SensorModel_t
typedef enum SensorState_t	SensorState_t
typedef enum SignalProcessingIssueByte_t	SignalProcessingIssueByte_t
typedef enum SoftwareIssueByte_t	SoftwareIssueByte_t

Enumerations
enum	BootloaderStatus_t {   BL_STATUS_APP_VERSION_ERROR, BL_STATUS_SIZE_ERROR, BL_STATUS_CRC_ERROR, BL_STATUS_SIGNATURE_ERROR,   BL_STATUS_INIT_ERROR, BL_STATUS_EXPECTED_PACKET, BL_STATUS_HW_VERSION_ERROR, BL_STATUS_MODEL_ERROR,   BL_STATUS_MULTI_INIT_ERROR, BL_STATUS_NOT_RDY_TO_LAUNCH, BL_STATUS_NEXT_STATE, BL_STATUS_FLASH_INCOMPLETE_ERROR }
enum	CalibrationIssueByte_t {   CALIBRATION_ISSUE_NOT_CALIBRATED, CALIBRATION_ISSUE_CALIBRATION_PROGRESS, CALIBRATION_ISSUE_CALIBRATION_FINISHED, CALIBRATION_ISSUE_INIT_ERROR,   CALIBRATION_ISSUE_BAD_FRAME }
enum	CalibrationStageByte_t { CALIBRATION_STAGE_RESONANT_FREQ, CALIBRATION_STAGE_NEAR_FIELD }
enum	CommsInterfaceType_t { IF_NONE = 0b00000000, IF_CAN = 0b00000001, IF_UART = 0b00000010, IF_USB = 0b00000100 }
enum	LogCategoryByte_t {   LOG_CAT_RESET_REASON, LOG_CAT_BOOTLOADER, LOG_CAT_COMMUNICATION, LOG_CAT_PERIPHERAL,   LOG_CAT_USER, LOG_CAT_SELF_CHECK, LOG_CAT_SIGNAL_PROCESSING, LOG_CAT_SOFTWARE,   LOG_CAT_STRING, LOG_CAT_CALIBRATION, LOG_CAT_FRAMERATE }
enum	LogLevel_t { LOG_LEVEL_DEBUG, LOG_LEVEL_INFO, LOG_LEVEL_WARN, LOG_LEVEL_ERROR }
enum	RecordType_t {   RECORD_DATA, RECORD_EOF, RECORD_EXTEN_SEG_ADD, RECORD_START_SEG_ADD,   RECORD_EXTEN_LIN_ADD, RECORD_START_LIN_ADD }
enum	ResetReason_t {   RESET_REASON_UNKNOWN, RESET_REASON_LOW_POWER_RESET, RESET_REASON_WINDOW_WATCHDOG_RESET, RESET_REASON_INDEPENDENT_WATCHDOG_RESET,   RESET_REASON_SOFTWARE_RESET, RESET_REASON_POWER_ON_POWER_DOWN_RESET, RESET_REASON_EXTERNAL_RESET_PIN_RESET, RESET_REASON_BROWNOUT_RESET,   RESET_REASON_END }
enum	SelfCheckError_t {   SC_STATUS_SENSOR_OK, SC_STATUS_MIC_MALFUNCTION, SC_STATUS_TRANSDUCER_MALFUNCTION, SC_STATUS_PGA_OK,   SC_STATUS_PGA_MALFUNCTION, SC_STATUS_PGA_CANNOT_CHECK }
enum	SensorMode_t {   SENSOR_MODE_CONTINUOUS_TRANSMIT_LISTEN, SENSOR_MODE_SINGLE_SHOT_TRANSMIT_LISTEN, SENSOR_MODE_SINGLE_SHOT_TRANSMIT, SENSOR_MODE_SINGLE_SHOT_LISTEN,   SENSOR_MODE_IDLE, SENSOR_MODE_SIG_PRO_CALIBRATION, SENSOR_MODE_SELF_CHECK, SENSOR_MODE_CONTINUOUS_TRANSMIT_LISTEN_FIXED }
enum	SensorModel_t { MODEL_BRAVO_DEV_PLATFORM, MODEL_BRAVO_DEV_KIT }
enum	SensorState_t {   STATE_BL_WAIT_FOR_INIT, STATE_BL_RX_APP, STATE_BL_PROCESSING_APP, STATE_BL_FLASH_APP,   STATE_BL_RDY_TO_LAUNCH, STATE_BL_LAUNCHING_APP, STATE_APP_IDLE, STATE_APP_NOISE_SAMPLE,   STATE_APP_WAIT_FOR_NOISE_SAMPLING, STATE_APP_TRANSDUCE_AND_SAMPLE, STATE_APP_TRANSMIT, STATE_APP_SAMPLE,   STATE_APP_WAIT_FOR_SAMPLING, STATE_APP_SIG_PRO_CALIBRATION, STATE_APP_CALCULATE_POINTS, STATE_APP_OUTPUT_POINTS,   STATE_APP_WAITING_FOR_POINT_SESSION_END, STATE_APP_OUTPUT_ADC_SIGNALS, STATE_APP_WAITING_FOR_ADC_DUMP_SESSION_END, STATE_APP_PROCESS_LONG_SELF_CHECK }
enum	SignalProcessingIssueByte_t {   SIG_PRO_ISSUE_INIT_ERROR, SIG_PRO_ISSUE_NEAR_FIELD_DETECTION_DISABLED, SIG_PRO_ISSUE_VSOUND_CAL_ERROR, SIG_PRO_ISSUE_NO_ECHOES_FOUND,   SIG_PRO_ISSUE_CLIPPING, SIG_PRO_ISSUE_NO_VALID_POINTS_FOUND, SIG_PRO_ISSUE_TRACKING_ERROR, SIG_PRO_ISSUE_KALMAN_ERROR,   SIG_PRO_ISSUE_POINT_BUFFER_FULL, SIG_PRO_ISSUE_TIMER_ERROR }
enum	SoftwareIssueByte_t {   SW_ISSUE_MALLOC_FAILED, SW_ISSUE_REBOOT_REQUIRED, SW_ISSUE_LOAD_FROM_FLASH_FAILED, SW_ISSUE_SAVE_FROM_FLASH_FAILED,   SW_ISSUE_STORING_FACTORY_DEFAULTS_IN_FLASH }

Variables
static const char *	kCommsInterfaceStrings []
static const char *	kLogLevelStrings [] = {"DEBUG", "INFO", "WARN", "ERROR"}
static const char *	kRecordTypeStrings []
static const char *	kResetReasonStrings []
static const char *	kSensorModelStrings [] = {"MODEL_BRAVO_DEV_PLATFORM", "MODEL_BRAVO_DEV_KIT"}
static const char *	kSensorStateStrings []

Detailed Description

---

Copyright

Copyright (c) Toposens GmbH 2021. All rights reserved.

Definition in file custom_types.h.

Typedef Documentation

BootloaderStatus_t

typedef enum BootloaderStatus_t BootloaderStatus_t

CalibrationIssueByte_t

typedef enum CalibrationIssueByte_t CalibrationIssueByte_t

CalibrationStageByte_t

typedef enum CalibrationStageByte_t CalibrationStageByte_t

CommsInterfaceType_t

typedef enum CommsInterfaceType_t CommsInterfaceType_t

LogCategoryByte_t

typedef enum LogCategoryByte_t LogCategoryByte_t

LogLevel_t

typedef enum LogLevel_t LogLevel_t

RecordType_t

typedef enum RecordType_t RecordType_t

ResetReason_t

typedef enum ResetReason_t ResetReason_t

SelfCheckError_t

typedef enum SelfCheckError_t SelfCheckError_t

SensorMode_t

typedef enum SensorMode_t SensorMode_t

SensorModel_t

typedef enum SensorModel_t SensorModel_t

SensorState_t

typedef enum SensorState_t SensorState_t

SignalProcessingIssueByte_t

typedef enum SignalProcessingIssueByte_t SignalProcessingIssueByte_t

SoftwareIssueByte_t

typedef enum SoftwareIssueByte_t SoftwareIssueByte_t

Enumeration Type Documentation

BootloaderStatus_t

enum BootloaderStatus_t

Enumerator
BL_STATUS_APP_VERSION_ERROR
BL_STATUS_SIZE_ERROR
BL_STATUS_CRC_ERROR
BL_STATUS_SIGNATURE_ERROR
BL_STATUS_INIT_ERROR
BL_STATUS_EXPECTED_PACKET
BL_STATUS_HW_VERSION_ERROR
BL_STATUS_MODEL_ERROR
BL_STATUS_MULTI_INIT_ERROR
BL_STATUS_NOT_RDY_TO_LAUNCH
BL_STATUS_NEXT_STATE
BL_STATUS_FLASH_INCOMPLETE_ERROR

Definition at line 174 of file custom_types.h.

CalibrationIssueByte_t

enum CalibrationIssueByte_t

Enumerator
CALIBRATION_ISSUE_NOT_CALIBRATED
CALIBRATION_ISSUE_CALIBRATION_PROGRESS
CALIBRATION_ISSUE_CALIBRATION_FINISHED
CALIBRATION_ISSUE_INIT_ERROR
CALIBRATION_ISSUE_BAD_FRAME

Definition at line 145 of file custom_types.h.

CalibrationStageByte_t

enum CalibrationStageByte_t

Enumerator
CALIBRATION_STAGE_RESONANT_FREQ
CALIBRATION_STAGE_NEAR_FIELD

Definition at line 154 of file custom_types.h.

CommsInterfaceType_t

enum CommsInterfaceType_t

Enumerator
IF_NONE
IF_CAN
IF_UART
IF_USB

Definition at line 10 of file custom_types.h.

LogCategoryByte_t

enum LogCategoryByte_t

Enumerator
LOG_CAT_RESET_REASON
LOG_CAT_BOOTLOADER
LOG_CAT_COMMUNICATION
LOG_CAT_PERIPHERAL
LOG_CAT_USER
LOG_CAT_SELF_CHECK
LOG_CAT_SIGNAL_PROCESSING
LOG_CAT_SOFTWARE
LOG_CAT_STRING
LOG_CAT_CALIBRATION
LOG_CAT_FRAMERATE

Definition at line 111 of file custom_types.h.

LogLevel_t

enum LogLevel_t

Enumerator
LOG_LEVEL_DEBUG
LOG_LEVEL_INFO
LOG_LEVEL_WARN
LOG_LEVEL_ERROR

Definition at line 101 of file custom_types.h.

RecordType_t

enum RecordType_t

Enumerator
RECORD_DATA
RECORD_EOF
RECORD_EXTEN_SEG_ADD
RECORD_START_SEG_ADD
RECORD_EXTEN_LIN_ADD
RECORD_START_LIN_ADD

Definition at line 198 of file custom_types.h.

ResetReason_t

enum ResetReason_t

Enumerator
RESET_REASON_UNKNOWN
RESET_REASON_LOW_POWER_RESET
RESET_REASON_WINDOW_WATCHDOG_RESET
RESET_REASON_INDEPENDENT_WATCHDOG_RESET
RESET_REASON_SOFTWARE_RESET
RESET_REASON_POWER_ON_POWER_DOWN_RESET
RESET_REASON_EXTERNAL_RESET_PIN_RESET
RESET_REASON_BROWNOUT_RESET
RESET_REASON_END

Definition at line 77 of file custom_types.h.

SelfCheckError_t

enum SelfCheckError_t

Enumerator
SC_STATUS_SENSOR_OK
SC_STATUS_MIC_MALFUNCTION
SC_STATUS_TRANSDUCER_MALFUNCTION
SC_STATUS_PGA_OK
SC_STATUS_PGA_MALFUNCTION
SC_STATUS_PGA_CANNOT_CHECK

Definition at line 126 of file custom_types.h.

SensorMode_t

enum SensorMode_t

Enumerator
SENSOR_MODE_CONTINUOUS_TRANSMIT_LISTEN
SENSOR_MODE_SINGLE_SHOT_TRANSMIT_LISTEN
SENSOR_MODE_SINGLE_SHOT_TRANSMIT
SENSOR_MODE_SINGLE_SHOT_LISTEN
SENSOR_MODE_IDLE
SENSOR_MODE_SIG_PRO_CALIBRATION
SENSOR_MODE_SELF_CHECK
SENSOR_MODE_CONTINUOUS_TRANSMIT_LISTEN_FIXED

Definition at line 65 of file custom_types.h.

SensorModel_t

enum SensorModel_t

Enumerator
MODEL_BRAVO_DEV_PLATFORM
MODEL_BRAVO_DEV_KIT

Definition at line 190 of file custom_types.h.

SensorState_t

enum SensorState_t

Enumerator
STATE_BL_WAIT_FOR_INIT
STATE_BL_RX_APP
STATE_BL_PROCESSING_APP
STATE_BL_FLASH_APP
STATE_BL_RDY_TO_LAUNCH
STATE_BL_LAUNCHING_APP
STATE_APP_IDLE
STATE_APP_NOISE_SAMPLE
STATE_APP_WAIT_FOR_NOISE_SAMPLING
STATE_APP_TRANSDUCE_AND_SAMPLE
STATE_APP_TRANSMIT
STATE_APP_SAMPLE
STATE_APP_WAIT_FOR_SAMPLING
STATE_APP_SIG_PRO_CALIBRATION
STATE_APP_CALCULATE_POINTS
STATE_APP_OUTPUT_POINTS
STATE_APP_WAITING_FOR_POINT_SESSION_END
STATE_APP_OUTPUT_ADC_SIGNALS
STATE_APP_WAITING_FOR_ADC_DUMP_SESSION_END
STATE_APP_PROCESS_LONG_SELF_CHECK

Definition at line 24 of file custom_types.h.

SignalProcessingIssueByte_t

enum SignalProcessingIssueByte_t

Enumerator
SIG_PRO_ISSUE_INIT_ERROR
SIG_PRO_ISSUE_NEAR_FIELD_DETECTION_DISABLED
SIG_PRO_ISSUE_VSOUND_CAL_ERROR
SIG_PRO_ISSUE_NO_ECHOES_FOUND
SIG_PRO_ISSUE_CLIPPING
SIG_PRO_ISSUE_NO_VALID_POINTS_FOUND
SIG_PRO_ISSUE_TRACKING_ERROR
SIG_PRO_ISSUE_KALMAN_ERROR
SIG_PRO_ISSUE_POINT_BUFFER_FULL
SIG_PRO_ISSUE_TIMER_ERROR

Definition at line 160 of file custom_types.h.

SoftwareIssueByte_t

enum SoftwareIssueByte_t

Enumerator
SW_ISSUE_MALLOC_FAILED
SW_ISSUE_REBOOT_REQUIRED
SW_ISSUE_LOAD_FROM_FLASH_FAILED
SW_ISSUE_SAVE_FROM_FLASH_FAILED
SW_ISSUE_STORING_FACTORY_DEFAULTS_IN_FLASH

Definition at line 136 of file custom_types.h.

Variable Documentation

kCommsInterfaceStrings

const char* kCommsInterfaceStrings[]

static

Initial value:

= {
    "CAN",
    "Service Port",
    "USB",
}

Definition at line 18 of file custom_types.h.

kLogLevelStrings

const char* kLogLevelStrings[] = {"DEBUG", "INFO", "WARN", "ERROR"}

static

Definition at line 109 of file custom_types.h.

kRecordTypeStrings

const char* kRecordTypeStrings[]

static

Initial value:

= {"RECORD_DATA",          "RECORD_EOF",
                                           "RECORD_EXTEN_SEG_ADD", "RECORD_START_SEG_ADD",
                                           "RECORD_EXTEN_LIN_ADD", "RECORD_START_LIN_ADD"}

Definition at line 208 of file custom_types.h.

kResetReasonStrings

const char* kResetReasonStrings[]

static

Initial value:

= {
    "RESET_REASON_UNKNOWN",
    "RESET_REASON_LOW_POWER_RESET",
    "RESET_REASON_WINDOW_WATCHDOG_RESET",
    "RESET_REASON_INDEPENDENT_WATCHDOG_RESET",
    "RESET_REASON_SOFTWARE_RESET",
    "RESET_REASON_POWER_ON_POWER_DOWN_RESET",
    "RESET_REASON_EXTERNAL_RESET_PIN_RESET",
    "RESET_REASON_BROWNOUT_RESET",
}

Definition at line 90 of file custom_types.h.

kSensorModelStrings

const char* kSensorModelStrings[] = {"MODEL_BRAVO_DEV_PLATFORM", "MODEL_BRAVO_DEV_KIT"}

static

Definition at line 196 of file custom_types.h.

kSensorStateStrings

const char* kSensorStateStrings[]

static

Initial value:

= {

    "STATE_BL_WAIT_FOR_INIT", "STATE_BL_RX_APP", "STATE_BL_PROCESSING_APP", "STATE_BL_FLASH_APP",
    "STATE_BL_RDY_TO_LAUNCH", "STATE_BL_LAUNCHING_APP",


    "STATE_APP_IDLE", "STATE_APP_NOISE_SAMPLE", "STATE_APP_WAIT_FOR_NOISE_SAMPLING",
    "STATE_APP_TRANSDUCE_AND_SAMPLE", "STATE_APP_TRANSMIT", "STATE_APP_SAMPLE",
    "STATE_APP_WAIT_FOR_SAMPLING", "STATE_APP_CALIBRATION", "STATE_APP_CALCULATE_POINTS",
    "STATE_APP_OUTPUT_POINTS", "STATE_APP_WAITING_FOR_POINT_SESSION_END",
    "STATE_APP_OUTPUT_ADC_SIGNALS", "STATE_APP_WAITING_FOR_ADC_DUMP_SESSION_END",
    "STATE_APP_PROCESS_LONG_SELF_CHECK"}

Definition at line 52 of file custom_types.h.
