iterator_facade.hpp File Reference

#include <boost/config.hpp>
#include <boost/iterator.hpp>
#include <boost/iterator/interoperable.hpp>
#include <boost/iterator/iterator_traits.hpp>
#include <boost/iterator/iterator_categories.hpp>
#include <boost/iterator/detail/facade_iterator_category.hpp>
#include <boost/iterator/detail/enable_if.hpp>
#include <boost/static_assert.hpp>
#include <boost/utility/addressof.hpp>
#include <boost/type_traits/is_same.hpp>
#include <boost/type_traits/add_const.hpp>
#include <boost/type_traits/add_pointer.hpp>
#include <boost/type_traits/add_lvalue_reference.hpp>
#include <boost/type_traits/remove_const.hpp>
#include <boost/type_traits/remove_reference.hpp>
#include <boost/type_traits/is_convertible.hpp>
#include <boost/type_traits/is_pod.hpp>
#include <boost/mpl/eval_if.hpp>
#include <boost/mpl/if.hpp>
#include <boost/mpl/or.hpp>
#include <boost/mpl/and.hpp>
#include <boost/mpl/not.hpp>
#include <boost/mpl/always.hpp>
#include <boost/mpl/apply.hpp>
#include <boost/mpl/identity.hpp>
#include <boost/iterator/detail/config_def.hpp>
#include <boost/iterator/detail/config_undef.hpp>

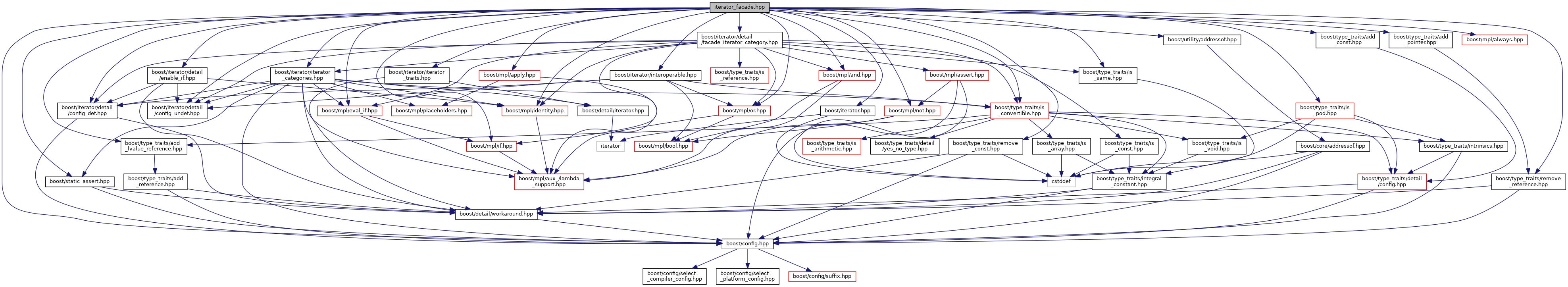

Include dependency graph for iterator_facade.hpp:

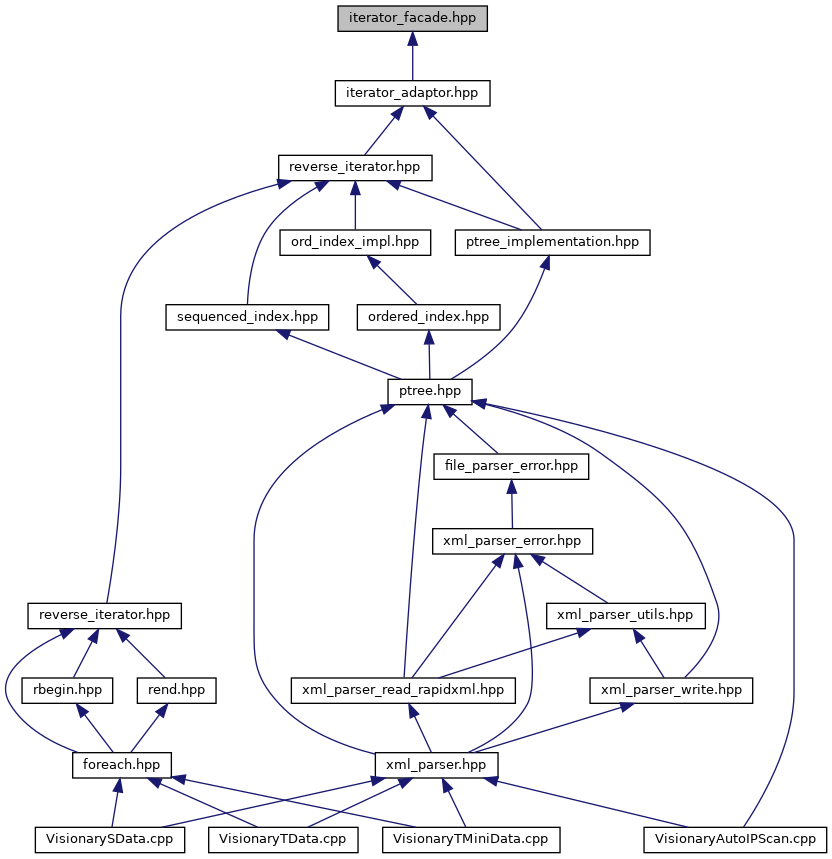

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	boost::iterators::detail::always_bool2
struct	boost::iterators::detail::choose_difference_type::apply< I1, I2 >
struct	boost::iterators::detail::always_bool2::apply< T, U >
struct	boost::iterators::detail::choose_difference_type
struct	boost::iterators::detail::enable_if_interoperable< Facade1, Facade2, Return >
struct	boost::iterators::detail::enable_if_interoperable_and_random_access_traversal< Facade1, Facade2, Return >
struct	boost::iterators::detail::is_non_proxy_reference< Reference, Value >
struct	boost::iterators::detail::is_traversal_at_least< CategoryOrTraversal, Required >
class	boost::iterators::iterator_core_access
class	boost::iterators::iterator_facade< Derived, Value, CategoryOrTraversal, Reference, Difference >
class	boost::iterators::iterator_facade< Derived, Value, CategoryOrTraversal, Reference, Difference >
class	boost::iterators::detail::iterator_facade_base< Derived, Value, CategoryOrTraversal, Reference, Difference, IsBidirectionalTraversal, IsRandomAccessTraversal >
class	boost::iterators::detail::iterator_facade_base< Derived, Value, CategoryOrTraversal, Reference, Difference, false, false >
class	boost::iterators::detail::iterator_facade_base< Derived, Value, CategoryOrTraversal, Reference, Difference, true, false >
class	boost::iterators::detail::iterator_facade_base< Derived, Value, CategoryOrTraversal, Reference, Difference, true, true >
struct	boost::iterators::detail::iterator_facade_types< ValueParam, CategoryOrTraversal, Reference, Difference >
struct	boost::iterators::detail::operator_arrow_dispatch< Reference, Pointer >
struct	boost::iterators::detail::operator_arrow_dispatch< T &, Pointer >
class	boost::iterators::detail::operator_brackets_proxy< Iterator >
struct	boost::iterators::detail::operator_brackets_result< Iterator, Value, Reference >
class	boost::iterators::detail::postfix_increment_proxy< Iterator >
struct	boost::iterators::detail::postfix_increment_result< Iterator, Value, Reference, CategoryOrTraversal >
struct	boost::iterators::detail::operator_arrow_dispatch< Reference, Pointer >::proxy
struct	boost::iterators::detail::use_operator_brackets_proxy< ValueType, Reference >
class	boost::iterators::detail::writable_postfix_increment_proxy< Iterator >

Namespaces
	boost
	BOOST_MOVE_USE_STANDARD_LIBRARY_MOVE.
	boost::iterators
	boost::iterators::detail

Macros
#define	BOOST_ITERATOR_CONVERTIBLE(a, b)   is_convertible<a,b>()
#define	BOOST_ITERATOR_FACADE_INTEROP(op, result_type, return_prefix, base_op)
#define	BOOST_ITERATOR_FACADE_INTEROP_HEAD(prefix, op, result_type)   BOOST_ITERATOR_FACADE_INTEROP_HEAD_IMPL(prefix, op, result_type, boost::iterators::detail::enable_if_interoperable)
#define	BOOST_ITERATOR_FACADE_INTEROP_HEAD_IMPL(prefix, op, result_type, enabler)
#define	BOOST_ITERATOR_FACADE_INTEROP_RANDOM_ACCESS(op, result_type, return_prefix, base_op)
#define	BOOST_ITERATOR_FACADE_INTEROP_RANDOM_ACCESS_HEAD(prefix, op, result_type)   BOOST_ITERATOR_FACADE_INTEROP_HEAD_IMPL(prefix, op, result_type, boost::iterators::detail::enable_if_interoperable_and_random_access_traversal)
#define	BOOST_ITERATOR_FACADE_PLUS(args)
#define	BOOST_ITERATOR_FACADE_PLUS_HEAD(prefix, args)
#define	BOOST_ITERATOR_FACADE_RANDOM_ACCESS_RELATION(op)   BOOST_ITERATOR_FACADE_INTEROP_RANDOM_ACCESS_HEAD(friend,op, boost::iterators::detail::always_bool2);
#define	BOOST_ITERATOR_FACADE_RANDOM_ACCESS_RELATION(op, return_prefix, base_op)
#define	BOOST_ITERATOR_FACADE_RELATION(op)   BOOST_ITERATOR_FACADE_INTEROP_HEAD(friend,op, boost::iterators::detail::always_bool2);
#define	BOOST_ITERATOR_FACADE_RELATION(op, return_prefix, base_op)

Functions
	boost::iterators::BOOST_ITERATOR_FACADE_INTEROP_RANDOM_ACCESS (-, boost::iterators::detail::choose_difference_type, return, distance_from) BOOST_ITERATOR_FACADE_PLUS((iterator_facade< Derived
template<class Iterator >
Iterator::value_type	boost::iterators::detail::make_operator_brackets_result (Iterator const &iter, mpl::false_)
template<class Iterator >
operator_brackets_proxy< Iterator >	boost::iterators::detail::make_operator_brackets_result (Iterator const &iter, mpl::true_)
template<class I , class V , class TC , class R , class D >
boost::iterators::detail::postfix_increment_result< I, V, R, TC >::type	boost::iterators::operator++ (iterator_facade< I, V, TC, R, D > &i, int)

Variables
D const &	boost::iterators::i
	boost::iterators::R
	boost::iterators::TC
	boost::iterators::V

Macro Definition Documentation

BOOST_ITERATOR_CONVERTIBLE

#define BOOST_ITERATOR_CONVERTIBLE	(		a,
			b
	)		is_convertible<a,b>()

Definition at line 874 of file iterator_facade.hpp.

BOOST_ITERATOR_FACADE_INTEROP

#define BOOST_ITERATOR_FACADE_INTEROP	(		op,
			result_type,
			return_prefix,
			base_op
	)

Value:

  BOOST_ITERATOR_FACADE_INTEROP_HEAD(inline, op, result_type)                   \
  {                                                                             \
      /* For those compilers that do not support enable_if */                   \
      BOOST_STATIC_ASSERT((                                                     \
          is_interoperable< Derived1, Derived2 >::value                         \
      ));                                                                       \
      return_prefix iterator_core_access::base_op(                              \
          *static_cast<Derived1 const*>(&lhs)                                   \
        , *static_cast<Derived2 const*>(&rhs)                                   \
        , BOOST_ITERATOR_CONVERTIBLE(Derived2,Derived1)                         \
      );                                                                        \
  }

Definition at line 877 of file iterator_facade.hpp.

BOOST_ITERATOR_FACADE_INTEROP_HEAD

#define BOOST_ITERATOR_FACADE_INTEROP_HEAD	(		prefix,
			op,
			result_type
	)		BOOST_ITERATOR_FACADE_INTEROP_HEAD_IMPL(prefix, op, result_type, boost::iterators::detail::enable_if_interoperable)

Definition at line 474 of file iterator_facade.hpp.

BOOST_ITERATOR_FACADE_INTEROP_HEAD_IMPL

#define BOOST_ITERATOR_FACADE_INTEROP_HEAD_IMPL	(		prefix,
			op,
			result_type,
			enabler
	)

Value:

    template <                                                          \
        class Derived1, class V1, class TC1, class Reference1, class Difference1 \
      , class Derived2, class V2, class TC2, class Reference2, class Difference2 \
    >                                                                   \
    prefix typename enabler<                                            \
        Derived1, Derived2                                              \
      , typename mpl::apply2<result_type,Derived1,Derived2>::type       \
    >::type                                                             \
    operator op(                                                        \
        iterator_facade<Derived1, V1, TC1, Reference1, Difference1> const& lhs   \
      , iterator_facade<Derived2, V2, TC2, Reference2, Difference2> const& rhs)

Definition at line 460 of file iterator_facade.hpp.

BOOST_ITERATOR_FACADE_INTEROP_RANDOM_ACCESS

#define BOOST_ITERATOR_FACADE_INTEROP_RANDOM_ACCESS	(		op,
			result_type,
			return_prefix,
			base_op
	)

Value:

  BOOST_ITERATOR_FACADE_INTEROP_RANDOM_ACCESS_HEAD(inline, op, result_type)                   \
  {                                                                             \
      /* For those compilers that do not support enable_if */                   \
      BOOST_STATIC_ASSERT((                                                     \
          is_interoperable< Derived1, Derived2 >::value &&                      \
          boost::iterators::detail::is_traversal_at_least< typename iterator_category< Derived1 >::type, random_access_traversal_tag >::value && \
          boost::iterators::detail::is_traversal_at_least< typename iterator_category< Derived2 >::type, random_access_traversal_tag >::value \
      ));                                                                       \
      return_prefix iterator_core_access::base_op(                              \
          *static_cast<Derived1 const*>(&lhs)                                   \
        , *static_cast<Derived2 const*>(&rhs)                                   \
        , BOOST_ITERATOR_CONVERTIBLE(Derived2,Derived1)                         \
      );                                                                        \
  }

Definition at line 905 of file iterator_facade.hpp.

BOOST_ITERATOR_FACADE_INTEROP_RANDOM_ACCESS_HEAD

#define BOOST_ITERATOR_FACADE_INTEROP_RANDOM_ACCESS_HEAD	(		prefix,
			op,
			result_type
	)		BOOST_ITERATOR_FACADE_INTEROP_HEAD_IMPL(prefix, op, result_type, boost::iterators::detail::enable_if_interoperable_and_random_access_traversal)

Definition at line 477 of file iterator_facade.hpp.

BOOST_ITERATOR_FACADE_PLUS

#define BOOST_ITERATOR_FACADE_PLUS

(

args

)

Value:

  BOOST_ITERATOR_FACADE_PLUS_HEAD(inline, args)     \
  {                                                 \
      Derived tmp(static_cast<Derived const&>(i));  \
      return tmp += n;                              \
  }

BOOST_ITERATOR_FACADE_PLUS_HEAD

#define BOOST_ITERATOR_FACADE_PLUS_HEAD	(		prefix,
			args
	)

Value:

    template <class Derived, class V, class TC, class R, class D>   \
    prefix typename boost::iterators::enable_if<                    \
        boost::iterators::detail::is_traversal_at_least< TC, boost::iterators::random_access_traversal_tag >,  \
        Derived                                                     \
    >::type operator+ args

Definition at line 480 of file iterator_facade.hpp.

BOOST_ITERATOR_FACADE_RANDOM_ACCESS_RELATION [1/2]

#define BOOST_ITERATOR_FACADE_RANDOM_ACCESS_RELATION

(

op

)

BOOST_ITERATOR_FACADE_INTEROP_RANDOM_ACCESS_HEAD(friend,op, boost::iterators::detail::always_bool2);

Definition at line 921 of file iterator_facade.hpp.

BOOST_ITERATOR_FACADE_RANDOM_ACCESS_RELATION [2/2]

#define BOOST_ITERATOR_FACADE_RANDOM_ACCESS_RELATION	(		op,
			return_prefix,
			base_op
	)

Value:

  BOOST_ITERATOR_FACADE_INTEROP_RANDOM_ACCESS(                                    \
      op                                                            \
    , boost::iterators::detail::always_bool2                                   \
    , return_prefix                                                 \
    , base_op                                                       \
  )

Definition at line 921 of file iterator_facade.hpp.

BOOST_ITERATOR_FACADE_RELATION [1/2]

#define BOOST_ITERATOR_FACADE_RELATION

(

op

)

BOOST_ITERATOR_FACADE_INTEROP_HEAD(friend,op, boost::iterators::detail::always_bool2);

Definition at line 891 of file iterator_facade.hpp.

BOOST_ITERATOR_FACADE_RELATION [2/2]

#define BOOST_ITERATOR_FACADE_RELATION	(		op,
			return_prefix,
			base_op
	)

Value:

  BOOST_ITERATOR_FACADE_INTEROP(                                    \
      op                                                            \
    , boost::iterators::detail::always_bool2                                   \
    , return_prefix                                                 \
    , base_op                                                       \
  )

Definition at line 891 of file iterator_facade.hpp.
