grpc_types.h File Reference

#include <grpc/impl/codegen/port_platform.h>
#include <stddef.h>
#include <grpc/impl/codegen/compression_types.h>
#include <grpc/impl/codegen/gpr_types.h>
#include <grpc/impl/codegen/slice.h>
#include <grpc/impl/codegen/status.h>

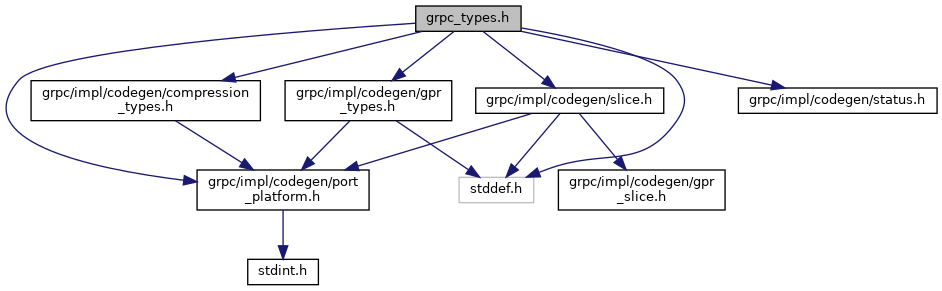

Include dependency graph for grpc_types.h:

Go to the source code of this file.

Classes
struct	grpc_arg
struct	grpc_arg::grpc_arg_value::grpc_arg_pointer
struct	grpc_arg_pointer_vtable
union	grpc_arg::grpc_arg_value
struct	grpc_byte_buffer
union	grpc_byte_buffer::grpc_byte_buffer_data
struct	grpc_call_details
struct	grpc_channel_args
struct	grpc_channel_info
struct	grpc_completion_queue_attributes
struct	grpc_completion_queue_functor
struct	grpc_byte_buffer::grpc_byte_buffer_data::grpc_compressed_buffer
struct	grpc_event
struct	grpc_metadata
struct	grpc_metadata_array
struct	grpc_op
union	grpc_op::grpc_op_data
struct	grpc_op::grpc_op_data::grpc_op_recv_close_on_server
struct	grpc_op::grpc_op_data::grpc_op_recv_initial_metadata
struct	grpc_op::grpc_op_data::grpc_op_recv_message
struct	grpc_op::grpc_op_data::grpc_op_recv_status_on_client
struct	grpc_op::grpc_op_data::grpc_op_send_initial_metadata
struct	grpc_op::grpc_op_data::grpc_op_send_initial_metadata::grpc_op_send_initial_metadata_maybe_compression_level
struct	grpc_op::grpc_op_data::grpc_op_send_message
struct	grpc_op::grpc_op_data::grpc_op_send_status_from_server

Macros
#define	GRPC_ARG_ALLOW_REUSEPORT   "grpc.so_reuseport"
#define	GRPC_ARG_AUTHORIZATION_POLICY_PROVIDER   "grpc.authorization_policy_provider"
#define	GRPC_ARG_CHANNEL_ID   "grpc.channel_id"
#define	GRPC_ARG_CHANNEL_POOL_DOMAIN   "grpc.channel_pooling_domain"
#define	GRPC_ARG_CLIENT_IDLE_TIMEOUT_MS   "grpc.client_idle_timeout_ms"
#define	GRPC_ARG_DEFAULT_AUTHORITY   "grpc.default_authority"
#define	GRPC_ARG_DISABLE_CLIENT_AUTHORITY_FILTER   "grpc.disable_client_authority_filter"
#define	GRPC_ARG_DNS_ARES_QUERY_TIMEOUT_MS   "grpc.dns_ares_query_timeout"
#define	GRPC_ARG_DNS_ENABLE_SRV_QUERIES   "grpc.dns_enable_srv_queries"
#define	GRPC_ARG_DNS_MIN_TIME_BETWEEN_RESOLUTIONS_MS   "grpc.dns_min_time_between_resolutions_ms"
#define	GRPC_ARG_ENABLE_CENSUS   "grpc.census"
#define	GRPC_ARG_ENABLE_CHANNELZ   "grpc.enable_channelz"
#define	GRPC_ARG_ENABLE_DEADLINE_CHECKS   "grpc.enable_deadline_checking"
#define	GRPC_ARG_ENABLE_HTTP_PROXY   "grpc.enable_http_proxy"
#define	GRPC_ARG_ENABLE_LOAD_REPORTING   "grpc.loadreporting"
#define	GRPC_ARG_ENABLE_PER_MESSAGE_COMPRESSION   "grpc.per_message_compression"
#define	GRPC_ARG_ENABLE_PER_MESSAGE_DECOMPRESSION   "grpc.per_message_decompression"
#define	GRPC_ARG_ENABLE_RETRIES   "grpc.enable_retries"
#define	GRPC_ARG_EXPAND_WILDCARD_ADDRS   "grpc.expand_wildcard_addrs"
#define	GRPC_ARG_EXPERIMENTAL_ENABLE_HEDGING   "grpc.experimental.enable_hedging"
#define	GRPC_ARG_GRPCLB_CALL_TIMEOUT_MS   "grpc.grpclb_call_timeout_ms"
#define	GRPC_ARG_GRPCLB_FALLBACK_TIMEOUT_MS   "grpc.grpclb_fallback_timeout_ms"
#define	GRPC_ARG_HTTP2_BDP_PROBE   "grpc.http2.bdp_probe"
#define	GRPC_ARG_HTTP2_ENABLE_TRUE_BINARY   "grpc.http2.true_binary"
#define	GRPC_ARG_HTTP2_HPACK_TABLE_SIZE_DECODER   "grpc.http2.hpack_table_size.decoder"
#define	GRPC_ARG_HTTP2_HPACK_TABLE_SIZE_ENCODER   "grpc.http2.hpack_table_size.encoder"
#define	GRPC_ARG_HTTP2_INITIAL_SEQUENCE_NUMBER   "grpc.http2.initial_sequence_number"
#define	GRPC_ARG_HTTP2_MAX_FRAME_SIZE   "grpc.http2.max_frame_size"
#define	GRPC_ARG_HTTP2_MAX_PING_STRIKES   "grpc.http2.max_ping_strikes"
#define	GRPC_ARG_HTTP2_MAX_PINGS_WITHOUT_DATA   "grpc.http2.max_pings_without_data"
#define	GRPC_ARG_HTTP2_MIN_RECV_PING_INTERVAL_WITHOUT_DATA_MS   "grpc.http2.min_ping_interval_without_data_ms"
#define	GRPC_ARG_HTTP2_MIN_SENT_PING_INTERVAL_WITHOUT_DATA_MS   "grpc.http2.min_time_between_pings_ms"
#define	GRPC_ARG_HTTP2_SCHEME   "grpc.http2_scheme"
#define	GRPC_ARG_HTTP2_STREAM_LOOKAHEAD_BYTES   "grpc.http2.lookahead_bytes"
#define	GRPC_ARG_HTTP2_WRITE_BUFFER_SIZE   "grpc.http2.write_buffer_size"
#define	GRPC_ARG_HTTP_PROXY   "grpc.http_proxy"
#define	GRPC_ARG_INHIBIT_HEALTH_CHECKING   "grpc.inhibit_health_checking"
#define	GRPC_ARG_INITIAL_RECONNECT_BACKOFF_MS   "grpc.initial_reconnect_backoff_ms"
#define	GRPC_ARG_KEEPALIVE_PERMIT_WITHOUT_CALLS   "grpc.keepalive_permit_without_calls"
#define	GRPC_ARG_KEEPALIVE_TIME_MS   "grpc.keepalive_time_ms"
#define	GRPC_ARG_KEEPALIVE_TIMEOUT_MS   "grpc.keepalive_timeout_ms"
#define	GRPC_ARG_LB_POLICY_NAME   "grpc.lb_policy_name"
#define	GRPC_ARG_MAX_CHANNEL_TRACE_EVENT_MEMORY_PER_NODE   "grpc.max_channel_trace_event_memory_per_node"
#define	GRPC_ARG_MAX_CONCURRENT_STREAMS   "grpc.max_concurrent_streams"
#define	GRPC_ARG_MAX_CONNECTION_AGE_GRACE_MS   "grpc.max_connection_age_grace_ms"
#define	GRPC_ARG_MAX_CONNECTION_AGE_MS   "grpc.max_connection_age_ms"
#define	GRPC_ARG_MAX_CONNECTION_IDLE_MS   "grpc.max_connection_idle_ms"
#define	GRPC_ARG_MAX_MESSAGE_LENGTH   GRPC_ARG_MAX_RECEIVE_MESSAGE_LENGTH
#define	GRPC_ARG_MAX_METADATA_SIZE   "grpc.max_metadata_size"
#define	GRPC_ARG_MAX_RECEIVE_MESSAGE_LENGTH   "grpc.max_receive_message_length"
#define	GRPC_ARG_MAX_RECONNECT_BACKOFF_MS   "grpc.max_reconnect_backoff_ms"
#define	GRPC_ARG_MAX_SEND_MESSAGE_LENGTH   "grpc.max_send_message_length"
#define	GRPC_ARG_MIN_RECONNECT_BACKOFF_MS   "grpc.min_reconnect_backoff_ms"
#define	GRPC_ARG_MINIMAL_STACK   "grpc.minimal_stack"
#define	GRPC_ARG_MOBILE_LOG_CONTEXT   "grpc.mobile_log_context"
#define	GRPC_ARG_OPTIMIZATION_TARGET   "grpc.optimization_target"
#define	GRPC_ARG_PER_RPC_RETRY_BUFFER_SIZE   "grpc.per_rpc_retry_buffer_size"
#define	GRPC_ARG_PRIMARY_USER_AGENT_STRING   "grpc.primary_user_agent"
#define	GRPC_ARG_PRIORITY_FAILOVER_TIMEOUT_MS   "grpc.priority_failover_timeout_ms"
#define	GRPC_ARG_RESOURCE_QUOTA   "grpc.resource_quota"
#define	GRPC_ARG_SECONDARY_USER_AGENT_STRING   "grpc.secondary_user_agent"
#define	GRPC_ARG_SERVER_CONFIG_CHANGE_DRAIN_GRACE_TIME_MS   "grpc.experimental.server_config_change_drain_grace_time_ms"
#define	GRPC_ARG_SERVER_HANDSHAKE_TIMEOUT_MS   "grpc.server_handshake_timeout_ms"
#define	GRPC_ARG_SERVICE_CONFIG   "grpc.service_config"
#define	GRPC_ARG_SERVICE_CONFIG_DISABLE_RESOLUTION   "grpc.service_config_disable_resolution"
#define	GRPC_ARG_SOCKET_FACTORY   "grpc.socket_factory"
#define	GRPC_ARG_SOCKET_MUTATOR   "grpc.socket_mutator"
#define	GRPC_ARG_SURFACE_USER_AGENT   "grpc.surface_user_agent"
#define	GRPC_ARG_TCP_MAX_READ_CHUNK_SIZE   "grpc.experimental.tcp_max_read_chunk_size"
#define	GRPC_ARG_TCP_MIN_READ_CHUNK_SIZE   "grpc.experimental.tcp_min_read_chunk_size"
#define	GRPC_ARG_TCP_READ_CHUNK_SIZE   "grpc.experimental.tcp_read_chunk_size"
#define	GRPC_ARG_TCP_TX_ZEROCOPY_ENABLED   "grpc.experimental.tcp_tx_zerocopy_enabled"
#define	GRPC_ARG_TCP_TX_ZEROCOPY_MAX_SIMULT_SENDS   "grpc.experimental.tcp_tx_zerocopy_max_simultaneous_sends"
#define	GRPC_ARG_TCP_TX_ZEROCOPY_SEND_BYTES_THRESHOLD   "grpc.experimental.tcp_tx_zerocopy_send_bytes_threshold"
#define	GRPC_ARG_TEST_ONLY_DO_NOT_USE_IN_PROD_XDS_BOOTSTRAP_CONFIG   "grpc.TEST_ONLY_DO_NOT_USE_IN_PROD.xds_bootstrap_config"
#define	GRPC_ARG_TSI_MAX_FRAME_SIZE   "grpc.tsi.max_frame_size"
#define	GRPC_ARG_USE_CRONET_PACKET_COALESCING   "grpc.use_cronet_packet_coalescing"
#define	GRPC_ARG_USE_LOCAL_SUBCHANNEL_POOL   "grpc.use_local_subchannel_pool"
#define	GRPC_ARG_WORKAROUND_CRONET_COMPRESSION   "grpc.workaround.cronet_compression"
#define	GRPC_CQ_CURRENT_VERSION   2
#define	GRPC_CQ_VERSION_MINIMUM_FOR_CALLBACKABLE   2
#define	GRPC_DEFAULT_MAX_RECV_MESSAGE_LENGTH   (4 * 1024 * 1024)
#define	GRPC_DEFAULT_MAX_SEND_MESSAGE_LENGTH   (-1)
#define	GRPC_INITIAL_METADATA_CORKED   (0x00000100u)
#define	GRPC_INITIAL_METADATA_USED_MASK
#define	GRPC_INITIAL_METADATA_WAIT_FOR_READY   (0x00000020u)
#define	GRPC_INITIAL_METADATA_WAIT_FOR_READY_EXPLICITLY_SET   (0x00000080u)
#define	GRPC_SSL_SESSION_CACHE_ARG   "grpc.ssl_session_cache"
#define	GRPC_SSL_TARGET_NAME_OVERRIDE_ARG   "grpc.ssl_target_name_override"
#define	GRPC_TCP_DEFAULT_READ_SLICE_SIZE   8192
#define	GRPC_WRITE_BUFFER_HINT   (0x00000001u)
#define	GRPC_WRITE_NO_COMPRESS   (0x00000002u)
#define	GRPC_WRITE_THROUGH   (0x00000004u)
#define	GRPC_WRITE_USED_MASK   (GRPC_WRITE_BUFFER_HINT | GRPC_WRITE_NO_COMPRESS | GRPC_WRITE_THROUGH)

Typedefs
typedef struct grpc_arg_pointer_vtable	grpc_arg_pointer_vtable
typedef struct grpc_byte_buffer	grpc_byte_buffer
typedef struct grpc_call	grpc_call
typedef enum grpc_call_error	grpc_call_error
typedef struct grpc_channel	grpc_channel
typedef struct grpc_completion_queue	grpc_completion_queue
typedef struct grpc_completion_queue_attributes	grpc_completion_queue_attributes
typedef struct grpc_completion_queue_factory	grpc_completion_queue_factory
typedef struct grpc_completion_queue_functor	grpc_completion_queue_functor
typedef enum grpc_completion_type	grpc_completion_type
typedef struct grpc_event	grpc_event
typedef struct grpc_metadata	grpc_metadata
typedef struct grpc_op	grpc_op
typedef struct grpc_resource_quota	grpc_resource_quota
typedef struct grpc_server	grpc_server
typedef struct grpc_socket_factory	grpc_socket_factory
typedef struct grpc_socket_mutator	grpc_socket_mutator

Enumerations
enum	grpc_arg_type { GRPC_ARG_STRING, GRPC_ARG_INTEGER, GRPC_ARG_POINTER }
enum	grpc_byte_buffer_type { GRPC_BB_RAW }
enum	grpc_call_error {   GRPC_CALL_OK = 0, GRPC_CALL_ERROR, GRPC_CALL_ERROR_NOT_ON_SERVER, GRPC_CALL_ERROR_NOT_ON_CLIENT,   GRPC_CALL_ERROR_ALREADY_ACCEPTED, GRPC_CALL_ERROR_ALREADY_INVOKED, GRPC_CALL_ERROR_NOT_INVOKED, GRPC_CALL_ERROR_ALREADY_FINISHED,   GRPC_CALL_ERROR_TOO_MANY_OPERATIONS, GRPC_CALL_ERROR_INVALID_FLAGS, GRPC_CALL_ERROR_INVALID_METADATA, GRPC_CALL_ERROR_INVALID_MESSAGE,   GRPC_CALL_ERROR_NOT_SERVER_COMPLETION_QUEUE, GRPC_CALL_ERROR_BATCH_TOO_BIG, GRPC_CALL_ERROR_PAYLOAD_TYPE_MISMATCH, GRPC_CALL_ERROR_COMPLETION_QUEUE_SHUTDOWN }
enum	grpc_completion_type { GRPC_QUEUE_SHUTDOWN, GRPC_QUEUE_TIMEOUT, GRPC_OP_COMPLETE }
enum	grpc_cq_completion_type { GRPC_CQ_NEXT, GRPC_CQ_PLUCK, GRPC_CQ_CALLBACK }
enum	grpc_cq_polling_type { GRPC_CQ_DEFAULT_POLLING, GRPC_CQ_NON_LISTENING, GRPC_CQ_NON_POLLING }
enum	grpc_op_type {   GRPC_OP_SEND_INITIAL_METADATA = 0, GRPC_OP_SEND_MESSAGE, GRPC_OP_SEND_CLOSE_FROM_CLIENT, GRPC_OP_SEND_STATUS_FROM_SERVER,   GRPC_OP_RECV_INITIAL_METADATA, GRPC_OP_RECV_MESSAGE, GRPC_OP_RECV_STATUS_ON_CLIENT, GRPC_OP_RECV_CLOSE_ON_SERVER }

Macro Definition Documentation

GRPC_CQ_CURRENT_VERSION

#define GRPC_CQ_CURRENT_VERSION   2

Definition at line 789 of file grpc_types.h.

GRPC_CQ_VERSION_MINIMUM_FOR_CALLBACKABLE

#define GRPC_CQ_VERSION_MINIMUM_FOR_CALLBACKABLE   2

Definition at line 790 of file grpc_types.h.

GRPC_DEFAULT_MAX_RECV_MESSAGE_LENGTH

#define GRPC_DEFAULT_MAX_RECV_MESSAGE_LENGTH   (4 * 1024 * 1024)

Definition at line 504 of file grpc_types.h.

GRPC_DEFAULT_MAX_SEND_MESSAGE_LENGTH

#define GRPC_DEFAULT_MAX_SEND_MESSAGE_LENGTH   (-1)

Default send/receive message size limits in bytes. -1 for unlimited. TODO(roth) Make this match the default receive limit after next release

Definition at line 503 of file grpc_types.h.

GRPC_INITIAL_METADATA_CORKED

#define GRPC_INITIAL_METADATA_CORKED   (0x00000100u)

Signal that the initial metadata should be corked

Definition at line 528 of file grpc_types.h.

GRPC_INITIAL_METADATA_USED_MASK

#define GRPC_INITIAL_METADATA_USED_MASK

Value:

  (GRPC_INITIAL_METADATA_WAIT_FOR_READY_EXPLICITLY_SET |                 \
   GRPC_INITIAL_METADATA_WAIT_FOR_READY | GRPC_INITIAL_METADATA_CORKED | \
   GRPC_WRITE_THROUGH)

Mask of all valid flags

Definition at line 531 of file grpc_types.h.

GRPC_INITIAL_METADATA_WAIT_FOR_READY

#define GRPC_INITIAL_METADATA_WAIT_FOR_READY   (0x00000020u)

Initial metadata flags These flags are to be passed to the grpc_op::flags field Signal that the call should not return UNAVAILABLE before it has started

Definition at line 523 of file grpc_types.h.

GRPC_INITIAL_METADATA_WAIT_FOR_READY_EXPLICITLY_SET

#define GRPC_INITIAL_METADATA_WAIT_FOR_READY_EXPLICITLY_SET   (0x00000080u)

Signal that GRPC_INITIAL_METADATA_WAIT_FOR_READY was explicitly set by the calling application.

Definition at line 526 of file grpc_types.h.

GRPC_WRITE_BUFFER_HINT

#define GRPC_WRITE_BUFFER_HINT   (0x00000001u)

Write Flags: Hint that the write may be buffered and need not go out on the wire immediately. GRPC is free to buffer the message until the next non-buffered write, or until writes_done, but it need not buffer completely or at all.

Definition at line 510 of file grpc_types.h.

GRPC_WRITE_NO_COMPRESS

#define GRPC_WRITE_NO_COMPRESS   (0x00000002u)

Force compression to be disabled for a particular write (start_write/add_metadata). Illegal on invoke/accept.

Definition at line 513 of file grpc_types.h.

GRPC_WRITE_THROUGH

#define GRPC_WRITE_THROUGH   (0x00000004u)

Force this message to be written to the socket before completing it

Definition at line 515 of file grpc_types.h.

GRPC_WRITE_USED_MASK

#define GRPC_WRITE_USED_MASK   (GRPC_WRITE_BUFFER_HINT | GRPC_WRITE_NO_COMPRESS | GRPC_WRITE_THROUGH)

Mask of all valid flags.

Definition at line 517 of file grpc_types.h.

Typedef Documentation

grpc_arg_pointer_vtable

typedef struct grpc_arg_pointer_vtable grpc_arg_pointer_vtable

grpc_byte_buffer

typedef struct grpc_byte_buffer grpc_byte_buffer

grpc_call

typedef struct grpc_call grpc_call

A Call represents an RPC. When created, it is in a configuration state allowing properties to be set until it is invoked. After invoke, the Call can have messages written to it and read from it.

Definition at line 70 of file grpc_types.h.

grpc_call_error

typedef enum grpc_call_error grpc_call_error

Result of a grpc call. If the caller satisfies the prerequisites of a particular operation, the grpc_call_error returned will be GRPC_CALL_OK. Receiving any other value listed here is an indication of a bug in the caller.

grpc_channel

typedef struct grpc_channel grpc_channel

The Channel interface allows creation of Call objects.

Definition at line 62 of file grpc_types.h.

grpc_completion_queue

typedef struct grpc_completion_queue grpc_completion_queue

Completion Queues enable notification of the completion of asynchronous actions.

Definition at line 59 of file grpc_types.h.

grpc_completion_queue_attributes

typedef struct grpc_completion_queue_attributes grpc_completion_queue_attributes

grpc_completion_queue_factory

typedef struct grpc_completion_queue_factory grpc_completion_queue_factory

The completion queue factory structure is opaque to the callers of grpc

Definition at line 811 of file grpc_types.h.

grpc_completion_queue_functor

typedef struct grpc_completion_queue_functor grpc_completion_queue_functor

Specifies an interface class to be used as a tag for callback-based completion queues. This can be used directly, as the first element of a struct in C, or as a base class in C++. Its "run" value should be assigned to some non-member function, such as a static method.

grpc_completion_type

typedef enum grpc_completion_type grpc_completion_type

The type of completion (for grpc_event)

grpc_event

typedef struct grpc_event grpc_event

The result of an operation.

Returned by a completion queue when the operation started with tag.

grpc_metadata

typedef struct grpc_metadata grpc_metadata

A single metadata element

grpc_op

typedef struct grpc_op grpc_op

Operation data: one field for each op type (except SEND_CLOSE_FROM_CLIENT which has no arguments)

grpc_resource_quota

typedef struct grpc_resource_quota grpc_resource_quota

Definition at line 729 of file grpc_types.h.

grpc_server

typedef struct grpc_server grpc_server

A server listens to some port and responds to request calls

Definition at line 65 of file grpc_types.h.

grpc_socket_factory

typedef struct grpc_socket_factory grpc_socket_factory

The Socket Factory interface creates and binds sockets

Definition at line 76 of file grpc_types.h.

grpc_socket_mutator

typedef struct grpc_socket_mutator grpc_socket_mutator

The Socket Mutator interface allows changes on socket options

Definition at line 73 of file grpc_types.h.

Enumeration Type Documentation

grpc_arg_type

enum grpc_arg_type

Type specifier for grpc_arg

Enumerator
GRPC_ARG_STRING
GRPC_ARG_INTEGER
GRPC_ARG_POINTER

Definition at line 79 of file grpc_types.h.

grpc_byte_buffer_type

enum grpc_byte_buffer_type

Enumerator
GRPC_BB_RAW	Future types may include GRPC_BB_PROTOBUF, etc.

Definition at line 38 of file grpc_types.h.

grpc_call_error

enum grpc_call_error

Result of a grpc call. If the caller satisfies the prerequisites of a particular operation, the grpc_call_error returned will be GRPC_CALL_OK. Receiving any other value listed here is an indication of a bug in the caller.

Enumerator
GRPC_CALL_OK	everything went ok
GRPC_CALL_ERROR	something failed, we don't know what
GRPC_CALL_ERROR_NOT_ON_SERVER	this method is not available on the server
GRPC_CALL_ERROR_NOT_ON_CLIENT	this method is not available on the client
GRPC_CALL_ERROR_ALREADY_ACCEPTED	this method must be called before server_accept
GRPC_CALL_ERROR_ALREADY_INVOKED	this method must be called before invoke
GRPC_CALL_ERROR_NOT_INVOKED	this method must be called after invoke
GRPC_CALL_ERROR_ALREADY_FINISHED	this call is already finished (writes_done or write_status has already been called)
GRPC_CALL_ERROR_TOO_MANY_OPERATIONS	there is already an outstanding read/write operation on the call
GRPC_CALL_ERROR_INVALID_FLAGS	the flags value was illegal for this call
GRPC_CALL_ERROR_INVALID_METADATA	invalid metadata was passed to this call
GRPC_CALL_ERROR_INVALID_MESSAGE	invalid message was passed to this call
GRPC_CALL_ERROR_NOT_SERVER_COMPLETION_QUEUE	completion queue for notification has not been registered with the server
GRPC_CALL_ERROR_BATCH_TOO_BIG	this batch of operations leads to more operations than allowed
GRPC_CALL_ERROR_PAYLOAD_TYPE_MISMATCH	payload type requested is not the type registered
GRPC_CALL_ERROR_COMPLETION_QUEUE_SHUTDOWN	completion queue has been shutdown

Definition at line 464 of file grpc_types.h.

grpc_completion_type

enum grpc_completion_type

The type of completion (for grpc_event)

Enumerator
GRPC_QUEUE_SHUTDOWN	Shutting down
GRPC_QUEUE_TIMEOUT	No event before timeout
GRPC_OP_COMPLETE	Operation completion

Definition at line 552 of file grpc_types.h.

grpc_cq_completion_type

enum grpc_cq_completion_type

Specifies the type of APIs to use to pop events from the completion queue

Enumerator
GRPC_CQ_NEXT	Events are popped out by calling grpc_completion_queue_next() API ONLY
GRPC_CQ_PLUCK	Events are popped out by calling grpc_completion_queue_pluck() API ONLY
GRPC_CQ_CALLBACK	Events trigger a callback specified as the tag

Definition at line 758 of file grpc_types.h.

grpc_cq_polling_type

enum grpc_cq_polling_type

Completion queues internally MAY maintain a set of file descriptors in a structure called 'pollset'. This enum specifies if a completion queue has an associated pollset and any restrictions on the type of file descriptors that can be present in the pollset.

I/O progress can only be made when grpc_completion_queue_next() or grpc_completion_queue_pluck() are called on the completion queue (unless the grpc_cq_polling_type is GRPC_CQ_NON_POLLING) and hence it is very important to actively call these APIs

Enumerator
GRPC_CQ_DEFAULT_POLLING	The completion queue will have an associated pollset and there is no restriction on the type of file descriptors the pollset may contain
GRPC_CQ_NON_LISTENING	Similar to GRPC_CQ_DEFAULT_POLLING except that the completion queues will not contain any 'listening file descriptors' (i.e file descriptors used to listen to incoming channels)
GRPC_CQ_NON_POLLING	The completion queue will not have an associated pollset. Note that grpc_completion_queue_next() or grpc_completion_queue_pluck() MUST still be called to pop events from the completion queue; it is not required to call them actively to make I/O progress

Definition at line 740 of file grpc_types.h.

grpc_op_type

enum grpc_op_type

Enumerator
GRPC_OP_SEND_INITIAL_METADATA	Send initial metadata: one and only one instance MUST be sent for each call, unless the call was cancelled - in which case this can be skipped. This op completes after all bytes of metadata have been accepted by outgoing flow control.
GRPC_OP_SEND_MESSAGE	Send a message: 0 or more of these operations can occur for each call. This op completes after all bytes for the message have been accepted by outgoing flow control.
GRPC_OP_SEND_CLOSE_FROM_CLIENT	Send a close from the client: one and only one instance MUST be sent from the client, unless the call was cancelled - in which case this can be skipped. This op completes after all bytes for the call (including the close) have passed outgoing flow control.
GRPC_OP_SEND_STATUS_FROM_SERVER	Send status from the server: one and only one instance MUST be sent from the server unless the call was cancelled - in which case this can be skipped. This op completes after all bytes for the call (including the status) have passed outgoing flow control.
GRPC_OP_RECV_INITIAL_METADATA	Receive initial metadata: one and only one MUST be made on the client, must not be made on the server. This op completes after all initial metadata has been read from the peer.
GRPC_OP_RECV_MESSAGE	Receive a message: 0 or more of these operations can occur for each call. This op completes after all bytes of the received message have been read, or after a half-close has been received on this call.
GRPC_OP_RECV_STATUS_ON_CLIENT	Receive status on the client: one and only one must be made on the client. This operation always succeeds, meaning ops paired with this operation will also appear to succeed, even though they may not have. In that case the status will indicate some failure. This op completes after all activity on the call has completed.
GRPC_OP_RECV_CLOSE_ON_SERVER	Receive close on the server: one and only one must be made on the server. This op completes after the close has been received by the server. This operation always succeeds, meaning ops paired with this operation will also appear to succeed, even though they may not have.

Definition at line 593 of file grpc_types.h.
