#include <grpc/support/port_platform.h>
#include <inttypes.h>
#include <stdbool.h>
#include "absl/status/status.h"
#include <grpc/slice.h>
#include <grpc/status.h>
#include <grpc/support/log.h>
#include <grpc/support/time.h>
#include "src/core/lib/debug/trace.h"
#include "src/core/lib/gpr/spinlock.h"
#include "src/core/lib/gprpp/status_helper.h"
#include "src/core/lib/slice/slice_internal.h"

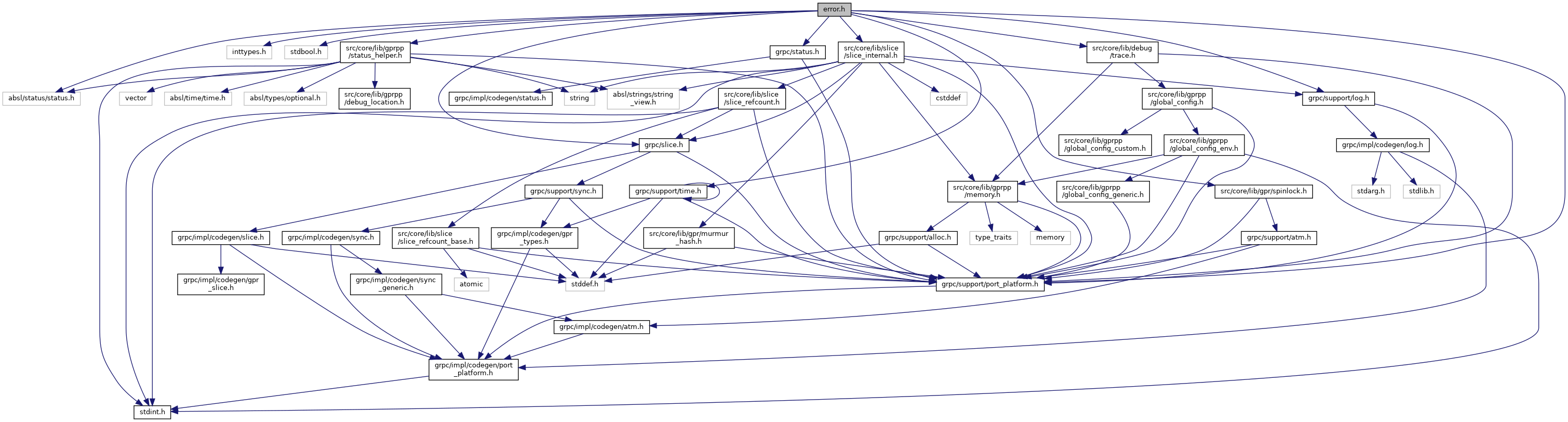

Include dependency graph for error.h:

Classes
class	AtomicError

Macros
#define	GRPC_ERROR_CANCELLED ((grpc_error_handle)4)

#define	GRPC_ERROR_CREATE_FROM_COPIED_STRING(desc)

#define	GRPC_ERROR_CREATE_FROM_CPP_STRING(desc)

#define	GRPC_ERROR_CREATE_FROM_STATIC_STRING(desc)

#define	GRPC_ERROR_CREATE_FROM_STRING_VIEW(desc)

#define	GRPC_ERROR_CREATE_FROM_VECTOR(desc, error_list)

#define	GRPC_ERROR_CREATE_FROM_VECTOR_AND_CPP_STRING(desc, error_list)

#define	GRPC_ERROR_CREATE_REFERENCING_FROM_COPIED_STRING(desc, errs, count)

#define	GRPC_ERROR_CREATE_REFERENCING_FROM_STATIC_STRING(desc, errs, count)

#define	GRPC_ERROR_IS_NONE(err) ((err) == GRPC_ERROR_NONE)

#define	GRPC_ERROR_NONE ((grpc_error_handle)NULL)

#define	GRPC_ERROR_OOM ((grpc_error_handle)2)

#define	GRPC_ERROR_REF(err) grpc_error_ref(err, __FILE__, __LINE__)

#define	GRPC_ERROR_RESERVED_1 ((grpc_error_handle)1)

#define	GRPC_ERROR_RESERVED_2 ((grpc_error_handle)3)

#define	GRPC_ERROR_SPECIAL_MAX GRPC_ERROR_CANCELLED

#define	GRPC_ERROR_UNREF(err) grpc_error_unref(err, __FILE__, __LINE__)

#define	GRPC_LOG_IF_ERROR(what, error) (grpc_log_if_error((what), (error), __FILE__, __LINE__))

#define	GRPC_OS_ERROR(err, call_name) grpc_assert_never_ok(grpc_os_error(__FILE__, __LINE__, err, call_name))
	create an error associated with errno!=0 (an 'operating system' error) More...

#define	GRPC_WSA_ERROR(err, call_name) grpc_wsa_error(__FILE__, __LINE__, err, call_name)
	windows only: create an error associated with WSAGetLastError()!=0 More...

Typedefs
typedef struct grpc_error	grpc_error

typedef grpc_error *	grpc_error_handle

Enumerations
enum	grpc_error_ints { GRPC_ERROR_INT_ERRNO, GRPC_ERROR_INT_FILE_LINE, GRPC_ERROR_INT_STREAM_ID, GRPC_ERROR_INT_GRPC_STATUS, GRPC_ERROR_INT_OFFSET, GRPC_ERROR_INT_INDEX = static_cast<int>(grpc_core::StatusIntProperty::kIndex), GRPC_ERROR_INT_SIZE = static_cast<int>(grpc_core::StatusIntProperty::kSize), GRPC_ERROR_INT_HTTP2_ERROR, GRPC_ERROR_INT_TSI_CODE, GRPC_ERROR_INT_WSA_ERROR, GRPC_ERROR_INT_FD = static_cast<int>(grpc_core::StatusIntProperty::kFd), GRPC_ERROR_INT_HTTP_STATUS, GRPC_ERROR_INT_OCCURRED_DURING_WRITE, GRPC_ERROR_INT_CHANNEL_CONNECTIVITY_STATE, GRPC_ERROR_INT_LB_POLICY_DROP, GRPC_ERROR_INT_MAX }

enum	grpc_error_strs { GRPC_ERROR_STR_DESCRIPTION, GRPC_ERROR_STR_FILE = static_cast<int>(grpc_core::StatusStrProperty::kFile), GRPC_ERROR_STR_OS_ERROR, GRPC_ERROR_STR_SYSCALL, GRPC_ERROR_STR_TARGET_ADDRESS, GRPC_ERROR_STR_GRPC_MESSAGE, GRPC_ERROR_STR_RAW_BYTES, GRPC_ERROR_STR_TSI_ERROR, GRPC_ERROR_STR_FILENAME, GRPC_ERROR_STR_KEY = static_cast<int>(grpc_core::StatusStrProperty::kKey), GRPC_ERROR_STR_VALUE = static_cast<int>(grpc_core::StatusStrProperty::kValue), GRPC_ERROR_STR_MAX }

enum	grpc_error_times { GRPC_ERROR_TIME_CREATED, GRPC_ERROR_TIME_MAX }

Functions
grpc_error_handle	grpc_assert_never_ok (grpc_error_handle error)

void	grpc_disable_error_creation ()

void	grpc_enable_error_creation ()

grpc_error_handle	grpc_error_add_child (grpc_error_handle src, grpc_error_handle child) GRPC_MUST_USE_RESULT

grpc_error_handle	grpc_error_create (const char file, int line, const grpc_slice &desc, grpc_error_handle referencing, size_t num_referencing)
	Create an error - but use GRPC_ERROR_CREATE instead. More...

template<typename VectorType , typename StringType , typename SliceFromStringFunction >
static grpc_error_handle	grpc_error_create_from_vector (const char file, int line, SliceFromStringFunction slice_from_string_function, StringType desc, VectorType error_list)

grpc_error_handle	grpc_error_do_ref (grpc_error_handle err, const char *file, int line)

void	grpc_error_do_unref (grpc_error_handle err, const char *file, int line)

bool	grpc_error_get_int (grpc_error_handle error, grpc_error_ints which, intptr_t *p)

bool	grpc_error_get_str (grpc_error_handle error, grpc_error_strs which, std::string *str)
	Returns false if the specified string is not set. More...

bool	grpc_error_is_special (grpc_error_handle err)

grpc_error_handle	grpc_error_ref (grpc_error_handle err, const char *file, int line)

grpc_error_handle	grpc_error_set_int (grpc_error_handle src, grpc_error_ints which, intptr_t value) GRPC_MUST_USE_RESULT

grpc_error_handle	grpc_error_set_str (grpc_error_handle src, grpc_error_strs which, absl::string_view str) GRPC_MUST_USE_RESULT

std::string	grpc_error_std_string (grpc_error_handle error)

void	grpc_error_unref (grpc_error_handle err, const char *file, int line)

bool	grpc_log_error (const char what, grpc_error_handle error, const char file, int line)

bool	grpc_log_if_error (const char what, grpc_error_handle error, const char file, int line)

grpc_error_handle	grpc_os_error (const char file, int line, int err, const char call_name) GRPC_MUST_USE_RESULT

grpc_error_handle	grpc_wsa_error (const char file, int line, int err, const char call_name) GRPC_MUST_USE_RESULT

Macro Definition Documentation

◆ GRPC_ERROR_CANCELLED

#define GRPC_ERROR_CANCELLED ((grpc_error_handle)4)

Definition at line 238 of file error.h.

◆ GRPC_ERROR_CREATE_FROM_COPIED_STRING

#define GRPC_ERROR_CREATE_FROM_COPIED_STRING ( desc )

Value:

grpc_error_create(__FILE__, __LINE__, grpc_slice_from_copied_string(desc), \

NULL, 0)

Definition at line 294 of file error.h.

◆ GRPC_ERROR_CREATE_FROM_CPP_STRING

#define GRPC_ERROR_CREATE_FROM_CPP_STRING ( desc )

Value:

grpc_error_create(__FILE__, __LINE__, grpc_slice_from_cpp_string(desc), \

NULL, 0)

Definition at line 297 of file error.h.

◆ GRPC_ERROR_CREATE_FROM_STATIC_STRING

#define GRPC_ERROR_CREATE_FROM_STATIC_STRING ( desc )

Value:

grpc_error_create(__FILE__, __LINE__, grpc_slice_from_static_string(desc), \

NULL, 0)

Create an error (this is the preferred way of generating an error that is not due to a system call - for system calls, use GRPC_OS_ERROR or GRPC_WSA_ERROR as appropriate) referencing is an array of num_referencing elements indicating one or more errors that are believed to have contributed to this one err = grpc_error_create(x, y, z, r, nr) is equivalent to: err = grpc_error_create(x, y, z, NULL, 0); for (i=0; i<nr; i++) err = grpc_error_add_child(err, r[i]);

Definition at line 291 of file error.h.

◆ GRPC_ERROR_CREATE_FROM_STRING_VIEW

#define GRPC_ERROR_CREATE_FROM_STRING_VIEW ( desc )

Value:

  grpc_error_create(                             \
      __FILE__, __LINE__,                        \
      grpc_slice_from_copied_buffer((desc).data(), (desc).size()), NULL, 0)

Definition at line 300 of file error.h.

◆ GRPC_ERROR_CREATE_FROM_VECTOR

#define GRPC_ERROR_CREATE_FROM_VECTOR	(	desc,
		error_list
	)

Value:

grpc_error_create_from_vector( \

__FILE__, __LINE__, grpc_slice_from_static_string, desc, error_list)

Definition at line 314 of file error.h.

◆ GRPC_ERROR_CREATE_FROM_VECTOR_AND_CPP_STRING

#define GRPC_ERROR_CREATE_FROM_VECTOR_AND_CPP_STRING	(	desc,
		error_list
	)

Value:

grpc_error_create_from_vector(__FILE__, __LINE__, \

grpc_slice_from_cpp_string, desc, error_list)

Definition at line 317 of file error.h.

◆ GRPC_ERROR_CREATE_REFERENCING_FROM_COPIED_STRING

#define GRPC_ERROR_CREATE_REFERENCING_FROM_COPIED_STRING	(	desc,
		errs,
		count
	)

Value:

grpc_error_create(__FILE__, __LINE__, grpc_slice_from_copied_string(desc), \

errs, count)

Definition at line 310 of file error.h.

◆ GRPC_ERROR_CREATE_REFERENCING_FROM_STATIC_STRING

#define GRPC_ERROR_CREATE_REFERENCING_FROM_STATIC_STRING	(	desc,
		errs,
		count
	)

Value:

grpc_error_create(__FILE__, __LINE__, grpc_slice_from_static_string(desc), \

errs, count)

Definition at line 307 of file error.h.

◆ GRPC_ERROR_IS_NONE

#define GRPC_ERROR_IS_NONE ( err ) ((err) == GRPC_ERROR_NONE)

Definition at line 241 of file error.h.

◆ GRPC_ERROR_NONE

#define GRPC_ERROR_NONE ((grpc_error_handle)NULL)

The following "special" errors can be propagated without allocating memory. They are always even so that other code (particularly combiner locks, polling engines) can safely use the lower bit for themselves.

Definition at line 234 of file error.h.

◆ GRPC_ERROR_OOM

#define GRPC_ERROR_OOM ((grpc_error_handle)2)

Definition at line 236 of file error.h.

◆ GRPC_ERROR_REF

#define GRPC_ERROR_REF ( err ) grpc_error_ref(err, __FILE__, __LINE__)

Definition at line 261 of file error.h.

◆ GRPC_ERROR_RESERVED_1

#define GRPC_ERROR_RESERVED_1 ((grpc_error_handle)1)

Definition at line 235 of file error.h.

◆ GRPC_ERROR_RESERVED_2

#define GRPC_ERROR_RESERVED_2 ((grpc_error_handle)3)

Definition at line 237 of file error.h.

◆ GRPC_ERROR_SPECIAL_MAX

#define GRPC_ERROR_SPECIAL_MAX GRPC_ERROR_CANCELLED

Definition at line 239 of file error.h.

◆ GRPC_ERROR_UNREF

#define GRPC_ERROR_UNREF ( err ) grpc_error_unref(err, __FILE__, __LINE__)

Definition at line 262 of file error.h.

◆ GRPC_LOG_IF_ERROR

#define GRPC_LOG_IF_ERROR	(	what,
		error
	)	(grpc_log_if_error((what), (error), __FILE__, __LINE__))

Definition at line 398 of file error.h.

◆ GRPC_OS_ERROR

#define GRPC_OS_ERROR	(	err,
		call_name
	)	grpc_assert_never_ok(grpc_os_error(__FILE__, __LINE__, err, call_name))

create an error associated with errno!=0 (an 'operating system' error)

Definition at line 352 of file error.h.

◆ GRPC_WSA_ERROR

#define GRPC_WSA_ERROR	(	err,
		call_name
	)	grpc_wsa_error(__FILE__, __LINE__, err, call_name)

windows only: create an error associated with WSAGetLastError()!=0

Definition at line 357 of file error.h.

Typedef Documentation

◆ grpc_error

typedef struct grpc_error grpc_error

Opaque representation of an error. See https://github.com/grpc/grpc/blob/master/doc/core/grpc-error.md for a full write up of this object.

Definition at line 49 of file error.h.

◆ grpc_error_handle

typedef grpc_error* grpc_error_handle

Definition at line 50 of file error.h.

Enumeration Type Documentation

◆ grpc_error_ints

enum grpc_error_ints

Enumerator
GRPC_ERROR_INT_ERRNO	'errno' from the operating system
GRPC_ERROR_INT_FILE_LINE	LINE from the call site creating the error
GRPC_ERROR_INT_STREAM_ID	stream identifier: for errors that are associated with an individual wire stream
GRPC_ERROR_INT_GRPC_STATUS	grpc status code representing this error
GRPC_ERROR_INT_OFFSET	offset into some binary blob (usually represented by GRPC_ERROR_STR_RAW_BYTES) where the error occurred
GRPC_ERROR_INT_INDEX	context sensitive index associated with the error
GRPC_ERROR_INT_SIZE	context sensitive size associated with the error
GRPC_ERROR_INT_HTTP2_ERROR	http2 error code associated with the error (see the HTTP2 RFC)
GRPC_ERROR_INT_TSI_CODE	TSI status code associated with the error.
GRPC_ERROR_INT_WSA_ERROR	WSAGetLastError() reported when this error occurred.
GRPC_ERROR_INT_FD	File descriptor associated with this error.
GRPC_ERROR_INT_HTTP_STATUS	HTTP status (i.e. 404)
GRPC_ERROR_INT_OCCURRED_DURING_WRITE	chttp2: did the error occur while a write was in progress
GRPC_ERROR_INT_CHANNEL_CONNECTIVITY_STATE	channel connectivity state associated with the error
GRPC_ERROR_INT_LB_POLICY_DROP	LB policy drop.
GRPC_ERROR_INT_MAX	Must always be last.

Definition at line 54 of file error.h.

◆ grpc_error_strs

enum grpc_error_strs

Enumerator
GRPC_ERROR_STR_DESCRIPTION	top-level textual description of this error
GRPC_ERROR_STR_FILE	source file in which this error occurred
GRPC_ERROR_STR_OS_ERROR	operating system description of this error
GRPC_ERROR_STR_SYSCALL	syscall that generated this error
GRPC_ERROR_STR_TARGET_ADDRESS	peer that we were trying to communicate when this error occurred
GRPC_ERROR_STR_GRPC_MESSAGE	grpc status message associated with this error
GRPC_ERROR_STR_RAW_BYTES	hex dump (or similar) with the data that generated this error
GRPC_ERROR_STR_TSI_ERROR	tsi error string associated with this error
GRPC_ERROR_STR_FILENAME	filename that we were trying to read/write when this error occurred
GRPC_ERROR_STR_KEY	key associated with the error
GRPC_ERROR_STR_VALUE	value associated with the error
GRPC_ERROR_STR_MAX	Must always be last.

Definition at line 104 of file error.h.

◆ grpc_error_times

enum grpc_error_times

Enumerator
GRPC_ERROR_TIME_CREATED	timestamp of error creation
GRPC_ERROR_TIME_MAX	Must always be last.

Definition at line 140 of file error.h.

Function Documentation

◆ grpc_assert_never_ok()

grpc_error_handle grpc_assert_never_ok ( grpc_error_handle error )

inline

Definition at line 346 of file error.h.

◆ grpc_disable_error_creation()

void grpc_disable_error_creation ( )

Definition at line 45 of file error.cc.

◆ grpc_enable_error_creation()

void grpc_enable_error_creation ( )

Definition at line 49 of file error.cc.

◆ grpc_error_add_child()

grpc_error_handle grpc_error_add_child	(	grpc_error_handle	src,
		grpc_error_handle	child
	)

Add a child error: an error that is believed to have contributed to this error occurring. Allows root causing high level errors from lower level errors that contributed to them. The src error takes ownership of the child error.

Edge Conditions - 1) If either of src or child is GRPC_ERROR_NONE, returns a reference to the other argument. 2) If both src and child are GRPC_ERROR_NONE, returns GRPC_ERROR_NONE. 3) If src and child point to the same error, returns a single reference. (Note that, 2 references should have been received to the error in this case.)

Definition at line 678 of file error.cc.

◆ grpc_error_create()

grpc_error_handle grpc_error_create	(	const char *	file,
		int	line,
		const grpc_slice &	desc,
		grpc_error_handle *	referencing,
		size_t	num_referencing
	)

Create an error - but use GRPC_ERROR_CREATE instead.

Definition at line 489 of file error.cc.

◆ grpc_error_create_from_vector()

template<typename VectorType , typename StringType , typename SliceFromStringFunction >

static grpc_error_handle grpc_error_create_from_vector	(	const char *	file,
		int	line,
		SliceFromStringFunction	slice_from_string_function,
		StringType	desc,
		VectorType *	error_list
	)

static

Definition at line 325 of file error.h.

◆ grpc_error_do_ref()

grpc_error_handle grpc_error_do_ref	(	grpc_error_handle	err,
		const char *	file,
		int	line
	)

Definition at line 303 of file error.cc.

◆ grpc_error_do_unref()

void grpc_error_do_unref	(	grpc_error_handle	err,
		const char *	file,
		int	line
	)

Definition at line 352 of file error.cc.

◆ grpc_error_get_int()

bool grpc_error_get_int	(	grpc_error_handle	error,
		grpc_error_ints	which,
		intptr_t *	p
	)

It is an error to pass nullptr as p. Caller should allocate a phony intptr_t for p, even if the value of p is not used.

Definition at line 635 of file error.cc.

◆ grpc_error_get_str()

bool grpc_error_get_str	(	grpc_error_handle	error,
		grpc_error_strs	which,
		std::string *	str
	)

Returns false if the specified string is not set.

Definition at line 659 of file error.cc.

◆ grpc_error_is_special()

bool grpc_error_is_special ( grpc_error_handle err )

inline

Definition at line 243 of file error.h.

◆ grpc_error_ref()

grpc_error_handle grpc_error_ref	(	grpc_error_handle	err,
		const char *	file,
		int	line
	)

inline

Definition at line 251 of file error.h.

◆ grpc_error_set_int()

grpc_error_handle grpc_error_set_int	(	grpc_error_handle	src,
		grpc_error_ints	which,
		intptr_t	value
	)

Definition at line 613 of file error.cc.

◆ grpc_error_set_str()

grpc_error_handle grpc_error_set_str	(	grpc_error_handle	src,
		grpc_error_strs	which,
		absl::string_view	str
	)

Definition at line 650 of file error.cc.

◆ grpc_error_std_string()

std::string grpc_error_std_string ( grpc_error_handle error )

Definition at line 944 of file error.cc.

◆ grpc_error_unref()

void grpc_error_unref	(	grpc_error_handle	err,
		const char *	file,
		int	line
	)

inline

Definition at line 256 of file error.h.

◆ grpc_log_error()

bool grpc_log_error	(	const char *	what,
		grpc_error_handle	error,
		const char *	file,
		int	line
	)

Definition at line 981 of file error.cc.

◆ grpc_log_if_error()

bool grpc_log_if_error	(	const char *	what,
		grpc_error_handle	error,
		const char *	file,
		int	line
	)

inline

Definition at line 392 of file error.h.

◆ grpc_os_error()

grpc_error_handle grpc_os_error	(	const char *	file,
		int	line,
		int	err,
		const char *	call_name
	)

Definition at line 948 of file error.cc.

◆ grpc_wsa_error()

grpc_error_handle grpc_wsa_error	(	const char *	file,
		int	line,
		int	err,
		const char *	call_name
	)

Classes

Macros

Typedefs

Enumerations

Functions

Macro Definition Documentation

◆ GRPC_ERROR_CANCELLED

◆ GRPC_ERROR_CREATE_FROM_COPIED_STRING

◆ GRPC_ERROR_CREATE_FROM_CPP_STRING

◆ GRPC_ERROR_CREATE_FROM_STATIC_STRING

◆ GRPC_ERROR_CREATE_FROM_STRING_VIEW

◆ GRPC_ERROR_CREATE_FROM_VECTOR

◆ GRPC_ERROR_CREATE_FROM_VECTOR_AND_CPP_STRING

◆ GRPC_ERROR_CREATE_REFERENCING_FROM_COPIED_STRING

◆ GRPC_ERROR_CREATE_REFERENCING_FROM_STATIC_STRING

◆ GRPC_ERROR_IS_NONE

◆ GRPC_ERROR_NONE

◆ GRPC_ERROR_OOM

◆ GRPC_ERROR_REF

◆ GRPC_ERROR_RESERVED_1

◆ GRPC_ERROR_RESERVED_2

◆ GRPC_ERROR_SPECIAL_MAX

◆ GRPC_ERROR_UNREF

◆ GRPC_LOG_IF_ERROR

◆ GRPC_OS_ERROR

◆ GRPC_WSA_ERROR

Typedef Documentation

◆ grpc_error

◆ grpc_error_handle

Enumeration Type Documentation

◆ grpc_error_ints

◆ grpc_error_strs

◆ grpc_error_times

Function Documentation

◆ grpc_assert_never_ok()

◆ grpc_disable_error_creation()

◆ grpc_enable_error_creation()

◆ grpc_error_add_child()

◆ grpc_error_create()

◆ grpc_error_create_from_vector()

◆ grpc_error_do_ref()

◆ grpc_error_do_unref()

◆ grpc_error_get_int()

◆ grpc_error_get_str()

◆ grpc_error_is_special()

◆ grpc_error_ref()

◆ grpc_error_set_int()

◆ grpc_error_set_str()

◆ grpc_error_std_string()

◆ grpc_error_unref()

◆ grpc_log_error()

◆ grpc_log_if_error()

◆ grpc_os_error()

◆ grpc_wsa_error()
