#include <async_stream.h>

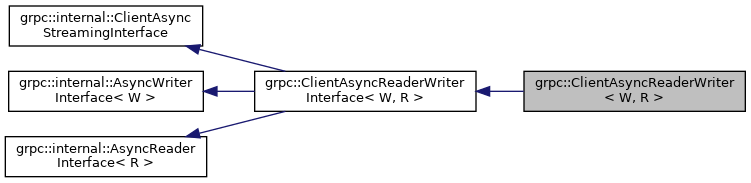

Inheritance diagram for grpc::ClientAsyncReaderWriter< W, R >:

[legend]

Public Member Functions
void	Finish (grpc::Status status, void tag) override

void	Read (R msg, void tag) override

void	ReadInitialMetadata (void *tag) override

void	StartCall (void *tag) override

void	Write (const W &msg, grpc::WriteOptions options, void *tag) override

void	Write (const W &msg, void *tag) override

void	WritesDone (void *tag) override

Public Member Functions inherited from grpc::internal::ClientAsyncStreamingInterface
virtual	~ClientAsyncStreamingInterface ()

Public Member Functions inherited from grpc::internal::AsyncWriterInterface< W >
void	WriteLast (const W &msg, grpc::WriteOptions options, void *tag)

virtual	~AsyncWriterInterface ()

Public Member Functions inherited from grpc::internal::AsyncReaderInterface< R >
virtual	~AsyncReaderInterface ()

Static Public Member Functions
static void	operator delete (void *, std::size_t size)

static void	operator delete (void , void )

Private Member Functions
	ClientAsyncReaderWriter (grpc::internal::Call call, grpc::ClientContext context, bool start, void tag)

void	StartCallInternal (void *tag)

Friends
class	internal::ClientAsyncReaderWriterFactory< W, R >

Detailed Description

template<class W, class R>
class grpc::ClientAsyncReaderWriter< W, R >

Async client-side interface for bi-directional streaming, where the outgoing message stream going to the server has messages of type W, and the incoming message stream coming from the server has messages of type R.

Definition at line 513 of file grpcpp/impl/codegen/async_stream.h.

Constructor & Destructor Documentation

◆ ClientAsyncReaderWriter()

template<class W , class R >

grpc::ClientAsyncReaderWriter< W, R >::ClientAsyncReaderWriter	(	grpc::internal::Call	call,
		grpc::ClientContext *	context,
		bool	start,
		void *	tag
	)

inlineprivate

Definition at line 603 of file grpcpp/impl/codegen/async_stream.h.

Member Function Documentation

◆ Finish()

template<class W , class R >

void grpc::ClientAsyncReaderWriter< W, R >::Finish	(	grpc::Status *	status,
		void *	tag
	)

inlineoverridevirtual

See the ClientAsyncStreamingInterface.Finish method for semantics. Side effect

the ClientContext associated with this call is updated with possible initial and trailing metadata sent from the server.

Implements grpc::internal::ClientAsyncStreamingInterface.

Definition at line 591 of file grpcpp/impl/codegen/async_stream.h.

◆ operator delete() [1/2]

template<class W , class R >

static void grpc::ClientAsyncReaderWriter< W, R >::operator delete	(	void *	,
		std::size_t	size
	)

inlinestatic

Definition at line 517 of file grpcpp/impl/codegen/async_stream.h.

◆ operator delete() [2/2]

template<class W , class R >

static void grpc::ClientAsyncReaderWriter< W, R >::operator delete	(	void *	,
		void *
	)

inlinestatic

Definition at line 526 of file grpcpp/impl/codegen/async_stream.h.

◆ Read()

template<class W , class R >

void grpc::ClientAsyncReaderWriter< W, R >::Read	(	R *	msg,
		void *	tag
	)

inlineoverridevirtual

Read a message of type R into msg. Completion will be notified by tag on the associated completion queue. This is thread-safe with respect to Write or WritesDone methods. It should not be called concurrently with other streaming APIs on the same stream. It is not meaningful to call it concurrently with another AsyncReaderInterface::Read on the same stream since reads on the same stream are delivered in order.

Parameters

[out]	msg	Where to eventually store the read message.
[in]	tag	The tag identifying the operation.

Side effect: note that this method attempt to receive initial metadata for a stream if it hasn't yet been received.

Implements grpc::internal::AsyncReaderInterface< R >.

Definition at line 550 of file grpcpp/impl/codegen/async_stream.h.

◆ ReadInitialMetadata()

template<class W , class R >

void grpc::ClientAsyncReaderWriter< W, R >::ReadInitialMetadata ( void * tag )

inlineoverridevirtual

See the ClientAsyncStreamingInterface.ReadInitialMetadata method for semantics of this method.

Side effect:

upon receiving initial metadata from the server, the ClientContext is updated with it, and then the receiving initial metadata can be accessed through this ClientContext.

Implements grpc::internal::ClientAsyncStreamingInterface.

Definition at line 541 of file grpcpp/impl/codegen/async_stream.h.

◆ StartCall()

template<class W , class R >

void grpc::ClientAsyncReaderWriter< W, R >::StartCall ( void * tag )

inlineoverridevirtual

Start the call that was set up by the constructor, but only if the constructor was invoked through the "Prepare" API which doesn't actually start the call

Implements grpc::internal::ClientAsyncStreamingInterface.

Definition at line 528 of file grpcpp/impl/codegen/async_stream.h.

◆ StartCallInternal()

template<class W , class R >

void grpc::ClientAsyncReaderWriter< W, R >::StartCallInternal ( void * tag )

inlineprivate

Definition at line 613 of file grpcpp/impl/codegen/async_stream.h.

◆ Write() [1/2]

template<class W , class R >

void grpc::ClientAsyncReaderWriter< W, R >::Write	(	const W &	msg,
		grpc::WriteOptions	options,
		void *	tag
	)

inlineoverridevirtual

Request the writing of msg using WriteOptions options with identifying tag tag.

Only one write may be outstanding at any given time. This means that after calling Write, one must wait to receive tag from the completion queue BEFORE calling Write again. WriteOptions options is used to set the write options of this message. This is thread-safe with respect to AsyncReaderInterface::Read

gRPC doesn't take ownership or a reference to msg, so it is safe to to deallocate once Write returns.

Parameters

[in]	msg	The message to be written.
[in]	options	The WriteOptions to be used to write this message.
[in]	tag	The tag identifying the operation.

Implements grpc::internal::AsyncWriterInterface< W >.

Definition at line 568 of file grpcpp/impl/codegen/async_stream.h.

◆ Write() [2/2]

template<class W , class R >

void grpc::ClientAsyncReaderWriter< W, R >::Write	(	const W &	msg,
		void *	tag
	)

inlineoverridevirtual

Request the writing of msg with identifying tag tag.

Only one write may be outstanding at any given time. This means that after calling Write, one must wait to receive tag from the completion queue BEFORE calling Write again. This is thread-safe with respect to AsyncReaderInterface::Read

gRPC doesn't take ownership or a reference to msg, so it is safe to to deallocate once Write returns.

Parameters

[in]	msg	The message to be written.
[in]	tag	The tag identifying the operation.

Implements grpc::internal::AsyncWriterInterface< W >.

Definition at line 560 of file grpcpp/impl/codegen/async_stream.h.

◆ WritesDone()

template<class W , class R >

void grpc::ClientAsyncReaderWriter< W, R >::WritesDone ( void * tag )

inlineoverridevirtual

Signal the client is done with the writes (half-close the client stream). Thread-safe with respect to AsyncReaderInterface::Read

Parameters

[in] tag The tag identifying the operation.

Implements grpc::ClientAsyncReaderWriterInterface< W, R >.

Definition at line 580 of file grpcpp/impl/codegen/async_stream.h.

Friends And Related Function Documentation

◆ internal::ClientAsyncReaderWriterFactory< W, R >

template<class W , class R >

template<class W , class R >

grpc::internal::CallOpSet<grpc::internal::CallOpSendInitialMetadata, grpc::internal::CallOpSendMessage, grpc::internal::CallOpClientSendClose> grpc::ClientAsyncReaderWriter< W, R >::write_ops_

private

Definition at line 635 of file grpcpp/impl/codegen/async_stream.h.

The documentation for this class was generated from the following file:

grpcpp/impl/codegen/async_stream.h

Private Attributes
grpc::internal::Call	call_

grpc::ClientContext *	context_

grpc::internal::CallOpSet< grpc::internal::CallOpRecvInitialMetadata, grpc::internal::CallOpClientRecvStatus >	finish_ops_

grpc::internal::CallOpSet< grpc::internal::CallOpRecvInitialMetadata >	meta_ops_

grpc::internal::CallOpSet< grpc::internal::CallOpRecvInitialMetadata, grpc::internal::CallOpRecvMessage< R > >	read_ops_

bool	started_

grpc::internal::CallOpSet< grpc::internal::CallOpSendInitialMetadata, grpc::internal::CallOpSendMessage, grpc::internal::CallOpClientSendClose >	write_ops_
