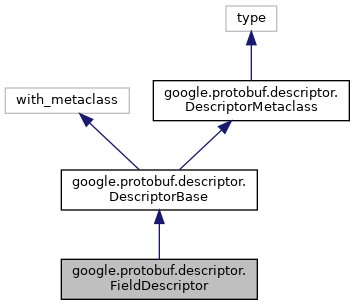

Inheritance diagram for google.protobuf.descriptor.FieldDescriptor:

[legend]

Public Member Functions
def	__init__ (self, name, full_name, index, number, type, cpp_type, label, default_value, message_type, enum_type, containing_type, is_extension, extension_scope, options=None, serialized_options=None, has_default_value=True, containing_oneof=None, json_name=None, file=None)

def	__init__ (self, name, full_name, index, number, type, cpp_type, label, default_value, message_type, enum_type, containing_type, is_extension, extension_scope, options=None, serialized_options=None, has_default_value=True, containing_oneof=None, json_name=None, file=None, create_key=None)

def	__new__ (cls, name, full_name, index, number, type, cpp_type, label, default_value, message_type, enum_type, containing_type, is_extension, extension_scope, options=None, serialized_options=None, has_default_value=True, containing_oneof=None, json_name=None, file=None)

def	__new__ (cls, name, full_name, index, number, type, cpp_type, label, default_value, message_type, enum_type, containing_type, is_extension, extension_scope, options=None, serialized_options=None, has_default_value=True, containing_oneof=None, json_name=None, file=None, create_key=None)

def	camelcase_name (self)

def	camelcase_name (self)

Public Member Functions inherited from google.protobuf.descriptor.DescriptorBase
def	__init__ (self, options, serialized_options, options_class_name)

def	__init__ (self, options, serialized_options, options_class_name)

def	GetOptions (self)

def	GetOptions (self)

Public Member Functions inherited from google.protobuf.descriptor.DescriptorMetaclass
def	__instancecheck__ (cls, obj)

def	__instancecheck__ (cls, obj)

Static Public Member Functions
def	ProtoTypeToCppProtoType (proto_type)

def	ProtoTypeToCppProtoType (proto_type)

Public Attributes
	containing_oneof

	containing_type

	cpp_type

	default_value

	enum_type

	extension_scope

	file

	full_name

	has_default_value

	index

	is_extension

	json_name

	label

	message_type

	name

	number

	type

Public Attributes inherited from google.protobuf.descriptor.DescriptorBase
	has_options

Static Public Attributes
int	CPPTYPE_BOOL = 7

int	CPPTYPE_DOUBLE = 5

int	CPPTYPE_ENUM = 8

int	CPPTYPE_FLOAT = 6

int	CPPTYPE_INT32 = 1

int	CPPTYPE_INT64 = 2

int	CPPTYPE_MESSAGE = 10

int	CPPTYPE_STRING = 9

int	CPPTYPE_UINT32 = 3

int	CPPTYPE_UINT64 = 4

int	FIRST_RESERVED_FIELD_NUMBER = 19000

int	LABEL_OPTIONAL = 1

int	LABEL_REPEATED = 3

int	LABEL_REQUIRED = 2

int	LAST_RESERVED_FIELD_NUMBER = 19999

int	MAX_CPPTYPE = 10

tuple	MAX_FIELD_NUMBER = (1 << 29) - 1

int	MAX_LABEL = 3

int	MAX_TYPE = 18

int	TYPE_BOOL = 8

int	TYPE_BYTES = 12

int	TYPE_DOUBLE = 1

int	TYPE_ENUM = 14

int	TYPE_FIXED32 = 7

int	TYPE_FIXED64 = 6

int	TYPE_FLOAT = 2

int	TYPE_GROUP = 10

int	TYPE_INT32 = 5

int	TYPE_INT64 = 3

int	TYPE_MESSAGE = 11

int	TYPE_SFIXED32 = 15

int	TYPE_SFIXED64 = 16

int	TYPE_SINT32 = 17

int	TYPE_SINT64 = 18

int	TYPE_STRING = 9

int	TYPE_UINT32 = 13

int	TYPE_UINT64 = 4

Private Attributes
	_camelcase_name

	_cdescriptor

Static Private Attributes
	_C_DESCRIPTOR_CLASS = _message.FieldDescriptor

dictionary	_PYTHON_TO_CPP_PROTO_TYPE_MAP

Detailed Description

Descriptor for a single field in a .proto file.

A FieldDescriptor instance has the following attributes:

  name: (str) Name of this field, exactly as it appears in .proto.
  full_name: (str) Name of this field, including containing scope.  This is
    particularly relevant for extensions.
  camelcase_name: (str) Camelcase name of this field.
  index: (int) Dense, 0-indexed index giving the order that this
    field textually appears within its message in the .proto file.
  number: (int) Tag number declared for this field in the .proto file.

  type: (One of the TYPE_* constants below) Declared type.
  cpp_type: (One of the CPPTYPE_* constants below) C++ type used to
    represent this field.

  label: (One of the LABEL_* constants below) Tells whether this
    field is optional, required, or repeated.
  has_default_value: (bool) True if this field has a default value defined,
    otherwise false.
  default_value: (Varies) Default value of this field.  Only
    meaningful for non-repeated scalar fields.  Repeated fields
    should always set this to [], and non-repeated composite
    fields should always set this to None.

  containing_type: (Descriptor) Descriptor of the protocol message
    type that contains this field.  Set by the Descriptor constructor
    if we're passed into one.
    Somewhat confusingly, for extension fields, this is the
    descriptor of the EXTENDED message, not the descriptor
    of the message containing this field.  (See is_extension and
    extension_scope below).
  message_type: (Descriptor) If a composite field, a descriptor
    of the message type contained in this field.  Otherwise, this is None.
  enum_type: (EnumDescriptor) If this field contains an enum, a
    descriptor of that enum.  Otherwise, this is None.

  is_extension: True iff this describes an extension field.
  extension_scope: (Descriptor) Only meaningful if is_extension is True.
    Gives the message that immediately contains this extension field.
    Will be None iff we're a top-level (file-level) extension field.

  options: (descriptor_pb2.FieldOptions) Protocol message field options or
    None to use default field options.

  containing_oneof: (OneofDescriptor) If the field is a member of a oneof
    union, contains its descriptor. Otherwise, None.

  file: (FileDescriptor) Reference to file descriptor.

Descriptor for a single field in a .proto file.

Attributes:
  name (str): Name of this field, exactly as it appears in .proto.
  full_name (str): Name of this field, including containing scope.  This is
    particularly relevant for extensions.
  index (int): Dense, 0-indexed index giving the order that this
    field textually appears within its message in the .proto file.
  number (int): Tag number declared for this field in the .proto file.

  type (int): (One of the TYPE_* constants below) Declared type.
  cpp_type (int): (One of the CPPTYPE_* constants below) C++ type used to
    represent this field.

  label (int): (One of the LABEL_* constants below) Tells whether this
    field is optional, required, or repeated.
  has_default_value (bool): True if this field has a default value defined,
    otherwise false.
  default_value (Varies): Default value of this field.  Only
    meaningful for non-repeated scalar fields.  Repeated fields
    should always set this to [], and non-repeated composite
    fields should always set this to None.

  containing_type (Descriptor): Descriptor of the protocol message
    type that contains this field.  Set by the Descriptor constructor
    if we're passed into one.
    Somewhat confusingly, for extension fields, this is the
    descriptor of the EXTENDED message, not the descriptor
    of the message containing this field.  (See is_extension and
    extension_scope below).
  message_type (Descriptor): If a composite field, a descriptor
    of the message type contained in this field.  Otherwise, this is None.
  enum_type (EnumDescriptor): If this field contains an enum, a
    descriptor of that enum.  Otherwise, this is None.

  is_extension: True iff this describes an extension field.
  extension_scope (Descriptor): Only meaningful if is_extension is True.
    Gives the message that immediately contains this extension field.
    Will be None iff we're a top-level (file-level) extension field.

  options (descriptor_pb2.FieldOptions): Protocol message field options or
    None to use default field options.

  containing_oneof (OneofDescriptor): If the field is a member of a oneof
    union, contains its descriptor. Otherwise, None.

  file (FileDescriptor): Reference to file descriptor.

Definition at line 392 of file bloaty/third_party/protobuf/python/google/protobuf/descriptor.py.

Constructor & Destructor Documentation

◆ init() [1/2]

def google.protobuf.descriptor.FieldDescriptor.__init__	(	self,
		name,
		full_name,
		index,
		number,
		type,
		cpp_type,
		label,
		default_value,
		message_type,
		enum_type,
		containing_type,
		is_extension,
		extension_scope,
		options = `None`,
		serialized_options = `None`,
		has_default_value = `True`,
		containing_oneof = `None`,
		json_name = `None`,
		file = `None`
	)

The arguments are as described in the description of FieldDescriptor
attributes above.

Note that containing_type may be None, and may be set later if necessary
(to deal with circular references between message types, for example).
Likewise for extension_scope.

Definition at line 536 of file bloaty/third_party/protobuf/python/google/protobuf/descriptor.py.

◆ init() [2/2]

def google.protobuf.descriptor.FieldDescriptor.__init__	(	self,
		name,
		full_name,
		index,
		number,
		type,
		cpp_type,
		label,
		default_value,
		message_type,
		enum_type,
		containing_type,
		is_extension,
		extension_scope,
		options = `None`,
		serialized_options = `None`,
		has_default_value = `True`,
		containing_oneof = `None`,
		json_name = `None`,
		file = `None`,
		create_key = `None`
	)

The arguments are as described in the description of FieldDescriptor
attributes above.

Note that containing_type may be None, and may be set later if necessary
(to deal with circular references between message types, for example).
Likewise for extension_scope.

Definition at line 562 of file protobuf/python/google/protobuf/descriptor.py.

Member Function Documentation

◆ new() [1/2]

def google.protobuf.descriptor.FieldDescriptor.__new__	(	cls,
		name,
		full_name,
		index,
		number,
		type,
		cpp_type,
		label,
		default_value,
		message_type,
		enum_type,
		containing_type,
		is_extension,
		extension_scope,
		options = `None`,
		serialized_options = `None`,
		has_default_value = `True`,
		containing_oneof = `None`,
		json_name = `None`,
		file = `None`
	)

Definition at line 524 of file bloaty/third_party/protobuf/python/google/protobuf/descriptor.py.

◆ new() [2/2]

def google.protobuf.descriptor.FieldDescriptor.__new__	(	cls,
		name,
		full_name,
		index,
		number,
		type,
		cpp_type,
		label,
		default_value,
		message_type,
		enum_type,
		containing_type,
		is_extension,
		extension_scope,
		options = `None`,
		serialized_options = `None`,
		has_default_value = `True`,
		containing_oneof = `None`,
		json_name = `None`,
		file = `None`,
		create_key = `None`
	)

Definition at line 550 of file protobuf/python/google/protobuf/descriptor.py.

◆ camelcase_name() [1/2]

def google.protobuf.descriptor.FieldDescriptor.camelcase_name ( self )

Definition at line 581 of file bloaty/third_party/protobuf/python/google/protobuf/descriptor.py.

◆ camelcase_name() [2/2]

def google.protobuf.descriptor.FieldDescriptor.camelcase_name ( self )

Camelcase name of this field.

Returns:
  str: the name in CamelCase.

Definition at line 610 of file protobuf/python/google/protobuf/descriptor.py.

◆ ProtoTypeToCppProtoType() [1/2]

def google.protobuf.descriptor.FieldDescriptor.ProtoTypeToCppProtoType ( proto_type )

static

Converts from a Python proto type to a C++ Proto Type.

The Python ProtocolBuffer classes specify both the 'Python' datatype and the
'C++' datatype - and they're not the same. This helper method should
translate from one to another.

Args:
  proto_type: the Python proto type (descriptor.FieldDescriptor.TYPE_*)
Returns:
  descriptor.FieldDescriptor.CPPTYPE_*, the C++ type.
Raises:
  TypeTransformationError: when the Python proto type isn't known.

Definition at line 587 of file bloaty/third_party/protobuf/python/google/protobuf/descriptor.py.

◆ ProtoTypeToCppProtoType() [2/2]

def google.protobuf.descriptor.FieldDescriptor.ProtoTypeToCppProtoType ( proto_type )

static

Converts from a Python proto type to a C++ Proto Type.

The Python ProtocolBuffer classes specify both the 'Python' datatype and the
'C++' datatype - and they're not the same. This helper method should
translate from one to another.

Args:
  proto_type: the Python proto type (descriptor.FieldDescriptor.TYPE_*)
Returns:
  int: descriptor.FieldDescriptor.CPPTYPE_*, the C++ type.
Raises:
  TypeTransformationError: when the Python proto type isn't known.

Definition at line 621 of file protobuf/python/google/protobuf/descriptor.py.

Member Data Documentation

◆ _C_DESCRIPTOR_CLASS

google.protobuf.descriptor.FieldDescriptor._C_DESCRIPTOR_CLASS = _message.FieldDescriptor

staticprivate

Definition at line 522 of file bloaty/third_party/protobuf/python/google/protobuf/descriptor.py.

◆ _camelcase_name

google.protobuf.descriptor.FieldDescriptor._camelcase_name

private

Definition at line 549 of file bloaty/third_party/protobuf/python/google/protobuf/descriptor.py.

◆ _cdescriptor

google.protobuf.descriptor.FieldDescriptor._cdescriptor

private

Definition at line 569 of file bloaty/third_party/protobuf/python/google/protobuf/descriptor.py.

◆ _PYTHON_TO_CPP_PROTO_TYPE_MAP

dictionary FieldDescriptor._PYTHON_TO_CPP_PROTO_TYPE_MAP

staticprivate

Initial value:

=  {
      TYPE_DOUBLE: CPPTYPE_DOUBLE,
      TYPE_FLOAT: CPPTYPE_FLOAT,
      TYPE_ENUM: CPPTYPE_ENUM,
      TYPE_INT64: CPPTYPE_INT64,
      TYPE_SINT64: CPPTYPE_INT64,
      TYPE_SFIXED64: CPPTYPE_INT64,
      TYPE_UINT64: CPPTYPE_UINT64,
      TYPE_FIXED64: CPPTYPE_UINT64,
      TYPE_INT32: CPPTYPE_INT32,
      TYPE_SFIXED32: CPPTYPE_INT32,
      TYPE_SINT32: CPPTYPE_INT32,
      TYPE_UINT32: CPPTYPE_UINT32,
      TYPE_FIXED32: CPPTYPE_UINT32,
      TYPE_BYTES: CPPTYPE_STRING,
      TYPE_STRING: CPPTYPE_STRING,
      TYPE_BOOL: CPPTYPE_BOOL,
      TYPE_MESSAGE: CPPTYPE_MESSAGE,
      TYPE_GROUP: CPPTYPE_MESSAGE
      }
