twihs0.h File Reference

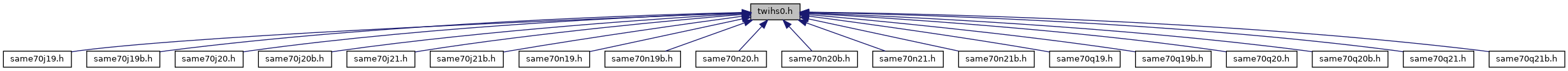

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define REG_TWIHS0_CR   (*(__O uint32_t*)0x40018000U)
 (TWIHS0) Control Register More...

#define REG_TWIHS0_CWGR   (*(__IO uint32_t*)0x40018010U)
 (TWIHS0) Clock Waveform Generator Register More...

#define REG_TWIHS0_DR   (*(__I uint32_t*)0x400180D0U)
 (TWIHS0) Debug Register More...

#define REG_TWIHS0_FILTR   (*(__IO uint32_t*)0x40018044U)
 (TWIHS0) Filter Register More...

#define REG_TWIHS0_IADR   (*(__IO uint32_t*)0x4001800CU)
 (TWIHS0) Internal Address Register More...

#define REG_TWIHS0_IDR   (*(__O uint32_t*)0x40018028U)
 (TWIHS0) Interrupt Disable Register More...

#define REG_TWIHS0_IER   (*(__O uint32_t*)0x40018024U)
 (TWIHS0) Interrupt Enable Register More...

#define REG_TWIHS0_IMR   (*(__I uint32_t*)0x4001802CU)
 (TWIHS0) Interrupt Mask Register More...

#define REG_TWIHS0_MMR   (*(__IO uint32_t*)0x40018004U)
 (TWIHS0) Master Mode Register More...

#define REG_TWIHS0_RHR   (*(__I uint32_t*)0x40018030U)
 (TWIHS0) Receive Holding Register More...

#define REG_TWIHS0_SMBTR   (*(__IO uint32_t*)0x40018038U)
 (TWIHS0) SMBus Timing Register More...

#define REG_TWIHS0_SMR   (*(__IO uint32_t*)0x40018008U)
 (TWIHS0) Slave Mode Register More...

#define REG_TWIHS0_SR   (*(__I uint32_t*)0x40018020U)
 (TWIHS0) Status Register More...

#define REG_TWIHS0_SWMR   (*(__IO uint32_t*)0x4001804CU)
 (TWIHS0) SleepWalking Matching Register More...

#define REG_TWIHS0_THR   (*(__O uint32_t*)0x40018034U)
 (TWIHS0) Transmit Holding Register More...

#define REG_TWIHS0_VER   (*(__I uint32_t*)0x400180FCU)
 (TWIHS0) Version Register More...

#define REG_TWIHS0_WPMR   (*(__IO uint32_t*)0x400180E4U)
 (TWIHS0) Write Protection Mode Register More...

#define REG_TWIHS0_WPSR   (*(__I uint32_t*)0x400180E8U)
 (TWIHS0) Write Protection Status Register More...


Detailed Description

Copyright (c) 2015-2018 Microchip Technology Inc. and its subsidiaries.

Definition in file twihs0.h.

Macro Definition Documentation

◆ REG_TWIHS0_CR

#define REG_TWIHS0_CR   (*(__O uint32_t*)0x40018000U)

(TWIHS0) Control Register

Definition at line 59 of file twihs0.h.

◆ REG_TWIHS0_CWGR

#define REG_TWIHS0_CWGR   (*(__IO uint32_t*)0x40018010U)

(TWIHS0) Clock Waveform Generator Register

Definition at line 63 of file twihs0.h.

◆ REG_TWIHS0_DR

#define REG_TWIHS0_DR   (*(__I uint32_t*)0x400180D0U)

(TWIHS0) Debug Register

Definition at line 73 of file twihs0.h.

◆ REG_TWIHS0_FILTR

#define REG_TWIHS0_FILTR   (*(__IO uint32_t*)0x40018044U)

(TWIHS0) Filter Register

Definition at line 71 of file twihs0.h.

◆ REG_TWIHS0_IADR

#define REG_TWIHS0_IADR   (*(__IO uint32_t*)0x4001800CU)

(TWIHS0) Internal Address Register

Definition at line 62 of file twihs0.h.

◆ REG_TWIHS0_IDR

#define REG_TWIHS0_IDR   (*(__O uint32_t*)0x40018028U)

(TWIHS0) Interrupt Disable Register

Definition at line 66 of file twihs0.h.

◆ REG_TWIHS0_IER

#define REG_TWIHS0_IER   (*(__O uint32_t*)0x40018024U)

(TWIHS0) Interrupt Enable Register

Definition at line 65 of file twihs0.h.

◆ REG_TWIHS0_IMR

#define REG_TWIHS0_IMR   (*(__I uint32_t*)0x4001802CU)

(TWIHS0) Interrupt Mask Register

Definition at line 67 of file twihs0.h.

◆ REG_TWIHS0_MMR

#define REG_TWIHS0_MMR   (*(__IO uint32_t*)0x40018004U)

(TWIHS0) Master Mode Register

Definition at line 60 of file twihs0.h.

◆ REG_TWIHS0_RHR

#define REG_TWIHS0_RHR   (*(__I uint32_t*)0x40018030U)

(TWIHS0) Receive Holding Register

Definition at line 68 of file twihs0.h.

◆ REG_TWIHS0_SMBTR

#define REG_TWIHS0_SMBTR   (*(__IO uint32_t*)0x40018038U)

(TWIHS0) SMBus Timing Register

Definition at line 70 of file twihs0.h.

◆ REG_TWIHS0_SMR

#define REG_TWIHS0_SMR   (*(__IO uint32_t*)0x40018008U)

(TWIHS0) Slave Mode Register

Definition at line 61 of file twihs0.h.

◆ REG_TWIHS0_SR

#define REG_TWIHS0_SR   (*(__I uint32_t*)0x40018020U)

(TWIHS0) Status Register

Definition at line 64 of file twihs0.h.

◆ REG_TWIHS0_SWMR

#define REG_TWIHS0_SWMR   (*(__IO uint32_t*)0x4001804CU)

(TWIHS0) SleepWalking Matching Register

Definition at line 72 of file twihs0.h.

◆ REG_TWIHS0_THR

#define REG_TWIHS0_THR   (*(__O uint32_t*)0x40018034U)

(TWIHS0) Transmit Holding Register

Definition at line 69 of file twihs0.h.

◆ REG_TWIHS0_VER

#define REG_TWIHS0_VER   (*(__I uint32_t*)0x400180FCU)

(TWIHS0) Version Register

Definition at line 76 of file twihs0.h.

◆ REG_TWIHS0_WPMR

#define REG_TWIHS0_WPMR   (*(__IO uint32_t*)0x400180E4U)

(TWIHS0) Write Protection Mode Register

Definition at line 74 of file twihs0.h.

◆ REG_TWIHS0_WPSR

#define REG_TWIHS0_WPSR   (*(__I uint32_t*)0x400180E8U)

(TWIHS0) Write Protection Status Register

Definition at line 75 of file twihs0.h.
