CTRL_ACCESS interface for common SD/MMC stack. More...
#include "conf_access.h"#include "conf_sd_mmc.h"#include "sd_mmc.h"#include "sd_mmc_mem.h"#include "udi_msc.h"

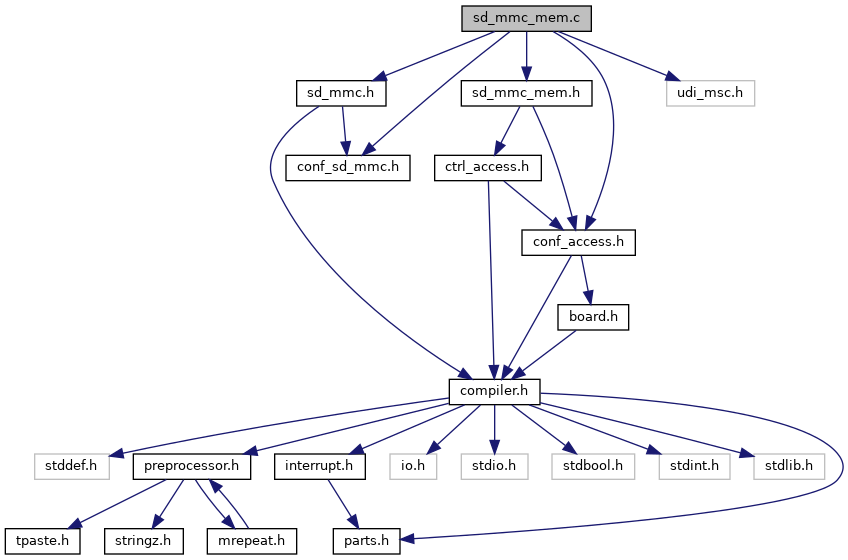

Include dependency graph for sd_mmc_mem.c:
Go to the source code of this file.
Functions | |
MEM <-> RAM Interface | |
| Ctrl_status | sd_mmc_mem_2_ram (uint8_t slot, uint32_t addr, void *ram) |
| Copies 1 data sector from the memory to RAM. More... | |
| Ctrl_status | sd_mmc_mem_2_ram_0 (uint32_t addr, void *ram) |
| Instance Declaration for sd_mmc_mem_2_ram Slot O. More... | |
| Ctrl_status | sd_mmc_mem_2_ram_1 (uint32_t addr, void *ram) |
| Instance Declaration for sd_mmc_mem_2_ram Slot 1. More... | |
| Ctrl_status | sd_mmc_ram_2_mem (uint8_t slot, uint32_t addr, const void *ram) |
| Copies 1 data sector from RAM to the memory. More... | |
| Ctrl_status | sd_mmc_ram_2_mem_0 (uint32_t addr, const void *ram) |
| Instance Declaration for sd_mmc_mem_2_ram Slot O. More... | |
| Ctrl_status | sd_mmc_ram_2_mem_1 (uint32_t addr, const void *ram) |
| Instance Declaration for sd_mmc_mem_2_ram Slot 1. More... | |
Control Interface | |
| static bool | sd_mmc_ejected [2] = {false, false} |
| Ctrl_status | sd_mmc_test_unit_ready (uint8_t slot) |
| Tests the memory state and initializes the memory if required. More... | |
| Ctrl_status | sd_mmc_test_unit_ready_0 (void) |
| Instance Declaration for sd_mmc_test_unit_ready Slot O. More... | |
| Ctrl_status | sd_mmc_test_unit_ready_1 (void) |
| Instance Declaration for sd_mmc_test_unit_ready Slot 1. More... | |
| Ctrl_status | sd_mmc_read_capacity (uint8_t slot, uint32_t *nb_sector) |
| Returns the address of the last valid sector in the memory. More... | |
| Ctrl_status | sd_mmc_read_capacity_0 (uint32_t *nb_sector) |
| Instance Declaration for sd_mmc_read_capacity Slot O. More... | |
| Ctrl_status | sd_mmc_read_capacity_1 (uint32_t *nb_sector) |
| Instance Declaration for sd_mmc_read_capacity Slot 1. More... | |
| bool | sd_mmc_unload (uint8_t slot, bool unload) |
| Unload/Load the SD/MMC card selected. More... | |
| bool | sd_mmc_unload_0 (bool unload) |
| Instance Declaration for sd_mmc_unload Slot O. More... | |
| bool | sd_mmc_unload_1 (bool unload) |
| Instance Declaration for sd_mmc_unload Slot 1. More... | |
| bool | sd_mmc_wr_protect (uint8_t slot) |
| Returns the write-protection state of the memory. More... | |
| bool | sd_mmc_wr_protect_0 (void) |
| Instance Declaration for sd_mmc_wr_protect Slot O. More... | |
| bool | sd_mmc_wr_protect_1 (void) |
| Instance Declaration for sd_mmc_wr_protect Slot 1. More... | |
| bool | sd_mmc_removal (uint8_t slot) |
| Tells whether the memory is removable. More... | |
| bool | sd_mmc_removal_0 (void) |
| Instance Declaration for sd_mmc_removal Slot O. More... | |
| bool | sd_mmc_removal_1 (void) |
| Instance Declaration for sd_mmc_removal Slot 1. More... | |
MEM <-> USB Interface | |
| COMPILER_WORD_ALIGNED uint8_t | sector_buf_0 [SD_MMC_BLOCK_SIZE] |
| COMPILER_WORD_ALIGNED uint8_t | sector_buf_1 [SD_MMC_BLOCK_SIZE] |
| Ctrl_status | sd_mmc_usb_read_10 (uint8_t slot, uint32_t addr, uint16_t nb_sector) |
| Transfers data from the memory to USB. More... | |
| Ctrl_status | sd_mmc_usb_read_10_0 (uint32_t addr, uint16_t nb_sector) |
| Instance Declaration for sd_mmc_usb_read_10 Slot O. More... | |
| Ctrl_status | sd_mmc_usb_read_10_1 (uint32_t addr, uint16_t nb_sector) |
| Instance Declaration for sd_mmc_usb_read_10 Slot 1. More... | |
| Ctrl_status | sd_mmc_usb_write_10 (uint8_t slot, uint32_t addr, uint16_t nb_sector) |
| Transfers data from USB to the memory. More... | |
| Ctrl_status | sd_mmc_usb_write_10_0 (uint32_t addr, uint16_t nb_sector) |
| Instance Declaration for sd_mmc_usb_write_10 Slot O. More... | |
| Ctrl_status | sd_mmc_usb_write_10_1 (uint32_t addr, uint16_t nb_sector) |
| Instance Declaration for sd_mmc_usb_write_10 Slot 1. More... | |
Detailed Description
CTRL_ACCESS interface for common SD/MMC stack.
Copyright (c) 2012-2018 Microchip Technology Inc. and its subsidiaries.
Definition in file sd_mmc_mem.c.
