pwm.h File Reference

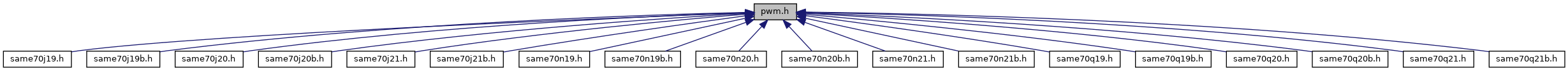

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  Pwm

struct  PwmCh_num
 PwmCh_num hardware registers. More...

struct  PwmCmp
 PwmCmp hardware registers. More...


Macros

#define PWM_CCNT_CNT_Msk   (0xffffffu << PWM_CCNT_CNT_Pos)
 (PWM_CCNT) Channel Counter Register More...

#define PWM_CCNT_CNT_Pos   0

#define PWM_CDTY_CDTY(value)   ((PWM_CDTY_CDTY_Msk & ((value) << PWM_CDTY_CDTY_Pos)))

#define PWM_CDTY_CDTY_Msk   (0xffffffu << PWM_CDTY_CDTY_Pos)
 (PWM_CDTY) Channel Duty-Cycle More...

#define PWM_CDTY_CDTY_Pos   0

#define PWM_CDTYUPD_CDTYUPD(value)   ((PWM_CDTYUPD_CDTYUPD_Msk & ((value) << PWM_CDTYUPD_CDTYUPD_Pos)))

#define PWM_CDTYUPD_CDTYUPD_Msk   (0xffffffu << PWM_CDTYUPD_CDTYUPD_Pos)
 (PWM_CDTYUPD) Channel Duty-Cycle Update More...

#define PWM_CDTYUPD_CDTYUPD_Pos   0

#define PWM_CLK_DIVA(value)   ((PWM_CLK_DIVA_Msk & ((value) << PWM_CLK_DIVA_Pos)))

#define PWM_CLK_DIVA_CLKA_POFF   (0x0u << 0)
 (PWM_CLK) CLKA clock is turned off More...

#define PWM_CLK_DIVA_Msk   (0xffu << PWM_CLK_DIVA_Pos)
 (PWM_CLK) CLKA Divide Factor More...

#define PWM_CLK_DIVA_Pos   0

#define PWM_CLK_DIVA_PREA   (0x1u << 0)
 (PWM_CLK) CLKA clock is clock selected by PREA More...

#define PWM_CLK_DIVB(value)   ((PWM_CLK_DIVB_Msk & ((value) << PWM_CLK_DIVB_Pos)))

#define PWM_CLK_DIVB_CLKB_POFF   (0x0u << 16)
 (PWM_CLK) CLKB clock is turned off More...

#define PWM_CLK_DIVB_Msk   (0xffu << PWM_CLK_DIVB_Pos)
 (PWM_CLK) CLKB Divide Factor More...

#define PWM_CLK_DIVB_Pos   16

#define PWM_CLK_DIVB_PREB   (0x1u << 16)
 (PWM_CLK) CLKB clock is clock selected by PREB More...

#define PWM_CLK_PREA(value)   ((PWM_CLK_PREA_Msk & ((value) << PWM_CLK_PREA_Pos)))

#define PWM_CLK_PREA_CLK   (0x0u << 8)
 (PWM_CLK) Peripheral clock More...

#define PWM_CLK_PREA_CLK_DIV1024   (0xAu << 8)
 (PWM_CLK) Peripheral clock/1024 More...

#define PWM_CLK_PREA_CLK_DIV128   (0x7u << 8)
 (PWM_CLK) Peripheral clock/128 More...

#define PWM_CLK_PREA_CLK_DIV16   (0x4u << 8)
 (PWM_CLK) Peripheral clock/16 More...

#define PWM_CLK_PREA_CLK_DIV2   (0x1u << 8)
 (PWM_CLK) Peripheral clock/2 More...

#define PWM_CLK_PREA_CLK_DIV256   (0x8u << 8)
 (PWM_CLK) Peripheral clock/256 More...

#define PWM_CLK_PREA_CLK_DIV32   (0x5u << 8)
 (PWM_CLK) Peripheral clock/32 More...

#define PWM_CLK_PREA_CLK_DIV4   (0x2u << 8)
 (PWM_CLK) Peripheral clock/4 More...

#define PWM_CLK_PREA_CLK_DIV512   (0x9u << 8)
 (PWM_CLK) Peripheral clock/512 More...

#define PWM_CLK_PREA_CLK_DIV64   (0x6u << 8)
 (PWM_CLK) Peripheral clock/64 More...

#define PWM_CLK_PREA_CLK_DIV8   (0x3u << 8)
 (PWM_CLK) Peripheral clock/8 More...

#define PWM_CLK_PREA_Msk   (0xfu << PWM_CLK_PREA_Pos)
 (PWM_CLK) CLKA Source Clock Selection More...

#define PWM_CLK_PREA_Pos   8

#define PWM_CLK_PREB(value)   ((PWM_CLK_PREB_Msk & ((value) << PWM_CLK_PREB_Pos)))

#define PWM_CLK_PREB_CLK   (0x0u << 24)
 (PWM_CLK) Peripheral clock More...

#define PWM_CLK_PREB_CLK_DIV1024   (0xAu << 24)
 (PWM_CLK) Peripheral clock/1024 More...

#define PWM_CLK_PREB_CLK_DIV128   (0x7u << 24)
 (PWM_CLK) Peripheral clock/128 More...

#define PWM_CLK_PREB_CLK_DIV16   (0x4u << 24)
 (PWM_CLK) Peripheral clock/16 More...

#define PWM_CLK_PREB_CLK_DIV2   (0x1u << 24)
 (PWM_CLK) Peripheral clock/2 More...

#define PWM_CLK_PREB_CLK_DIV256   (0x8u << 24)
 (PWM_CLK) Peripheral clock/256 More...

#define PWM_CLK_PREB_CLK_DIV32   (0x5u << 24)
 (PWM_CLK) Peripheral clock/32 More...

#define PWM_CLK_PREB_CLK_DIV4   (0x2u << 24)
 (PWM_CLK) Peripheral clock/4 More...

#define PWM_CLK_PREB_CLK_DIV512   (0x9u << 24)
 (PWM_CLK) Peripheral clock/512 More...

#define PWM_CLK_PREB_CLK_DIV64   (0x6u << 24)
 (PWM_CLK) Peripheral clock/64 More...

#define PWM_CLK_PREB_CLK_DIV8   (0x3u << 24)
 (PWM_CLK) Peripheral clock/8 More...

#define PWM_CLK_PREB_Msk   (0xfu << PWM_CLK_PREB_Pos)
 (PWM_CLK) CLKB Source Clock Selection More...

#define PWM_CLK_PREB_Pos   24

#define PWM_CMPM_CEN   (0x1u << 0)
 (PWM_CMPM) Comparison x Enable More...

#define PWM_CMPM_CPR(value)   ((PWM_CMPM_CPR_Msk & ((value) << PWM_CMPM_CPR_Pos)))

#define PWM_CMPM_CPR_Msk   (0xfu << PWM_CMPM_CPR_Pos)
 (PWM_CMPM) Comparison x Period More...

#define PWM_CMPM_CPR_Pos   8

#define PWM_CMPM_CPRCNT(value)   ((PWM_CMPM_CPRCNT_Msk & ((value) << PWM_CMPM_CPRCNT_Pos)))

#define PWM_CMPM_CPRCNT_Msk   (0xfu << PWM_CMPM_CPRCNT_Pos)
 (PWM_CMPM) Comparison x Period Counter More...

#define PWM_CMPM_CPRCNT_Pos   12

#define PWM_CMPM_CTR(value)   ((PWM_CMPM_CTR_Msk & ((value) << PWM_CMPM_CTR_Pos)))

#define PWM_CMPM_CTR_Msk   (0xfu << PWM_CMPM_CTR_Pos)
 (PWM_CMPM) Comparison x Trigger More...

#define PWM_CMPM_CTR_Pos   4

#define PWM_CMPM_CUPR(value)   ((PWM_CMPM_CUPR_Msk & ((value) << PWM_CMPM_CUPR_Pos)))

#define PWM_CMPM_CUPR_Msk   (0xfu << PWM_CMPM_CUPR_Pos)
 (PWM_CMPM) Comparison x Update Period More...

#define PWM_CMPM_CUPR_Pos   16

#define PWM_CMPM_CUPRCNT(value)   ((PWM_CMPM_CUPRCNT_Msk & ((value) << PWM_CMPM_CUPRCNT_Pos)))

#define PWM_CMPM_CUPRCNT_Msk   (0xfu << PWM_CMPM_CUPRCNT_Pos)
 (PWM_CMPM) Comparison x Update Period Counter More...

#define PWM_CMPM_CUPRCNT_Pos   20

#define PWM_CMPMUPD_CENUPD   (0x1u << 0)
 (PWM_CMPMUPD) Comparison x Enable Update More...

#define PWM_CMPMUPD_CPRUPD(value)   ((PWM_CMPMUPD_CPRUPD_Msk & ((value) << PWM_CMPMUPD_CPRUPD_Pos)))

#define PWM_CMPMUPD_CPRUPD_Msk   (0xfu << PWM_CMPMUPD_CPRUPD_Pos)
 (PWM_CMPMUPD) Comparison x Period Update More...

#define PWM_CMPMUPD_CPRUPD_Pos   8

#define PWM_CMPMUPD_CTRUPD(value)   ((PWM_CMPMUPD_CTRUPD_Msk & ((value) << PWM_CMPMUPD_CTRUPD_Pos)))

#define PWM_CMPMUPD_CTRUPD_Msk   (0xfu << PWM_CMPMUPD_CTRUPD_Pos)
 (PWM_CMPMUPD) Comparison x Trigger Update More...

#define PWM_CMPMUPD_CTRUPD_Pos   4

#define PWM_CMPMUPD_CUPRUPD(value)   ((PWM_CMPMUPD_CUPRUPD_Msk & ((value) << PWM_CMPMUPD_CUPRUPD_Pos)))

#define PWM_CMPMUPD_CUPRUPD_Msk   (0xfu << PWM_CMPMUPD_CUPRUPD_Pos)
 (PWM_CMPMUPD) Comparison x Update Period Update More...

#define PWM_CMPMUPD_CUPRUPD_Pos   16

#define PWM_CMPV_CV(value)   ((PWM_CMPV_CV_Msk & ((value) << PWM_CMPV_CV_Pos)))

#define PWM_CMPV_CV_Msk   (0xffffffu << PWM_CMPV_CV_Pos)
 (PWM_CMPV) Comparison x Value More...

#define PWM_CMPV_CV_Pos   0

#define PWM_CMPV_CVM   (0x1u << 24)
 (PWM_CMPV) Comparison x Value Mode More...

#define PWM_CMPVUPD_CVMUPD   (0x1u << 24)
 (PWM_CMPVUPD) Comparison x Value Mode Update More...

#define PWM_CMPVUPD_CVUPD(value)   ((PWM_CMPVUPD_CVUPD_Msk & ((value) << PWM_CMPVUPD_CVUPD_Pos)))

#define PWM_CMPVUPD_CVUPD_Msk   (0xffffffu << PWM_CMPVUPD_CVUPD_Pos)
 (PWM_CMPVUPD) Comparison x Value Update More...

#define PWM_CMPVUPD_CVUPD_Pos   0

#define PWM_CMR_CALG   (0x1u << 8)
 (PWM_CMR) Channel Alignment More...

#define PWM_CMR_CES   (0x1u << 10)
 (PWM_CMR) Counter Event Selection More...

#define PWM_CMR_CPOL   (0x1u << 9)
 (PWM_CMR) Channel Polarity More...

#define PWM_CMR_CPRE(value)   ((PWM_CMR_CPRE_Msk & ((value) << PWM_CMR_CPRE_Pos)))

#define PWM_CMR_CPRE_CLKA   (0xBu << 0)
 (PWM_CMR) Clock A More...

#define PWM_CMR_CPRE_CLKB   (0xCu << 0)
 (PWM_CMR) Clock B More...

#define PWM_CMR_CPRE_MCK   (0x0u << 0)
 (PWM_CMR) Peripheral clock More...

#define PWM_CMR_CPRE_MCK_DIV_1024   (0xAu << 0)
 (PWM_CMR) Peripheral clock/1024 More...

#define PWM_CMR_CPRE_MCK_DIV_128   (0x7u << 0)
 (PWM_CMR) Peripheral clock/128 More...

#define PWM_CMR_CPRE_MCK_DIV_16   (0x4u << 0)
 (PWM_CMR) Peripheral clock/16 More...

#define PWM_CMR_CPRE_MCK_DIV_2   (0x1u << 0)
 (PWM_CMR) Peripheral clock/2 More...

#define PWM_CMR_CPRE_MCK_DIV_256   (0x8u << 0)
 (PWM_CMR) Peripheral clock/256 More...

#define PWM_CMR_CPRE_MCK_DIV_32   (0x5u << 0)
 (PWM_CMR) Peripheral clock/32 More...

#define PWM_CMR_CPRE_MCK_DIV_4   (0x2u << 0)
 (PWM_CMR) Peripheral clock/4 More...

#define PWM_CMR_CPRE_MCK_DIV_512   (0x9u << 0)
 (PWM_CMR) Peripheral clock/512 More...

#define PWM_CMR_CPRE_MCK_DIV_64   (0x6u << 0)
 (PWM_CMR) Peripheral clock/64 More...

#define PWM_CMR_CPRE_MCK_DIV_8   (0x3u << 0)
 (PWM_CMR) Peripheral clock/8 More...

#define PWM_CMR_CPRE_Msk   (0xfu << PWM_CMR_CPRE_Pos)
 (PWM_CMR) Channel Pre-scaler More...

#define PWM_CMR_CPRE_Pos   0

#define PWM_CMR_DPOLI   (0x1u << 12)
 (PWM_CMR) Disabled Polarity Inverted More...

#define PWM_CMR_DTE   (0x1u << 16)
 (PWM_CMR) Dead-Time Generator Enable More...

#define PWM_CMR_DTHI   (0x1u << 17)
 (PWM_CMR) Dead-Time PWMHx Output Inverted More...

#define PWM_CMR_DTLI   (0x1u << 18)
 (PWM_CMR) Dead-Time PWMLx Output Inverted More...

#define PWM_CMR_PPM   (0x1u << 19)
 (PWM_CMR) Push-Pull Mode More...

#define PWM_CMR_TCTS   (0x1u << 13)
 (PWM_CMR) Timer Counter Trigger Selection More...

#define PWM_CMR_UPDS   (0x1u << 11)
 (PWM_CMR) Update Selection More...

#define PWM_CMUPD0_CPOLINVUP   (0x1u << 13)
 (PWM_CMUPD0) Channel Polarity Inversion Update More...

#define PWM_CMUPD0_CPOLUP   (0x1u << 9)
 (PWM_CMUPD0) Channel Polarity Update More...

#define PWM_CMUPD1_CPOLINVUP   (0x1u << 13)
 (PWM_CMUPD1) Channel Polarity Inversion Update More...

#define PWM_CMUPD1_CPOLUP   (0x1u << 9)
 (PWM_CMUPD1) Channel Polarity Update More...

#define PWM_CMUPD2_CPOLINVUP   (0x1u << 13)
 (PWM_CMUPD2) Channel Polarity Inversion Update More...

#define PWM_CMUPD2_CPOLUP   (0x1u << 9)
 (PWM_CMUPD2) Channel Polarity Update More...

#define PWM_CMUPD3_CPOLINVUP   (0x1u << 13)
 (PWM_CMUPD3) Channel Polarity Inversion Update More...

#define PWM_CMUPD3_CPOLUP   (0x1u << 9)
 (PWM_CMUPD3) Channel Polarity Update More...

#define PWM_CPRD_CPRD(value)   ((PWM_CPRD_CPRD_Msk & ((value) << PWM_CPRD_CPRD_Pos)))

#define PWM_CPRD_CPRD_Msk   (0xffffffu << PWM_CPRD_CPRD_Pos)
 (PWM_CPRD) Channel Period More...

#define PWM_CPRD_CPRD_Pos   0

#define PWM_CPRDUPD_CPRDUPD(value)   ((PWM_CPRDUPD_CPRDUPD_Msk & ((value) << PWM_CPRDUPD_CPRDUPD_Pos)))

#define PWM_CPRDUPD_CPRDUPD_Msk   (0xffffffu << PWM_CPRDUPD_CPRDUPD_Pos)
 (PWM_CPRDUPD) Channel Period Update More...

#define PWM_CPRDUPD_CPRDUPD_Pos   0

#define PWM_DIS_CHID0   (0x1u << 0)
 (PWM_DIS) Channel ID More...

#define PWM_DIS_CHID1   (0x1u << 1)
 (PWM_DIS) Channel ID More...

#define PWM_DIS_CHID2   (0x1u << 2)
 (PWM_DIS) Channel ID More...

#define PWM_DIS_CHID3   (0x1u << 3)
 (PWM_DIS) Channel ID More...

#define PWM_DMAR_DMADUTY(value)   ((PWM_DMAR_DMADUTY_Msk & ((value) << PWM_DMAR_DMADUTY_Pos)))

#define PWM_DMAR_DMADUTY_Msk   (0xffffffu << PWM_DMAR_DMADUTY_Pos)
 (PWM_DMAR) Duty-Cycle Holding Register for DMA Access More...

#define PWM_DMAR_DMADUTY_Pos   0

#define PWM_DT_DTH(value)   ((PWM_DT_DTH_Msk & ((value) << PWM_DT_DTH_Pos)))

#define PWM_DT_DTH_Msk   (0xffffu << PWM_DT_DTH_Pos)
 (PWM_DT) Dead-Time Value for PWMHx Output More...

#define PWM_DT_DTH_Pos   0

#define PWM_DT_DTL(value)   ((PWM_DT_DTL_Msk & ((value) << PWM_DT_DTL_Pos)))

#define PWM_DT_DTL_Msk   (0xffffu << PWM_DT_DTL_Pos)
 (PWM_DT) Dead-Time Value for PWMLx Output More...

#define PWM_DT_DTL_Pos   16

#define PWM_DTUPD_DTHUPD(value)   ((PWM_DTUPD_DTHUPD_Msk & ((value) << PWM_DTUPD_DTHUPD_Pos)))

#define PWM_DTUPD_DTHUPD_Msk   (0xffffu << PWM_DTUPD_DTHUPD_Pos)
 (PWM_DTUPD) Dead-Time Value Update for PWMHx Output More...

#define PWM_DTUPD_DTHUPD_Pos   0

#define PWM_DTUPD_DTLUPD(value)   ((PWM_DTUPD_DTLUPD_Msk & ((value) << PWM_DTUPD_DTLUPD_Pos)))

#define PWM_DTUPD_DTLUPD_Msk   (0xffffu << PWM_DTUPD_DTLUPD_Pos)
 (PWM_DTUPD) Dead-Time Value Update for PWMLx Output More...

#define PWM_DTUPD_DTLUPD_Pos   16

#define PWM_ELMR_CSEL0   (0x1u << 0)
 (PWM_ELMR[8]) Comparison 0 Selection More...

#define PWM_ELMR_CSEL1   (0x1u << 1)
 (PWM_ELMR[8]) Comparison 1 Selection More...

#define PWM_ELMR_CSEL2   (0x1u << 2)
 (PWM_ELMR[8]) Comparison 2 Selection More...

#define PWM_ELMR_CSEL3   (0x1u << 3)
 (PWM_ELMR[8]) Comparison 3 Selection More...

#define PWM_ELMR_CSEL4   (0x1u << 4)
 (PWM_ELMR[8]) Comparison 4 Selection More...

#define PWM_ELMR_CSEL5   (0x1u << 5)
 (PWM_ELMR[8]) Comparison 5 Selection More...

#define PWM_ELMR_CSEL6   (0x1u << 6)
 (PWM_ELMR[8]) Comparison 6 Selection More...

#define PWM_ELMR_CSEL7   (0x1u << 7)
 (PWM_ELMR[8]) Comparison 7 Selection More...

#define PWM_ENA_CHID0   (0x1u << 0)
 (PWM_ENA) Channel ID More...

#define PWM_ENA_CHID1   (0x1u << 1)
 (PWM_ENA) Channel ID More...

#define PWM_ENA_CHID2   (0x1u << 2)
 (PWM_ENA) Channel ID More...

#define PWM_ENA_CHID3   (0x1u << 3)
 (PWM_ENA) Channel ID More...

#define PWM_ETRG1_MAXCNT(value)   ((PWM_ETRG1_MAXCNT_Msk & ((value) << PWM_ETRG1_MAXCNT_Pos)))

#define PWM_ETRG1_MAXCNT_Msk   (0xffffffu << PWM_ETRG1_MAXCNT_Pos)
 (PWM_ETRG1) Maximum Counter value More...

#define PWM_ETRG1_MAXCNT_Pos   0

#define PWM_ETRG1_RFEN   (0x1u << 31)
 (PWM_ETRG1) Recoverable Fault Enable More...

#define PWM_ETRG1_TRGEDGE   (0x1u << 28)
 (PWM_ETRG1) Edge Selection More...

#define PWM_ETRG1_TRGEDGE_FALLING_ZERO   (0x0u << 28)
 (PWM_ETRG1) TRGMODE = 1: TRGINx event detection on falling edge.TRGMODE = 2, 3: TRGINx active level is 0 More...

#define PWM_ETRG1_TRGEDGE_RISING_ONE   (0x1u << 28)
 (PWM_ETRG1) TRGMODE = 1: TRGINx event detection on rising edge.TRGMODE = 2, 3: TRGINx active level is 1 More...

#define PWM_ETRG1_TRGFILT   (0x1u << 29)
 (PWM_ETRG1) Filtered input More...

#define PWM_ETRG1_TRGMODE(value)   ((PWM_ETRG1_TRGMODE_Msk & ((value) << PWM_ETRG1_TRGMODE_Pos)))

#define PWM_ETRG1_TRGMODE_MODE1   (0x1u << 24)
 (PWM_ETRG1) External PWM Reset Mode More...

#define PWM_ETRG1_TRGMODE_MODE2   (0x2u << 24)
 (PWM_ETRG1) External PWM Start Mode More...

#define PWM_ETRG1_TRGMODE_MODE3   (0x3u << 24)
 (PWM_ETRG1) Cycle-by-cycle Duty Mode More...

#define PWM_ETRG1_TRGMODE_Msk   (0x3u << PWM_ETRG1_TRGMODE_Pos)
 (PWM_ETRG1) External Trigger Mode More...

#define PWM_ETRG1_TRGMODE_OFF   (0x0u << 24)
 (PWM_ETRG1) External trigger is not enabled. More...

#define PWM_ETRG1_TRGMODE_Pos   24

#define PWM_ETRG1_TRGSRC   (0x1u << 30)
 (PWM_ETRG1) Trigger Source More...

#define PWM_ETRG2_MAXCNT(value)   ((PWM_ETRG2_MAXCNT_Msk & ((value) << PWM_ETRG2_MAXCNT_Pos)))

#define PWM_ETRG2_MAXCNT_Msk   (0xffffffu << PWM_ETRG2_MAXCNT_Pos)
 (PWM_ETRG2) Maximum Counter value More...

#define PWM_ETRG2_MAXCNT_Pos   0

#define PWM_ETRG2_RFEN   (0x1u << 31)
 (PWM_ETRG2) Recoverable Fault Enable More...

#define PWM_ETRG2_TRGEDGE   (0x1u << 28)
 (PWM_ETRG2) Edge Selection More...

#define PWM_ETRG2_TRGEDGE_FALLING_ZERO   (0x0u << 28)
 (PWM_ETRG2) TRGMODE = 1: TRGINx event detection on falling edge.TRGMODE = 2, 3: TRGINx active level is 0 More...

#define PWM_ETRG2_TRGEDGE_RISING_ONE   (0x1u << 28)
 (PWM_ETRG2) TRGMODE = 1: TRGINx event detection on rising edge.TRGMODE = 2, 3: TRGINx active level is 1 More...

#define PWM_ETRG2_TRGFILT   (0x1u << 29)
 (PWM_ETRG2) Filtered input More...

#define PWM_ETRG2_TRGMODE(value)   ((PWM_ETRG2_TRGMODE_Msk & ((value) << PWM_ETRG2_TRGMODE_Pos)))

#define PWM_ETRG2_TRGMODE_MODE1   (0x1u << 24)
 (PWM_ETRG2) External PWM Reset Mode More...

#define PWM_ETRG2_TRGMODE_MODE2   (0x2u << 24)
 (PWM_ETRG2) External PWM Start Mode More...

#define PWM_ETRG2_TRGMODE_MODE3   (0x3u << 24)
 (PWM_ETRG2) Cycle-by-cycle Duty Mode More...

#define PWM_ETRG2_TRGMODE_Msk   (0x3u << PWM_ETRG2_TRGMODE_Pos)
 (PWM_ETRG2) External Trigger Mode More...

#define PWM_ETRG2_TRGMODE_OFF   (0x0u << 24)
 (PWM_ETRG2) External trigger is not enabled. More...

#define PWM_ETRG2_TRGMODE_Pos   24

#define PWM_ETRG2_TRGSRC   (0x1u << 30)
 (PWM_ETRG2) Trigger Source More...

#define PWM_FCR_FCLR(value)   ((PWM_FCR_FCLR_Msk & ((value) << PWM_FCR_FCLR_Pos)))

#define PWM_FCR_FCLR_Msk   (0xffu << PWM_FCR_FCLR_Pos)
 (PWM_FCR) Fault Clear More...

#define PWM_FCR_FCLR_Pos   0

#define PWM_FMR_FFIL(value)   ((PWM_FMR_FFIL_Msk & ((value) << PWM_FMR_FFIL_Pos)))

#define PWM_FMR_FFIL_Msk   (0xffu << PWM_FMR_FFIL_Pos)
 (PWM_FMR) Fault Filtering More...

#define PWM_FMR_FFIL_Pos   16

#define PWM_FMR_FMOD(value)   ((PWM_FMR_FMOD_Msk & ((value) << PWM_FMR_FMOD_Pos)))

#define PWM_FMR_FMOD_Msk   (0xffu << PWM_FMR_FMOD_Pos)
 (PWM_FMR) Fault Activation Mode More...

#define PWM_FMR_FMOD_Pos   8

#define PWM_FMR_FPOL(value)   ((PWM_FMR_FPOL_Msk & ((value) << PWM_FMR_FPOL_Pos)))

#define PWM_FMR_FPOL_Msk   (0xffu << PWM_FMR_FPOL_Pos)
 (PWM_FMR) Fault Polarity More...

#define PWM_FMR_FPOL_Pos   0

#define PWM_FPE_FPE0(value)   ((PWM_FPE_FPE0_Msk & ((value) << PWM_FPE_FPE0_Pos)))

#define PWM_FPE_FPE0_Msk   (0xffu << PWM_FPE_FPE0_Pos)
 (PWM_FPE) Fault Protection Enable for channel 0 More...

#define PWM_FPE_FPE0_Pos   0

#define PWM_FPE_FPE1(value)   ((PWM_FPE_FPE1_Msk & ((value) << PWM_FPE_FPE1_Pos)))

#define PWM_FPE_FPE1_Msk   (0xffu << PWM_FPE_FPE1_Pos)
 (PWM_FPE) Fault Protection Enable for channel 1 More...

#define PWM_FPE_FPE1_Pos   8

#define PWM_FPE_FPE2(value)   ((PWM_FPE_FPE2_Msk & ((value) << PWM_FPE_FPE2_Pos)))

#define PWM_FPE_FPE2_Msk   (0xffu << PWM_FPE_FPE2_Pos)
 (PWM_FPE) Fault Protection Enable for channel 2 More...

#define PWM_FPE_FPE2_Pos   16

#define PWM_FPE_FPE3(value)   ((PWM_FPE_FPE3_Msk & ((value) << PWM_FPE_FPE3_Pos)))

#define PWM_FPE_FPE3_Msk   (0xffu << PWM_FPE_FPE3_Pos)
 (PWM_FPE) Fault Protection Enable for channel 3 More...

#define PWM_FPE_FPE3_Pos   24

#define PWM_FPV1_FPVH0   (0x1u << 0)
 (PWM_FPV1) Fault Protection Value for PWMH output on channel 0 More...

#define PWM_FPV1_FPVH1   (0x1u << 1)
 (PWM_FPV1) Fault Protection Value for PWMH output on channel 1 More...

#define PWM_FPV1_FPVH2   (0x1u << 2)
 (PWM_FPV1) Fault Protection Value for PWMH output on channel 2 More...

#define PWM_FPV1_FPVH3   (0x1u << 3)
 (PWM_FPV1) Fault Protection Value for PWMH output on channel 3 More...

#define PWM_FPV1_FPVL0   (0x1u << 16)
 (PWM_FPV1) Fault Protection Value for PWML output on channel 0 More...

#define PWM_FPV1_FPVL1   (0x1u << 17)
 (PWM_FPV1) Fault Protection Value for PWML output on channel 1 More...

#define PWM_FPV1_FPVL2   (0x1u << 18)
 (PWM_FPV1) Fault Protection Value for PWML output on channel 2 More...

#define PWM_FPV1_FPVL3   (0x1u << 19)
 (PWM_FPV1) Fault Protection Value for PWML output on channel 3 More...

#define PWM_FPV2_FPZH0   (0x1u << 0)
 (PWM_FPV2) Fault Protection to Hi-Z for PWMH output on channel 0 More...

#define PWM_FPV2_FPZH1   (0x1u << 1)
 (PWM_FPV2) Fault Protection to Hi-Z for PWMH output on channel 1 More...

#define PWM_FPV2_FPZH2   (0x1u << 2)
 (PWM_FPV2) Fault Protection to Hi-Z for PWMH output on channel 2 More...

#define PWM_FPV2_FPZH3   (0x1u << 3)
 (PWM_FPV2) Fault Protection to Hi-Z for PWMH output on channel 3 More...

#define PWM_FPV2_FPZL0   (0x1u << 16)
 (PWM_FPV2) Fault Protection to Hi-Z for PWML output on channel 0 More...

#define PWM_FPV2_FPZL1   (0x1u << 17)
 (PWM_FPV2) Fault Protection to Hi-Z for PWML output on channel 1 More...

#define PWM_FPV2_FPZL2   (0x1u << 18)
 (PWM_FPV2) Fault Protection to Hi-Z for PWML output on channel 2 More...

#define PWM_FPV2_FPZL3   (0x1u << 19)
 (PWM_FPV2) Fault Protection to Hi-Z for PWML output on channel 3 More...

#define PWM_FSR_FIV_Msk   (0xffu << PWM_FSR_FIV_Pos)
 (PWM_FSR) Fault Input Value More...

#define PWM_FSR_FIV_Pos   0

#define PWM_FSR_FS_Msk   (0xffu << PWM_FSR_FS_Pos)
 (PWM_FSR) Fault Status More...

#define PWM_FSR_FS_Pos   8

#define PWM_IDR1_CHID0   (0x1u << 0)
 (PWM_IDR1) Counter Event on Channel 0 Interrupt Disable More...

#define PWM_IDR1_CHID1   (0x1u << 1)
 (PWM_IDR1) Counter Event on Channel 1 Interrupt Disable More...

#define PWM_IDR1_CHID2   (0x1u << 2)
 (PWM_IDR1) Counter Event on Channel 2 Interrupt Disable More...

#define PWM_IDR1_CHID3   (0x1u << 3)
 (PWM_IDR1) Counter Event on Channel 3 Interrupt Disable More...

#define PWM_IDR1_FCHID0   (0x1u << 16)
 (PWM_IDR1) Fault Protection Trigger on Channel 0 Interrupt Disable More...

#define PWM_IDR1_FCHID1   (0x1u << 17)
 (PWM_IDR1) Fault Protection Trigger on Channel 1 Interrupt Disable More...

#define PWM_IDR1_FCHID2   (0x1u << 18)
 (PWM_IDR1) Fault Protection Trigger on Channel 2 Interrupt Disable More...

#define PWM_IDR1_FCHID3   (0x1u << 19)
 (PWM_IDR1) Fault Protection Trigger on Channel 3 Interrupt Disable More...

#define PWM_IDR2_CMPM0   (0x1u << 8)
 (PWM_IDR2) Comparison 0 Match Interrupt Disable More...

#define PWM_IDR2_CMPM1   (0x1u << 9)
 (PWM_IDR2) Comparison 1 Match Interrupt Disable More...

#define PWM_IDR2_CMPM2   (0x1u << 10)
 (PWM_IDR2) Comparison 2 Match Interrupt Disable More...

#define PWM_IDR2_CMPM3   (0x1u << 11)
 (PWM_IDR2) Comparison 3 Match Interrupt Disable More...

#define PWM_IDR2_CMPM4   (0x1u << 12)
 (PWM_IDR2) Comparison 4 Match Interrupt Disable More...

#define PWM_IDR2_CMPM5   (0x1u << 13)
 (PWM_IDR2) Comparison 5 Match Interrupt Disable More...

#define PWM_IDR2_CMPM6   (0x1u << 14)
 (PWM_IDR2) Comparison 6 Match Interrupt Disable More...

#define PWM_IDR2_CMPM7   (0x1u << 15)
 (PWM_IDR2) Comparison 7 Match Interrupt Disable More...

#define PWM_IDR2_CMPU0   (0x1u << 16)
 (PWM_IDR2) Comparison 0 Update Interrupt Disable More...

#define PWM_IDR2_CMPU1   (0x1u << 17)
 (PWM_IDR2) Comparison 1 Update Interrupt Disable More...

#define PWM_IDR2_CMPU2   (0x1u << 18)
 (PWM_IDR2) Comparison 2 Update Interrupt Disable More...

#define PWM_IDR2_CMPU3   (0x1u << 19)
 (PWM_IDR2) Comparison 3 Update Interrupt Disable More...

#define PWM_IDR2_CMPU4   (0x1u << 20)
 (PWM_IDR2) Comparison 4 Update Interrupt Disable More...

#define PWM_IDR2_CMPU5   (0x1u << 21)
 (PWM_IDR2) Comparison 5 Update Interrupt Disable More...

#define PWM_IDR2_CMPU6   (0x1u << 22)
 (PWM_IDR2) Comparison 6 Update Interrupt Disable More...

#define PWM_IDR2_CMPU7   (0x1u << 23)
 (PWM_IDR2) Comparison 7 Update Interrupt Disable More...

#define PWM_IDR2_UNRE   (0x1u << 3)
 (PWM_IDR2) Synchronous Channels Update Underrun Error Interrupt Disable More...

#define PWM_IDR2_WRDY   (0x1u << 0)
 (PWM_IDR2) Write Ready for Synchronous Channels Update Interrupt Disable More...

#define PWM_IER1_CHID0   (0x1u << 0)
 (PWM_IER1) Counter Event on Channel 0 Interrupt Enable More...

#define PWM_IER1_CHID1   (0x1u << 1)
 (PWM_IER1) Counter Event on Channel 1 Interrupt Enable More...

#define PWM_IER1_CHID2   (0x1u << 2)
 (PWM_IER1) Counter Event on Channel 2 Interrupt Enable More...

#define PWM_IER1_CHID3   (0x1u << 3)
 (PWM_IER1) Counter Event on Channel 3 Interrupt Enable More...

#define PWM_IER1_FCHID0   (0x1u << 16)
 (PWM_IER1) Fault Protection Trigger on Channel 0 Interrupt Enable More...

#define PWM_IER1_FCHID1   (0x1u << 17)
 (PWM_IER1) Fault Protection Trigger on Channel 1 Interrupt Enable More...

#define PWM_IER1_FCHID2   (0x1u << 18)
 (PWM_IER1) Fault Protection Trigger on Channel 2 Interrupt Enable More...

#define PWM_IER1_FCHID3   (0x1u << 19)
 (PWM_IER1) Fault Protection Trigger on Channel 3 Interrupt Enable More...

#define PWM_IER2_CMPM0   (0x1u << 8)
 (PWM_IER2) Comparison 0 Match Interrupt Enable More...

#define PWM_IER2_CMPM1   (0x1u << 9)
 (PWM_IER2) Comparison 1 Match Interrupt Enable More...

#define PWM_IER2_CMPM2   (0x1u << 10)
 (PWM_IER2) Comparison 2 Match Interrupt Enable More...

#define PWM_IER2_CMPM3   (0x1u << 11)
 (PWM_IER2) Comparison 3 Match Interrupt Enable More...

#define PWM_IER2_CMPM4   (0x1u << 12)
 (PWM_IER2) Comparison 4 Match Interrupt Enable More...

#define PWM_IER2_CMPM5   (0x1u << 13)
 (PWM_IER2) Comparison 5 Match Interrupt Enable More...

#define PWM_IER2_CMPM6   (0x1u << 14)
 (PWM_IER2) Comparison 6 Match Interrupt Enable More...

#define PWM_IER2_CMPM7   (0x1u << 15)
 (PWM_IER2) Comparison 7 Match Interrupt Enable More...

#define PWM_IER2_CMPU0   (0x1u << 16)
 (PWM_IER2) Comparison 0 Update Interrupt Enable More...

#define PWM_IER2_CMPU1   (0x1u << 17)
 (PWM_IER2) Comparison 1 Update Interrupt Enable More...

#define PWM_IER2_CMPU2   (0x1u << 18)
 (PWM_IER2) Comparison 2 Update Interrupt Enable More...

#define PWM_IER2_CMPU3   (0x1u << 19)
 (PWM_IER2) Comparison 3 Update Interrupt Enable More...

#define PWM_IER2_CMPU4   (0x1u << 20)
 (PWM_IER2) Comparison 4 Update Interrupt Enable More...

#define PWM_IER2_CMPU5   (0x1u << 21)
 (PWM_IER2) Comparison 5 Update Interrupt Enable More...

#define PWM_IER2_CMPU6   (0x1u << 22)
 (PWM_IER2) Comparison 6 Update Interrupt Enable More...

#define PWM_IER2_CMPU7   (0x1u << 23)
 (PWM_IER2) Comparison 7 Update Interrupt Enable More...

#define PWM_IER2_UNRE   (0x1u << 3)
 (PWM_IER2) Synchronous Channels Update Underrun Error Interrupt Enable More...

#define PWM_IER2_WRDY   (0x1u << 0)
 (PWM_IER2) Write Ready for Synchronous Channels Update Interrupt Enable More...

#define PWM_IMR1_CHID0   (0x1u << 0)
 (PWM_IMR1) Counter Event on Channel 0 Interrupt Mask More...

#define PWM_IMR1_CHID1   (0x1u << 1)
 (PWM_IMR1) Counter Event on Channel 1 Interrupt Mask More...

#define PWM_IMR1_CHID2   (0x1u << 2)
 (PWM_IMR1) Counter Event on Channel 2 Interrupt Mask More...

#define PWM_IMR1_CHID3   (0x1u << 3)
 (PWM_IMR1) Counter Event on Channel 3 Interrupt Mask More...

#define PWM_IMR1_FCHID0   (0x1u << 16)
 (PWM_IMR1) Fault Protection Trigger on Channel 0 Interrupt Mask More...

#define PWM_IMR1_FCHID1   (0x1u << 17)
 (PWM_IMR1) Fault Protection Trigger on Channel 1 Interrupt Mask More...

#define PWM_IMR1_FCHID2   (0x1u << 18)
 (PWM_IMR1) Fault Protection Trigger on Channel 2 Interrupt Mask More...

#define PWM_IMR1_FCHID3   (0x1u << 19)
 (PWM_IMR1) Fault Protection Trigger on Channel 3 Interrupt Mask More...

#define PWM_IMR2_CMPM0   (0x1u << 8)
 (PWM_IMR2) Comparison 0 Match Interrupt Mask More...

#define PWM_IMR2_CMPM1   (0x1u << 9)
 (PWM_IMR2) Comparison 1 Match Interrupt Mask More...

#define PWM_IMR2_CMPM2   (0x1u << 10)
 (PWM_IMR2) Comparison 2 Match Interrupt Mask More...

#define PWM_IMR2_CMPM3   (0x1u << 11)
 (PWM_IMR2) Comparison 3 Match Interrupt Mask More...

#define PWM_IMR2_CMPM4   (0x1u << 12)
 (PWM_IMR2) Comparison 4 Match Interrupt Mask More...

#define PWM_IMR2_CMPM5   (0x1u << 13)
 (PWM_IMR2) Comparison 5 Match Interrupt Mask More...

#define PWM_IMR2_CMPM6   (0x1u << 14)
 (PWM_IMR2) Comparison 6 Match Interrupt Mask More...

#define PWM_IMR2_CMPM7   (0x1u << 15)
 (PWM_IMR2) Comparison 7 Match Interrupt Mask More...

#define PWM_IMR2_CMPU0   (0x1u << 16)
 (PWM_IMR2) Comparison 0 Update Interrupt Mask More...

#define PWM_IMR2_CMPU1   (0x1u << 17)
 (PWM_IMR2) Comparison 1 Update Interrupt Mask More...

#define PWM_IMR2_CMPU2   (0x1u << 18)
 (PWM_IMR2) Comparison 2 Update Interrupt Mask More...

#define PWM_IMR2_CMPU3   (0x1u << 19)
 (PWM_IMR2) Comparison 3 Update Interrupt Mask More...

#define PWM_IMR2_CMPU4   (0x1u << 20)
 (PWM_IMR2) Comparison 4 Update Interrupt Mask More...

#define PWM_IMR2_CMPU5   (0x1u << 21)
 (PWM_IMR2) Comparison 5 Update Interrupt Mask More...

#define PWM_IMR2_CMPU6   (0x1u << 22)
 (PWM_IMR2) Comparison 6 Update Interrupt Mask More...

#define PWM_IMR2_CMPU7   (0x1u << 23)
 (PWM_IMR2) Comparison 7 Update Interrupt Mask More...

#define PWM_IMR2_UNRE   (0x1u << 3)
 (PWM_IMR2) Synchronous Channels Update Underrun Error Interrupt Mask More...

#define PWM_IMR2_WRDY   (0x1u << 0)
 (PWM_IMR2) Write Ready for Synchronous Channels Update Interrupt Mask More...

#define PWM_ISR1_CHID0   (0x1u << 0)
 (PWM_ISR1) Counter Event on Channel 0 More...

#define PWM_ISR1_CHID1   (0x1u << 1)
 (PWM_ISR1) Counter Event on Channel 1 More...

#define PWM_ISR1_CHID2   (0x1u << 2)
 (PWM_ISR1) Counter Event on Channel 2 More...

#define PWM_ISR1_CHID3   (0x1u << 3)
 (PWM_ISR1) Counter Event on Channel 3 More...

#define PWM_ISR1_FCHID0   (0x1u << 16)
 (PWM_ISR1) Fault Protection Trigger on Channel 0 More...

#define PWM_ISR1_FCHID1   (0x1u << 17)
 (PWM_ISR1) Fault Protection Trigger on Channel 1 More...

#define PWM_ISR1_FCHID2   (0x1u << 18)
 (PWM_ISR1) Fault Protection Trigger on Channel 2 More...

#define PWM_ISR1_FCHID3   (0x1u << 19)
 (PWM_ISR1) Fault Protection Trigger on Channel 3 More...

#define PWM_ISR2_CMPM0   (0x1u << 8)
 (PWM_ISR2) Comparison 0 Match More...

#define PWM_ISR2_CMPM1   (0x1u << 9)
 (PWM_ISR2) Comparison 1 Match More...

#define PWM_ISR2_CMPM2   (0x1u << 10)
 (PWM_ISR2) Comparison 2 Match More...

#define PWM_ISR2_CMPM3   (0x1u << 11)
 (PWM_ISR2) Comparison 3 Match More...

#define PWM_ISR2_CMPM4   (0x1u << 12)
 (PWM_ISR2) Comparison 4 Match More...

#define PWM_ISR2_CMPM5   (0x1u << 13)
 (PWM_ISR2) Comparison 5 Match More...

#define PWM_ISR2_CMPM6   (0x1u << 14)
 (PWM_ISR2) Comparison 6 Match More...

#define PWM_ISR2_CMPM7   (0x1u << 15)
 (PWM_ISR2) Comparison 7 Match More...

#define PWM_ISR2_CMPU0   (0x1u << 16)
 (PWM_ISR2) Comparison 0 Update More...

#define PWM_ISR2_CMPU1   (0x1u << 17)
 (PWM_ISR2) Comparison 1 Update More...

#define PWM_ISR2_CMPU2   (0x1u << 18)
 (PWM_ISR2) Comparison 2 Update More...

#define PWM_ISR2_CMPU3   (0x1u << 19)
 (PWM_ISR2) Comparison 3 Update More...

#define PWM_ISR2_CMPU4   (0x1u << 20)
 (PWM_ISR2) Comparison 4 Update More...

#define PWM_ISR2_CMPU5   (0x1u << 21)
 (PWM_ISR2) Comparison 5 Update More...

#define PWM_ISR2_CMPU6   (0x1u << 22)
 (PWM_ISR2) Comparison 6 Update More...

#define PWM_ISR2_CMPU7   (0x1u << 23)
 (PWM_ISR2) Comparison 7 Update More...

#define PWM_ISR2_UNRE   (0x1u << 3)
 (PWM_ISR2) Synchronous Channels Update Underrun Error More...

#define PWM_ISR2_WRDY   (0x1u << 0)
 (PWM_ISR2) Write Ready for Synchronous Channels Update More...

#define PWM_LEBR1_LEBDELAY(value)   ((PWM_LEBR1_LEBDELAY_Msk & ((value) << PWM_LEBR1_LEBDELAY_Pos)))

#define PWM_LEBR1_LEBDELAY_Msk   (0x7fu << PWM_LEBR1_LEBDELAY_Pos)
 (PWM_LEBR1) Leading-Edge Blanking Delay for TRGINx More...

#define PWM_LEBR1_LEBDELAY_Pos   0

#define PWM_LEBR1_PWMHFEN   (0x1u << 18)
 (PWM_LEBR1) PWMH Falling Edge Enable More...

#define PWM_LEBR1_PWMHREN   (0x1u << 19)
 (PWM_LEBR1) PWMH Rising Edge Enable More...

#define PWM_LEBR1_PWMLFEN   (0x1u << 16)
 (PWM_LEBR1) PWML Falling Edge Enable More...

#define PWM_LEBR1_PWMLREN   (0x1u << 17)
 (PWM_LEBR1) PWML Rising Edge Enable More...

#define PWM_LEBR2_LEBDELAY(value)   ((PWM_LEBR2_LEBDELAY_Msk & ((value) << PWM_LEBR2_LEBDELAY_Pos)))

#define PWM_LEBR2_LEBDELAY_Msk   (0x7fu << PWM_LEBR2_LEBDELAY_Pos)
 (PWM_LEBR2) Leading-Edge Blanking Delay for TRGINx More...

#define PWM_LEBR2_LEBDELAY_Pos   0

#define PWM_LEBR2_PWMHFEN   (0x1u << 18)
 (PWM_LEBR2) PWMH Falling Edge Enable More...

#define PWM_LEBR2_PWMHREN   (0x1u << 19)
 (PWM_LEBR2) PWMH Rising Edge Enable More...

#define PWM_LEBR2_PWMLFEN   (0x1u << 16)
 (PWM_LEBR2) PWML Falling Edge Enable More...

#define PWM_LEBR2_PWMLREN   (0x1u << 17)
 (PWM_LEBR2) PWML Rising Edge Enable More...

#define PWM_OOV_OOVH0   (0x1u << 0)
 (PWM_OOV) Output Override Value for PWMH output of the channel 0 More...

#define PWM_OOV_OOVH1   (0x1u << 1)
 (PWM_OOV) Output Override Value for PWMH output of the channel 1 More...

#define PWM_OOV_OOVH2   (0x1u << 2)
 (PWM_OOV) Output Override Value for PWMH output of the channel 2 More...

#define PWM_OOV_OOVH3   (0x1u << 3)
 (PWM_OOV) Output Override Value for PWMH output of the channel 3 More...

#define PWM_OOV_OOVL0   (0x1u << 16)
 (PWM_OOV) Output Override Value for PWML output of the channel 0 More...

#define PWM_OOV_OOVL1   (0x1u << 17)
 (PWM_OOV) Output Override Value for PWML output of the channel 1 More...

#define PWM_OOV_OOVL2   (0x1u << 18)
 (PWM_OOV) Output Override Value for PWML output of the channel 2 More...

#define PWM_OOV_OOVL3   (0x1u << 19)
 (PWM_OOV) Output Override Value for PWML output of the channel 3 More...

#define PWM_OS_OSH0   (0x1u << 0)
 (PWM_OS) Output Selection for PWMH output of the channel 0 More...

#define PWM_OS_OSH1   (0x1u << 1)
 (PWM_OS) Output Selection for PWMH output of the channel 1 More...

#define PWM_OS_OSH2   (0x1u << 2)
 (PWM_OS) Output Selection for PWMH output of the channel 2 More...

#define PWM_OS_OSH3   (0x1u << 3)
 (PWM_OS) Output Selection for PWMH output of the channel 3 More...

#define PWM_OS_OSL0   (0x1u << 16)
 (PWM_OS) Output Selection for PWML output of the channel 0 More...

#define PWM_OS_OSL1   (0x1u << 17)
 (PWM_OS) Output Selection for PWML output of the channel 1 More...

#define PWM_OS_OSL2   (0x1u << 18)
 (PWM_OS) Output Selection for PWML output of the channel 2 More...

#define PWM_OS_OSL3   (0x1u << 19)
 (PWM_OS) Output Selection for PWML output of the channel 3 More...

#define PWM_OSC_OSCH0   (0x1u << 0)
 (PWM_OSC) Output Selection Clear for PWMH output of the channel 0 More...

#define PWM_OSC_OSCH1   (0x1u << 1)
 (PWM_OSC) Output Selection Clear for PWMH output of the channel 1 More...

#define PWM_OSC_OSCH2   (0x1u << 2)
 (PWM_OSC) Output Selection Clear for PWMH output of the channel 2 More...

#define PWM_OSC_OSCH3   (0x1u << 3)
 (PWM_OSC) Output Selection Clear for PWMH output of the channel 3 More...

#define PWM_OSC_OSCL0   (0x1u << 16)
 (PWM_OSC) Output Selection Clear for PWML output of the channel 0 More...

#define PWM_OSC_OSCL1   (0x1u << 17)
 (PWM_OSC) Output Selection Clear for PWML output of the channel 1 More...

#define PWM_OSC_OSCL2   (0x1u << 18)
 (PWM_OSC) Output Selection Clear for PWML output of the channel 2 More...

#define PWM_OSC_OSCL3   (0x1u << 19)
 (PWM_OSC) Output Selection Clear for PWML output of the channel 3 More...

#define PWM_OSCUPD_OSCUPH0   (0x1u << 0)
 (PWM_OSCUPD) Output Selection Clear for PWMH output of the channel 0 More...

#define PWM_OSCUPD_OSCUPH1   (0x1u << 1)
 (PWM_OSCUPD) Output Selection Clear for PWMH output of the channel 1 More...

#define PWM_OSCUPD_OSCUPH2   (0x1u << 2)
 (PWM_OSCUPD) Output Selection Clear for PWMH output of the channel 2 More...

#define PWM_OSCUPD_OSCUPH3   (0x1u << 3)
 (PWM_OSCUPD) Output Selection Clear for PWMH output of the channel 3 More...

#define PWM_OSCUPD_OSCUPL0   (0x1u << 16)
 (PWM_OSCUPD) Output Selection Clear for PWML output of the channel 0 More...

#define PWM_OSCUPD_OSCUPL1   (0x1u << 17)
 (PWM_OSCUPD) Output Selection Clear for PWML output of the channel 1 More...

#define PWM_OSCUPD_OSCUPL2   (0x1u << 18)
 (PWM_OSCUPD) Output Selection Clear for PWML output of the channel 2 More...

#define PWM_OSCUPD_OSCUPL3   (0x1u << 19)
 (PWM_OSCUPD) Output Selection Clear for PWML output of the channel 3 More...

#define PWM_OSS_OSSH0   (0x1u << 0)
 (PWM_OSS) Output Selection Set for PWMH output of the channel 0 More...

#define PWM_OSS_OSSH1   (0x1u << 1)
 (PWM_OSS) Output Selection Set for PWMH output of the channel 1 More...

#define PWM_OSS_OSSH2   (0x1u << 2)
 (PWM_OSS) Output Selection Set for PWMH output of the channel 2 More...

#define PWM_OSS_OSSH3   (0x1u << 3)
 (PWM_OSS) Output Selection Set for PWMH output of the channel 3 More...

#define PWM_OSS_OSSL0   (0x1u << 16)
 (PWM_OSS) Output Selection Set for PWML output of the channel 0 More...

#define PWM_OSS_OSSL1   (0x1u << 17)
 (PWM_OSS) Output Selection Set for PWML output of the channel 1 More...

#define PWM_OSS_OSSL2   (0x1u << 18)
 (PWM_OSS) Output Selection Set for PWML output of the channel 2 More...

#define PWM_OSS_OSSL3   (0x1u << 19)
 (PWM_OSS) Output Selection Set for PWML output of the channel 3 More...

#define PWM_OSSUPD_OSSUPH0   (0x1u << 0)
 (PWM_OSSUPD) Output Selection Set for PWMH output of the channel 0 More...

#define PWM_OSSUPD_OSSUPH1   (0x1u << 1)
 (PWM_OSSUPD) Output Selection Set for PWMH output of the channel 1 More...

#define PWM_OSSUPD_OSSUPH2   (0x1u << 2)
 (PWM_OSSUPD) Output Selection Set for PWMH output of the channel 2 More...

#define PWM_OSSUPD_OSSUPH3   (0x1u << 3)
 (PWM_OSSUPD) Output Selection Set for PWMH output of the channel 3 More...

#define PWM_OSSUPD_OSSUPL0   (0x1u << 16)
 (PWM_OSSUPD) Output Selection Set for PWML output of the channel 0 More...

#define PWM_OSSUPD_OSSUPL1   (0x1u << 17)
 (PWM_OSSUPD) Output Selection Set for PWML output of the channel 1 More...

#define PWM_OSSUPD_OSSUPL2   (0x1u << 18)
 (PWM_OSSUPD) Output Selection Set for PWML output of the channel 2 More...

#define PWM_OSSUPD_OSSUPL3   (0x1u << 19)
 (PWM_OSSUPD) Output Selection Set for PWML output of the channel 3 More...

#define PWM_SCM_PTRCS(value)   ((PWM_SCM_PTRCS_Msk & ((value) << PWM_SCM_PTRCS_Pos)))

#define PWM_SCM_PTRCS_Msk   (0x7u << PWM_SCM_PTRCS_Pos)
 (PWM_SCM) DMA Transfer Request Comparison Selection More...

#define PWM_SCM_PTRCS_Pos   21

#define PWM_SCM_PTRM   (0x1u << 20)
 (PWM_SCM) DMA Transfer Request Mode More...

#define PWM_SCM_SYNC0   (0x1u << 0)
 (PWM_SCM) Synchronous Channel 0 More...

#define PWM_SCM_SYNC1   (0x1u << 1)
 (PWM_SCM) Synchronous Channel 1 More...

#define PWM_SCM_SYNC2   (0x1u << 2)
 (PWM_SCM) Synchronous Channel 2 More...

#define PWM_SCM_SYNC3   (0x1u << 3)
 (PWM_SCM) Synchronous Channel 3 More...

#define PWM_SCM_UPDM(value)   ((PWM_SCM_UPDM_Msk & ((value) << PWM_SCM_UPDM_Pos)))

#define PWM_SCM_UPDM_MODE0   (0x0u << 16)
 (PWM_SCM) Manual write of double buffer registers and manual update of synchronous channels More...

#define PWM_SCM_UPDM_MODE1   (0x1u << 16)
 (PWM_SCM) Manual write of double buffer registers and automatic update of synchronous channels More...

#define PWM_SCM_UPDM_MODE2   (0x2u << 16)
 (PWM_SCM) Automatic write of duty-cycle update registers by the DMA and automatic update of synchronous channels More...

#define PWM_SCM_UPDM_Msk   (0x3u << PWM_SCM_UPDM_Pos)
 (PWM_SCM) Synchronous Channels Update Mode More...

#define PWM_SCM_UPDM_Pos   16

#define PWM_SCUC_UPDULOCK   (0x1u << 0)
 (PWM_SCUC) Synchronous Channels Update Unlock More...

#define PWM_SCUP_UPR(value)   ((PWM_SCUP_UPR_Msk & ((value) << PWM_SCUP_UPR_Pos)))

#define PWM_SCUP_UPR_Msk   (0xfu << PWM_SCUP_UPR_Pos)
 (PWM_SCUP) Update Period More...

#define PWM_SCUP_UPR_Pos   0

#define PWM_SCUP_UPRCNT(value)   ((PWM_SCUP_UPRCNT_Msk & ((value) << PWM_SCUP_UPRCNT_Pos)))

#define PWM_SCUP_UPRCNT_Msk   (0xfu << PWM_SCUP_UPRCNT_Pos)
 (PWM_SCUP) Update Period Counter More...

#define PWM_SCUP_UPRCNT_Pos   4

#define PWM_SCUPUPD_UPRUPD(value)   ((PWM_SCUPUPD_UPRUPD_Msk & ((value) << PWM_SCUPUPD_UPRUPD_Pos)))

#define PWM_SCUPUPD_UPRUPD_Msk   (0xfu << PWM_SCUPUPD_UPRUPD_Pos)
 (PWM_SCUPUPD) Update Period Update More...

#define PWM_SCUPUPD_UPRUPD_Pos   0

#define PWM_SMMR_DOWN0   (0x1u << 16)
 (PWM_SMMR) DOWN Count More...

#define PWM_SMMR_DOWN1   (0x1u << 17)
 (PWM_SMMR) DOWN Count More...

#define PWM_SMMR_GCEN0   (0x1u << 0)
 (PWM_SMMR) Gray Count ENable More...

#define PWM_SMMR_GCEN1   (0x1u << 1)
 (PWM_SMMR) Gray Count ENable More...

#define PWM_SR_CHID0   (0x1u << 0)
 (PWM_SR) Channel ID More...

#define PWM_SR_CHID1   (0x1u << 1)
 (PWM_SR) Channel ID More...

#define PWM_SR_CHID2   (0x1u << 2)
 (PWM_SR) Channel ID More...

#define PWM_SR_CHID3   (0x1u << 3)
 (PWM_SR) Channel ID More...

#define PWM_SSPR_SPRD(value)   ((PWM_SSPR_SPRD_Msk & ((value) << PWM_SSPR_SPRD_Pos)))

#define PWM_SSPR_SPRD_Msk   (0xffffffu << PWM_SSPR_SPRD_Pos)
 (PWM_SSPR) Spread Spectrum Limit Value More...

#define PWM_SSPR_SPRD_Pos   0

#define PWM_SSPR_SPRDM   (0x1u << 24)
 (PWM_SSPR) Spread Spectrum Counter Mode More...

#define PWM_SSPUP_SPRDUP(value)   ((PWM_SSPUP_SPRDUP_Msk & ((value) << PWM_SSPUP_SPRDUP_Pos)))

#define PWM_SSPUP_SPRDUP_Msk   (0xffffffu << PWM_SSPUP_SPRDUP_Pos)
 (PWM_SSPUP) Spread Spectrum Limit Value Update More...

#define PWM_SSPUP_SPRDUP_Pos   0

#define PWM_VERSION_MFN_Msk   (0x7u << PWM_VERSION_MFN_Pos)
 (PWM_VERSION) Metal Fix Number More...

#define PWM_VERSION_MFN_Pos   16

#define PWM_VERSION_VERSION_Msk   (0xfffu << PWM_VERSION_VERSION_Pos)
 (PWM_VERSION) Version of the Hardware Module More...

#define PWM_VERSION_VERSION_Pos   0

#define PWM_WPCR_WPCMD(value)   ((PWM_WPCR_WPCMD_Msk & ((value) << PWM_WPCR_WPCMD_Pos)))

#define PWM_WPCR_WPCMD_DISABLE_SW_PROT   (0x0u << 0)
 (PWM_WPCR) Disables the software write protection of the register groups of which the bit WPRGx is at '1'. More...

#define PWM_WPCR_WPCMD_ENABLE_HW_PROT   (0x2u << 0)
 (PWM_WPCR) Enables the hardware write protection of the register groups of which the bit WPRGx is at '1'. Only a hardware reset of the PWM controller can disable the hardware write protection. Moreover, to meet security requirements, the PIO lines associated with the PWM can not be configured through the PIO interface. More...

#define PWM_WPCR_WPCMD_ENABLE_SW_PROT   (0x1u << 0)
 (PWM_WPCR) Enables the software write protection of the register groups of which the bit WPRGx is at '1'. More...

#define PWM_WPCR_WPCMD_Msk   (0x3u << PWM_WPCR_WPCMD_Pos)
 (PWM_WPCR) Write Protection Command More...

#define PWM_WPCR_WPCMD_Pos   0

#define PWM_WPCR_WPKEY(value)   ((PWM_WPCR_WPKEY_Msk & ((value) << PWM_WPCR_WPKEY_Pos)))

#define PWM_WPCR_WPKEY_Msk   (0xffffffu << PWM_WPCR_WPKEY_Pos)
 (PWM_WPCR) Write Protection Key More...

#define PWM_WPCR_WPKEY_PASSWD   (0x50574Du << 8)
 (PWM_WPCR) Writing any other value in this field aborts the write operation of the WPCMD field.Always reads as 0 More...

#define PWM_WPCR_WPKEY_Pos   8

#define PWM_WPCR_WPRG0   (0x1u << 2)
 (PWM_WPCR) Write Protection Register Group 0 More...

#define PWM_WPCR_WPRG1   (0x1u << 3)
 (PWM_WPCR) Write Protection Register Group 1 More...

#define PWM_WPCR_WPRG2   (0x1u << 4)
 (PWM_WPCR) Write Protection Register Group 2 More...

#define PWM_WPCR_WPRG3   (0x1u << 5)
 (PWM_WPCR) Write Protection Register Group 3 More...

#define PWM_WPCR_WPRG4   (0x1u << 6)
 (PWM_WPCR) Write Protection Register Group 4 More...

#define PWM_WPCR_WPRG5   (0x1u << 7)
 (PWM_WPCR) Write Protection Register Group 5 More...

#define PWM_WPSR_WPHWS0   (0x1u << 8)
 (PWM_WPSR) Write Protect HW Status More...

#define PWM_WPSR_WPHWS1   (0x1u << 9)
 (PWM_WPSR) Write Protect HW Status More...

#define PWM_WPSR_WPHWS2   (0x1u << 10)
 (PWM_WPSR) Write Protect HW Status More...

#define PWM_WPSR_WPHWS3   (0x1u << 11)
 (PWM_WPSR) Write Protect HW Status More...

#define PWM_WPSR_WPHWS4   (0x1u << 12)
 (PWM_WPSR) Write Protect HW Status More...

#define PWM_WPSR_WPHWS5   (0x1u << 13)
 (PWM_WPSR) Write Protect HW Status More...

#define PWM_WPSR_WPSWS0   (0x1u << 0)
 (PWM_WPSR) Write Protect SW Status More...

#define PWM_WPSR_WPSWS1   (0x1u << 1)
 (PWM_WPSR) Write Protect SW Status More...

#define PWM_WPSR_WPSWS2   (0x1u << 2)
 (PWM_WPSR) Write Protect SW Status More...

#define PWM_WPSR_WPSWS3   (0x1u << 3)
 (PWM_WPSR) Write Protect SW Status More...

#define PWM_WPSR_WPSWS4   (0x1u << 4)
 (PWM_WPSR) Write Protect SW Status More...

#define PWM_WPSR_WPSWS5   (0x1u << 5)
 (PWM_WPSR) Write Protect SW Status More...

#define PWM_WPSR_WPVS   (0x1u << 7)
 (PWM_WPSR) Write Protect Violation Status More...

#define PWM_WPSR_WPVSRC_Msk   (0xffffu << PWM_WPSR_WPVSRC_Pos)
 (PWM_WPSR) Write Protect Violation Source More...

#define PWM_WPSR_WPVSRC_Pos   16

#define PWMCH_NUM_NUMBER   4

#define PWMCMP_NUMBER   8
 Pwm hardware registers. More...


Detailed Description

Copyright (c) 2015-2018 Microchip Technology Inc. and its subsidiaries.

Definition in file pwm.h.



inertial_sense_ros
Author(s):
autogenerated on Sat Sep 19 2020 03:19:06
