mcan0.h File Reference

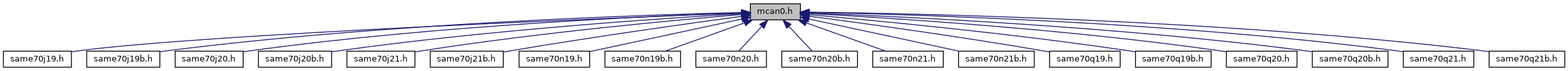

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define REG_MCAN0_BTP   (*(__IO uint32_t*)0x4003001CU)
 (MCAN0) Bit Timing and Prescaler Register More...

#define REG_MCAN0_CCCR   (*(__IO uint32_t*)0x40030018U)
 (MCAN0) CC Control Register More...

#define REG_MCAN0_CREL   (*(__I uint32_t*)0x40030000U)
 (MCAN0) Core Release Register More...

#define REG_MCAN0_CUST   (*(__IO uint32_t*)0x40030008U)
 (MCAN0) Customer Register More...

#define REG_MCAN0_DBTP   (*(__IO uint32_t*)0x4003000CU)
 (MCAN0) Data Bit Timing and Prescaler Register More...

#define REG_MCAN0_ECR   (*(__I uint32_t*)0x40030040U)
 (MCAN0) Error Counter Register More...

#define REG_MCAN0_ENDN   (*(__I uint32_t*)0x40030004U)
 (MCAN0) Endian Register More...

#define REG_MCAN0_FBTP   (*(__IO uint32_t*)0x4003000CU)
 (MCAN0) Fast Bit Timing and Prescaler Register More...

#define REG_MCAN0_GFC   (*(__IO uint32_t*)0x40030080U)
 (MCAN0) Global Filter Configuration Register More...

#define REG_MCAN0_HPMS   (*(__I uint32_t*)0x40030094U)
 (MCAN0) High Priority Message Status Register More...

#define REG_MCAN0_IE   (*(__IO uint32_t*)0x40030054U)
 (MCAN0) Interrupt Enable Register More...

#define REG_MCAN0_ILE   (*(__IO uint32_t*)0x4003005CU)
 (MCAN0) Interrupt Line Enable Register More...

#define REG_MCAN0_ILS   (*(__IO uint32_t*)0x40030058U)
 (MCAN0) Interrupt Line Select Register More...

#define REG_MCAN0_IR   (*(__IO uint32_t*)0x40030050U)
 (MCAN0) Interrupt Register More...

#define REG_MCAN0_NBTP   (*(__IO uint32_t*)0x4003001CU)
 (MCAN0) Nominal Bit Timing and Prescaler Register More...

#define REG_MCAN0_NDAT1   (*(__IO uint32_t*)0x40030098U)
 (MCAN0) New Data 1 Register More...

#define REG_MCAN0_NDAT2   (*(__IO uint32_t*)0x4003009CU)
 (MCAN0) New Data 2 Register More...

#define REG_MCAN0_PSR   (*(__I uint32_t*)0x40030044U)
 (MCAN0) Protocol Status Register More...

#define REG_MCAN0_RWD   (*(__IO uint32_t*)0x40030014U)
 (MCAN0) RAM Watchdog Register More...

#define REG_MCAN0_RXBC   (*(__IO uint32_t*)0x400300ACU)
 (MCAN0) Receive Rx Buffer Configuration Register More...

#define REG_MCAN0_RXESC   (*(__IO uint32_t*)0x400300BCU)
 (MCAN0) Receive Buffer / FIFO Element Size Configuration Register More...

#define REG_MCAN0_RXF0A   (*(__IO uint32_t*)0x400300A8U)
 (MCAN0) Receive FIFO 0 Acknowledge Register More...

#define REG_MCAN0_RXF0C   (*(__IO uint32_t*)0x400300A0U)
 (MCAN0) Receive FIFO 0 Configuration Register More...

#define REG_MCAN0_RXF0S   (*(__I uint32_t*)0x400300A4U)
 (MCAN0) Receive FIFO 0 Status Register More...

#define REG_MCAN0_RXF1A   (*(__IO uint32_t*)0x400300B8U)
 (MCAN0) Receive FIFO 1 Acknowledge Register More...

#define REG_MCAN0_RXF1C   (*(__IO uint32_t*)0x400300B0U)
 (MCAN0) Receive FIFO 1 Configuration Register More...

#define REG_MCAN0_RXF1S   (*(__I uint32_t*)0x400300B4U)
 (MCAN0) Receive FIFO 1 Status Register More...

#define REG_MCAN0_SIDFC   (*(__IO uint32_t*)0x40030084U)
 (MCAN0) Standard ID Filter Configuration Register More...

#define REG_MCAN0_TDCR   (*(__IO uint32_t*)0x40030048U)
 (MCAN0) Transmit Delay Compensation Register More...

#define REG_MCAN0_TEST   (*(__IO uint32_t*)0x40030010U)
 (MCAN0) Test Register More...

#define REG_MCAN0_TOCC   (*(__IO uint32_t*)0x40030028U)
 (MCAN0) Timeout Counter Configuration Register More...

#define REG_MCAN0_TOCV   (*(__IO uint32_t*)0x4003002CU)
 (MCAN0) Timeout Counter Value Register More...

#define REG_MCAN0_TSCC   (*(__IO uint32_t*)0x40030020U)
 (MCAN0) Timestamp Counter Configuration Register More...

#define REG_MCAN0_TSCV   (*(__IO uint32_t*)0x40030024U)
 (MCAN0) Timestamp Counter Value Register More...

#define REG_MCAN0_TXBAR   (*(__IO uint32_t*)0x400300D0U)
 (MCAN0) Transmit Buffer Add Request Register More...

#define REG_MCAN0_TXBC   (*(__IO uint32_t*)0x400300C0U)
 (MCAN0) Transmit Buffer Configuration Register More...

#define REG_MCAN0_TXBCF   (*(__I uint32_t*)0x400300DCU)
 (MCAN0) Transmit Buffer Cancellation Finished Register More...

#define REG_MCAN0_TXBCIE   (*(__IO uint32_t*)0x400300E4U)
 (MCAN0) Transmit Buffer Cancellation Finished Interrupt Enable Register More...

#define REG_MCAN0_TXBCR   (*(__IO uint32_t*)0x400300D4U)
 (MCAN0) Transmit Buffer Cancellation Request Register More...

#define REG_MCAN0_TXBRP   (*(__I uint32_t*)0x400300CCU)
 (MCAN0) Transmit Buffer Request Pending Register More...

#define REG_MCAN0_TXBTIE   (*(__IO uint32_t*)0x400300E0U)
 (MCAN0) Transmit Buffer Transmission Interrupt Enable Register More...

#define REG_MCAN0_TXBTO   (*(__I uint32_t*)0x400300D8U)
 (MCAN0) Transmit Buffer Transmission Occurred Register More...

#define REG_MCAN0_TXEFA   (*(__IO uint32_t*)0x400300F8U)
 (MCAN0) Transmit Event FIFO Acknowledge Register More...

#define REG_MCAN0_TXEFC   (*(__IO uint32_t*)0x400300F0U)
 (MCAN0) Transmit Event FIFO Configuration Register More...

#define REG_MCAN0_TXEFS   (*(__I uint32_t*)0x400300F4U)
 (MCAN0) Transmit Event FIFO Status Register More...

#define REG_MCAN0_TXESC   (*(__IO uint32_t*)0x400300C8U)
 (MCAN0) Transmit Buffer Element Size Configuration Register More...

#define REG_MCAN0_TXFQS   (*(__I uint32_t*)0x400300C4U)
 (MCAN0) Transmit FIFO/Queue Status Register More...

#define REG_MCAN0_XIDAM   (*(__IO uint32_t*)0x40030090U)
 (MCAN0) Extended ID AND Mask Register More...

#define REG_MCAN0_XIDFC   (*(__IO uint32_t*)0x40030088U)
 (MCAN0) Extended ID Filter Configuration Register More...


Detailed Description

Copyright (c) 2015-2018 Microchip Technology Inc. and its subsidiaries.

Definition in file mcan0.h.

Macro Definition Documentation

◆ REG_MCAN0_BTP

#define REG_MCAN0_BTP   (*(__IO uint32_t*)0x4003001CU)

(MCAN0) Bit Timing and Prescaler Register

Definition at line 98 of file mcan0.h.

◆ REG_MCAN0_CCCR

#define REG_MCAN0_CCCR   (*(__IO uint32_t*)0x40030018U)

(MCAN0) CC Control Register

Definition at line 97 of file mcan0.h.

◆ REG_MCAN0_CREL

#define REG_MCAN0_CREL   (*(__I uint32_t*)0x40030000U)

(MCAN0) Core Release Register

Definition at line 90 of file mcan0.h.

◆ REG_MCAN0_CUST

#define REG_MCAN0_CUST   (*(__IO uint32_t*)0x40030008U)

(MCAN0) Customer Register

Definition at line 92 of file mcan0.h.

◆ REG_MCAN0_DBTP

#define REG_MCAN0_DBTP   (*(__IO uint32_t*)0x4003000CU)

(MCAN0) Data Bit Timing and Prescaler Register

Definition at line 94 of file mcan0.h.

◆ REG_MCAN0_ECR

#define REG_MCAN0_ECR   (*(__I uint32_t*)0x40030040U)

(MCAN0) Error Counter Register

Definition at line 104 of file mcan0.h.

◆ REG_MCAN0_ENDN

#define REG_MCAN0_ENDN   (*(__I uint32_t*)0x40030004U)

(MCAN0) Endian Register

Definition at line 91 of file mcan0.h.

◆ REG_MCAN0_FBTP

#define REG_MCAN0_FBTP   (*(__IO uint32_t*)0x4003000CU)

(MCAN0) Fast Bit Timing and Prescaler Register

Definition at line 93 of file mcan0.h.

◆ REG_MCAN0_GFC

#define REG_MCAN0_GFC   (*(__IO uint32_t*)0x40030080U)

(MCAN0) Global Filter Configuration Register

Definition at line 111 of file mcan0.h.

◆ REG_MCAN0_HPMS

#define REG_MCAN0_HPMS   (*(__I uint32_t*)0x40030094U)

(MCAN0) High Priority Message Status Register

Definition at line 115 of file mcan0.h.

◆ REG_MCAN0_IE

#define REG_MCAN0_IE   (*(__IO uint32_t*)0x40030054U)

(MCAN0) Interrupt Enable Register

Definition at line 108 of file mcan0.h.

◆ REG_MCAN0_ILE

#define REG_MCAN0_ILE   (*(__IO uint32_t*)0x4003005CU)

(MCAN0) Interrupt Line Enable Register

Definition at line 110 of file mcan0.h.

◆ REG_MCAN0_ILS

#define REG_MCAN0_ILS   (*(__IO uint32_t*)0x40030058U)

(MCAN0) Interrupt Line Select Register

Definition at line 109 of file mcan0.h.

◆ REG_MCAN0_IR

#define REG_MCAN0_IR   (*(__IO uint32_t*)0x40030050U)

(MCAN0) Interrupt Register

Definition at line 107 of file mcan0.h.

◆ REG_MCAN0_NBTP

#define REG_MCAN0_NBTP   (*(__IO uint32_t*)0x4003001CU)

(MCAN0) Nominal Bit Timing and Prescaler Register

Definition at line 99 of file mcan0.h.

◆ REG_MCAN0_NDAT1

#define REG_MCAN0_NDAT1   (*(__IO uint32_t*)0x40030098U)

(MCAN0) New Data 1 Register

Definition at line 116 of file mcan0.h.

◆ REG_MCAN0_NDAT2

#define REG_MCAN0_NDAT2   (*(__IO uint32_t*)0x4003009CU)

(MCAN0) New Data 2 Register

Definition at line 117 of file mcan0.h.

◆ REG_MCAN0_PSR

#define REG_MCAN0_PSR   (*(__I uint32_t*)0x40030044U)

(MCAN0) Protocol Status Register

Definition at line 105 of file mcan0.h.

◆ REG_MCAN0_RWD

#define REG_MCAN0_RWD   (*(__IO uint32_t*)0x40030014U)

(MCAN0) RAM Watchdog Register

Definition at line 96 of file mcan0.h.

◆ REG_MCAN0_RXBC

#define REG_MCAN0_RXBC   (*(__IO uint32_t*)0x400300ACU)

(MCAN0) Receive Rx Buffer Configuration Register

Definition at line 121 of file mcan0.h.

◆ REG_MCAN0_RXESC

#define REG_MCAN0_RXESC   (*(__IO uint32_t*)0x400300BCU)

(MCAN0) Receive Buffer / FIFO Element Size Configuration Register

Definition at line 125 of file mcan0.h.

◆ REG_MCAN0_RXF0A

#define REG_MCAN0_RXF0A   (*(__IO uint32_t*)0x400300A8U)

(MCAN0) Receive FIFO 0 Acknowledge Register

Definition at line 120 of file mcan0.h.

◆ REG_MCAN0_RXF0C

#define REG_MCAN0_RXF0C   (*(__IO uint32_t*)0x400300A0U)

(MCAN0) Receive FIFO 0 Configuration Register

Definition at line 118 of file mcan0.h.

◆ REG_MCAN0_RXF0S

#define REG_MCAN0_RXF0S   (*(__I uint32_t*)0x400300A4U)

(MCAN0) Receive FIFO 0 Status Register

Definition at line 119 of file mcan0.h.

◆ REG_MCAN0_RXF1A

#define REG_MCAN0_RXF1A   (*(__IO uint32_t*)0x400300B8U)

(MCAN0) Receive FIFO 1 Acknowledge Register

Definition at line 124 of file mcan0.h.

◆ REG_MCAN0_RXF1C

#define REG_MCAN0_RXF1C   (*(__IO uint32_t*)0x400300B0U)

(MCAN0) Receive FIFO 1 Configuration Register

Definition at line 122 of file mcan0.h.

◆ REG_MCAN0_RXF1S

#define REG_MCAN0_RXF1S   (*(__I uint32_t*)0x400300B4U)

(MCAN0) Receive FIFO 1 Status Register

Definition at line 123 of file mcan0.h.

◆ REG_MCAN0_SIDFC

#define REG_MCAN0_SIDFC   (*(__IO uint32_t*)0x40030084U)

(MCAN0) Standard ID Filter Configuration Register

Definition at line 112 of file mcan0.h.

◆ REG_MCAN0_TDCR

#define REG_MCAN0_TDCR   (*(__IO uint32_t*)0x40030048U)

(MCAN0) Transmit Delay Compensation Register

Definition at line 106 of file mcan0.h.

◆ REG_MCAN0_TEST

#define REG_MCAN0_TEST   (*(__IO uint32_t*)0x40030010U)

(MCAN0) Test Register

Definition at line 95 of file mcan0.h.

◆ REG_MCAN0_TOCC

#define REG_MCAN0_TOCC   (*(__IO uint32_t*)0x40030028U)

(MCAN0) Timeout Counter Configuration Register

Definition at line 102 of file mcan0.h.

◆ REG_MCAN0_TOCV

#define REG_MCAN0_TOCV   (*(__IO uint32_t*)0x4003002CU)

(MCAN0) Timeout Counter Value Register

Definition at line 103 of file mcan0.h.

◆ REG_MCAN0_TSCC

#define REG_MCAN0_TSCC   (*(__IO uint32_t*)0x40030020U)

(MCAN0) Timestamp Counter Configuration Register

Definition at line 100 of file mcan0.h.

◆ REG_MCAN0_TSCV

#define REG_MCAN0_TSCV   (*(__IO uint32_t*)0x40030024U)

(MCAN0) Timestamp Counter Value Register

Definition at line 101 of file mcan0.h.

◆ REG_MCAN0_TXBAR

#define REG_MCAN0_TXBAR   (*(__IO uint32_t*)0x400300D0U)

(MCAN0) Transmit Buffer Add Request Register

Definition at line 130 of file mcan0.h.

◆ REG_MCAN0_TXBC

#define REG_MCAN0_TXBC   (*(__IO uint32_t*)0x400300C0U)

(MCAN0) Transmit Buffer Configuration Register

Definition at line 126 of file mcan0.h.

◆ REG_MCAN0_TXBCF

#define REG_MCAN0_TXBCF   (*(__I uint32_t*)0x400300DCU)

(MCAN0) Transmit Buffer Cancellation Finished Register

Definition at line 133 of file mcan0.h.

◆ REG_MCAN0_TXBCIE

#define REG_MCAN0_TXBCIE   (*(__IO uint32_t*)0x400300E4U)

(MCAN0) Transmit Buffer Cancellation Finished Interrupt Enable Register

Definition at line 135 of file mcan0.h.

◆ REG_MCAN0_TXBCR

#define REG_MCAN0_TXBCR   (*(__IO uint32_t*)0x400300D4U)

(MCAN0) Transmit Buffer Cancellation Request Register

Definition at line 131 of file mcan0.h.

◆ REG_MCAN0_TXBRP

#define REG_MCAN0_TXBRP   (*(__I uint32_t*)0x400300CCU)

(MCAN0) Transmit Buffer Request Pending Register

Definition at line 129 of file mcan0.h.

◆ REG_MCAN0_TXBTIE

#define REG_MCAN0_TXBTIE   (*(__IO uint32_t*)0x400300E0U)

(MCAN0) Transmit Buffer Transmission Interrupt Enable Register

Definition at line 134 of file mcan0.h.

◆ REG_MCAN0_TXBTO

#define REG_MCAN0_TXBTO   (*(__I uint32_t*)0x400300D8U)

(MCAN0) Transmit Buffer Transmission Occurred Register

Definition at line 132 of file mcan0.h.

◆ REG_MCAN0_TXEFA

#define REG_MCAN0_TXEFA   (*(__IO uint32_t*)0x400300F8U)

(MCAN0) Transmit Event FIFO Acknowledge Register

Definition at line 138 of file mcan0.h.

◆ REG_MCAN0_TXEFC

#define REG_MCAN0_TXEFC   (*(__IO uint32_t*)0x400300F0U)

(MCAN0) Transmit Event FIFO Configuration Register

Definition at line 136 of file mcan0.h.

◆ REG_MCAN0_TXEFS

#define REG_MCAN0_TXEFS   (*(__I uint32_t*)0x400300F4U)

(MCAN0) Transmit Event FIFO Status Register

Definition at line 137 of file mcan0.h.

◆ REG_MCAN0_TXESC

#define REG_MCAN0_TXESC   (*(__IO uint32_t*)0x400300C8U)

(MCAN0) Transmit Buffer Element Size Configuration Register

Definition at line 128 of file mcan0.h.

◆ REG_MCAN0_TXFQS

#define REG_MCAN0_TXFQS   (*(__I uint32_t*)0x400300C4U)

(MCAN0) Transmit FIFO/Queue Status Register

Definition at line 127 of file mcan0.h.

◆ REG_MCAN0_XIDAM

#define REG_MCAN0_XIDAM   (*(__IO uint32_t*)0x40030090U)

(MCAN0) Extended ID AND Mask Register

Definition at line 114 of file mcan0.h.

◆ REG_MCAN0_XIDFC

#define REG_MCAN0_XIDFC   (*(__IO uint32_t*)0x40030088U)

(MCAN0) Extended ID Filter Configuration Register

Definition at line 113 of file mcan0.h.



inertial_sense_ros
Author(s):
autogenerated on Sat Sep 19 2020 03:19:06
