WINC3400 Flash Interface. More...

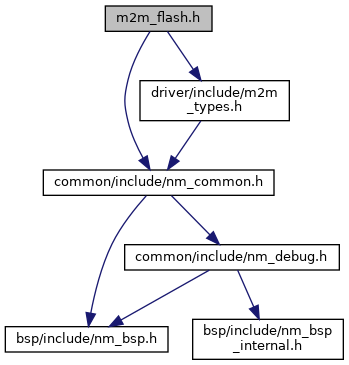

Include dependency graph for m2m_flash.h:
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | tstrDataAccessInitParamsApp |
| This structure contains parameters for initializing a local data access (read or write). More... | |
| struct | tstrDataAccessParamsApp |
| This structure contains data for local data access (read or write). More... | |
| struct | tstrFlashState |
| This structure contains information about an attempted transfer. More... | |
Macros | |
| #define | FLASH_ERR_INTERNAL (-7) |
| #define | FLASH_ERR_LOCAL_ACCESS (-2) |
| #define | FLASH_ERR_PARAM (-1) |
| #define | FLASH_ERR_SIZE (-4) |
| #define | FLASH_ERR_UNINIT (-6) |
| #define | FLASH_ERR_WINC_ACCESS (-3) |
| #define | FLASH_ERR_WINC_CONFLICT (-5) |
| #define | FLASH_SUCCESS 0 |
| #define | FLASH_UPDATEIMAGE_OPTION_SWITCH NBIT2 |
| #define | FLASH_UPDATEIMAGE_OPTION_UPDATE NBIT0 |
| #define | FLASH_UPDATEIMAGE_OPTION_VALIDATE NBIT1 |
Typedefs | |
| typedef sint8(* | tpfDataAccessFn) (tenuFlashDataFnCtl enuCtl, void *pvStr) |
| A function of this type is used for local data access. It can be implemented to handle simple RAM access with pointer/length, or it can be implemented to handle access to external memory. Functions of this type are provided to the module via various function APIs. More... | |
Enumerations | |
| enum | tenuDataFnRW { FLASH_DATA_FN_READ, FLASH_DATA_FN_WRITE } |
| Indicates whether data is to be read or written. More... | |
| enum | tenuFlashDataFnCtl { FLASH_DATA_FN_INITIALIZE, FLASH_DATA_FN_DATA, FLASH_DATA_FN_TERMINATE, FLASH_DATA_FN_COMPLETE } |
| Control parameter for tpfDataAccessFn. More... | |
| enum | tenuImageId { FLASH_IMAGE_INACTIVE, FLASH_IMAGE_ACTIVE } |
| Indicates which image to access in WINC flash. More... | |
Functions | |
| void | m2m_flash_get_state (tstrFlashState *pstrState) |
| Get information about the module current state and about the most recent access attempt. More... | |
| sint8 | m2m_flash_init (void) |
| Initialize the module. More... | |
| sint8 | m2m_flash_readimage (tenuImageId enuImageId, uint16 u16Id, tpfDataAccessFn pfDestFn, uint32 u32DestSize) |
| Read a WINC firmware image. More... | |
| sint8 | m2m_flash_rootcert_add (uint16 u16Id, tpfDataAccessFn pfFn, uint32 u32Size) |
| Add an entry to the WINC TLS root certificate store. More... | |
| sint8 | m2m_flash_rootcert_read (uint16 u16Id, tpfDataAccessFn pfDestFn, uint32 u32DestSize, uint8 *pu8Identifier, uint32 u32IdentifierSz) |
| Read an entry from the WINC TLS root certificate store, referenced by entry identifier. More... | |
| sint8 | m2m_flash_rootcert_readidx (uint16 u16Id, tpfDataAccessFn pfDestFn, uint32 u32DestSize, uint8 u8Index) |
| Read an entry from the WINC TLS root certificate store, referenced by entry index. More... | |
| sint8 | m2m_flash_rootcert_remove (uint16 u16Id, uint8 *pu8Identifier, uint32 u32IdentifierSz) |
| Remove an entry from the WINC TLS root certificate store. More... | |
| sint8 | m2m_flash_updateimage (uint8 u8Options, uint16 u16Id, tpfDataAccessFn pfSourceFn, uint32 u32SourceSize) |
| Write/validate/switch a WINC firmware image. More... | |
Detailed Description
WINC3400 Flash Interface.
Copyright (c) 2017-2018 Microchip Technology Inc. and its subsidiaries.
Definition in file m2m_flash.h.
