inertialSenseBootLoader.h File Reference

#include "serialPort.h"

Include dependency graph for inertialSenseBootLoader.h:

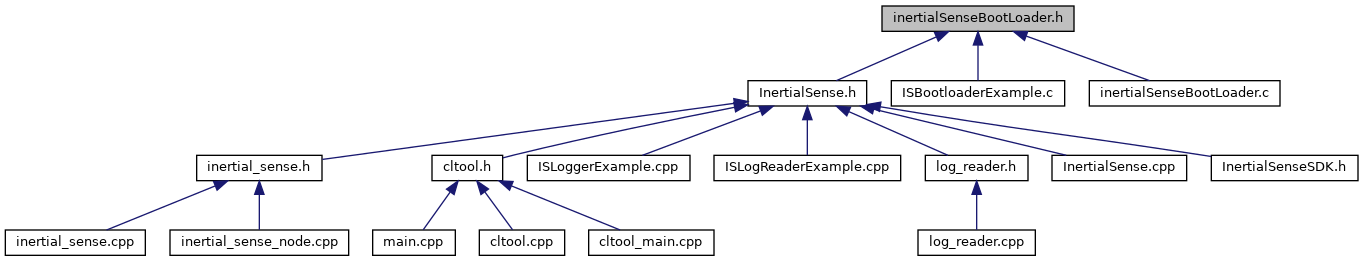

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	bootload_params_t

Macros
#define	BOOTLOADER_ERROR_LENGTH   512
#define	BOOTLOADER_REFRESH_DELAY   500
#define	BOOTLOADER_RESPONSE_DELAY   10
#define	BOOTLOADER_RETRIES   30
#define	ENABLE_BOOTLOADER_BAUD_DETECTION   1
#define	IS_BAUD_RATE_BOOTLOADER   921600
#define	IS_BAUD_RATE_BOOTLOADER_LEGACY   2000000
#define	IS_BAUD_RATE_BOOTLOADER_RS232   230400
#define	IS_BAUD_RATE_BOOTLOADER_SLOW   115200

Typedefs
typedef int(*	pfnBootloadProgress) (const void *obj, float percent)
typedef void(*	pfnBootloadStatus) (const void *obj, const char *infoString)

Functions
int	bootloaderClosestBaudRate (int baudRate)
int	bootloaderCycleBaudRate (int baudRate)
int	bootloadFile (serial_port_t *port, const char *fileName, const char *bootName, const void *obj, pfnBootloadProgress uploadProgress, pfnBootloadProgress verifyProgress)
int	bootloadFileEx (bootload_params_t *params)
int	bootloadGetBootloaderVersionFromFile (const char *bootName, int *verMajor, char *verMinor)
int	bootloadUpdateBootloader (serial_port_t *port, const char *fileName, const void *obj, pfnBootloadProgress uploadProgress, pfnBootloadProgress verifyProgress)
int	bootloadUpdateBootloaderEx (bootload_params_t *p)
int	disableBootloader (serial_port_t *port, char *error, int errorLength)
int	enableBootloader (serial_port_t *port, int baudRate, char *error, int errorLength, const char *bootloadEnableCmd)

Macro Definition Documentation

BOOTLOADER_ERROR_LENGTH

#define BOOTLOADER_ERROR_LENGTH   512

Definition at line 44 of file inertialSenseBootLoader.h.

BOOTLOADER_REFRESH_DELAY

#define BOOTLOADER_REFRESH_DELAY   500

Definition at line 35 of file inertialSenseBootLoader.h.

BOOTLOADER_RESPONSE_DELAY

#define BOOTLOADER_RESPONSE_DELAY   10

Definition at line 36 of file inertialSenseBootLoader.h.

BOOTLOADER_RETRIES

#define BOOTLOADER_RETRIES   30

Definition at line 38 of file inertialSenseBootLoader.h.

ENABLE_BOOTLOADER_BAUD_DETECTION

#define ENABLE_BOOTLOADER_BAUD_DETECTION   1

Definition at line 34 of file inertialSenseBootLoader.h.

IS_BAUD_RATE_BOOTLOADER

#define IS_BAUD_RATE_BOOTLOADER   921600

uINS bootloader baud rate

Definition at line 23 of file inertialSenseBootLoader.h.

IS_BAUD_RATE_BOOTLOADER_LEGACY

#define IS_BAUD_RATE_BOOTLOADER_LEGACY   2000000

uINS bootloader baud rate - legacy

Definition at line 32 of file inertialSenseBootLoader.h.

IS_BAUD_RATE_BOOTLOADER_RS232

#define IS_BAUD_RATE_BOOTLOADER_RS232   230400

uINS rs232 bootloader baud rate

Definition at line 26 of file inertialSenseBootLoader.h.

IS_BAUD_RATE_BOOTLOADER_SLOW

#define IS_BAUD_RATE_BOOTLOADER_SLOW   115200

uINS slow bootloader baud rate

Definition at line 29 of file inertialSenseBootLoader.h.

Typedef Documentation

pfnBootloadProgress

typedef int(* pfnBootloadProgress) (const void *obj, float percent)

Bootloader callback function prototype, return 1 to stay running, return 0 to cancel

Definition at line 48 of file inertialSenseBootLoader.h.

pfnBootloadStatus

typedef void(* pfnBootloadStatus) (const void *obj, const char *infoString)

Bootloader information string function prototype.

Definition at line 51 of file inertialSenseBootLoader.h.

Function Documentation

bootloaderClosestBaudRate()

int bootloaderClosestBaudRate

(

int

baudRate

)

Definition at line 221 of file inertialSenseBootLoader.c.

bootloaderCycleBaudRate()

int bootloaderCycleBaudRate

(

int

baudRate

)

Definition at line 203 of file inertialSenseBootLoader.c.

bootloadFile()

int bootloadFile	(	serial_port_t *	port,
		const char *	fileName,
		const char *	bootName,
		const void *	obj,
		pfnBootloadProgress	uploadProgress,
		pfnBootloadProgress	verifyProgress
	)

Boot load a .hex or .bin file to a device

Parameters

port	the serial port to bootload to, will be opened and closed, must have port set
error	a buffer to store any error messages in - can be NULL
errorLength	the number of bytes available in error
obj	custom user object that will be passed in the callback
uploadProgress	called periodically during firmware upload - can be NULL
verifyProgress	called periodically during firmware verification - can be NULL

Returns

0 if failure, non-zero if success

Definition at line 1489 of file inertialSenseBootLoader.c.

bootloadFileEx()

int bootloadFileEx

(

bootload_params_t *

params

)

Definition at line 1508 of file inertialSenseBootLoader.c.

bootloadGetBootloaderVersionFromFile()

int bootloadGetBootloaderVersionFromFile	(	const char *	bootName,
		int *	verMajor,
		char *	verMinor
	)

Retrieve the bootloader version from .bin file

Parameters

fileName	for the new bootloader .bin file
pointer	to int to store major version
pointer	to char to store minor version

Returns

0 if failure, 1 if success

Definition at line 1590 of file inertialSenseBootLoader.c.

bootloadUpdateBootloader()

int bootloadUpdateBootloader	(	serial_port_t *	port,
		const char *	fileName,
		const void *	obj,
		pfnBootloadProgress	uploadProgress,
		pfnBootloadProgress	verifyProgress
	)

Boot load a new bootloader .bin file to device. Device must be in application or bootloader assist mode, not bootloader mode.

Parameters

port	the serial port, must be initialized and have the port set
fileName	the new bootloader .bin file
error	a buffer to store any error messages in - can be NULL
errorLength	the number of bytes available in error
obj	custom user object that will be passed in the callback
uploadProgress	called periodically during firmware upload - can be NULL
verifyProgress	called periodically during firmware verification - can be NULL 0 if failure, non-zero if success

Definition at line 1627 of file inertialSenseBootLoader.c.

bootloadUpdateBootloaderEx()

int bootloadUpdateBootloaderEx

(

bootload_params_t *

p

)

Definition at line 1783 of file inertialSenseBootLoader.c.

disableBootloader()

int disableBootloader	(	serial_port_t *	port,
		char *	error,
		int	errorLength
	)

Disables the bootloader and goes back to program mode

the port to go back to program mode on a buffer to store any error messages - can be NULL the number of bytes available in error

Returns

0 if failure, non-zero if success

Definition at line 1926 of file inertialSenseBootLoader.c.

enableBootloader()

int enableBootloader	(	serial_port_t *	port,
		int	baudRate,
		char *	error,
		int	errorLength,
		const char *	bootloadEnableCmd
	)

Enable bootloader mode for a device

Parameters

port	the port to enable the bootloader on
baudRate	the baud rate to communicate with, IS_BAUD_RATE_BOOTLOADER or IS_BAUD_RATE_BOOTLOADER_RS232
error	a buffer to store any error messages - can be NULL
errorLength	the number of bytes available in error

Returns

0 if failure, non-zero if success

Definition at line 1840 of file inertialSenseBootLoader.c.
