Watchdog Timer (WDT) driver for SAM. More...
#include "compiler.h"

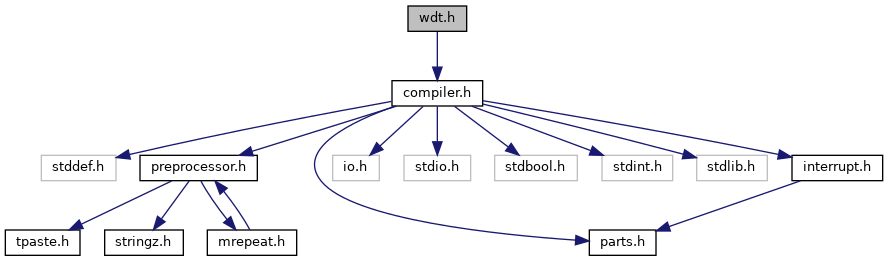

Include dependency graph for drivers/wdt/wdt.h:
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Macros | |
| #define | WDT_INVALID_ARGUMENT 0xFFFF |
Functions | |
| void | wdt_disable (Wdt *p_wdt) |
| Disable the watchdog timer. More... | |
| uint32_t | wdt_get_status (Wdt *p_wdt) |
| Check the watchdog timer status. More... | |
| uint32_t | wdt_get_timeout_value (uint32_t ul_us, uint32_t ul_sclk) |
| Get counter value or permitted range value of watchdog timer from the desired timeout period (in us). More... | |
| uint32_t | wdt_get_us_timeout_period (Wdt *p_wdt, uint32_t ul_sclk) |
| Get the timeout period of the WatchDog Timer in microseconds. More... | |
| void | wdt_init (Wdt *p_wdt, uint32_t ul_mode, uint16_t us_counter, uint16_t us_delta) |
| Initialize watchdog timer with the given mode. More... | |
| void | wdt_restart (Wdt *p_wdt) |
| Restart the watchdog timer. More... | |
Detailed Description
Watchdog Timer (WDT) driver for SAM.
Copyright (c) 2011-2015 Atmel Corporation. All rights reserved.
Definition in file drivers/wdt/wdt.h.
Macro Definition Documentation
◆ WDT_INVALID_ARGUMENT
| #define WDT_INVALID_ARGUMENT 0xFFFF |
Definition at line 60 of file drivers/wdt/wdt.h.
