Commonly used includes, types and macros. More...
#include <stddef.h>#include <parts.h>#include "preprocessor.h"#include <io.h>#include <stdio.h>#include <stdbool.h>#include <stdint.h>#include <stdlib.h>#include "interrupt.h"

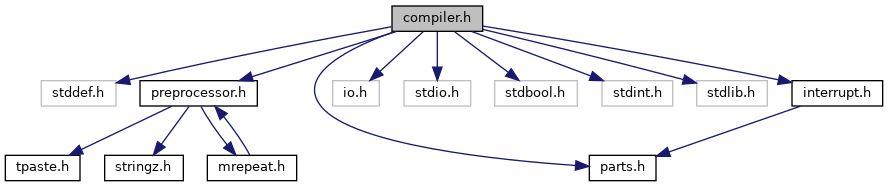

Include dependency graph for compiler.h:
Go to the source code of this file.
Classes | |
| struct | StructCPtr |
| Structure of pointers to constant 64-, 32-, 16- and 8-bit unsigned integers. More... | |
| struct | StructCVPtr |
| Structure of pointers to constant volatile 64-, 32-, 16- and 8-bit unsigned integers. More... | |
| struct | StructPtr |
| Structure of pointers to 64-, 32-, 16- and 8-bit unsigned integers. More... | |
| struct | StructVPtr |
| Structure of pointers to volatile 64-, 32-, 16- and 8-bit unsigned integers. More... | |
| union | Union16 |
| 16-bit union. More... | |
| union | Union32 |
| 32-bit union. More... | |
| union | Union64 |
| 64-bit union. More... | |
| union | UnionCPtr |
| Union of pointers to constant 64-, 32-, 16- and 8-bit unsigned integers. More... | |
| union | UnionCVPtr |
| Union of pointers to constant volatile 64-, 32-, 16- and 8-bit unsigned integers. More... | |
| union | UnionPtr |
| Union of pointers to 64-, 32-, 16- and 8-bit unsigned integers. More... | |
| union | UnionVPtr |
| Union of pointers to volatile 64-, 32-, 16- and 8-bit unsigned integers. More... | |
Macros | |
| #define | ADDR_COPY_DST_SRC_16(dst, src) ((dst) = (src)) |
| #define | ADDR_COPY_DST_SRC_64(dst, src) ((dst) = (src)) |
| #define | Assert(expr) ((void) 0) |
| This macro is used to test fatal errors. More... | |
| #define | barrier() __DMB() |
| Memory barrier. More... | |
| #define | CCPU_ENDIAN_TO_LE16(x) (x) |
| #define | CCPU_ENDIAN_TO_LE32(x) (x) |
| #define | CCPU_ENDIAN_TO_LE64(x) (x) |
| #define | CLE16_TO_CPU_ENDIAN(x) (x) |
| #define | CLE32_TO_CPU_ENDIAN(x) (x) |
| #define | CLE64_TO_CPU_ENDIAN(x) (x) |
| #define | CMD_ID_OCTET (0) |
| #define | COMPILER_PACK_RESET() COMPILER_PRAGMA(pack()) |
| Set default alignment for subsequent struct and union definitions. More... | |
| #define | COMPILER_PACK_SET(alignment) COMPILER_PRAGMA(pack(alignment)) |
| Set maximum alignment for subsequent struct and union definitions to alignment. More... | |
| #define | COMPILER_PRAGMA(arg) _Pragma(#arg) |
| Emit the compiler pragma arg. More... | |
| #define | CPU_ENDIAN_TO_LE16(x) (x) |
| #define | CPU_ENDIAN_TO_LE32(x) (x) |
| #define | CPU_ENDIAN_TO_LE64(x) (x) |
| #define | div_ceil(a, b) (((a) + (b) - 1) / (b)) |
Calculate  using integer arithmetic. More... | |
| #define | FLASH_DECLARE(x) const x |
| #define | FLASH_EXTERN(x) extern const x |
| #define | FUNC_PTR void * |
| #define | LE16_TO_CPU_ENDIAN(x) (x) |
| #define | LE32_TO_CPU_ENDIAN(x) (x) |
| #define | LE64_TO_CPU_ENDIAN(x) (x) |
| #define | Long_call(addr) ((*(void (*)(void))(addr))()) |
| Calls the routine at address addr. More... | |
| #define | MEMCPY_ENDIAN memcpy |
| #define | PGM_READ_BLOCK(dst, src, len) memcpy((dst), (src), (len)) |
| #define | PGM_READ_BYTE(x) *(x) |
| #define | PGM_READ_DWORD(x) *(x) |
| #define | PGM_READ_WORD(x) *(x) |
| #define | UNUSED(v) (void)(v) |
| Marking v as a unused parameter or value. More... | |
| #define | unused(v) do { (void)(v); } while(0) |
| Marking v as a unused parameter or value. More... | |
Usual Constants | |
| #define | DISABLE 0 |
| #define | ENABLE 1 |
| #define | false 0 |
| #define | true 1 |
| #define | PASS 0 |
| #define | FAIL 1 |
| #define | LOW 0 |
| #define | HIGH 1 |
Optimization Control | |
| #define | likely(exp) (exp) |
| The expression exp is likely to be true. More... | |
| #define | unlikely(exp) (exp) |
| The expression exp is unlikely to be true. More... | |
| #define | is_constant(exp) (0) |
| Determine if an expression evaluates to a constant value. More... | |
Bit-Field Handling | |
| #define | Rd_bits(value, mask) ((value) & (mask)) |
| Reads the bits of a value specified by a given bit-mask. More... | |
| #define | Wr_bits(lvalue, mask, bits) |
| Writes the bits of a C lvalue specified by a given bit-mask. More... | |
| #define | Tst_bits(value, mask) (Rd_bits(value, mask) != 0) |
| Tests the bits of a value specified by a given bit-mask. More... | |
| #define | Clr_bits(lvalue, mask) ((lvalue) &= ~(mask)) |
| Clears the bits of a C lvalue specified by a given bit-mask. More... | |
| #define | Set_bits(lvalue, mask) ((lvalue) |= (mask)) |
| Sets the bits of a C lvalue specified by a given bit-mask. More... | |
| #define | Tgl_bits(lvalue, mask) ((lvalue) ^= (mask)) |
| Toggles the bits of a C lvalue specified by a given bit-mask. More... | |
| #define | Rd_bitfield(value, mask) (Rd_bits( value, mask) >> ctz(mask)) |
| Reads the bit-field of a value specified by a given bit-mask. More... | |
| #define | Wr_bitfield(lvalue, mask, bitfield) (Wr_bits(lvalue, mask, (U32)(bitfield) << ctz(mask))) |
| Writes the bit-field of a C lvalue specified by a given bit-mask. More... | |
Zero-Bit Counting | |
Under GCC, __builtin_clz and __builtin_ctz behave like macros when applied to constant expressions (values known at compile time), so they are more optimized than the use of the corresponding assembly instructions and they can be used as constant expressions e.g. to initialize objects having static storage duration, and like the corresponding assembly instructions when applied to non-constant expressions (values unknown at compile time), so they are more optimized than an assembly periphrasis. Hence, clz and ctz ensure a possible and optimized behavior for both constant and non-constant expressions. | |
| #define | clz(u) |
| Counts the leading zero bits of the given value considered as a 32-bit integer. More... | |
| #define | ctz(u) |
| Counts the trailing zero bits of the given value considered as a 32-bit integer. More... | |
Bit Reversing | |
| #define | bit_reverse8(u8) ((U8)(bit_reverse32((U8)(u8)) >> 24)) |
| Reverses the bits of u8. More... | |
| #define | bit_reverse16(u16) ((U16)(bit_reverse32((U16)(u16)) >> 16)) |
| Reverses the bits of u16. More... | |
| #define | bit_reverse32(u32) __RBIT(u32) |
| Reverses the bits of u32. More... | |
| #define | bit_reverse64(u64) |
| Reverses the bits of u64. More... | |
Alignment | |
| #define | Test_align(val, n) (!Tst_bits( val, (n) - 1 ) ) |
| Tests alignment of the number val with the n boundary. More... | |
| #define | Get_align(val, n) ( Rd_bits( val, (n) - 1 ) ) |
| Gets alignment of the number val with respect to the n boundary. More... | |
| #define | Set_align(lval, n, alg) ( Wr_bits(lval, (n) - 1, alg) ) |
| Sets alignment of the lvalue number lval to alg with respect to the n boundary. More... | |
| #define | Align_up( val, n) (((val) + ((n) - 1)) & ~((n) - 1)) |
| Aligns the number val with the upper n boundary. More... | |
| #define | Align_down(val, n) ( (val) & ~((n) - 1)) |
| Aligns the number val with the lower n boundary. More... | |
Mathematics | |
The same considerations as for clz and ctz apply here but GCC does not provide built-in functions to access the assembly instructions abs, min and max and it does not produce them by itself in most cases, so two sets of macros are defined here:
| |
| #define | Abs(a) (((a) < 0 ) ? -(a) : (a)) |
| Takes the absolute value of a. More... | |
| #define | Min(a, b) (((a) < (b)) ? (a) : (b)) |
| Takes the minimal value of a and b. More... | |
| #define | Max(a, b) (((a) > (b)) ? (a) : (b)) |
| Takes the maximal value of a and b. More... | |
| #define | min(a, b) Min(a, b) |
| Takes the minimal value of a and b. More... | |
| #define | max(a, b) Max(a, b) |
| Takes the maximal value of a and b. More... | |
MCU Endianism Handling | |
ARM is MCU little endianism. | |
| #define | MSB(u16) (((U8 *)&(u16))[1]) |
| Most significant byte of u16. More... | |
| #define | LSB(u16) (((U8 *)&(u16))[0]) |
| Least significant byte of u16. More... | |
| #define | MSH(u32) (((U16 *)&(u32))[1]) |
| Most significant half-word of u32. More... | |
| #define | LSH(u32) (((U16 *)&(u32))[0]) |
| Least significant half-word of u32. More... | |
| #define | MSB0W(u32) (((U8 *)&(u32))[3]) |
| Most significant byte of 1st rank of u32. More... | |
| #define | MSB1W(u32) (((U8 *)&(u32))[2]) |
| Most significant byte of 2nd rank of u32. More... | |
| #define | MSB2W(u32) (((U8 *)&(u32))[1]) |
| Most significant byte of 3rd rank of u32. More... | |
| #define | MSB3W(u32) (((U8 *)&(u32))[0]) |
| Most significant byte of 4th rank of u32. More... | |
| #define | LSB3W(u32) MSB0W(u32) |
| Least significant byte of 4th rank of u32. More... | |
| #define | LSB2W(u32) MSB1W(u32) |
| Least significant byte of 3rd rank of u32. More... | |
| #define | LSB1W(u32) MSB2W(u32) |
| Least significant byte of 2nd rank of u32. More... | |
| #define | LSB0W(u32) MSB3W(u32) |
| Least significant byte of 1st rank of u32. More... | |
| #define | MSW(u64) (((U32 *)&(u64))[1]) |
| Most significant word of u64. More... | |
| #define | LSW(u64) (((U32 *)&(u64))[0]) |
| Least significant word of u64. More... | |
| #define | MSH0(u64) (((U16 *)&(u64))[3]) |
| Most significant half-word of 1st rank of u64. More... | |
| #define | MSH1(u64) (((U16 *)&(u64))[2]) |
| Most significant half-word of 2nd rank of u64. More... | |
| #define | MSH2(u64) (((U16 *)&(u64))[1]) |
| Most significant half-word of 3rd rank of u64. More... | |
| #define | MSH3(u64) (((U16 *)&(u64))[0]) |
| Most significant half-word of 4th rank of u64. More... | |
| #define | LSH3(u64) MSH0(u64) |
| Least significant half-word of 4th rank of u64. More... | |
| #define | LSH2(u64) MSH1(u64) |
| Least significant half-word of 3rd rank of u64. More... | |
| #define | LSH1(u64) MSH2(u64) |
| Least significant half-word of 2nd rank of u64. More... | |
| #define | LSH0(u64) MSH3(u64) |
| Least significant half-word of 1st rank of u64. More... | |
| #define | MSB0D(u64) (((U8 *)&(u64))[7]) |
| Most significant byte of 1st rank of u64. More... | |
| #define | MSB1D(u64) (((U8 *)&(u64))[6]) |
| Most significant byte of 2nd rank of u64. More... | |
| #define | MSB2D(u64) (((U8 *)&(u64))[5]) |
| Most significant byte of 3rd rank of u64. More... | |
| #define | MSB3D(u64) (((U8 *)&(u64))[4]) |
| Most significant byte of 4th rank of u64. More... | |
| #define | MSB4D(u64) (((U8 *)&(u64))[3]) |
| Most significant byte of 5th rank of u64. More... | |
| #define | MSB5D(u64) (((U8 *)&(u64))[2]) |
| Most significant byte of 6th rank of u64. More... | |
| #define | MSB6D(u64) (((U8 *)&(u64))[1]) |
| Most significant byte of 7th rank of u64. More... | |
| #define | MSB7D(u64) (((U8 *)&(u64))[0]) |
| Most significant byte of 8th rank of u64. More... | |
| #define | LSB7D(u64) MSB0D(u64) |
| Least significant byte of 8th rank of u64. More... | |
| #define | LSB6D(u64) MSB1D(u64) |
| Least significant byte of 7th rank of u64. More... | |
| #define | LSB5D(u64) MSB2D(u64) |
| Least significant byte of 6th rank of u64. More... | |
| #define | LSB4D(u64) MSB3D(u64) |
| Least significant byte of 5th rank of u64. More... | |
| #define | LSB3D(u64) MSB4D(u64) |
| Least significant byte of 4th rank of u64. More... | |
| #define | LSB2D(u64) MSB5D(u64) |
| Least significant byte of 3rd rank of u64. More... | |
| #define | LSB1D(u64) MSB6D(u64) |
| Least significant byte of 2nd rank of u64. More... | |
| #define | LSB0D(u64) MSB7D(u64) |
| Least significant byte of 1st rank of u64. More... | |
| #define | BE16(x) swap16(x) |
| #define | LE16(x) (x) |
| #define | le16_to_cpu(x) (x) |
| #define | cpu_to_le16(x) (x) |
| #define | LE16_TO_CPU(x) (x) |
| #define | CPU_TO_LE16(x) (x) |
| #define | be16_to_cpu(x) swap16(x) |
| #define | cpu_to_be16(x) swap16(x) |
| #define | BE16_TO_CPU(x) swap16(x) |
| #define | CPU_TO_BE16(x) swap16(x) |
| #define | le32_to_cpu(x) (x) |
| #define | cpu_to_le32(x) (x) |
| #define | LE32_TO_CPU(x) (x) |
| #define | CPU_TO_LE32(x) (x) |
| #define | be32_to_cpu(x) swap32(x) |
| #define | cpu_to_be32(x) swap32(x) |
| #define | BE32_TO_CPU(x) swap32(x) |
| #define | CPU_TO_BE32(x) swap32(x) |
Endianism Conversion | |
The same considerations as for clz and ctz apply here but GCC's __builtin_bswap_32 and __builtin_bswap_64 do not behave like macros when applied to constant expressions, so two sets of macros are defined here:
| |
| #define | Swap16(u16) |
| Toggles the endianism of u16 (by swapping its bytes). More... | |
| #define | Swap32(u32) |
| Toggles the endianism of u32 (by swapping its bytes). More... | |
| #define | Swap64(u64) |
| Toggles the endianism of u64 (by swapping its bytes). More... | |
| #define | swap16(u16) Swap16(u16) |
| Toggles the endianism of u16 (by swapping its bytes). More... | |
| #define | swap32(u32) Swap32(u32) |
| Toggles the endianism of u32 (by swapping its bytes). More... | |
| #define | swap64(u64) |
| Toggles the endianism of u64 (by swapping its bytes). More... | |
Typedefs | |
Usual Types | |
| typedef unsigned char | Bool |
| Boolean. More... | |
| typedef unsigned char | bool |
| Boolean. More... | |
| typedef int8_t | S8 |
| 8-bit signed integer. More... | |
| typedef uint8_t | U8 |
| 8-bit unsigned integer. More... | |
| typedef int16_t | S16 |
| 16-bit signed integer. More... | |
| typedef uint16_t | U16 |
| 16-bit unsigned integer. More... | |
| typedef uint16_t | le16_t |
| typedef uint16_t | be16_t |
| typedef int32_t | S32 |
| 32-bit signed integer. More... | |
| typedef uint32_t | U32 |
| 32-bit unsigned integer. More... | |
| typedef uint32_t | le32_t |
| typedef uint32_t | be32_t |
| typedef int64_t | S64 |
| 64-bit signed integer. More... | |
| typedef uint64_t | U64 |
| 64-bit unsigned integer. More... | |
| typedef float | F32 |
| 32-bit floating-point number. More... | |
| typedef double | F64 |
| 64-bit floating-point number. More... | |
| typedef uint32_t | iram_size_t |
Status Types | |
| typedef bool | Status_bool_t |
| Boolean status. More... | |
| typedef U8 | Status_t |
Functions | |
| static void | convert_16_bit_to_byte_address (uint16_t value, uint8_t *data) |
| static void | convert_16_bit_to_byte_array (uint16_t value, uint8_t *data) |
| Converts a 16-Bit value into a 2 Byte array. More... | |
| static void | convert_64_bit_to_byte_array (uint64_t value, uint8_t *data) |
| Converts a 64-Bit value into a 8 Byte array. More... | |
| static uint16_t | convert_byte_array_to_16_bit (uint8_t *data) |
| static uint32_t | convert_byte_array_to_32_bit (uint8_t *data) |
| static uint64_t | convert_byte_array_to_64_bit (uint8_t *data) |
| Converts a 8 Byte array into a 64-Bit value. More... | |
| static void | convert_spec_16_bit_to_byte_array (uint16_t value, uint8_t *data) |
Target Abstraction | |
| #define | _GLOBEXT_ extern |
| extern storage-class specifier. More... | |
| #define | _CONST_TYPE_ const |
| const type qualifier. More... | |
| #define | _MEM_TYPE_SLOW_ |
| Slow memory type. More... | |
| #define | _MEM_TYPE_MEDFAST_ |
| Fairly fast memory type. More... | |
| #define | _MEM_TYPE_FAST_ |
| Fast memory type. More... | |
| #define | memcmp_ram2ram memcmp |
| Target-specific memcmp of RAM to RAM. More... | |
| #define | memcmp_code2ram memcmp |
| Target-specific memcmp of RAM to NVRAM. More... | |
| #define | memcpy_ram2ram memcpy |
| Target-specific memcpy from RAM to RAM. More... | |
| #define | memcpy_code2ram memcpy |
| Target-specific memcpy from NVRAM to RAM. More... | |
| #define | LSB0(u32) LSB0W(u32) |
| Least significant byte of 1st rank of u32. More... | |
| #define | LSB1(u32) LSB1W(u32) |
| Least significant byte of 2nd rank of u32. More... | |
| #define | LSB2(u32) LSB2W(u32) |
| Least significant byte of 3rd rank of u32. More... | |
| #define | LSB3(u32) LSB3W(u32) |
| Least significant byte of 4th rank of u32. More... | |
| #define | MSB3(u32) MSB3W(u32) |
| Most significant byte of 4th rank of u32. More... | |
| #define | MSB2(u32) MSB2W(u32) |
| Most significant byte of 3rd rank of u32. More... | |
| #define | MSB1(u32) MSB1W(u32) |
| Most significant byte of 2nd rank of u32. More... | |
| #define | MSB0(u32) MSB0W(u32) |
| Most significant byte of 1st rank of u32. More... | |
| typedef U8 | Byte |
| 8-bit unsigned integer. More... | |
Detailed Description
Commonly used includes, types and macros.
Copyright (c) 2010-2018 Microchip Technology Inc. and its subsidiaries.
Definition in file compiler.h.
