sbgCrc.h File Reference

This file provides CRC-32 and CRC-16 methods. More...

#include <sbgCommon.h>

Include dependency graph for sbgCrc.h:

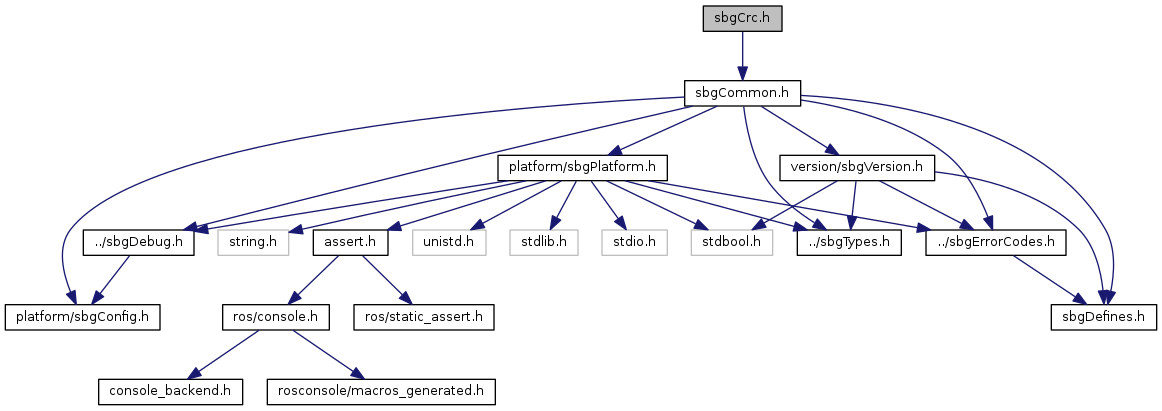

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef uint16	SbgCrc16
typedef uint32	SbgCrc32

Functions
uint16	sbgCrc16Compute (const void *pData, size_t dataSize)
SBG_INLINE uint16	sbgCrc16Get (const SbgCrc16 *pInstance)
void	sbgCrc16Initialize (SbgCrc16 *pInstance)
void	sbgCrc16Update (SbgCrc16 *pInstance, const void *pData, size_t dataSize)
uint32	sbgCrc32Compute (const void *pData, size_t dataSize)
SBG_INLINE uint32	sbgCrc32Get (const SbgCrc32 *pInstance)
void	sbgCrc32Initialize (SbgCrc32 *pInstance)
void	sbgCrc32Update (SbgCrc32 *pInstance, const void *pData, size_t dataSize)

Detailed Description

This file provides CRC-32 and CRC-16 methods.

Author

SBG Systems (Raphael Siryani)

Date

15 January 2013

Copyright Notice

Copyright (C) 2007-2013, SBG Systems SAS. All rights reserved.

This source code is intended for use only by SBG Systems SAS and those that have explicit written permission to use it from SBG Systems SAS.

THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.

Definition in file sbgCrc.h.

Typedef Documentation

typedef uint16 SbgCrc16

Definition at line 41 of file sbgCrc.h.

typedef uint32 SbgCrc32

< Type used to compute a 32 bit Ethernet CRC. Type used to compute a 16 bit CRC.

Definition at line 38 of file sbgCrc.h.

Function Documentation

uint16 sbgCrc16Compute	(	const void *	pData,
		size_t	dataSize
	)

Compute a 32 Bit CRC using an the polynome 0x8408.

Parameters

[in]	pData	Read only pointer on the data buffer to compute CRC on.
[in]	dataSize	Data size in bytes of the buffer.

Returns

The computed CRC.

Definition at line 243 of file sbgCrc.c.

SBG_INLINE uint16 sbgCrc16Get

(

const SbgCrc16 *

pInstance

)

Returns the computed 32 bit CRC value.

Parameters

[in]

pInstance

Read only pointer on a valid Crc16 object.

Returns

The computed CRC.

Definition at line 104 of file sbgCrc.h.

void sbgCrc16Initialize

(

SbgCrc16 *

pInstance

)

Initialize the 16 bit CRC computation system.

Parameters

[in]

pInstance

Pointer on an allocated but non initialized Crc16 object.

Definition at line 196 of file sbgCrc.c.

void sbgCrc16Update	(	SbgCrc16 *	pInstance,
		const void *	pData,
		size_t	dataSize
	)

Compute a 16 bit CRC using an the polynome 0x8408.

Parameters

[in]	pInstance	Read only pointer on a valid Crc16 object.
[in]	pData	Read only pointer on the data buffer to compute CRC on.
[in]	dataSize	Data size in bytes of the buffer.

Definition at line 212 of file sbgCrc.c.

uint32 sbgCrc32Compute	(	const void *	pData,
		size_t	dataSize
	)

Compute a 32 Bit CRC using an Ethernet polynome. Warning: the buffer size should be at least 4 bytes long.

Parameters

[in]	pData	Read only pointer on the data buffer to compute CRC on.
[in]	dataSize	Data size in bytes of the buffer, has to be greater or equals to 4.

Returns

The computed CRC.

Definition at line 168 of file sbgCrc.c.

SBG_INLINE uint32 sbgCrc32Get

(

const SbgCrc32 *

pInstance

)

Returns the computed 32 bit CRC value.

Parameters

[in]

pInstance

Read only pointer on a valid Crc32 object.

Returns

The computed CRC.

Definition at line 67 of file sbgCrc.h.

void sbgCrc32Initialize

(

SbgCrc32 *

pInstance

)

Initialize the 32 bit CRC computation system.

Parameters

[in]

pInstance

Pointer on an allocated but non initialized Crc32 object.

Definition at line 91 of file sbgCrc.c.

void sbgCrc32Update	(	SbgCrc32 *	pInstance,
		const void *	pData,
		size_t	dataSize
	)

Compute a 32 bit CRC using an Ethernet polynome. Warning: the buffer size should be at least 4 bytes long.

Parameters

[in]	pInstance	Read only pointer on a valid Crc32 object.
[in]	pData	Read only pointer on the data buffer to compute CRC on.
[in]	dataSize	Data size in bytes of the buffer, has to be greater or equals to 4.

Definition at line 108 of file sbgCrc.c.
