#include <FileDescriptorActivityInterface.hpp>
Public Member Functions | |
| virtual void | clearAllWatches ()=0 |
| virtual int | getTimeout () const =0 |
| virtual int | getTimeout_us () const =0 |
| virtual bool | hasError () const =0 |
| virtual bool | hasTimeout () const =0 |
| virtual bool | isUpdated (int fd) const =0 |
| virtual bool | isWatched (int fd) const =0 |
| virtual void | setTimeout (int timeout)=0 |
| virtual void | setTimeout_us (int timeout_us)=0 |
| virtual void | unwatch (int fd)=0 |
| virtual void | watch (int fd)=0 |
| virtual | ~FileDescriptorActivityInterface () |
Detailed Description
An activity which is triggered by the availability of data on a set of file descriptors. step() (and hence the base::RunnableInterface's step() method) is called when data is available or when an error is encountered on the file descriptor.
To use it, one must add the file descriptors to watch in the task's configureHook()
FileDescriptorActivity* fd_activity = dynamic_cast<FileDescriptorActivity*>(getActivity().get()); if (fd_activity) { fd_activity->watch(device_fd); // optional, set a timeout in milliseconds fd_activity->setTimeout(1000); // or in microseconds fd_activity->setTimeout_us(1000); }
Then, updateHook() and – when in ERROR state – errorHook() will be called when one of these three events happen:
- new data is available on one of the watched FDs
- an error happens on one of the watched FDs
- the timeout is reached
The different cases can be tested in updateHook() as follows:
FileDescriptorActivity* fd_activity = dynamic_cast<FileDescriptorActivity*>(getActivity().get()); if (fd_activity) { if (fd_activity->hasError()) { } else if (fd_activity->hasTimeout()) { } else { // If there is more than one FD, discriminate. Otherwise, // we don't need to use isUpdated if (fd_activity->isUpdated(device_fd)) { } else if (fd_activity->isUpdated(another_fd)) { } } }
Definition at line 95 of file FileDescriptorActivityInterface.hpp.
Constructor & Destructor Documentation
|
inlinevirtual |
Definition at line 98 of file FileDescriptorActivityInterface.hpp.
Member Function Documentation
|
pure virtual |
Remove all FDs that are currently being watched

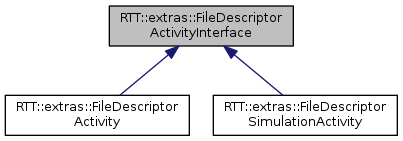

Implemented in RTT::extras::FileDescriptorActivity, and RTT::extras::FileDescriptorSimulationActivity.
|
pure virtual |
Get the timeout, in milliseconds, for waiting on the IO. Set to 0 for blocking behaviour (no timeout).
- Returns
- The timeout (milliseconds)
Implemented in RTT::extras::FileDescriptorActivity, and RTT::extras::FileDescriptorSimulationActivity.
|
pure virtual |
Get the timeout, in microseconds, for waiting on the IO. Set to 0 for blocking behaviour (no timeout).
- Returns
- The timeout (microseconds)
Implemented in RTT::extras::FileDescriptorActivity, and RTT::extras::FileDescriptorSimulationActivity.
|
pure virtual |
True if one of the file descriptors has a problem (for instance it has been closed)
This should only be used from within the base::RunnableInterface this activity is driving, i.e. in TaskContext::updateHook() or TaskContext::errorHook().
Implemented in RTT::extras::FileDescriptorActivity, and RTT::extras::FileDescriptorSimulationActivity.
|
pure virtual |
True if the base::RunnableInterface has been triggered because of a timeout, instead of because of new data is available.
This should only be used from within the base::RunnableInterface this activity is driving, i.e. in TaskContext::updateHook() or TaskContext::errorHook().
Implemented in RTT::extras::FileDescriptorActivity, and RTT::extras::FileDescriptorSimulationActivity.
|
pure virtual |
True if this specific FD has new data.
This should only be used from within the base::RunnableInterface this activity is driving, i.e. in TaskContext::updateHook() or TaskContext::errorHook().
- Parameters
-
fd the file descriptor
Implemented in RTT::extras::FileDescriptorActivity, and RTT::extras::FileDescriptorSimulationActivity.
|
pure virtual |
True if this specific FD is being watched by the activity
- Parameters
-
fd the file descriptor
Implemented in RTT::extras::FileDescriptorActivity, and RTT::extras::FileDescriptorSimulationActivity.
|
pure virtual |
Sets the timeout, in milliseconds, for waiting on the IO. Set to 0 for blocking behaviour (no timeout).
- Precondition
- 0 <= timeout (otherwise an error is logged and timeout is ignored)
- Parameters
-
timeout The timeout (milliseconds)
Implemented in RTT::extras::FileDescriptorActivity, and RTT::extras::FileDescriptorSimulationActivity.
|
pure virtual |
Sets the timeout, in microseconds, for waiting on the IO. Set to 0 for blocking behaviour (no timeout).
- Precondition
- 0 <= timeout (otherwise an error is logged and timeout_us is ignored)
- Parameters
-
timeout The timeout (microseconds)
Implemented in RTT::extras::FileDescriptorActivity, and RTT::extras::FileDescriptorSimulationActivity.
|
pure virtual |
Removes a file descriptor from the set of watched FDs
This method is thread-safe, i.e. it can be called from any thread
- Parameters
-
fd the file descriptor
Implemented in RTT::extras::FileDescriptorActivity, and RTT::extras::FileDescriptorSimulationActivity.
|
pure virtual |
Sets the file descriptor the activity should be listening to.
This method is thread-safe, i.e. it can be called from any thread
- Parameters
-
fd the file descriptor
Implemented in RTT::extras::FileDescriptorActivity, and RTT::extras::FileDescriptorSimulationActivity.
The documentation for this class was generated from the following file:
