usb_defines.h File Reference

Header of the Core Layer. More...

#include "usb_conf.h"

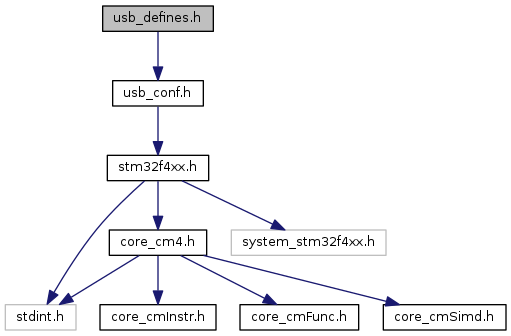

Include dependency graph for usb_defines.h:

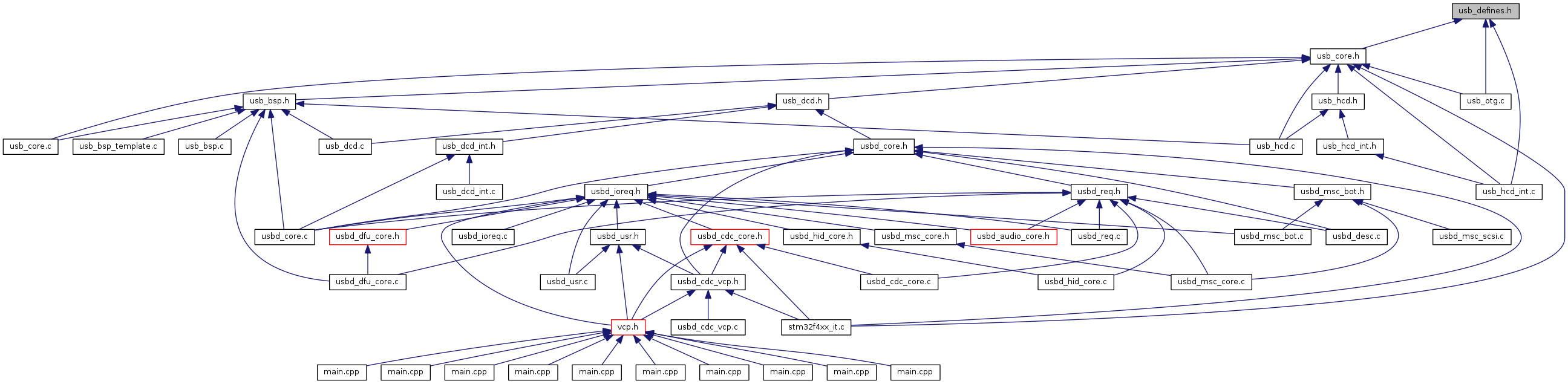

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	A_HOST   1
#define	A_PERIPHERAL   3
#define	A_SUSPEND   2
#define	B_HOST   5
#define	B_PERIPHERAL   4
#define	DCFG_FRAME_INTERVAL_80   0
#define	DCFG_FRAME_INTERVAL_85   1
#define	DCFG_FRAME_INTERVAL_90   2
#define	DCFG_FRAME_INTERVAL_95   3
#define	DEP0CTL_MPS_16   2
#define	DEP0CTL_MPS_32   1
#define	DEP0CTL_MPS_64   0
#define	DEP0CTL_MPS_8   3
#define	DEVICE_MODE   0
#define	DSTS_ENUMSPD_FS_PHY_30MHZ_OR_60MHZ   1
#define	DSTS_ENUMSPD_FS_PHY_48MHZ   3
#define	DSTS_ENUMSPD_HS_PHY_30MHZ_OR_60MHZ   0
#define	DSTS_ENUMSPD_LS_PHY_6MHZ   2
#define	EP_SPEED_FULL   1
#define	EP_SPEED_HIGH   2
#define	EP_SPEED_LOW   0
#define	EP_TYPE_BULK   2
#define	EP_TYPE_CTRL   0
#define	EP_TYPE_INTR   3
#define	EP_TYPE_ISOC   1
#define	EP_TYPE_MSK   3
#define	GAHBCFG_DMAENABLE   1
#define	GAHBCFG_GLBINT_ENABLE   1
#define	GAHBCFG_INT_DMA_BURST_INCR   1
#define	GAHBCFG_INT_DMA_BURST_INCR16   7
#define	GAHBCFG_INT_DMA_BURST_INCR4   3
#define	GAHBCFG_INT_DMA_BURST_INCR8   5
#define	GAHBCFG_INT_DMA_BURST_SINGLE   0
#define	GAHBCFG_TXFEMPTYLVL_EMPTY   1
#define	GAHBCFG_TXFEMPTYLVL_EMPTY   1
#define	GAHBCFG_TXFEMPTYLVL_HALFEMPTY   0
#define	GAHBCFG_TXFEMPTYLVL_HALFEMPTY   0
#define	GRXSTS_PKTSTS_CH_HALTED   7
#define	GRXSTS_PKTSTS_DATA_TOGGLE_ERR   5
#define	GRXSTS_PKTSTS_IN   2
#define	GRXSTS_PKTSTS_IN_XFER_COMP   3
#define	HC_PID_DATA0   0
#define	HC_PID_DATA1   2
#define	HC_PID_DATA2   1
#define	HC_PID_SETUP   3
#define	HCCHAR_BULK   2
#define	HCCHAR_CTRL   0
#define	HCCHAR_INTR   3
#define	HCCHAR_ISOC   1
#define	HCFG_30_60_MHZ   0
#define	HCFG_48_MHZ   1
#define	HCFG_6_MHZ   2
#define	HOST_MODE   1
#define	HPRT0_PRTSPD_FULL_SPEED   1
#define	HPRT0_PRTSPD_HIGH_SPEED   0
#define	HPRT0_PRTSPD_LOW_SPEED   2
#define	MIN(a, b)   (((a) < (b)) ? (a) : (b))
#define	MODE_HNP_SRP_CAPABLE   0
#define	MODE_NO_HNP_SRP_CAPABLE   2
#define	MODE_NO_SRP_CAPABLE_DEVICE   4
#define	MODE_NO_SRP_CAPABLE_HOST   6
#define	MODE_SRP_CAPABLE_DEVICE   3
#define	MODE_SRP_CAPABLE_HOST   5
#define	MODE_SRP_ONLY_CAPABLE   1
#define	OTG_MODE   2
#define	STS_DATA_UPDT   2
#define	STS_GOUT_NAK   1
#define	STS_SETUP_COMP   4
#define	STS_SETUP_UPDT   6
#define	STS_XFER_COMP   3
#define	USB_OTG_EMBEDDED_PHY   2
#define	USB_OTG_MODIFY_REG32(reg, clear_mask, set_mask)   USB_OTG_WRITE_REG32((reg), (((USB_OTG_READ_REG32(reg)) & ~(clear_mask)) | (set_mask)) )
#define	USB_OTG_READ_REG32(reg)   (*(__IO uint32_t *)(reg))
#define	USB_OTG_SPEED_FULL   1
#define	USB_OTG_SPEED_HIGH   0
#define	USB_OTG_SPEED_PARAM_FULL   3
#define	USB_OTG_SPEED_PARAM_HIGH   0
#define	USB_OTG_SPEED_PARAM_HIGH_IN_FULL   1
#define	USB_OTG_ULPI_PHY   1
#define	USB_OTG_WRITE_REG32(reg, value)   (*(__IO uint32_t *)(reg) = (value))

Enumerations
enum	USB_OTG_CORE_ID_TypeDef { USB_OTG_HS_CORE_ID = 0, USB_OTG_FS_CORE_ID = 1 }
enum	USB_OTG_SPEED { USB_SPEED_UNKNOWN = 0, USB_SPEED_LOW, USB_SPEED_FULL, USB_SPEED_HIGH }

Detailed Description

Header of the Core Layer.

Author

MCD Application Team

Version

V2.2.0

Date

09-November-2015

Attention

© COPYRIGHT 2015 STMicroelectronics

Licensed under MCD-ST Liberty SW License Agreement V2, (the "License"); You may not use this file except in compliance with the License. You may obtain a copy of the License at:

   http://www.st.com/software_license_agreement_liberty_v2

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Definition in file usb_defines.h.
