Classes | Macros | Typedefs | Enumerations | Functions
usb_core.h File Reference

Header of the Core Layer. More...

#include "usb_conf.h"
#include "usb_regs.h"
#include "usb_defines.h"
Include dependency graph for usb_core.h:

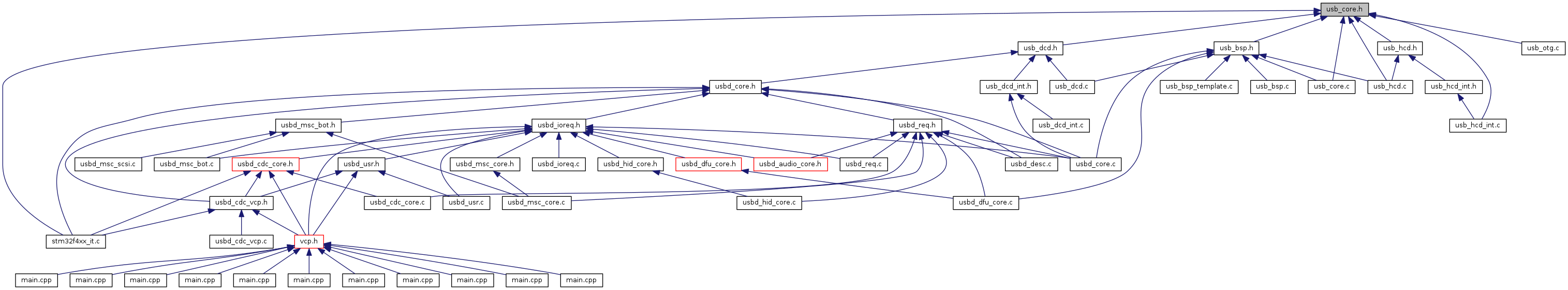

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  _DCD

struct  _Device_cb

struct  _Device_TypeDef

struct  _HCD

struct  _OTG

struct  _USBD_USR_PROP

struct  USB_OTG_core_cfg

struct  USB_OTG_ep

struct  USB_OTG_handle

struct  USB_OTG_hc

struct  usb_setup_req


Macros

#define MAX_DATA_LENGTH   0x200

#define USB_OTG_EP0_DATA_IN   2

#define USB_OTG_EP0_DATA_OUT   3

#define USB_OTG_EP0_IDLE   0

#define USB_OTG_EP0_SETUP   1

#define USB_OTG_EP0_STALL   6

#define USB_OTG_EP0_STATUS_IN   4

#define USB_OTG_EP0_STATUS_OUT   5

#define USB_OTG_EP_RX_DIS   0x0000

#define USB_OTG_EP_RX_NAK   0x2000

#define USB_OTG_EP_RX_STALL   0x1000

#define USB_OTG_EP_RX_VALID   0x3000

#define USB_OTG_EP_TX_DIS   0x0000

#define USB_OTG_EP_TX_NAK   0x0020

#define USB_OTG_EP_TX_STALL   0x0010

#define USB_OTG_EP_TX_VALID   0x0030


Typedefs

typedef struct _DCD DCD_DEV

typedef struct _DCDDCD_PDEV

typedef struct _HCD HCD_DEV

typedef struct _OTG OTG_DEV

typedef struct USB_OTG_core_cfgPUSB_OTG_CORE_CFGS

typedef struct USB_OTG_handlePUSB_OTG_CORE_HANDLE

typedef struct USB_OTG_epPUSB_OTG_EP

typedef struct USB_OTG_hcPUSB_OTG_HC

typedef struct _Device_TypeDefpUSBD_DEVICE

typedef struct USB_OTG_core_cfg USB_OTG_CORE_CFGS

typedef struct USB_OTG_handle USB_OTG_CORE_HANDLE

typedef struct USB_OTG_ep USB_OTG_EP

typedef struct USB_OTG_hc USB_OTG_HC

typedef struct _HCDUSB_OTG_USBH_PDEV

typedef struct _OTGUSB_OTG_USBO_PDEV

typedef struct usb_setup_req USB_SETUP_REQ

typedef struct _Device_cb USBD_Class_cb_TypeDef

typedef struct _Device_TypeDef USBD_DEVICE

typedef struct _USBD_USR_PROP USBD_Usr_cb_TypeDef


Enumerations

enum  CTRL_STATUS {
  CTRL_START = 0, CTRL_XFRC, CTRL_HALTED, CTRL_NAK,
  CTRL_STALL, CTRL_XACTERR, CTRL_BBLERR, CTRL_DATATGLERR,
  CTRL_FAIL
}

enum  HC_STATUS {
  HC_IDLE = 0, HC_XFRC, HC_HALTED, HC_NAK,
  HC_NYET, HC_STALL, HC_XACTERR, HC_BBLERR,
  HC_DATATGLERR
}

enum  URB_STATE {
  URB_IDLE = 0, URB_DONE, URB_NOTREADY, URB_ERROR,
  URB_STALL
}

enum  USB_OTG_STS { USB_OTG_OK = 0, USB_OTG_FAIL }


Functions

USB_OTG_STS USB_OTG_CoreInit (USB_OTG_CORE_HANDLE *pdev)
 USB_OTG_CoreInit Initializes the USB_OTG controller registers and prepares the core device mode or host mode operation. More...

USB_OTG_STS USB_OTG_DisableGlobalInt (USB_OTG_CORE_HANDLE *pdev)
 USB_OTG_DisableGlobalInt Enables the controller's Global Int in the AHB Config reg. More...

USB_OTG_STS USB_OTG_EnableGlobalInt (USB_OTG_CORE_HANDLE *pdev)
 USB_OTG_EnableGlobalInt Enables the controller's Global Int in the AHB Config reg. More...

USB_OTG_STS USB_OTG_FlushRxFifo (USB_OTG_CORE_HANDLE *pdev)
 USB_OTG_FlushRxFifo : Flush a Rx FIFO. More...

USB_OTG_STS USB_OTG_FlushTxFifo (USB_OTG_CORE_HANDLE *pdev, uint32_t num)
 USB_OTG_FlushTxFifo : Flush a Tx FIFO. More...

uint32_t USB_OTG_GetMode (USB_OTG_CORE_HANDLE *pdev)
 USB_OTG_GetMode : Get current mode. More...

uint8_t USB_OTG_IsDeviceMode (USB_OTG_CORE_HANDLE *pdev)
 USB_OTG_IsDeviceMode : Check if it is device mode. More...

uint8_t USB_OTG_IsHostMode (USB_OTG_CORE_HANDLE *pdev)
 USB_OTG_IsHostMode : Check if it is host mode. More...

USB_OTG_STS USB_OTG_PhyInit (USB_OTG_CORE_HANDLE *pdev)

uint32_t USB_OTG_ReadCoreItr (USB_OTG_CORE_HANDLE *pdev)
 USB_OTG_ReadCoreItr : returns the Core Interrupt register. More...

uint32_t USB_OTG_ReadOtgItr (USB_OTG_CORE_HANDLE *pdev)
 USB_OTG_ReadOtgItr : returns the USB_OTG Interrupt register. More...

void * USB_OTG_ReadPacket (USB_OTG_CORE_HANDLE *pdev, uint8_t *dest, uint16_t len)
 USB_OTG_ReadPacket : Reads a packet from the Rx FIFO. More...

USB_OTG_STS USB_OTG_SelectCore (USB_OTG_CORE_HANDLE *pdev, USB_OTG_CORE_ID_TypeDef coreID)
 USB_OTG_SelectCore Initialize core registers address. More...

USB_OTG_STS USB_OTG_SetCurrentMode (USB_OTG_CORE_HANDLE *pdev, uint8_t mode)
 USB_OTG_SetCurrentMode : Set ID line. More...

USB_OTG_STS USB_OTG_WritePacket (USB_OTG_CORE_HANDLE *pdev, uint8_t *src, uint8_t ch_ep_num, uint16_t len)
 USB_OTG_WritePacket : Writes a packet into the Tx FIFO associated with the EP. More...


Detailed Description

Header of the Core Layer.

Author
MCD Application Team
Version
V2.2.0
Date
09-November-2015
Attention

© COPYRIGHT 2015 STMicroelectronics

Licensed under MCD-ST Liberty SW License Agreement V2, (the "License"); You may not use this file except in compliance with the License. You may obtain a copy of the License at:

   http://www.st.com/software_license_agreement_liberty_v2

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Definition in file usb_core.h.
