Classes | Macros | Functions
stm32f10x_dma.h File Reference

This file contains all the functions prototypes for the DMA firmware library. More...

#include "stm32f10x.h"

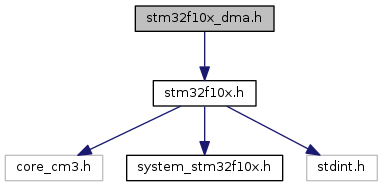

Include dependency graph for stm32f10x_dma.h:

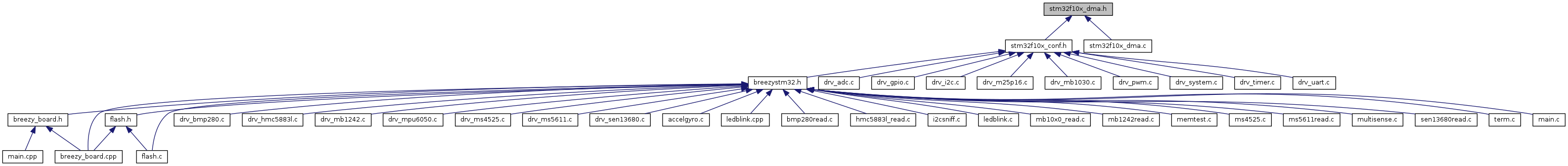

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  DMA_InitTypeDef
 DMA Init structure definition. More...


Macros

#define DMA1_FLAG_GL1   ((uint32_t)0x00000001)

#define DMA1_FLAG_GL2   ((uint32_t)0x00000010)

#define DMA1_FLAG_GL3   ((uint32_t)0x00000100)

#define DMA1_FLAG_GL4   ((uint32_t)0x00001000)

#define DMA1_FLAG_GL5   ((uint32_t)0x00010000)

#define DMA1_FLAG_GL6   ((uint32_t)0x00100000)

#define DMA1_FLAG_GL7   ((uint32_t)0x01000000)

#define DMA1_FLAG_HT1   ((uint32_t)0x00000004)

#define DMA1_FLAG_HT2   ((uint32_t)0x00000040)

#define DMA1_FLAG_HT3   ((uint32_t)0x00000400)

#define DMA1_FLAG_HT4   ((uint32_t)0x00004000)

#define DMA1_FLAG_HT5   ((uint32_t)0x00040000)

#define DMA1_FLAG_HT6   ((uint32_t)0x00400000)

#define DMA1_FLAG_HT7   ((uint32_t)0x04000000)

#define DMA1_FLAG_TC1   ((uint32_t)0x00000002)

#define DMA1_FLAG_TC2   ((uint32_t)0x00000020)

#define DMA1_FLAG_TC3   ((uint32_t)0x00000200)

#define DMA1_FLAG_TC4   ((uint32_t)0x00002000)

#define DMA1_FLAG_TC5   ((uint32_t)0x00020000)

#define DMA1_FLAG_TC6   ((uint32_t)0x00200000)

#define DMA1_FLAG_TC7   ((uint32_t)0x02000000)

#define DMA1_FLAG_TE1   ((uint32_t)0x00000008)

#define DMA1_FLAG_TE2   ((uint32_t)0x00000080)

#define DMA1_FLAG_TE3   ((uint32_t)0x00000800)

#define DMA1_FLAG_TE4   ((uint32_t)0x00008000)

#define DMA1_FLAG_TE5   ((uint32_t)0x00080000)

#define DMA1_FLAG_TE6   ((uint32_t)0x00800000)

#define DMA1_FLAG_TE7   ((uint32_t)0x08000000)

#define DMA1_IT_GL1   ((uint32_t)0x00000001)

#define DMA1_IT_GL2   ((uint32_t)0x00000010)

#define DMA1_IT_GL3   ((uint32_t)0x00000100)

#define DMA1_IT_GL4   ((uint32_t)0x00001000)

#define DMA1_IT_GL5   ((uint32_t)0x00010000)

#define DMA1_IT_GL6   ((uint32_t)0x00100000)

#define DMA1_IT_GL7   ((uint32_t)0x01000000)

#define DMA1_IT_HT1   ((uint32_t)0x00000004)

#define DMA1_IT_HT2   ((uint32_t)0x00000040)

#define DMA1_IT_HT3   ((uint32_t)0x00000400)

#define DMA1_IT_HT4   ((uint32_t)0x00004000)

#define DMA1_IT_HT5   ((uint32_t)0x00040000)

#define DMA1_IT_HT6   ((uint32_t)0x00400000)

#define DMA1_IT_HT7   ((uint32_t)0x04000000)

#define DMA1_IT_TC1   ((uint32_t)0x00000002)

#define DMA1_IT_TC2   ((uint32_t)0x00000020)

#define DMA1_IT_TC3   ((uint32_t)0x00000200)

#define DMA1_IT_TC4   ((uint32_t)0x00002000)

#define DMA1_IT_TC5   ((uint32_t)0x00020000)

#define DMA1_IT_TC6   ((uint32_t)0x00200000)

#define DMA1_IT_TC7   ((uint32_t)0x02000000)

#define DMA1_IT_TE1   ((uint32_t)0x00000008)

#define DMA1_IT_TE2   ((uint32_t)0x00000080)

#define DMA1_IT_TE3   ((uint32_t)0x00000800)

#define DMA1_IT_TE4   ((uint32_t)0x00008000)

#define DMA1_IT_TE5   ((uint32_t)0x00080000)

#define DMA1_IT_TE6   ((uint32_t)0x00800000)

#define DMA1_IT_TE7   ((uint32_t)0x08000000)

#define DMA2_FLAG_GL1   ((uint32_t)0x10000001)

#define DMA2_FLAG_GL2   ((uint32_t)0x10000010)

#define DMA2_FLAG_GL3   ((uint32_t)0x10000100)

#define DMA2_FLAG_GL4   ((uint32_t)0x10001000)

#define DMA2_FLAG_GL5   ((uint32_t)0x10010000)

#define DMA2_FLAG_HT1   ((uint32_t)0x10000004)

#define DMA2_FLAG_HT2   ((uint32_t)0x10000040)

#define DMA2_FLAG_HT3   ((uint32_t)0x10000400)

#define DMA2_FLAG_HT4   ((uint32_t)0x10004000)

#define DMA2_FLAG_HT5   ((uint32_t)0x10040000)

#define DMA2_FLAG_TC1   ((uint32_t)0x10000002)

#define DMA2_FLAG_TC2   ((uint32_t)0x10000020)

#define DMA2_FLAG_TC3   ((uint32_t)0x10000200)

#define DMA2_FLAG_TC4   ((uint32_t)0x10002000)

#define DMA2_FLAG_TC5   ((uint32_t)0x10020000)

#define DMA2_FLAG_TE1   ((uint32_t)0x10000008)

#define DMA2_FLAG_TE2   ((uint32_t)0x10000080)

#define DMA2_FLAG_TE3   ((uint32_t)0x10000800)

#define DMA2_FLAG_TE4   ((uint32_t)0x10008000)

#define DMA2_FLAG_TE5   ((uint32_t)0x10080000)

#define DMA2_IT_GL1   ((uint32_t)0x10000001)

#define DMA2_IT_GL2   ((uint32_t)0x10000010)

#define DMA2_IT_GL3   ((uint32_t)0x10000100)

#define DMA2_IT_GL4   ((uint32_t)0x10001000)

#define DMA2_IT_GL5   ((uint32_t)0x10010000)

#define DMA2_IT_HT1   ((uint32_t)0x10000004)

#define DMA2_IT_HT2   ((uint32_t)0x10000040)

#define DMA2_IT_HT3   ((uint32_t)0x10000400)

#define DMA2_IT_HT4   ((uint32_t)0x10004000)

#define DMA2_IT_HT5   ((uint32_t)0x10040000)

#define DMA2_IT_TC1   ((uint32_t)0x10000002)

#define DMA2_IT_TC2   ((uint32_t)0x10000020)

#define DMA2_IT_TC3   ((uint32_t)0x10000200)

#define DMA2_IT_TC4   ((uint32_t)0x10002000)

#define DMA2_IT_TC5   ((uint32_t)0x10020000)

#define DMA2_IT_TE1   ((uint32_t)0x10000008)

#define DMA2_IT_TE2   ((uint32_t)0x10000080)

#define DMA2_IT_TE3   ((uint32_t)0x10000800)

#define DMA2_IT_TE4   ((uint32_t)0x10008000)

#define DMA2_IT_TE5   ((uint32_t)0x10080000)

#define DMA_DIR_PeripheralDST   ((uint32_t)0x00000010)

#define DMA_DIR_PeripheralSRC   ((uint32_t)0x00000000)

#define DMA_IT_HT   ((uint32_t)0x00000004)

#define DMA_IT_TC   ((uint32_t)0x00000002)

#define DMA_IT_TE   ((uint32_t)0x00000008)

#define DMA_M2M_Disable   ((uint32_t)0x00000000)

#define DMA_M2M_Enable   ((uint32_t)0x00004000)

#define DMA_MemoryDataSize_Byte   ((uint32_t)0x00000000)

#define DMA_MemoryDataSize_HalfWord   ((uint32_t)0x00000400)

#define DMA_MemoryDataSize_Word   ((uint32_t)0x00000800)

#define DMA_MemoryInc_Disable   ((uint32_t)0x00000000)

#define DMA_MemoryInc_Enable   ((uint32_t)0x00000080)

#define DMA_Mode_Circular   ((uint32_t)0x00000020)

#define DMA_Mode_Normal   ((uint32_t)0x00000000)

#define DMA_PeripheralDataSize_Byte   ((uint32_t)0x00000000)

#define DMA_PeripheralDataSize_HalfWord   ((uint32_t)0x00000100)

#define DMA_PeripheralDataSize_Word   ((uint32_t)0x00000200)

#define DMA_PeripheralInc_Disable   ((uint32_t)0x00000000)

#define DMA_PeripheralInc_Enable   ((uint32_t)0x00000040)

#define DMA_Priority_High   ((uint32_t)0x00002000)

#define DMA_Priority_Low   ((uint32_t)0x00000000)

#define DMA_Priority_Medium   ((uint32_t)0x00001000)

#define DMA_Priority_VeryHigh   ((uint32_t)0x00003000)

#define IS_DMA_ALL_PERIPH(PERIPH)

#define IS_DMA_BUFFER_SIZE(SIZE)   (((SIZE) >= 0x1) && ((SIZE) < 0x10000))

#define IS_DMA_CLEAR_FLAG(FLAG)   (((((FLAG) & 0xF0000000) == 0x00) || (((FLAG) & 0xEFF00000) == 0x00)) && ((FLAG) != 0x00))

#define IS_DMA_CLEAR_IT(IT)   (((((IT) & 0xF0000000) == 0x00) || (((IT) & 0xEFF00000) == 0x00)) && ((IT) != 0x00))

#define IS_DMA_CONFIG_IT(IT)   ((((IT) & 0xFFFFFFF1) == 0x00) && ((IT) != 0x00))

#define IS_DMA_DIR(DIR)

#define IS_DMA_GET_FLAG(FLAG)

#define IS_DMA_GET_IT(IT)

#define IS_DMA_M2M_STATE(STATE)   (((STATE) == DMA_M2M_Enable) || ((STATE) == DMA_M2M_Disable))

#define IS_DMA_MEMORY_DATA_SIZE(SIZE)

#define IS_DMA_MEMORY_INC_STATE(STATE)

#define IS_DMA_MODE(MODE)   (((MODE) == DMA_Mode_Circular) || ((MODE) == DMA_Mode_Normal))

#define IS_DMA_PERIPHERAL_DATA_SIZE(SIZE)

#define IS_DMA_PERIPHERAL_INC_STATE(STATE)

#define IS_DMA_PRIORITY(PRIORITY)


Functions

void DMA_ClearFlag (uint32_t DMAy_FLAG)
 Clears the DMAy Channelx's pending flags. More...

void DMA_ClearITPendingBit (uint32_t DMAy_IT)
 Clears the DMAy Channelx's interrupt pending bits. More...

void DMA_Cmd (DMA_Channel_TypeDef *DMAy_Channelx, FunctionalState NewState)
 Enables or disables the specified DMAy Channelx. More...

void DMA_DeInit (DMA_Channel_TypeDef *DMAy_Channelx)
 Deinitializes the DMAy Channelx registers to their default reset values. More...

uint16_t DMA_GetCurrDataCounter (DMA_Channel_TypeDef *DMAy_Channelx)
 Returns the number of remaining data units in the current DMAy Channelx transfer. More...

FlagStatus DMA_GetFlagStatus (uint32_t DMAy_FLAG)
 Checks whether the specified DMAy Channelx flag is set or not. More...

ITStatus DMA_GetITStatus (uint32_t DMAy_IT)
 Checks whether the specified DMAy Channelx interrupt has occurred or not. More...

void DMA_Init (DMA_Channel_TypeDef *DMAy_Channelx, DMA_InitTypeDef *DMA_InitStruct)
 Initializes the DMAy Channelx according to the specified parameters in the DMA_InitStruct. More...

void DMA_ITConfig (DMA_Channel_TypeDef *DMAy_Channelx, uint32_t DMA_IT, FunctionalState NewState)
 Enables or disables the specified DMAy Channelx interrupts. More...

void DMA_SetCurrDataCounter (DMA_Channel_TypeDef *DMAy_Channelx, uint16_t DataNumber)
 Sets the number of data units in the current DMAy Channelx transfer. More...

void DMA_StructInit (DMA_InitTypeDef *DMA_InitStruct)
 Fills each DMA_InitStruct member with its default value. More...


Detailed Description

This file contains all the functions prototypes for the DMA firmware library.

Author
MCD Application Team
Version
V3.5.0
Date
11-March-2011
Attention

THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.

© COPYRIGHT 2011 STMicroelectronics

Definition in file stm32f10x_dma.h.
