Classes | Macros | Functions
stm32f10x_adc.h File Reference

This file contains all the functions prototypes for the ADC firmware library. More...

#include "stm32f10x.h"

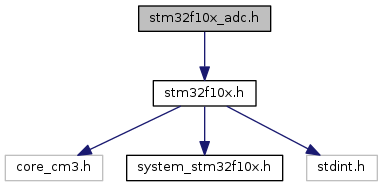

Include dependency graph for stm32f10x_adc.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  ADC_InitTypeDef
 ADC Init structure definition. More...


Macros

#define ADC_AnalogWatchdog_AllInjecEnable   ((uint32_t)0x00400000)

#define ADC_AnalogWatchdog_AllRegAllInjecEnable   ((uint32_t)0x00C00000)

#define ADC_AnalogWatchdog_AllRegEnable   ((uint32_t)0x00800000)

#define ADC_AnalogWatchdog_None   ((uint32_t)0x00000000)

#define ADC_AnalogWatchdog_SingleInjecEnable   ((uint32_t)0x00400200)

#define ADC_AnalogWatchdog_SingleRegEnable   ((uint32_t)0x00800200)

#define ADC_AnalogWatchdog_SingleRegOrInjecEnable   ((uint32_t)0x00C00200)

#define ADC_Channel_0   ((uint8_t)0x00)

#define ADC_Channel_1   ((uint8_t)0x01)

#define ADC_Channel_10   ((uint8_t)0x0A)

#define ADC_Channel_11   ((uint8_t)0x0B)

#define ADC_Channel_12   ((uint8_t)0x0C)

#define ADC_Channel_13   ((uint8_t)0x0D)

#define ADC_Channel_14   ((uint8_t)0x0E)

#define ADC_Channel_15   ((uint8_t)0x0F)

#define ADC_Channel_16   ((uint8_t)0x10)

#define ADC_Channel_17   ((uint8_t)0x11)

#define ADC_Channel_2   ((uint8_t)0x02)

#define ADC_Channel_3   ((uint8_t)0x03)

#define ADC_Channel_4   ((uint8_t)0x04)

#define ADC_Channel_5   ((uint8_t)0x05)

#define ADC_Channel_6   ((uint8_t)0x06)

#define ADC_Channel_7   ((uint8_t)0x07)

#define ADC_Channel_8   ((uint8_t)0x08)

#define ADC_Channel_9   ((uint8_t)0x09)

#define ADC_Channel_TempSensor   ((uint8_t)ADC_Channel_16)

#define ADC_Channel_Vrefint   ((uint8_t)ADC_Channel_17)

#define ADC_DataAlign_Left   ((uint32_t)0x00000800)

#define ADC_DataAlign_Right   ((uint32_t)0x00000000)

#define ADC_ExternalTrigConv_Ext_IT11_TIM8_TRGO   ((uint32_t)0x000C0000)

#define ADC_ExternalTrigConv_None   ((uint32_t)0x000E0000)

#define ADC_ExternalTrigConv_T1_CC1   ((uint32_t)0x00000000)

#define ADC_ExternalTrigConv_T1_CC2   ((uint32_t)0x00020000)

#define ADC_ExternalTrigConv_T1_CC3   ((uint32_t)0x00040000)

#define ADC_ExternalTrigConv_T2_CC2   ((uint32_t)0x00060000)

#define ADC_ExternalTrigConv_T2_CC3   ((uint32_t)0x00020000)

#define ADC_ExternalTrigConv_T3_CC1   ((uint32_t)0x00000000)

#define ADC_ExternalTrigConv_T3_TRGO   ((uint32_t)0x00080000)

#define ADC_ExternalTrigConv_T4_CC4   ((uint32_t)0x000A0000)

#define ADC_ExternalTrigConv_T5_CC1   ((uint32_t)0x000A0000)

#define ADC_ExternalTrigConv_T5_CC3   ((uint32_t)0x000C0000)

#define ADC_ExternalTrigConv_T8_CC1   ((uint32_t)0x00060000)

#define ADC_ExternalTrigConv_T8_TRGO   ((uint32_t)0x00080000)

#define ADC_ExternalTrigInjecConv_Ext_IT15_TIM8_CC4   ((uint32_t)0x00006000)

#define ADC_ExternalTrigInjecConv_None   ((uint32_t)0x00007000)

#define ADC_ExternalTrigInjecConv_T1_CC4   ((uint32_t)0x00001000)

#define ADC_ExternalTrigInjecConv_T1_TRGO   ((uint32_t)0x00000000)

#define ADC_ExternalTrigInjecConv_T2_CC1   ((uint32_t)0x00003000)

#define ADC_ExternalTrigInjecConv_T2_TRGO   ((uint32_t)0x00002000)

#define ADC_ExternalTrigInjecConv_T3_CC4   ((uint32_t)0x00004000)

#define ADC_ExternalTrigInjecConv_T4_CC3   ((uint32_t)0x00002000)

#define ADC_ExternalTrigInjecConv_T4_TRGO   ((uint32_t)0x00005000)

#define ADC_ExternalTrigInjecConv_T5_CC4   ((uint32_t)0x00006000)

#define ADC_ExternalTrigInjecConv_T5_TRGO   ((uint32_t)0x00005000)

#define ADC_ExternalTrigInjecConv_T8_CC2   ((uint32_t)0x00003000)

#define ADC_ExternalTrigInjecConv_T8_CC4   ((uint32_t)0x00004000)

#define ADC_FLAG_AWD   ((uint8_t)0x01)

#define ADC_FLAG_EOC   ((uint8_t)0x02)

#define ADC_FLAG_JEOC   ((uint8_t)0x04)

#define ADC_FLAG_JSTRT   ((uint8_t)0x08)

#define ADC_FLAG_STRT   ((uint8_t)0x10)

#define ADC_InjectedChannel_1   ((uint8_t)0x14)

#define ADC_InjectedChannel_2   ((uint8_t)0x18)

#define ADC_InjectedChannel_3   ((uint8_t)0x1C)

#define ADC_InjectedChannel_4   ((uint8_t)0x20)

#define ADC_IT_AWD   ((uint16_t)0x0140)

#define ADC_IT_EOC   ((uint16_t)0x0220)

#define ADC_IT_JEOC   ((uint16_t)0x0480)

#define ADC_Mode_AlterTrig   ((uint32_t)0x00090000)

#define ADC_Mode_FastInterl   ((uint32_t)0x00070000)

#define ADC_Mode_Independent   ((uint32_t)0x00000000)

#define ADC_Mode_InjecSimult   ((uint32_t)0x00050000)

#define ADC_Mode_InjecSimult_FastInterl   ((uint32_t)0x00030000)

#define ADC_Mode_InjecSimult_SlowInterl   ((uint32_t)0x00040000)

#define ADC_Mode_RegInjecSimult   ((uint32_t)0x00010000)

#define ADC_Mode_RegSimult   ((uint32_t)0x00060000)

#define ADC_Mode_RegSimult_AlterTrig   ((uint32_t)0x00020000)

#define ADC_Mode_SlowInterl   ((uint32_t)0x00080000)

#define ADC_SampleTime_13Cycles5   ((uint8_t)0x02)

#define ADC_SampleTime_1Cycles5   ((uint8_t)0x00)

#define ADC_SampleTime_239Cycles5   ((uint8_t)0x07)

#define ADC_SampleTime_28Cycles5   ((uint8_t)0x03)

#define ADC_SampleTime_41Cycles5   ((uint8_t)0x04)

#define ADC_SampleTime_55Cycles5   ((uint8_t)0x05)

#define ADC_SampleTime_71Cycles5   ((uint8_t)0x06)

#define ADC_SampleTime_7Cycles5   ((uint8_t)0x01)

#define IS_ADC_ALL_PERIPH(PERIPH)

#define IS_ADC_ANALOG_WATCHDOG(WATCHDOG)

#define IS_ADC_CHANNEL(CHANNEL)

#define IS_ADC_CLEAR_FLAG(FLAG)   ((((FLAG) & (uint8_t)0xE0) == 0x00) && ((FLAG) != 0x00))

#define IS_ADC_DATA_ALIGN(ALIGN)

#define IS_ADC_DMA_PERIPH(PERIPH)

#define IS_ADC_EXT_INJEC_TRIG(INJTRIG)

#define IS_ADC_EXT_TRIG(REGTRIG)

#define IS_ADC_GET_FLAG(FLAG)

#define IS_ADC_GET_IT(IT)

#define IS_ADC_INJECTED_CHANNEL(CHANNEL)

#define IS_ADC_INJECTED_LENGTH(LENGTH)   (((LENGTH) >= 0x1) && ((LENGTH) <= 0x4))

#define IS_ADC_INJECTED_RANK(RANK)   (((RANK) >= 0x1) && ((RANK) <= 0x4))

#define IS_ADC_IT(IT)   ((((IT) & (uint16_t)0xF81F) == 0x00) && ((IT) != 0x00))

#define IS_ADC_MODE(MODE)

#define IS_ADC_OFFSET(OFFSET)   ((OFFSET) <= 0xFFF)

#define IS_ADC_REGULAR_DISC_NUMBER(NUMBER)   (((NUMBER) >= 0x1) && ((NUMBER) <= 0x8))

#define IS_ADC_REGULAR_LENGTH(LENGTH)   (((LENGTH) >= 0x1) && ((LENGTH) <= 0x10))

#define IS_ADC_REGULAR_RANK(RANK)   (((RANK) >= 0x1) && ((RANK) <= 0x10))

#define IS_ADC_SAMPLE_TIME(TIME)

#define IS_ADC_THRESHOLD(THRESHOLD)   ((THRESHOLD) <= 0xFFF)


Functions

void ADC_AnalogWatchdogCmd (ADC_TypeDef *ADCx, uint32_t ADC_AnalogWatchdog)
 Enables or disables the analog watchdog on single/all regular or injected channels. More...

void ADC_AnalogWatchdogSingleChannelConfig (ADC_TypeDef *ADCx, uint8_t ADC_Channel)
 Configures the analog watchdog guarded single channel. More...

void ADC_AnalogWatchdogThresholdsConfig (ADC_TypeDef *ADCx, uint16_t HighThreshold, uint16_t LowThreshold)
 Configures the high and low thresholds of the analog watchdog. More...

void ADC_AutoInjectedConvCmd (ADC_TypeDef *ADCx, FunctionalState NewState)
 Enables or disables the selected ADC automatic injected group conversion after regular one. More...

void ADC_ClearFlag (ADC_TypeDef *ADCx, uint8_t ADC_FLAG)
 Clears the ADCx's pending flags. More...

void ADC_ClearITPendingBit (ADC_TypeDef *ADCx, uint16_t ADC_IT)
 Clears the ADCx's interrupt pending bits. More...

void ADC_Cmd (ADC_TypeDef *ADCx, FunctionalState NewState)
 Enables or disables the specified ADC peripheral. More...

void ADC_DeInit (ADC_TypeDef *ADCx)
 Deinitializes the ADCx peripheral registers to their default reset values. More...

void ADC_DiscModeChannelCountConfig (ADC_TypeDef *ADCx, uint8_t Number)
 Configures the discontinuous mode for the selected ADC regular group channel. More...

void ADC_DiscModeCmd (ADC_TypeDef *ADCx, FunctionalState NewState)
 Enables or disables the discontinuous mode on regular group channel for the specified ADC. More...

void ADC_DMACmd (ADC_TypeDef *ADCx, FunctionalState NewState)
 Enables or disables the specified ADC DMA request. More...

void ADC_ExternalTrigConvCmd (ADC_TypeDef *ADCx, FunctionalState NewState)
 Enables or disables the ADCx conversion through external trigger. More...

void ADC_ExternalTrigInjectedConvCmd (ADC_TypeDef *ADCx, FunctionalState NewState)
 Enables or disables the ADCx injected channels conversion through external trigger. More...

void ADC_ExternalTrigInjectedConvConfig (ADC_TypeDef *ADCx, uint32_t ADC_ExternalTrigInjecConv)
 Configures the ADCx external trigger for injected channels conversion. More...

FlagStatus ADC_GetCalibrationStatus (ADC_TypeDef *ADCx)
 Gets the selected ADC calibration status. More...

uint16_t ADC_GetConversionValue (ADC_TypeDef *ADCx)
 Returns the last ADCx conversion result data for regular channel. More...

uint32_t ADC_GetDualModeConversionValue (void)
 Returns the last ADC1 and ADC2 conversion result data in dual mode. More...

FlagStatus ADC_GetFlagStatus (ADC_TypeDef *ADCx, uint8_t ADC_FLAG)
 Checks whether the specified ADC flag is set or not. More...

uint16_t ADC_GetInjectedConversionValue (ADC_TypeDef *ADCx, uint8_t ADC_InjectedChannel)
 Returns the ADC injected channel conversion result. More...

ITStatus ADC_GetITStatus (ADC_TypeDef *ADCx, uint16_t ADC_IT)
 Checks whether the specified ADC interrupt has occurred or not. More...

FlagStatus ADC_GetResetCalibrationStatus (ADC_TypeDef *ADCx)
 Gets the selected ADC reset calibration registers status. More...

FlagStatus ADC_GetSoftwareStartConvStatus (ADC_TypeDef *ADCx)
 Gets the selected ADC Software start regular conversion Status. More...

FlagStatus ADC_GetSoftwareStartInjectedConvCmdStatus (ADC_TypeDef *ADCx)
 Gets the selected ADC Software start injected conversion Status. More...

void ADC_Init (ADC_TypeDef *ADCx, ADC_InitTypeDef *ADC_InitStruct)
 Initializes the ADCx peripheral according to the specified parameters in the ADC_InitStruct. More...

void ADC_InjectedChannelConfig (ADC_TypeDef *ADCx, uint8_t ADC_Channel, uint8_t Rank, uint8_t ADC_SampleTime)
 Configures for the selected ADC injected channel its corresponding rank in the sequencer and its sample time. More...

void ADC_InjectedDiscModeCmd (ADC_TypeDef *ADCx, FunctionalState NewState)
 Enables or disables the discontinuous mode for injected group channel for the specified ADC. More...

void ADC_InjectedSequencerLengthConfig (ADC_TypeDef *ADCx, uint8_t Length)
 Configures the sequencer length for injected channels. More...

void ADC_ITConfig (ADC_TypeDef *ADCx, uint16_t ADC_IT, FunctionalState NewState)
 Enables or disables the specified ADC interrupts. More...

void ADC_RegularChannelConfig (ADC_TypeDef *ADCx, uint8_t ADC_Channel, uint8_t Rank, uint8_t ADC_SampleTime)
 Configures for the selected ADC regular channel its corresponding rank in the sequencer and its sample time. More...

void ADC_ResetCalibration (ADC_TypeDef *ADCx)
 Resets the selected ADC calibration registers. More...

void ADC_SetInjectedOffset (ADC_TypeDef *ADCx, uint8_t ADC_InjectedChannel, uint16_t Offset)
 Set the injected channels conversion value offset. More...

void ADC_SoftwareStartConvCmd (ADC_TypeDef *ADCx, FunctionalState NewState)
 Enables or disables the selected ADC software start conversion . More...

void ADC_SoftwareStartInjectedConvCmd (ADC_TypeDef *ADCx, FunctionalState NewState)
 Enables or disables the selected ADC start of the injected channels conversion. More...

void ADC_StartCalibration (ADC_TypeDef *ADCx)
 Starts the selected ADC calibration process. More...

void ADC_StructInit (ADC_InitTypeDef *ADC_InitStruct)
 Fills each ADC_InitStruct member with its default value. More...

void ADC_TempSensorVrefintCmd (FunctionalState NewState)
 Enables or disables the temperature sensor and Vrefint channels. More...


Detailed Description

This file contains all the functions prototypes for the ADC firmware library.

Author
MCD Application Team
Version
V3.5.0
Date
11-March-2011
Attention

THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.

© COPYRIGHT 2011 STMicroelectronics

Definition in file stm32f10x_adc.h.
