Macros

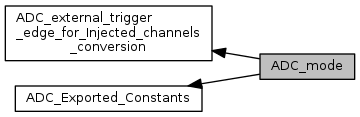

Collaboration diagram for ADC_mode:

Macros

#define ADC_Mode_AlterTrig   ((uint32_t)0x00090000)

#define ADC_Mode_AltTrig   ((uint32_t)0x00000009)

#define ADC_Mode_CombRegSimulAltTrig   ((uint32_t)0x00000002)

#define ADC_Mode_CombRegSimulInjSimul   ((uint32_t)0x00000001)

#define ADC_Mode_FastInterl   ((uint32_t)0x00070000)

#define ADC_Mode_Independent   ((uint32_t)0x00000000)

#define ADC_Mode_Independent   ((uint32_t)0x00000000)

#define ADC_Mode_InjecSimult   ((uint32_t)0x00050000)

#define ADC_Mode_InjecSimult_FastInterl   ((uint32_t)0x00030000)

#define ADC_Mode_InjecSimult_SlowInterl   ((uint32_t)0x00040000)

#define ADC_Mode_InjSimul   ((uint32_t)0x00000005)

#define ADC_Mode_Interleave   ((uint32_t)0x00000007)

#define ADC_Mode_RegInjecSimult   ((uint32_t)0x00010000)

#define ADC_Mode_RegSimul   ((uint32_t)0x00000006)

#define ADC_Mode_RegSimult   ((uint32_t)0x00060000)

#define ADC_Mode_RegSimult_AlterTrig   ((uint32_t)0x00020000)

#define ADC_Mode_SlowInterl   ((uint32_t)0x00080000)

#define IS_ADC_MODE(MODE)

#define IS_ADC_MODE(MODE)


Detailed Description

Macro Definition Documentation

#define ADC_Mode_AlterTrig   ((uint32_t)0x00090000)

Definition at line 103 of file stm32f10x_adc.h.

#define ADC_Mode_AltTrig   ((uint32_t)0x00000009)

ADC multi ADC mode: Alternate Trigger mode

Definition at line 382 of file stm32f30x_adc.h.

#define ADC_Mode_CombRegSimulAltTrig   ((uint32_t)0x00000002)

ADC multi ADC mode: Combined Regular simultaneous Alternate trigger mode

Definition at line 378 of file stm32f30x_adc.h.

#define ADC_Mode_CombRegSimulInjSimul   ((uint32_t)0x00000001)

ADC multi ADC mode: Combined Regular simultaneous injected simultaneous mode

Definition at line 377 of file stm32f30x_adc.h.

#define ADC_Mode_FastInterl   ((uint32_t)0x00070000)

Definition at line 101 of file stm32f10x_adc.h.

#define ADC_Mode_Independent   ((uint32_t)0x00000000)

Definition at line 94 of file stm32f10x_adc.h.

#define ADC_Mode_Independent   ((uint32_t)0x00000000)

ADC independent mode

Definition at line 376 of file stm32f30x_adc.h.

#define ADC_Mode_InjecSimult   ((uint32_t)0x00050000)

Definition at line 99 of file stm32f10x_adc.h.

#define ADC_Mode_InjecSimult_FastInterl   ((uint32_t)0x00030000)

Definition at line 97 of file stm32f10x_adc.h.

#define ADC_Mode_InjecSimult_SlowInterl   ((uint32_t)0x00040000)

Definition at line 98 of file stm32f10x_adc.h.

#define ADC_Mode_InjSimul   ((uint32_t)0x00000005)

ADC multi ADC mode: Injected simultaneous mode

Definition at line 379 of file stm32f30x_adc.h.

#define ADC_Mode_Interleave   ((uint32_t)0x00000007)

ADC multi ADC mode: Interleave mode

Definition at line 381 of file stm32f30x_adc.h.

#define ADC_Mode_RegInjecSimult   ((uint32_t)0x00010000)

Definition at line 95 of file stm32f10x_adc.h.

#define ADC_Mode_RegSimul   ((uint32_t)0x00000006)

ADC multi ADC mode: Regular simultaneous mode

Definition at line 380 of file stm32f30x_adc.h.

#define ADC_Mode_RegSimult   ((uint32_t)0x00060000)

Definition at line 100 of file stm32f10x_adc.h.

#define ADC_Mode_RegSimult_AlterTrig   ((uint32_t)0x00020000)

Definition at line 96 of file stm32f10x_adc.h.

#define ADC_Mode_SlowInterl   ((uint32_t)0x00080000)

Definition at line 102 of file stm32f10x_adc.h.

#define IS_ADC_MODE (   MODE)
Value:
(((MODE) == ADC_Mode_Independent) || \
((MODE) == ADC_Mode_RegInjecSimult) || \
((MODE) == ADC_Mode_InjecSimult) || \
((MODE) == ADC_Mode_RegSimult) || \
((MODE) == ADC_Mode_FastInterl) || \
((MODE) == ADC_Mode_SlowInterl) || \
((MODE) == ADC_Mode_AlterTrig))
#define ADC_Mode_InjecSimult
Definition: stm32f10x_adc.h:99
#define ADC_Mode_SlowInterl
#define ADC_Mode_RegInjecSimult
Definition: stm32f10x_adc.h:95
#define ADC_Mode_AlterTrig
#define ADC_Mode_Independent
Definition: stm32f10x_adc.h:94
#define ADC_Mode_FastInterl
#define ADC_Mode_RegSimult
#define ADC_Mode_InjecSimult_SlowInterl
Definition: stm32f10x_adc.h:98
#define ADC_Mode_InjecSimult_FastInterl
Definition: stm32f10x_adc.h:97
#define ADC_Mode_RegSimult_AlterTrig
Definition: stm32f10x_adc.h:96

Definition at line 105 of file stm32f10x_adc.h.

#define IS_ADC_MODE (   MODE)
Value:
(((MODE) == ADC_Mode_Independent) || \
((MODE) == ADC_Mode_InjSimul) || \
((MODE) == ADC_Mode_RegSimul) || \
((MODE) == ADC_Mode_Interleave) || \
((MODE) == ADC_Mode_AltTrig))
#define ADC_Mode_AltTrig
#define ADC_Mode_CombRegSimulAltTrig
#define ADC_Mode_Independent
#define ADC_Mode_CombRegSimulInjSimul
#define ADC_Mode_InjSimul
#define ADC_Mode_Interleave
#define ADC_Mode_RegSimul

Definition at line 384 of file stm32f30x_adc.h.
