Classes | Macros | Typedefs | Functions
mavlink_msg_vision_speed_estimate.h File Reference

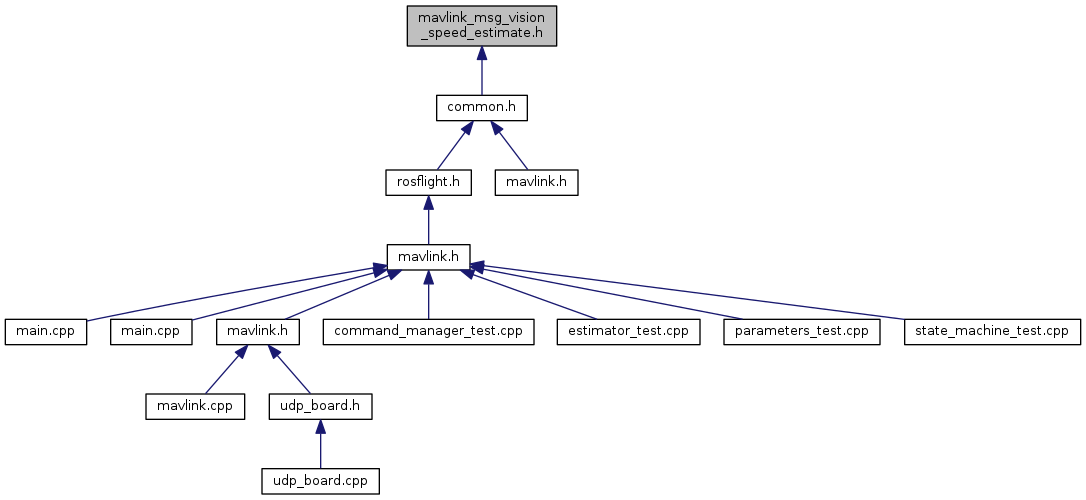

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  __mavlink_vision_speed_estimate_t


Macros

#define MAVLINK_MESSAGE_INFO_VISION_SPEED_ESTIMATE

#define MAVLINK_MSG_ID_103_CRC   208

#define MAVLINK_MSG_ID_103_LEN   20

#define MAVLINK_MSG_ID_VISION_SPEED_ESTIMATE   103

#define MAVLINK_MSG_ID_VISION_SPEED_ESTIMATE_CRC   208

#define MAVLINK_MSG_ID_VISION_SPEED_ESTIMATE_LEN   20


Typedefs

typedef struct __mavlink_vision_speed_estimate_t mavlink_vision_speed_estimate_t


Functions

static void mavlink_msg_vision_speed_estimate_decode (const mavlink_message_t *msg, mavlink_vision_speed_estimate_t *vision_speed_estimate)
 Decode a vision_speed_estimate message into a struct. More...

static uint16_t mavlink_msg_vision_speed_estimate_encode (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, const mavlink_vision_speed_estimate_t *vision_speed_estimate)
 Encode a vision_speed_estimate struct. More...

static uint16_t mavlink_msg_vision_speed_estimate_encode_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, const mavlink_vision_speed_estimate_t *vision_speed_estimate)
 Encode a vision_speed_estimate struct on a channel. More...

static uint64_t mavlink_msg_vision_speed_estimate_get_usec (const mavlink_message_t *msg)
 Send a vision_speed_estimate message. More...

static float mavlink_msg_vision_speed_estimate_get_x (const mavlink_message_t *msg)
 Get field x from vision_speed_estimate message. More...

static float mavlink_msg_vision_speed_estimate_get_y (const mavlink_message_t *msg)
 Get field y from vision_speed_estimate message. More...

static float mavlink_msg_vision_speed_estimate_get_z (const mavlink_message_t *msg)
 Get field z from vision_speed_estimate message. More...

static uint16_t mavlink_msg_vision_speed_estimate_pack (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, uint64_t usec, float x, float y, float z)
 Pack a vision_speed_estimate message. More...

static uint16_t mavlink_msg_vision_speed_estimate_pack_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, uint64_t usec, float x, float y, float z)
 Pack a vision_speed_estimate message on a channel. More...


Macro Definition Documentation

#define MAVLINK_MESSAGE_INFO_VISION_SPEED_ESTIMATE
Value:
{ \
"VISION_SPEED_ESTIMATE", \
4, \
{ { "usec", NULL, MAVLINK_TYPE_UINT64_T, 0, 0, offsetof(mavlink_vision_speed_estimate_t, usec) }, \
{ "x", NULL, MAVLINK_TYPE_FLOAT, 0, 8, offsetof(mavlink_vision_speed_estimate_t, x) }, \
{ "y", NULL, MAVLINK_TYPE_FLOAT, 0, 12, offsetof(mavlink_vision_speed_estimate_t, y) }, \
{ "z", NULL, MAVLINK_TYPE_FLOAT, 0, 16, offsetof(mavlink_vision_speed_estimate_t, z) }, \
} \
}
#define NULL
Definition: usbd_def.h:50

Definition at line 21 of file mavlink_msg_vision_speed_estimate.h.

#define MAVLINK_MSG_ID_103_CRC   208

Definition at line 17 of file mavlink_msg_vision_speed_estimate.h.

#define MAVLINK_MSG_ID_103_LEN   20

Definition at line 14 of file mavlink_msg_vision_speed_estimate.h.

#define MAVLINK_MSG_ID_VISION_SPEED_ESTIMATE   103

Definition at line 3 of file mavlink_msg_vision_speed_estimate.h.

#define MAVLINK_MSG_ID_VISION_SPEED_ESTIMATE_CRC   208

Definition at line 16 of file mavlink_msg_vision_speed_estimate.h.

#define MAVLINK_MSG_ID_VISION_SPEED_ESTIMATE_LEN   20

Definition at line 13 of file mavlink_msg_vision_speed_estimate.h.

Typedef Documentation

Function Documentation

static void mavlink_msg_vision_speed_estimate_decode ( const mavlink_message_t *  msg,
mavlink_vision_speed_estimate_t vision_speed_estimate
)
inlinestatic

Decode a vision_speed_estimate message into a struct.

Parameters
msgThe message to decode
vision_speed_estimateC-struct to decode the message contents into

Definition at line 271 of file mavlink_msg_vision_speed_estimate.h.

static uint16_t mavlink_msg_vision_speed_estimate_encode ( uint8_t  system_id,
uint8_t  component_id,
mavlink_message_t *  msg,
const mavlink_vision_speed_estimate_t vision_speed_estimate
)
inlinestatic

Encode a vision_speed_estimate struct.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
msgThe MAVLink message to compress the data into
vision_speed_estimateC-struct to read the message contents from

Definition at line 123 of file mavlink_msg_vision_speed_estimate.h.

static uint16_t mavlink_msg_vision_speed_estimate_encode_chan ( uint8_t  system_id,
uint8_t  component_id,
uint8_t  chan,
mavlink_message_t *  msg,
const mavlink_vision_speed_estimate_t vision_speed_estimate
)
inlinestatic

Encode a vision_speed_estimate struct on a channel.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
chanThe MAVLink channel this message will be sent over
msgThe MAVLink message to compress the data into
vision_speed_estimateC-struct to read the message contents from

Definition at line 137 of file mavlink_msg_vision_speed_estimate.h.

static uint64_t mavlink_msg_vision_speed_estimate_get_usec ( const mavlink_message_t *  msg)
inlinestatic

Send a vision_speed_estimate message.

Parameters
chanMAVLink channel to send the message
usecTimestamp (microseconds, synced to UNIX time or since system boot)
xGlobal X speed
yGlobal Y speed
zGlobal Z speed Get field usec from vision_speed_estimate message
Returns
Timestamp (microseconds, synced to UNIX time or since system boot)

Definition at line 230 of file mavlink_msg_vision_speed_estimate.h.

static float mavlink_msg_vision_speed_estimate_get_x ( const mavlink_message_t *  msg)
inlinestatic

Get field x from vision_speed_estimate message.

Returns
Global X speed

Definition at line 240 of file mavlink_msg_vision_speed_estimate.h.

static float mavlink_msg_vision_speed_estimate_get_y ( const mavlink_message_t *  msg)
inlinestatic

Get field y from vision_speed_estimate message.

Returns
Global Y speed

Definition at line 250 of file mavlink_msg_vision_speed_estimate.h.

static float mavlink_msg_vision_speed_estimate_get_z ( const mavlink_message_t *  msg)
inlinestatic

Get field z from vision_speed_estimate message.

Returns
Global Z speed

Definition at line 260 of file mavlink_msg_vision_speed_estimate.h.

static uint16_t mavlink_msg_vision_speed_estimate_pack ( uint8_t  system_id,
uint8_t  component_id,
mavlink_message_t *  msg,
uint64_t  usec,
float  x,
float  y,
float  z
)
inlinestatic

Pack a vision_speed_estimate message.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
msgThe MAVLink message to compress the data into
usecTimestamp (microseconds, synced to UNIX time or since system boot)
xGlobal X speed
yGlobal Y speed
zGlobal Z speed
Returns
length of the message in bytes (excluding serial stream start sign)

Definition at line 44 of file mavlink_msg_vision_speed_estimate.h.

static uint16_t mavlink_msg_vision_speed_estimate_pack_chan ( uint8_t  system_id,
uint8_t  component_id,
uint8_t  chan,
mavlink_message_t *  msg,
uint64_t  usec,
float  x,
float  y,
float  z
)
inlinestatic

Pack a vision_speed_estimate message on a channel.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
chanThe MAVLink channel this message will be sent over
msgThe MAVLink message to compress the data into
usecTimestamp (microseconds, synced to UNIX time or since system boot)
xGlobal X speed
yGlobal Y speed
zGlobal Z speed
Returns
length of the message in bytes (excluding serial stream start sign)

Definition at line 85 of file mavlink_msg_vision_speed_estimate.h.
