mavlink_msg_attitude_quaternion.h File Reference

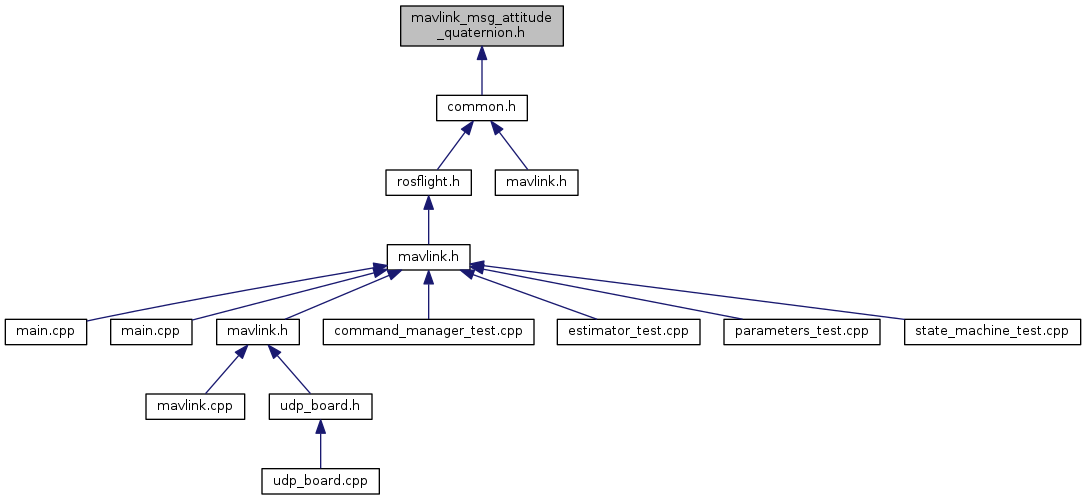

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  __mavlink_attitude_quaternion_t


Macros

#define MAVLINK_MESSAGE_INFO_ATTITUDE_QUATERNION

#define MAVLINK_MSG_ID_31_CRC   246

#define MAVLINK_MSG_ID_31_LEN   32

#define MAVLINK_MSG_ID_ATTITUDE_QUATERNION   31

#define MAVLINK_MSG_ID_ATTITUDE_QUATERNION_CRC   246

#define MAVLINK_MSG_ID_ATTITUDE_QUATERNION_LEN   32


Typedefs

typedef struct __mavlink_attitude_quaternion_t mavlink_attitude_quaternion_t


Functions

static void mavlink_msg_attitude_quaternion_decode (const mavlink_message_t *msg, mavlink_attitude_quaternion_t *attitude_quaternion)
 Decode a attitude_quaternion message into a struct. More...

static uint16_t mavlink_msg_attitude_quaternion_encode (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, const mavlink_attitude_quaternion_t *attitude_quaternion)
 Encode a attitude_quaternion struct. More...

static uint16_t mavlink_msg_attitude_quaternion_encode_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, const mavlink_attitude_quaternion_t *attitude_quaternion)
 Encode a attitude_quaternion struct on a channel. More...

static float mavlink_msg_attitude_quaternion_get_pitchspeed (const mavlink_message_t *msg)
 Get field pitchspeed from attitude_quaternion message. More...

static float mavlink_msg_attitude_quaternion_get_q1 (const mavlink_message_t *msg)
 Get field q1 from attitude_quaternion message. More...

static float mavlink_msg_attitude_quaternion_get_q2 (const mavlink_message_t *msg)
 Get field q2 from attitude_quaternion message. More...

static float mavlink_msg_attitude_quaternion_get_q3 (const mavlink_message_t *msg)
 Get field q3 from attitude_quaternion message. More...

static float mavlink_msg_attitude_quaternion_get_q4 (const mavlink_message_t *msg)
 Get field q4 from attitude_quaternion message. More...

static float mavlink_msg_attitude_quaternion_get_rollspeed (const mavlink_message_t *msg)
 Get field rollspeed from attitude_quaternion message. More...

static uint32_t mavlink_msg_attitude_quaternion_get_time_boot_ms (const mavlink_message_t *msg)
 Send a attitude_quaternion message. More...

static float mavlink_msg_attitude_quaternion_get_yawspeed (const mavlink_message_t *msg)
 Get field yawspeed from attitude_quaternion message. More...

static uint16_t mavlink_msg_attitude_quaternion_pack (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, uint32_t time_boot_ms, float q1, float q2, float q3, float q4, float rollspeed, float pitchspeed, float yawspeed)
 Pack a attitude_quaternion message. More...

static uint16_t mavlink_msg_attitude_quaternion_pack_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, uint32_t time_boot_ms, float q1, float q2, float q3, float q4, float rollspeed, float pitchspeed, float yawspeed)
 Pack a attitude_quaternion message on a channel. More...


Macro Definition Documentation

#define MAVLINK_MESSAGE_INFO_ATTITUDE_QUATERNION
Value:
{ \
"ATTITUDE_QUATERNION", \
8, \
{ { "time_boot_ms", NULL, MAVLINK_TYPE_UINT32_T, 0, 0, offsetof(mavlink_attitude_quaternion_t, time_boot_ms) }, \
{ "q1", NULL, MAVLINK_TYPE_FLOAT, 0, 4, offsetof(mavlink_attitude_quaternion_t, q1) }, \
{ "q2", NULL, MAVLINK_TYPE_FLOAT, 0, 8, offsetof(mavlink_attitude_quaternion_t, q2) }, \
{ "q3", NULL, MAVLINK_TYPE_FLOAT, 0, 12, offsetof(mavlink_attitude_quaternion_t, q3) }, \
{ "q4", NULL, MAVLINK_TYPE_FLOAT, 0, 16, offsetof(mavlink_attitude_quaternion_t, q4) }, \
{ "rollspeed", NULL, MAVLINK_TYPE_FLOAT, 0, 20, offsetof(mavlink_attitude_quaternion_t, rollspeed) }, \
{ "pitchspeed", NULL, MAVLINK_TYPE_FLOAT, 0, 24, offsetof(mavlink_attitude_quaternion_t, pitchspeed) }, \
{ "yawspeed", NULL, MAVLINK_TYPE_FLOAT, 0, 28, offsetof(mavlink_attitude_quaternion_t, yawspeed) }, \
} \
}
#define NULL
Definition: usbd_def.h:50

Definition at line 25 of file mavlink_msg_attitude_quaternion.h.

#define MAVLINK_MSG_ID_31_CRC   246

Definition at line 21 of file mavlink_msg_attitude_quaternion.h.

#define MAVLINK_MSG_ID_31_LEN   32

Definition at line 18 of file mavlink_msg_attitude_quaternion.h.

#define MAVLINK_MSG_ID_ATTITUDE_QUATERNION   31

Definition at line 3 of file mavlink_msg_attitude_quaternion.h.

#define MAVLINK_MSG_ID_ATTITUDE_QUATERNION_CRC   246

Definition at line 20 of file mavlink_msg_attitude_quaternion.h.

#define MAVLINK_MSG_ID_ATTITUDE_QUATERNION_LEN   32

Definition at line 17 of file mavlink_msg_attitude_quaternion.h.

Typedef Documentation

Function Documentation

static void mavlink_msg_attitude_quaternion_decode ( const mavlink_message_t *  msg,
mavlink_attitude_quaternion_t attitude_quaternion
)
inlinestatic

Decode a attitude_quaternion message into a struct.

Parameters
msgThe message to decode
attitude_quaternionC-struct to decode the message contents into

Definition at line 363 of file mavlink_msg_attitude_quaternion.h.

static uint16_t mavlink_msg_attitude_quaternion_encode ( uint8_t  system_id,
uint8_t  component_id,
mavlink_message_t *  msg,
const mavlink_attitude_quaternion_t attitude_quaternion
)
inlinestatic

Encode a attitude_quaternion struct.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
msgThe MAVLink message to compress the data into
attitude_quaternionC-struct to read the message contents from

Definition at line 155 of file mavlink_msg_attitude_quaternion.h.

static uint16_t mavlink_msg_attitude_quaternion_encode_chan ( uint8_t  system_id,
uint8_t  component_id,
uint8_t  chan,
mavlink_message_t *  msg,
const mavlink_attitude_quaternion_t attitude_quaternion
)
inlinestatic

Encode a attitude_quaternion struct on a channel.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
chanThe MAVLink channel this message will be sent over
msgThe MAVLink message to compress the data into
attitude_quaternionC-struct to read the message contents from

Definition at line 169 of file mavlink_msg_attitude_quaternion.h.

static float mavlink_msg_attitude_quaternion_get_pitchspeed ( const mavlink_message_t *  msg)
inlinestatic

Get field pitchspeed from attitude_quaternion message.

Returns
Pitch angular speed (rad/s)

Definition at line 342 of file mavlink_msg_attitude_quaternion.h.

static float mavlink_msg_attitude_quaternion_get_q1 ( const mavlink_message_t *  msg)
inlinestatic

Get field q1 from attitude_quaternion message.

Returns
Quaternion component 1, w (1 in null-rotation)

Definition at line 292 of file mavlink_msg_attitude_quaternion.h.

static float mavlink_msg_attitude_quaternion_get_q2 ( const mavlink_message_t *  msg)
inlinestatic

Get field q2 from attitude_quaternion message.

Returns
Quaternion component 2, x (0 in null-rotation)

Definition at line 302 of file mavlink_msg_attitude_quaternion.h.

static float mavlink_msg_attitude_quaternion_get_q3 ( const mavlink_message_t *  msg)
inlinestatic

Get field q3 from attitude_quaternion message.

Returns
Quaternion component 3, y (0 in null-rotation)

Definition at line 312 of file mavlink_msg_attitude_quaternion.h.

static float mavlink_msg_attitude_quaternion_get_q4 ( const mavlink_message_t *  msg)
inlinestatic

Get field q4 from attitude_quaternion message.

Returns
Quaternion component 4, z (0 in null-rotation)

Definition at line 322 of file mavlink_msg_attitude_quaternion.h.

static float mavlink_msg_attitude_quaternion_get_rollspeed ( const mavlink_message_t *  msg)
inlinestatic

Get field rollspeed from attitude_quaternion message.

Returns
Roll angular speed (rad/s)

Definition at line 332 of file mavlink_msg_attitude_quaternion.h.

static uint32_t mavlink_msg_attitude_quaternion_get_time_boot_ms ( const mavlink_message_t *  msg)
inlinestatic

Send a attitude_quaternion message.

Parameters
chanMAVLink channel to send the message
time_boot_msTimestamp (milliseconds since system boot)
q1Quaternion component 1, w (1 in null-rotation)
q2Quaternion component 2, x (0 in null-rotation)
q3Quaternion component 3, y (0 in null-rotation)
q4Quaternion component 4, z (0 in null-rotation)
rollspeedRoll angular speed (rad/s)
pitchspeedPitch angular speed (rad/s)
yawspeedYaw angular speed (rad/s) Get field time_boot_ms from attitude_quaternion message
Returns
Timestamp (milliseconds since system boot)

Definition at line 282 of file mavlink_msg_attitude_quaternion.h.

static float mavlink_msg_attitude_quaternion_get_yawspeed ( const mavlink_message_t *  msg)
inlinestatic

Get field yawspeed from attitude_quaternion message.

Returns
Yaw angular speed (rad/s)

Definition at line 352 of file mavlink_msg_attitude_quaternion.h.

static uint16_t mavlink_msg_attitude_quaternion_pack ( uint8_t  system_id,
uint8_t  component_id,
mavlink_message_t *  msg,
uint32_t  time_boot_ms,
float  q1,
float  q2,
float  q3,
float  q4,
float  rollspeed,
float  pitchspeed,
float  yawspeed
)
inlinestatic

Pack a attitude_quaternion message.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
msgThe MAVLink message to compress the data into
time_boot_msTimestamp (milliseconds since system boot)
q1Quaternion component 1, w (1 in null-rotation)
q2Quaternion component 2, x (0 in null-rotation)
q3Quaternion component 3, y (0 in null-rotation)
q4Quaternion component 4, z (0 in null-rotation)
rollspeedRoll angular speed (rad/s)
pitchspeedPitch angular speed (rad/s)
yawspeedYaw angular speed (rad/s)
Returns
length of the message in bytes (excluding serial stream start sign)

Definition at line 56 of file mavlink_msg_attitude_quaternion.h.

static uint16_t mavlink_msg_attitude_quaternion_pack_chan ( uint8_t  system_id,
uint8_t  component_id,
uint8_t  chan,
mavlink_message_t *  msg,
uint32_t  time_boot_ms,
float  q1,
float  q2,
float  q3,
float  q4,
float  rollspeed,
float  pitchspeed,
float  yawspeed
)
inlinestatic

Pack a attitude_quaternion message on a channel.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
chanThe MAVLink channel this message will be sent over
msgThe MAVLink message to compress the data into
time_boot_msTimestamp (milliseconds since system boot)
q1Quaternion component 1, w (1 in null-rotation)
q2Quaternion component 2, x (0 in null-rotation)
q3Quaternion component 3, y (0 in null-rotation)
q4Quaternion component 4, z (0 in null-rotation)
rollspeedRoll angular speed (rad/s)
pitchspeedPitch angular speed (rad/s)
yawspeedYaw angular speed (rad/s)
Returns
length of the message in bytes (excluding serial stream start sign)

Definition at line 109 of file mavlink_msg_attitude_quaternion.h.
