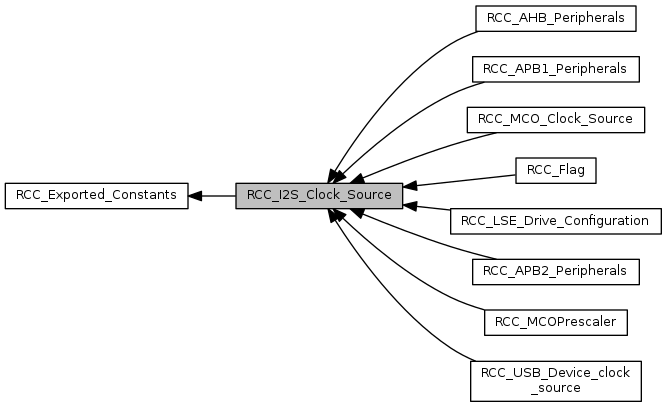

Collaboration diagram for RCC_I2S_Clock_Source:
|
Modules | |
| RCC_LSE_Drive_Configuration | |
| RCC_AHB_Peripherals | |
| RCC_APB2_Peripherals | |
| RCC_APB1_Peripherals | |
| RCC_MCO_Clock_Source | |
| RCC_MCOPrescaler | |
| RCC_USB_Device_clock_source | |
| RCC_Flag | |
Macros | |
| #define | IS_RCC_I2SCLK_SOURCE(SOURCE) (((SOURCE) == RCC_I2S2CLKSource_PLLI2S) || ((SOURCE) == RCC_I2S2CLKSource_Ext)) |
| #define | IS_RCC_I2SCLK_SOURCE(SOURCE) (((SOURCE) == RCC_I2S2CLKSource_SYSCLK) || ((SOURCE) == RCC_I2S2CLKSource_Ext)) |
| #define | RCC_I2S2CLKSource_Ext ((uint8_t)0x01) |
| #define | RCC_I2S2CLKSource_Ext ((uint8_t)0x01) |
| #define | RCC_I2S2CLKSource_PLLI2S ((uint8_t)0x00) |
| #define | RCC_I2S2CLKSource_SYSCLK ((uint8_t)0x00) |
Detailed Description
Macro Definition Documentation
| #define IS_RCC_I2SCLK_SOURCE | ( | SOURCE | ) | (((SOURCE) == RCC_I2S2CLKSource_PLLI2S) || ((SOURCE) == RCC_I2S2CLKSource_Ext)) |
Definition at line 253 of file STM32F4xx_StdPeriph_Driver/inc/stm32f4xx_rcc.h.
| #define IS_RCC_I2SCLK_SOURCE | ( | SOURCE | ) | (((SOURCE) == RCC_I2S2CLKSource_SYSCLK) || ((SOURCE) == RCC_I2S2CLKSource_Ext)) |
Definition at line 439 of file stm32f30x_rcc.h.
| #define RCC_I2S2CLKSource_Ext ((uint8_t)0x01) |
Definition at line 251 of file STM32F4xx_StdPeriph_Driver/inc/stm32f4xx_rcc.h.
| #define RCC_I2S2CLKSource_Ext ((uint8_t)0x01) |
Definition at line 437 of file stm32f30x_rcc.h.
| #define RCC_I2S2CLKSource_PLLI2S ((uint8_t)0x00) |
Definition at line 250 of file STM32F4xx_StdPeriph_Driver/inc/stm32f4xx_rcc.h.
| #define RCC_I2S2CLKSource_SYSCLK ((uint8_t)0x00) |
Definition at line 436 of file stm32f30x_rcc.h.
