FLASH_Exported_Constants

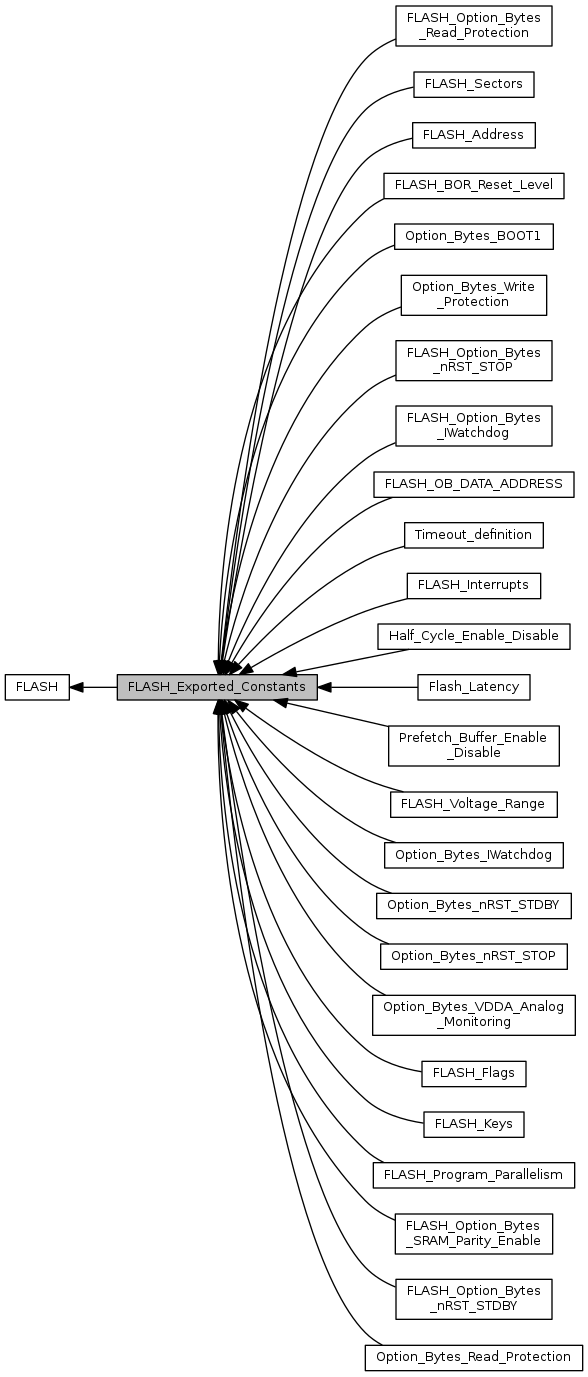

Collaboration diagram for FLASH_Exported_Constants:

Modules
	Flash_Latency
	FLASH_Voltage_Range
	FLASH_Sectors
	Option_Bytes_Write_Protection
	FLASH_Option_Bytes_Read_Protection
	FLASH_Option_Bytes_IWatchdog
	FLASH_Option_Bytes_nRST_STOP
	FLASH_Option_Bytes_nRST_STDBY
	FLASH_BOR_Reset_Level
	FLASH_Interrupts
	FLASH_Flags
	FLASH_Program_Parallelism
	FLASH_Keys
	Half_Cycle_Enable_Disable
	Prefetch_Buffer_Enable_Disable
	Option_Bytes_IWatchdog
	Option_Bytes_nRST_STOP
	Option_Bytes_nRST_STDBY
	FLASH_Address
	FLASH_OB_DATA_ADDRESS
	Option_Bytes_Read_Protection
	Option_Bytes_BOOT1
	Option_Bytes_VDDA_Analog_Monitoring
	FLASH_Option_Bytes_SRAM_Parity_Enable
	Timeout_definition

Macros
#define	ACR_BYTE0_ADDRESS   ((uint32_t)0x40023C00)
	ACR register byte 0 (Bits[7:0]) base address. More...
#define	OPTCR1_BYTE2_ADDRESS   ((uint32_t)0x40023C1A)
	OPTCR1 register byte 0 (Bits[7:0]) base address. More...
#define	OPTCR_BYTE0_ADDRESS   ((uint32_t)0x40023C14)
	OPTCR register byte 0 (Bits[7:0]) base address. More...
#define	OPTCR_BYTE1_ADDRESS   ((uint32_t)0x40023C15)
	OPTCR register byte 1 (Bits[15:8]) base address. More...
#define	OPTCR_BYTE2_ADDRESS   ((uint32_t)0x40023C16)
	OPTCR register byte 2 (Bits[23:16]) base address. More...
#define	OPTCR_BYTE3_ADDRESS   ((uint32_t)0x40023C17)
	OPTCR register byte 3 (Bits[31:24]) base address. More...

Detailed Description

Macro Definition Documentation

#define ACR_BYTE0_ADDRESS   ((uint32_t)0x40023C00)

ACR register byte 0 (Bits[7:0]) base address.

Definition at line 306 of file stm32f4xx_flash.h.

#define OPTCR1_BYTE2_ADDRESS   ((uint32_t)0x40023C1A)

OPTCR1 register byte 0 (Bits[7:0]) base address.

Definition at line 327 of file stm32f4xx_flash.h.

#define OPTCR_BYTE0_ADDRESS   ((uint32_t)0x40023C14)

OPTCR register byte 0 (Bits[7:0]) base address.

Definition at line 310 of file stm32f4xx_flash.h.

#define OPTCR_BYTE1_ADDRESS   ((uint32_t)0x40023C15)

OPTCR register byte 1 (Bits[15:8]) base address.

Definition at line 314 of file stm32f4xx_flash.h.

#define OPTCR_BYTE2_ADDRESS   ((uint32_t)0x40023C16)

OPTCR register byte 2 (Bits[23:16]) base address.

Definition at line 318 of file stm32f4xx_flash.h.

#define OPTCR_BYTE3_ADDRESS   ((uint32_t)0x40023C17)

OPTCR register byte 3 (Bits[31:24]) base address.

Definition at line 322 of file stm32f4xx_flash.h.
