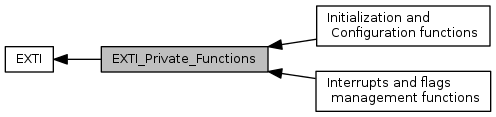

Modules | |
| Initialization and Configuration functions | |
| Initialization and Configuration functions. | |
| Interrupts and flags management functions | |
| Interrupts and flags management functions. | |
Functions | |
| void | EXTI_ClearFlag (uint32_t EXTI_Line) |
| Clears the EXTI's line pending flags. More... | |
| void | EXTI_ClearITPendingBit (uint32_t EXTI_Line) |
| Clears the EXTI's line pending bits. More... | |
| void | EXTI_DeInit (void) |
| Deinitializes the EXTI peripheral registers to their default reset values. More... | |
| void | EXTI_GenerateSWInterrupt (uint32_t EXTI_Line) |
| Generates a Software interrupt. More... | |
| FlagStatus | EXTI_GetFlagStatus (uint32_t EXTI_Line) |
| Checks whether the specified EXTI line flag is set or not. More... | |
| ITStatus | EXTI_GetITStatus (uint32_t EXTI_Line) |
| Checks whether the specified EXTI line is asserted or not. More... | |
| void | EXTI_Init (EXTI_InitTypeDef *EXTI_InitStruct) |
| Initializes the EXTI peripheral according to the specified parameters in the EXTI_InitStruct. More... | |
| void | EXTI_StructInit (EXTI_InitTypeDef *EXTI_InitStruct) |
| Fills each EXTI_InitStruct member with its reset value. More... | |
Detailed Description
Function Documentation
| void EXTI_ClearFlag | ( | uint32_t | EXTI_Line | ) |
Clears the EXTI's line pending flags.
- Parameters
-
EXTI_Line specifies the EXTI lines flags to clear. This parameter can be any combination of EXTI_Linex where x can be (0..19).
- Return values
-
None
Definition at line 209 of file stm32f10x_exti.c.
| void EXTI_ClearITPendingBit | ( | uint32_t | EXTI_Line | ) |
Clears the EXTI's line pending bits.
- Parameters
-
EXTI_Line specifies the EXTI lines to clear. This parameter can be any combination of EXTI_Linex where x can be (0..19).
- Return values
-
None
Definition at line 249 of file stm32f10x_exti.c.
| void EXTI_DeInit | ( | void | ) |
Deinitializes the EXTI peripheral registers to their default reset values.
- Parameters
-
None
- Return values
-
None
Definition at line 85 of file stm32f10x_exti.c.
| void EXTI_GenerateSWInterrupt | ( | uint32_t | EXTI_Line | ) |
Generates a Software interrupt.
Generates a Software interrupt on selected EXTI line.
- Parameters
-
EXTI_Line specifies the EXTI lines to be enabled or disabled. This parameter can be any combination of EXTI_Linex where x can be (0..19).
- Return values
-
None
Definition at line 171 of file stm32f10x_exti.c.
| FlagStatus EXTI_GetFlagStatus | ( | uint32_t | EXTI_Line | ) |
Checks whether the specified EXTI line flag is set or not.
- Parameters
-
EXTI_Line specifies the EXTI line flag to check. This parameter can be: - EXTI_Linex: External interrupt line x where x(0..19)
- Return values
-
The new state of EXTI_Line (SET or RESET).
Definition at line 186 of file stm32f10x_exti.c.
| ITStatus EXTI_GetITStatus | ( | uint32_t | EXTI_Line | ) |
Checks whether the specified EXTI line is asserted or not.
- Parameters
-
EXTI_Line specifies the EXTI line to check. This parameter can be: - EXTI_Linex: External interrupt line x where x(0..19)
- Return values
-
The new state of EXTI_Line (SET or RESET).
Definition at line 224 of file stm32f10x_exti.c.
| void EXTI_Init | ( | EXTI_InitTypeDef * | EXTI_InitStruct | ) |
Initializes the EXTI peripheral according to the specified parameters in the EXTI_InitStruct.
Initializes the EXTI peripheral according to the specified parameters in the EXTI_InitStruct. EXTI_Line specifies the EXTI line (EXTI0....EXTI35). EXTI_Mode specifies which EXTI line is used as interrupt or an event. EXTI_Trigger selects the trigger. When the trigger occurs, interrupt pending bit will be set. EXTI_LineCmd controls (Enable/Disable) the EXTI line.
- Parameters
-
EXTI_InitStruct pointer to a EXTI_InitTypeDef structure that contains the configuration information for the EXTI peripheral.
- Return values
-
None
Definition at line 101 of file stm32f10x_exti.c.
| void EXTI_StructInit | ( | EXTI_InitTypeDef * | EXTI_InitStruct | ) |
Fills each EXTI_InitStruct member with its reset value.
- Parameters
-
EXTI_InitStruct pointer to a EXTI_InitTypeDef structure which will be initialized.
- Return values
-
None
Definition at line 157 of file stm32f10x_exti.c.
