Modules | Classes | Macros

CAN driver modules. More...

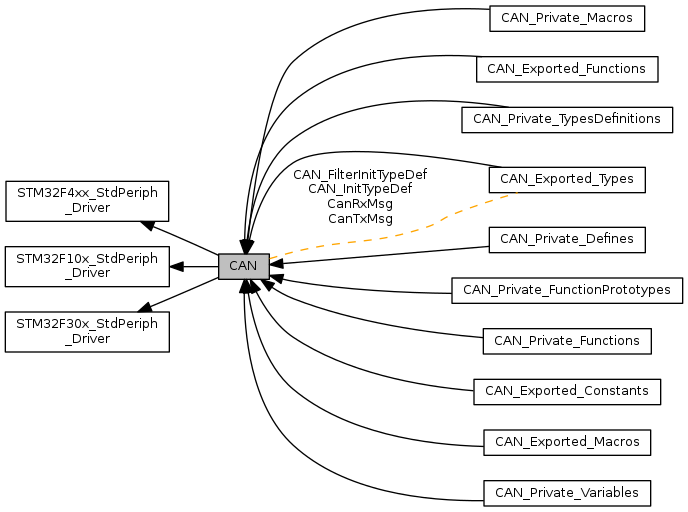

Collaboration diagram for CAN:

Modules

 CAN_Exported_Constants

 CAN_Private_Functions

 CAN_Exported_Types

 CAN_Exported_Macros

 CAN_Exported_Functions

 CAN_Private_TypesDefinitions

 CAN_Private_Defines

 CAN_Private_Macros

 CAN_Private_Variables

 CAN_Private_FunctionPrototypes


Classes

struct  CAN_FilterInitTypeDef
 CAN filter init structure definition. More...

struct  CAN_InitTypeDef
 CAN init structure definition. More...

struct  CanRxMsg
 CAN Rx message structure definition. More...

struct  CanTxMsg
 CAN Tx message structure definition. More...


Macros

#define CAN_FLAGS_ESR   ((uint32_t)0x00F00000)

#define CAN_FLAGS_ESR   ((uint32_t)0x00F00000)

#define CAN_FLAGS_MSR   ((uint32_t)0x01000000)

#define CAN_FLAGS_MSR   ((uint32_t)0x01000000)

#define CAN_FLAGS_RF0R   ((uint32_t)0x02000000)

#define CAN_FLAGS_RF0R   ((uint32_t)0x02000000)

#define CAN_FLAGS_RF1R   ((uint32_t)0x04000000)

#define CAN_FLAGS_RF1R   ((uint32_t)0x04000000)

#define CAN_FLAGS_TSR   ((uint32_t)0x08000000)

#define CAN_FLAGS_TSR   ((uint32_t)0x08000000)

#define CAN_MODE_MASK   ((uint32_t) 0x00000003)

#define CAN_MODE_MASK   ((uint32_t) 0x00000003)

#define CAN_TXMAILBOX_0   ((uint8_t)0x00)

#define CAN_TXMAILBOX_0   ((uint8_t)0x00)

#define CAN_TXMAILBOX_1   ((uint8_t)0x01)

#define CAN_TXMAILBOX_1   ((uint8_t)0x01)

#define CAN_TXMAILBOX_2   ((uint8_t)0x02)

#define CAN_TXMAILBOX_2   ((uint8_t)0x02)

#define FMR_FINIT   ((uint32_t)0x00000001) /* Filter init mode */

#define FMR_FINIT   ((uint32_t)0x00000001) /* Filter init mode */

#define INAK_TIMEOUT   ((uint32_t)0x00FFFFFF)

#define INAK_TIMEOUT   ((uint32_t)0x0000FFFF)

#define IS_CAN_ALL_PERIPH(PERIPH)   (((PERIPH) == CAN1))

#define IS_CAN_ALL_PERIPH(PERIPH)

#define MCR_DBF   ((uint32_t)0x00010000) /* software master reset */

#define MCR_DBF   ((uint32_t)0x00010000) /* software master reset */

#define SLAK_TIMEOUT   ((uint32_t)0x00FFFFFF)

#define SLAK_TIMEOUT   ((uint32_t)0x0000FFFF)

#define TMIDxR_TXRQ   ((uint32_t)0x00000001) /* Transmit mailbox request */

#define TMIDxR_TXRQ   ((uint32_t)0x00000001) /* Transmit mailbox request */


Detailed Description

CAN driver modules.

Macro Definition Documentation

#define CAN_FLAGS_ESR   ((uint32_t)0x00F00000)

Definition at line 108 of file stm32f30x_can.c.

#define CAN_FLAGS_ESR   ((uint32_t)0x00F00000)

Definition at line 122 of file stm32f4xx_can.c.

#define CAN_FLAGS_MSR   ((uint32_t)0x01000000)

Definition at line 106 of file stm32f30x_can.c.

#define CAN_FLAGS_MSR   ((uint32_t)0x01000000)

Definition at line 120 of file stm32f4xx_can.c.

#define CAN_FLAGS_RF0R   ((uint32_t)0x02000000)

Definition at line 104 of file stm32f30x_can.c.

#define CAN_FLAGS_RF0R   ((uint32_t)0x02000000)

Definition at line 118 of file stm32f4xx_can.c.

#define CAN_FLAGS_RF1R   ((uint32_t)0x04000000)

Definition at line 102 of file stm32f30x_can.c.

#define CAN_FLAGS_RF1R   ((uint32_t)0x04000000)

Definition at line 116 of file stm32f4xx_can.c.

#define CAN_FLAGS_TSR   ((uint32_t)0x08000000)

Definition at line 100 of file stm32f30x_can.c.

#define CAN_FLAGS_TSR   ((uint32_t)0x08000000)

Definition at line 114 of file stm32f4xx_can.c.

#define CAN_MODE_MASK   ((uint32_t) 0x00000003)

Definition at line 115 of file stm32f30x_can.c.

#define CAN_MODE_MASK   ((uint32_t) 0x00000003)

Definition at line 129 of file stm32f4xx_can.c.

#define CAN_TXMAILBOX_0   ((uint8_t)0x00)

Definition at line 111 of file stm32f30x_can.c.

#define CAN_TXMAILBOX_0   ((uint8_t)0x00)

Definition at line 125 of file stm32f4xx_can.c.

#define CAN_TXMAILBOX_1   ((uint8_t)0x01)

Definition at line 112 of file stm32f30x_can.c.

#define CAN_TXMAILBOX_1   ((uint8_t)0x01)

Definition at line 126 of file stm32f4xx_can.c.

#define CAN_TXMAILBOX_2   ((uint8_t)0x02)

Definition at line 113 of file stm32f30x_can.c.

#define CAN_TXMAILBOX_2   ((uint8_t)0x02)

Definition at line 127 of file stm32f4xx_can.c.

#define FMR_FINIT   ((uint32_t)0x00000001) /* Filter init mode */

Definition at line 92 of file stm32f30x_can.c.

#define FMR_FINIT   ((uint32_t)0x00000001) /* Filter init mode */

Definition at line 106 of file stm32f4xx_can.c.

#define INAK_TIMEOUT   ((uint32_t)0x00FFFFFF)

Definition at line 95 of file stm32f30x_can.c.

#define INAK_TIMEOUT   ((uint32_t)0x0000FFFF)

Definition at line 109 of file stm32f4xx_can.c.

#define IS_CAN_ALL_PERIPH (   PERIPH)    (((PERIPH) == CAN1))

Definition at line 50 of file stm32f30x_can.h.

#define IS_CAN_ALL_PERIPH (   PERIPH)
Value:
(((PERIPH) == CAN1) || \
((PERIPH) == CAN2))
#define CAN2
Definition: stm32f4xx.h:2070
#define CAN1
Definition: stm32f4xx.h:2069

Definition at line 50 of file stm32f4xx_can.h.

#define MCR_DBF   ((uint32_t)0x00010000) /* software master reset */

Definition at line 86 of file stm32f30x_can.c.

#define MCR_DBF   ((uint32_t)0x00010000) /* software master reset */

Definition at line 100 of file stm32f4xx_can.c.

#define SLAK_TIMEOUT   ((uint32_t)0x00FFFFFF)

Definition at line 97 of file stm32f30x_can.c.

#define SLAK_TIMEOUT   ((uint32_t)0x0000FFFF)

Definition at line 111 of file stm32f4xx_can.c.

#define TMIDxR_TXRQ   ((uint32_t)0x00000001) /* Transmit mailbox request */

Definition at line 89 of file stm32f30x_can.c.

#define TMIDxR_TXRQ   ((uint32_t)0x00000001) /* Transmit mailbox request */

Definition at line 103 of file stm32f4xx_can.c.
