STM32F4xx_StdPeriph_Driver/inc/stm32f4xx_rcc.h File Reference
#include "stm32f4xx.h"

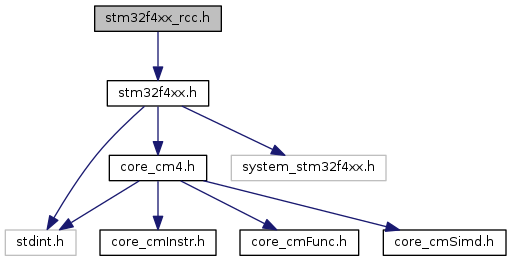

Include dependency graph for STM32F4xx_StdPeriph_Driver/inc/stm32f4xx_rcc.h:

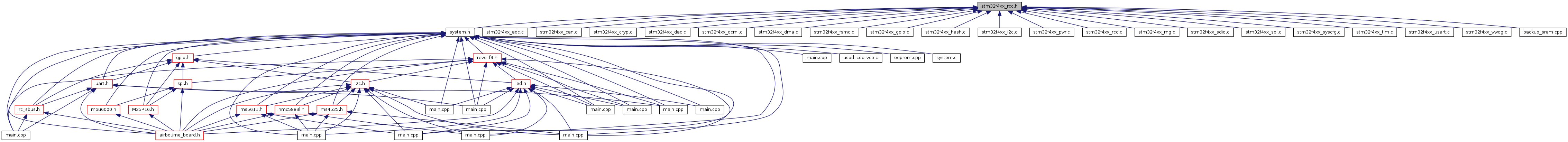

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  RCC_ClocksTypeDef


Macros

#define IS_RCC_AHB1_CLOCK_PERIPH(PERIPH)   ((((PERIPH) & 0x818BEE00) == 0x00) && ((PERIPH) != 0x00))

#define IS_RCC_AHB1_LPMODE_PERIPH(PERIPH)   ((((PERIPH) & 0x81906E00) == 0x00) && ((PERIPH) != 0x00))

#define IS_RCC_AHB1_RESET_PERIPH(PERIPH)   ((((PERIPH) & 0xDD9FEE00) == 0x00) && ((PERIPH) != 0x00))

#define IS_RCC_AHB2_PERIPH(PERIPH)   ((((PERIPH) & 0xFFFFFF0E) == 0x00) && ((PERIPH) != 0x00))

#define IS_RCC_AHB3_PERIPH(PERIPH)   ((((PERIPH) & 0xFFFFFFFE) == 0x00) && ((PERIPH) != 0x00))

#define IS_RCC_APB1_PERIPH(PERIPH)   ((((PERIPH) & 0x09013600) == 0x00) && ((PERIPH) != 0x00))

#define IS_RCC_APB2_PERIPH(PERIPH)   ((((PERIPH) & 0xFFC880CC) == 0x00) && ((PERIPH) != 0x00))

#define IS_RCC_APB2_RESET_PERIPH(PERIPH)   ((((PERIPH) & 0xFFC886CC) == 0x00) && ((PERIPH) != 0x00))

#define IS_RCC_CALIBRATION_VALUE(VALUE)   ((VALUE) <= 0x1F)

#define IS_RCC_CLEAR_IT(IT)   ((((IT) & (uint8_t)0x40) == 0x00) && ((IT) != 0x00))

#define IS_RCC_FLAG(FLAG)

#define IS_RCC_GET_IT(IT)

#define IS_RCC_HCLK(HCLK)

#define IS_RCC_HSE(HSE)

#define IS_RCC_I2SCLK_SOURCE(SOURCE)   (((SOURCE) == RCC_I2S2CLKSource_PLLI2S) || ((SOURCE) == RCC_I2S2CLKSource_Ext))

#define IS_RCC_IT(IT)   ((((IT) & (uint8_t)0xC0) == 0x00) && ((IT) != 0x00))

#define IS_RCC_LSE(LSE)

#define IS_RCC_MCO1DIV(DIV)

#define IS_RCC_MCO1SOURCE(SOURCE)

#define IS_RCC_MCO2DIV(DIV)

#define IS_RCC_MCO2SOURCE(SOURCE)

#define IS_RCC_PCLK(PCLK)

#define IS_RCC_PLL_SOURCE(SOURCE)

#define IS_RCC_PLLI2SN_VALUE(VALUE)   ((192 <= (VALUE)) && ((VALUE) <= 432))

#define IS_RCC_PLLI2SR_VALUE(VALUE)   ((2 <= (VALUE)) && ((VALUE) <= 7))

#define IS_RCC_PLLM_VALUE(VALUE)   ((VALUE) <= 63)

#define IS_RCC_PLLN_VALUE(VALUE)   ((192 <= (VALUE)) && ((VALUE) <= 432))

#define IS_RCC_PLLP_VALUE(VALUE)   (((VALUE) == 2) || ((VALUE) == 4) || ((VALUE) == 6) || ((VALUE) == 8))

#define IS_RCC_PLLQ_VALUE(VALUE)   ((4 <= (VALUE)) && ((VALUE) <= 15))

#define IS_RCC_RTCCLK_SOURCE(SOURCE)

#define IS_RCC_SYSCLK_SOURCE(SOURCE)

#define IS_RCC_TIMCLK_PRESCALER(VALUE)   (((VALUE) == RCC_TIMPrescDesactivated) || ((VALUE) == RCC_TIMPrescActivated))

#define RCC_AHB1Periph_BKPSRAM   ((uint32_t)0x00040000)

#define RCC_AHB1Periph_CCMDATARAMEN   ((uint32_t)0x00100000)

#define RCC_AHB1Periph_CRC   ((uint32_t)0x00001000)

#define RCC_AHB1Periph_DMA1   ((uint32_t)0x00200000)

#define RCC_AHB1Periph_DMA2   ((uint32_t)0x00400000)

#define RCC_AHB1Periph_ETH_MAC   ((uint32_t)0x02000000)

#define RCC_AHB1Periph_ETH_MAC_PTP   ((uint32_t)0x10000000)

#define RCC_AHB1Periph_ETH_MAC_Rx   ((uint32_t)0x08000000)

#define RCC_AHB1Periph_ETH_MAC_Tx   ((uint32_t)0x04000000)

#define RCC_AHB1Periph_FLITF   ((uint32_t)0x00008000)

#define RCC_AHB1Periph_GPIOA   ((uint32_t)0x00000001)

#define RCC_AHB1Periph_GPIOB   ((uint32_t)0x00000002)

#define RCC_AHB1Periph_GPIOC   ((uint32_t)0x00000004)

#define RCC_AHB1Periph_GPIOD   ((uint32_t)0x00000008)

#define RCC_AHB1Periph_GPIOE   ((uint32_t)0x00000010)

#define RCC_AHB1Periph_GPIOF   ((uint32_t)0x00000020)

#define RCC_AHB1Periph_GPIOG   ((uint32_t)0x00000040)

#define RCC_AHB1Periph_GPIOH   ((uint32_t)0x00000080)

#define RCC_AHB1Periph_GPIOI   ((uint32_t)0x00000100)

#define RCC_AHB1Periph_OTG_HS   ((uint32_t)0x20000000)

#define RCC_AHB1Periph_OTG_HS_ULPI   ((uint32_t)0x40000000)

#define RCC_AHB1Periph_SRAM1   ((uint32_t)0x00010000)

#define RCC_AHB1Periph_SRAM2   ((uint32_t)0x00020000)

#define RCC_AHB1Periph_SRAM3   ((uint32_t)0x00080000)

#define RCC_AHB2Periph_CRYP   ((uint32_t)0x00000010)

#define RCC_AHB2Periph_DCMI   ((uint32_t)0x00000001)

#define RCC_AHB2Periph_HASH   ((uint32_t)0x00000020)

#define RCC_AHB2Periph_OTG_FS   ((uint32_t)0x00000080)

#define RCC_AHB2Periph_RNG   ((uint32_t)0x00000040)

#define RCC_AHB3Periph_FSMC   ((uint32_t)0x00000001)

#define RCC_APB1Periph_CAN1   ((uint32_t)0x02000000)

#define RCC_APB1Periph_CAN2   ((uint32_t)0x04000000)

#define RCC_APB1Periph_DAC   ((uint32_t)0x20000000)

#define RCC_APB1Periph_I2C1   ((uint32_t)0x00200000)

#define RCC_APB1Periph_I2C2   ((uint32_t)0x00400000)

#define RCC_APB1Periph_I2C3   ((uint32_t)0x00800000)

#define RCC_APB1Periph_PWR   ((uint32_t)0x10000000)

#define RCC_APB1Periph_SPI2   ((uint32_t)0x00004000)

#define RCC_APB1Periph_SPI3   ((uint32_t)0x00008000)

#define RCC_APB1Periph_TIM12   ((uint32_t)0x00000040)

#define RCC_APB1Periph_TIM13   ((uint32_t)0x00000080)

#define RCC_APB1Periph_TIM14   ((uint32_t)0x00000100)

#define RCC_APB1Periph_TIM2   ((uint32_t)0x00000001)

#define RCC_APB1Periph_TIM3   ((uint32_t)0x00000002)

#define RCC_APB1Periph_TIM4   ((uint32_t)0x00000004)

#define RCC_APB1Periph_TIM5   ((uint32_t)0x00000008)

#define RCC_APB1Periph_TIM6   ((uint32_t)0x00000010)

#define RCC_APB1Periph_TIM7   ((uint32_t)0x00000020)

#define RCC_APB1Periph_UART4   ((uint32_t)0x00080000)

#define RCC_APB1Periph_UART5   ((uint32_t)0x00100000)

#define RCC_APB1Periph_UART7   ((uint32_t)0x40000000)

#define RCC_APB1Periph_UART8   ((uint32_t)0x80000000)

#define RCC_APB1Periph_USART2   ((uint32_t)0x00020000)

#define RCC_APB1Periph_USART3   ((uint32_t)0x00040000)

#define RCC_APB1Periph_WWDG   ((uint32_t)0x00000800)

#define RCC_APB2Periph_ADC   ((uint32_t)0x00000100)

#define RCC_APB2Periph_ADC1   ((uint32_t)0x00000100)

#define RCC_APB2Periph_ADC2   ((uint32_t)0x00000200)

#define RCC_APB2Periph_ADC3   ((uint32_t)0x00000400)

#define RCC_APB2Periph_SDIO   ((uint32_t)0x00000800)

#define RCC_APB2Periph_SPI1   ((uint32_t)0x00001000)

#define RCC_APB2Periph_SPI4   ((uint32_t)0x00002000)

#define RCC_APB2Periph_SPI5   ((uint32_t)0x00100000)

#define RCC_APB2Periph_SPI6   ((uint32_t)0x00200000)

#define RCC_APB2Periph_SYSCFG   ((uint32_t)0x00004000)

#define RCC_APB2Periph_TIM1   ((uint32_t)0x00000001)

#define RCC_APB2Periph_TIM10   ((uint32_t)0x00020000)

#define RCC_APB2Periph_TIM11   ((uint32_t)0x00040000)

#define RCC_APB2Periph_TIM8   ((uint32_t)0x00000002)

#define RCC_APB2Periph_TIM9   ((uint32_t)0x00010000)

#define RCC_APB2Periph_USART1   ((uint32_t)0x00000010)

#define RCC_APB2Periph_USART6   ((uint32_t)0x00000020)

#define RCC_FLAG_BORRST   ((uint8_t)0x79)

#define RCC_FLAG_HSERDY   ((uint8_t)0x31)

#define RCC_FLAG_HSIRDY   ((uint8_t)0x21)

#define RCC_FLAG_IWDGRST   ((uint8_t)0x7D)

#define RCC_FLAG_LPWRRST   ((uint8_t)0x7F)

#define RCC_FLAG_LSERDY   ((uint8_t)0x41)

#define RCC_FLAG_LSIRDY   ((uint8_t)0x61)

#define RCC_FLAG_PINRST   ((uint8_t)0x7A)

#define RCC_FLAG_PLLI2SRDY   ((uint8_t)0x3B)

#define RCC_FLAG_PLLRDY   ((uint8_t)0x39)

#define RCC_FLAG_PORRST   ((uint8_t)0x7B)

#define RCC_FLAG_SFTRST   ((uint8_t)0x7C)

#define RCC_FLAG_WWDGRST   ((uint8_t)0x7E)

#define RCC_HCLK_Div1   ((uint32_t)0x00000000)

#define RCC_HCLK_Div16   ((uint32_t)0x00001C00)

#define RCC_HCLK_Div2   ((uint32_t)0x00001000)

#define RCC_HCLK_Div4   ((uint32_t)0x00001400)

#define RCC_HCLK_Div8   ((uint32_t)0x00001800)

#define RCC_HSE_Bypass   ((uint8_t)0x05)

#define RCC_HSE_OFF   ((uint8_t)0x00)

#define RCC_HSE_ON   ((uint8_t)0x01)

#define RCC_I2S2CLKSource_Ext   ((uint8_t)0x01)

#define RCC_I2S2CLKSource_PLLI2S   ((uint8_t)0x00)

#define RCC_IT_CSS   ((uint8_t)0x80)

#define RCC_IT_HSERDY   ((uint8_t)0x08)

#define RCC_IT_HSIRDY   ((uint8_t)0x04)

#define RCC_IT_LSERDY   ((uint8_t)0x02)

#define RCC_IT_LSIRDY   ((uint8_t)0x01)

#define RCC_IT_PLLI2SRDY   ((uint8_t)0x20)

#define RCC_IT_PLLRDY   ((uint8_t)0x10)

#define RCC_LSE_Bypass   ((uint8_t)0x04)

#define RCC_LSE_OFF   ((uint8_t)0x00)

#define RCC_LSE_ON   ((uint8_t)0x01)

#define RCC_MCO1Div_1   ((uint32_t)0x00000000)

#define RCC_MCO1Div_2   ((uint32_t)0x04000000)

#define RCC_MCO1Div_3   ((uint32_t)0x05000000)

#define RCC_MCO1Div_4   ((uint32_t)0x06000000)

#define RCC_MCO1Div_5   ((uint32_t)0x07000000)

#define RCC_MCO1Source_HSE   ((uint32_t)0x00400000)

#define RCC_MCO1Source_HSI   ((uint32_t)0x00000000)

#define RCC_MCO1Source_LSE   ((uint32_t)0x00200000)

#define RCC_MCO1Source_PLLCLK   ((uint32_t)0x00600000)

#define RCC_MCO2Div_1   ((uint32_t)0x00000000)

#define RCC_MCO2Div_2   ((uint32_t)0x20000000)

#define RCC_MCO2Div_3   ((uint32_t)0x28000000)

#define RCC_MCO2Div_4   ((uint32_t)0x30000000)

#define RCC_MCO2Div_5   ((uint32_t)0x38000000)

#define RCC_MCO2Source_HSE   ((uint32_t)0x80000000)

#define RCC_MCO2Source_PLLCLK   ((uint32_t)0xC0000000)

#define RCC_MCO2Source_PLLI2SCLK   ((uint32_t)0x40000000)

#define RCC_MCO2Source_SYSCLK   ((uint32_t)0x00000000)

#define RCC_PLLSource_HSE   ((uint32_t)0x00400000)

#define RCC_PLLSource_HSI   ((uint32_t)0x00000000)

#define RCC_RTCCLKSource_HSE_Div10   ((uint32_t)0x000A0300)

#define RCC_RTCCLKSource_HSE_Div11   ((uint32_t)0x000B0300)

#define RCC_RTCCLKSource_HSE_Div12   ((uint32_t)0x000C0300)

#define RCC_RTCCLKSource_HSE_Div13   ((uint32_t)0x000D0300)

#define RCC_RTCCLKSource_HSE_Div14   ((uint32_t)0x000E0300)

#define RCC_RTCCLKSource_HSE_Div15   ((uint32_t)0x000F0300)

#define RCC_RTCCLKSource_HSE_Div16   ((uint32_t)0x00100300)

#define RCC_RTCCLKSource_HSE_Div17   ((uint32_t)0x00110300)

#define RCC_RTCCLKSource_HSE_Div18   ((uint32_t)0x00120300)

#define RCC_RTCCLKSource_HSE_Div19   ((uint32_t)0x00130300)

#define RCC_RTCCLKSource_HSE_Div2   ((uint32_t)0x00020300)

#define RCC_RTCCLKSource_HSE_Div20   ((uint32_t)0x00140300)

#define RCC_RTCCLKSource_HSE_Div21   ((uint32_t)0x00150300)

#define RCC_RTCCLKSource_HSE_Div22   ((uint32_t)0x00160300)

#define RCC_RTCCLKSource_HSE_Div23   ((uint32_t)0x00170300)

#define RCC_RTCCLKSource_HSE_Div24   ((uint32_t)0x00180300)

#define RCC_RTCCLKSource_HSE_Div25   ((uint32_t)0x00190300)

#define RCC_RTCCLKSource_HSE_Div26   ((uint32_t)0x001A0300)

#define RCC_RTCCLKSource_HSE_Div27   ((uint32_t)0x001B0300)

#define RCC_RTCCLKSource_HSE_Div28   ((uint32_t)0x001C0300)

#define RCC_RTCCLKSource_HSE_Div29   ((uint32_t)0x001D0300)

#define RCC_RTCCLKSource_HSE_Div3   ((uint32_t)0x00030300)

#define RCC_RTCCLKSource_HSE_Div30   ((uint32_t)0x001E0300)

#define RCC_RTCCLKSource_HSE_Div31   ((uint32_t)0x001F0300)

#define RCC_RTCCLKSource_HSE_Div4   ((uint32_t)0x00040300)

#define RCC_RTCCLKSource_HSE_Div5   ((uint32_t)0x00050300)

#define RCC_RTCCLKSource_HSE_Div6   ((uint32_t)0x00060300)

#define RCC_RTCCLKSource_HSE_Div7   ((uint32_t)0x00070300)

#define RCC_RTCCLKSource_HSE_Div8   ((uint32_t)0x00080300)

#define RCC_RTCCLKSource_HSE_Div9   ((uint32_t)0x00090300)

#define RCC_RTCCLKSource_LSE   ((uint32_t)0x00000100)

#define RCC_RTCCLKSource_LSI   ((uint32_t)0x00000200)

#define RCC_SYSCLK_Div1   ((uint32_t)0x00000000)

#define RCC_SYSCLK_Div128   ((uint32_t)0x000000D0)

#define RCC_SYSCLK_Div16   ((uint32_t)0x000000B0)

#define RCC_SYSCLK_Div2   ((uint32_t)0x00000080)

#define RCC_SYSCLK_Div256   ((uint32_t)0x000000E0)

#define RCC_SYSCLK_Div4   ((uint32_t)0x00000090)

#define RCC_SYSCLK_Div512   ((uint32_t)0x000000F0)

#define RCC_SYSCLK_Div64   ((uint32_t)0x000000C0)

#define RCC_SYSCLK_Div8   ((uint32_t)0x000000A0)

#define RCC_SYSCLKSource_HSE   ((uint32_t)0x00000001)

#define RCC_SYSCLKSource_HSI   ((uint32_t)0x00000000)

#define RCC_SYSCLKSource_PLLCLK   ((uint32_t)0x00000002)

#define RCC_TIMPrescActivated   ((uint8_t)0x01)

#define RCC_TIMPrescDesactivated   ((uint8_t)0x00)


Functions

void RCC_AdjustHSICalibrationValue (uint8_t HSICalibrationValue)
 Adjusts the Internal High Speed oscillator (HSI) calibration value. More...

void RCC_AHB1PeriphClockCmd (uint32_t RCC_AHB1Periph, FunctionalState NewState)
 Enables or disables the AHB1 peripheral clock. More...

void RCC_AHB1PeriphClockLPModeCmd (uint32_t RCC_AHB1Periph, FunctionalState NewState)
 Enables or disables the AHB1 peripheral clock during Low Power (Sleep) mode. More...

void RCC_AHB1PeriphResetCmd (uint32_t RCC_AHB1Periph, FunctionalState NewState)
 Forces or releases AHB1 peripheral reset. More...

void RCC_AHB2PeriphClockCmd (uint32_t RCC_AHB2Periph, FunctionalState NewState)
 Enables or disables the AHB2 peripheral clock. More...

void RCC_AHB2PeriphClockLPModeCmd (uint32_t RCC_AHB2Periph, FunctionalState NewState)
 Enables or disables the AHB2 peripheral clock during Low Power (Sleep) mode. More...

void RCC_AHB2PeriphResetCmd (uint32_t RCC_AHB2Periph, FunctionalState NewState)
 Forces or releases AHB2 peripheral reset. More...

void RCC_AHB3PeriphClockCmd (uint32_t RCC_AHB3Periph, FunctionalState NewState)
 Enables or disables the AHB3 peripheral clock. More...

void RCC_AHB3PeriphClockLPModeCmd (uint32_t RCC_AHB3Periph, FunctionalState NewState)
 Enables or disables the AHB3 peripheral clock during Low Power (Sleep) mode. More...

void RCC_AHB3PeriphResetCmd (uint32_t RCC_AHB3Periph, FunctionalState NewState)
 Forces or releases AHB3 peripheral reset. More...

void RCC_APB1PeriphClockCmd (uint32_t RCC_APB1Periph, FunctionalState NewState)
 Enables or disables the Low Speed APB (APB1) peripheral clock. More...

void RCC_APB1PeriphClockLPModeCmd (uint32_t RCC_APB1Periph, FunctionalState NewState)
 Enables or disables the APB1 peripheral clock during Low Power (Sleep) mode. More...

void RCC_APB1PeriphResetCmd (uint32_t RCC_APB1Periph, FunctionalState NewState)
 Forces or releases Low Speed APB (APB1) peripheral reset. More...

void RCC_APB2PeriphClockCmd (uint32_t RCC_APB2Periph, FunctionalState NewState)
 Enables or disables the High Speed APB (APB2) peripheral clock. More...

void RCC_APB2PeriphClockLPModeCmd (uint32_t RCC_APB2Periph, FunctionalState NewState)
 Enables or disables the APB2 peripheral clock during Low Power (Sleep) mode. More...

void RCC_APB2PeriphResetCmd (uint32_t RCC_APB2Periph, FunctionalState NewState)
 Forces or releases High Speed APB (APB2) peripheral reset. More...

void RCC_BackupResetCmd (FunctionalState NewState)
 Forces or releases the Backup domain reset. More...

void RCC_ClearFlag (void)
 Clears the RCC reset flags. The reset flags are: RCC_FLAG_PINRST, RCC_FLAG_PORRST, RCC_FLAG_SFTRST, RCC_FLAG_IWDGRST, RCC_FLAG_WWDGRST, RCC_FLAG_LPWRRST. More...

void RCC_ClearITPendingBit (uint8_t RCC_IT)
 Clears the RCC's interrupt pending bits. More...

void RCC_ClockSecuritySystemCmd (FunctionalState NewState)
 Enables or disables the Clock Security System. More...

void RCC_DeInit (void)
 Resets the RCC clock configuration to the default reset state. More...

void RCC_GetClocksFreq (RCC_ClocksTypeDef *RCC_Clocks)
 Returns the frequencies of different on chip clocks; SYSCLK, HCLK, PCLK1 and PCLK2. More...

FlagStatus RCC_GetFlagStatus (uint8_t RCC_FLAG)
 Checks whether the specified RCC flag is set or not. More...

ITStatus RCC_GetITStatus (uint8_t RCC_IT)
 Checks whether the specified RCC interrupt has occurred or not. More...

uint8_t RCC_GetSYSCLKSource (void)
 Returns the clock source used as system clock. More...

void RCC_HCLKConfig (uint32_t RCC_SYSCLK)
 Configures the AHB clock (HCLK). More...

void RCC_HSEConfig (uint8_t RCC_HSE)
 Configures the External High Speed oscillator (HSE). More...

void RCC_HSICmd (FunctionalState NewState)
 Enables or disables the Internal High Speed oscillator (HSI). More...

void RCC_I2SCLKConfig (uint32_t RCC_I2SCLKSource)
 Configures the I2S clock source (I2SCLK). More...

void RCC_ITConfig (uint8_t RCC_IT, FunctionalState NewState)
 Enables or disables the specified RCC interrupts. More...

void RCC_LSEConfig (uint8_t RCC_LSE)
 Configures the External Low Speed oscillator (LSE). More...

void RCC_LSICmd (FunctionalState NewState)
 Enables or disables the Internal Low Speed oscillator (LSI). More...

void RCC_MCO1Config (uint32_t RCC_MCO1Source, uint32_t RCC_MCO1Div)
 Selects the clock source to output on MCO1 pin(PA8). More...

void RCC_MCO2Config (uint32_t RCC_MCO2Source, uint32_t RCC_MCO2Div)
 Selects the clock source to output on MCO2 pin(PC9). More...

void RCC_PCLK1Config (uint32_t RCC_HCLK)
 Configures the Low Speed APB clock (PCLK1). More...

void RCC_PCLK2Config (uint32_t RCC_HCLK)
 Configures the High Speed APB clock (PCLK2). More...

void RCC_PLLCmd (FunctionalState NewState)
 Enables or disables the main PLL. More...

void RCC_PLLConfig (uint32_t RCC_PLLSource, uint32_t PLLM, uint32_t PLLN, uint32_t PLLP, uint32_t PLLQ)
 Configures the main PLL clock source, multiplication and division factors. More...

void RCC_PLLI2SCmd (FunctionalState NewState)
 Enables or disables the PLLI2S. More...

void RCC_PLLI2SConfig (uint32_t PLLI2SN, uint32_t PLLI2SR)
 Configures the PLLI2S clock multiplication and division factors. More...

void RCC_RTCCLKCmd (FunctionalState NewState)
 Enables or disables the RTC clock. More...

void RCC_RTCCLKConfig (uint32_t RCC_RTCCLKSource)
 Configures the RTC clock (RTCCLK). More...

void RCC_SYSCLKConfig (uint32_t RCC_SYSCLKSource)
 Configures the system clock (SYSCLK). More...

void RCC_TIMCLKPresConfig (uint32_t RCC_TIMCLKPrescaler)
 Configures the Timers clocks prescalers selection. More...

ErrorStatus RCC_WaitForHSEStartUp (void)
 Waits for HSE start-up. More...



rosflight_firmware
Author(s): Daniel Koch , James Jackson
autogenerated on Wed Jul 3 2019 19:59:27
