Classes | Macros | Typedefs | Functions
mavlink_msg_set_position_target_local_ned.h File Reference

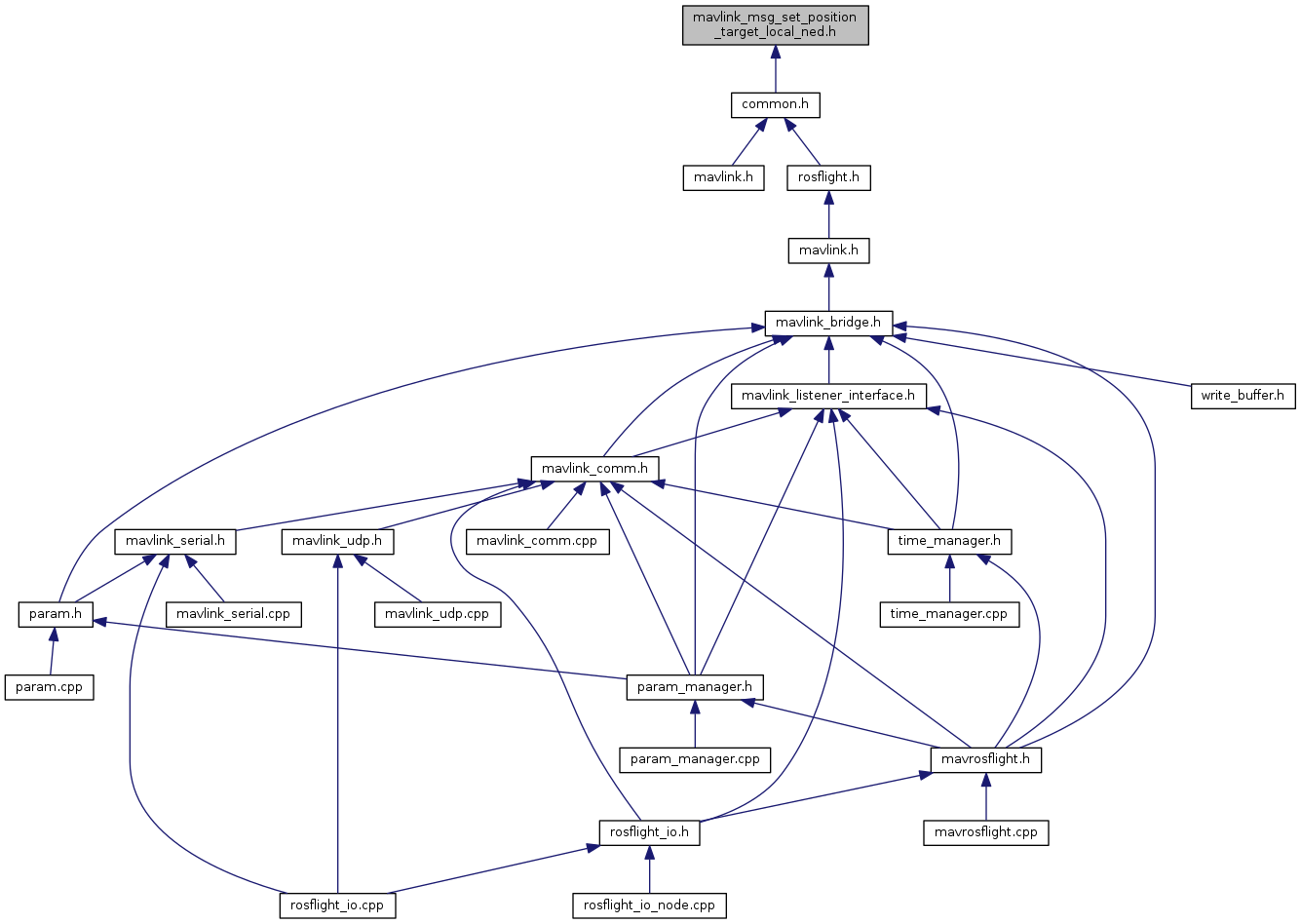

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  __mavlink_set_position_target_local_ned_t


Macros

#define MAVLINK_MESSAGE_INFO_SET_POSITION_TARGET_LOCAL_NED

#define MAVLINK_MSG_ID_84_CRC   143

#define MAVLINK_MSG_ID_84_LEN   53

#define MAVLINK_MSG_ID_SET_POSITION_TARGET_LOCAL_NED   84

#define MAVLINK_MSG_ID_SET_POSITION_TARGET_LOCAL_NED_CRC   143

#define MAVLINK_MSG_ID_SET_POSITION_TARGET_LOCAL_NED_LEN   53


Typedefs

typedef struct __mavlink_set_position_target_local_ned_t mavlink_set_position_target_local_ned_t


Functions

static void mavlink_msg_set_position_target_local_ned_decode (const mavlink_message_t *msg, mavlink_set_position_target_local_ned_t *set_position_target_local_ned)
 Decode a set_position_target_local_ned message into a struct. More...

static uint16_t mavlink_msg_set_position_target_local_ned_encode (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, const mavlink_set_position_target_local_ned_t *set_position_target_local_ned)
 Encode a set_position_target_local_ned struct. More...

static uint16_t mavlink_msg_set_position_target_local_ned_encode_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, const mavlink_set_position_target_local_ned_t *set_position_target_local_ned)
 Encode a set_position_target_local_ned struct on a channel. More...

static float mavlink_msg_set_position_target_local_ned_get_afx (const mavlink_message_t *msg)
 Get field afx from set_position_target_local_ned message. More...

static float mavlink_msg_set_position_target_local_ned_get_afy (const mavlink_message_t *msg)
 Get field afy from set_position_target_local_ned message. More...

static float mavlink_msg_set_position_target_local_ned_get_afz (const mavlink_message_t *msg)
 Get field afz from set_position_target_local_ned message. More...

static uint8_t mavlink_msg_set_position_target_local_ned_get_coordinate_frame (const mavlink_message_t *msg)
 Get field coordinate_frame from set_position_target_local_ned message. More...

static uint8_t mavlink_msg_set_position_target_local_ned_get_target_component (const mavlink_message_t *msg)
 Get field target_component from set_position_target_local_ned message. More...

static uint8_t mavlink_msg_set_position_target_local_ned_get_target_system (const mavlink_message_t *msg)
 Get field target_system from set_position_target_local_ned message. More...

static uint32_t mavlink_msg_set_position_target_local_ned_get_time_boot_ms (const mavlink_message_t *msg)
 Send a set_position_target_local_ned message. More...

static uint16_t mavlink_msg_set_position_target_local_ned_get_type_mask (const mavlink_message_t *msg)
 Get field type_mask from set_position_target_local_ned message. More...

static float mavlink_msg_set_position_target_local_ned_get_vx (const mavlink_message_t *msg)
 Get field vx from set_position_target_local_ned message. More...

static float mavlink_msg_set_position_target_local_ned_get_vy (const mavlink_message_t *msg)
 Get field vy from set_position_target_local_ned message. More...

static float mavlink_msg_set_position_target_local_ned_get_vz (const mavlink_message_t *msg)
 Get field vz from set_position_target_local_ned message. More...

static float mavlink_msg_set_position_target_local_ned_get_x (const mavlink_message_t *msg)
 Get field x from set_position_target_local_ned message. More...

static float mavlink_msg_set_position_target_local_ned_get_y (const mavlink_message_t *msg)
 Get field y from set_position_target_local_ned message. More...

static float mavlink_msg_set_position_target_local_ned_get_yaw (const mavlink_message_t *msg)
 Get field yaw from set_position_target_local_ned message. More...

static float mavlink_msg_set_position_target_local_ned_get_yaw_rate (const mavlink_message_t *msg)
 Get field yaw_rate from set_position_target_local_ned message. More...

static float mavlink_msg_set_position_target_local_ned_get_z (const mavlink_message_t *msg)
 Get field z from set_position_target_local_ned message. More...

static uint16_t mavlink_msg_set_position_target_local_ned_pack (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, uint32_t time_boot_ms, uint8_t target_system, uint8_t target_component, uint8_t coordinate_frame, uint16_t type_mask, float x, float y, float z, float vx, float vy, float vz, float afx, float afy, float afz, float yaw, float yaw_rate)
 Pack a set_position_target_local_ned message. More...

static uint16_t mavlink_msg_set_position_target_local_ned_pack_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, uint32_t time_boot_ms, uint8_t target_system, uint8_t target_component, uint8_t coordinate_frame, uint16_t type_mask, float x, float y, float z, float vx, float vy, float vz, float afx, float afy, float afz, float yaw, float yaw_rate)
 Pack a set_position_target_local_ned message on a channel. More...


Macro Definition Documentation

#define MAVLINK_MESSAGE_INFO_SET_POSITION_TARGET_LOCAL_NED
Value:
{ \
"SET_POSITION_TARGET_LOCAL_NED", \
16, \
{ { "time_boot_ms", NULL, MAVLINK_TYPE_UINT32_T, 0, 0, offsetof(mavlink_set_position_target_local_ned_t, time_boot_ms) }, \
{ "x", NULL, MAVLINK_TYPE_FLOAT, 0, 4, offsetof(mavlink_set_position_target_local_ned_t, x) }, \
{ "y", NULL, MAVLINK_TYPE_FLOAT, 0, 8, offsetof(mavlink_set_position_target_local_ned_t, y) }, \
{ "z", NULL, MAVLINK_TYPE_FLOAT, 0, 12, offsetof(mavlink_set_position_target_local_ned_t, z) }, \
{ "vx", NULL, MAVLINK_TYPE_FLOAT, 0, 16, offsetof(mavlink_set_position_target_local_ned_t, vx) }, \
{ "vy", NULL, MAVLINK_TYPE_FLOAT, 0, 20, offsetof(mavlink_set_position_target_local_ned_t, vy) }, \
{ "vz", NULL, MAVLINK_TYPE_FLOAT, 0, 24, offsetof(mavlink_set_position_target_local_ned_t, vz) }, \
{ "afx", NULL, MAVLINK_TYPE_FLOAT, 0, 28, offsetof(mavlink_set_position_target_local_ned_t, afx) }, \
{ "afy", NULL, MAVLINK_TYPE_FLOAT, 0, 32, offsetof(mavlink_set_position_target_local_ned_t, afy) }, \
{ "afz", NULL, MAVLINK_TYPE_FLOAT, 0, 36, offsetof(mavlink_set_position_target_local_ned_t, afz) }, \
{ "yaw", NULL, MAVLINK_TYPE_FLOAT, 0, 40, offsetof(mavlink_set_position_target_local_ned_t, yaw) }, \
{ "yaw_rate", NULL, MAVLINK_TYPE_FLOAT, 0, 44, offsetof(mavlink_set_position_target_local_ned_t, yaw_rate) }, \
{ "type_mask", NULL, MAVLINK_TYPE_UINT16_T, 0, 48, offsetof(mavlink_set_position_target_local_ned_t, type_mask) }, \
{ "target_system", NULL, MAVLINK_TYPE_UINT8_T, 0, 50, offsetof(mavlink_set_position_target_local_ned_t, target_system) }, \
{ "target_component", NULL, MAVLINK_TYPE_UINT8_T, 0, 51, offsetof(mavlink_set_position_target_local_ned_t, target_component) }, \
{ "coordinate_frame", NULL, MAVLINK_TYPE_UINT8_T, 0, 52, offsetof(mavlink_set_position_target_local_ned_t, coordinate_frame) }, \
} \
}

Definition at line 33 of file mavlink_msg_set_position_target_local_ned.h.

#define MAVLINK_MSG_ID_84_CRC   143

Definition at line 29 of file mavlink_msg_set_position_target_local_ned.h.

#define MAVLINK_MSG_ID_84_LEN   53

Definition at line 26 of file mavlink_msg_set_position_target_local_ned.h.

#define MAVLINK_MSG_ID_SET_POSITION_TARGET_LOCAL_NED   84

Definition at line 3 of file mavlink_msg_set_position_target_local_ned.h.

#define MAVLINK_MSG_ID_SET_POSITION_TARGET_LOCAL_NED_CRC   143

Definition at line 28 of file mavlink_msg_set_position_target_local_ned.h.

#define MAVLINK_MSG_ID_SET_POSITION_TARGET_LOCAL_NED_LEN   53

Definition at line 25 of file mavlink_msg_set_position_target_local_ned.h.

Typedef Documentation

Function Documentation

static void mavlink_msg_set_position_target_local_ned_decode ( const mavlink_message_t *  msg,
mavlink_set_position_target_local_ned_t set_position_target_local_ned
)
inlinestatic

Decode a set_position_target_local_ned message into a struct.

Parameters
msgThe message to decode
set_position_target_local_nedC-struct to decode the message contents into

Definition at line 547 of file mavlink_msg_set_position_target_local_ned.h.

static uint16_t mavlink_msg_set_position_target_local_ned_encode ( uint8_t  system_id,
uint8_t  component_id,
mavlink_message_t *  msg,
const mavlink_set_position_target_local_ned_t set_position_target_local_ned
)
inlinestatic

Encode a set_position_target_local_ned struct.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
msgThe MAVLink message to compress the data into
set_position_target_local_nedC-struct to read the message contents from

Definition at line 219 of file mavlink_msg_set_position_target_local_ned.h.

static uint16_t mavlink_msg_set_position_target_local_ned_encode_chan ( uint8_t  system_id,
uint8_t  component_id,
uint8_t  chan,
mavlink_message_t *  msg,
const mavlink_set_position_target_local_ned_t set_position_target_local_ned
)
inlinestatic

Encode a set_position_target_local_ned struct on a channel.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
chanThe MAVLink channel this message will be sent over
msgThe MAVLink message to compress the data into
set_position_target_local_nedC-struct to read the message contents from

Definition at line 233 of file mavlink_msg_set_position_target_local_ned.h.

static float mavlink_msg_set_position_target_local_ned_get_afx ( const mavlink_message_t *  msg)
inlinestatic

Get field afx from set_position_target_local_ned message.

Returns
X acceleration or force (if bit 10 of type_mask is set) in NED frame in meter / s^2 or N

Definition at line 496 of file mavlink_msg_set_position_target_local_ned.h.

static float mavlink_msg_set_position_target_local_ned_get_afy ( const mavlink_message_t *  msg)
inlinestatic

Get field afy from set_position_target_local_ned message.

Returns
Y acceleration or force (if bit 10 of type_mask is set) in NED frame in meter / s^2 or N

Definition at line 506 of file mavlink_msg_set_position_target_local_ned.h.

static float mavlink_msg_set_position_target_local_ned_get_afz ( const mavlink_message_t *  msg)
inlinestatic

Get field afz from set_position_target_local_ned message.

Returns
Z acceleration or force (if bit 10 of type_mask is set) in NED frame in meter / s^2 or N

Definition at line 516 of file mavlink_msg_set_position_target_local_ned.h.

static uint8_t mavlink_msg_set_position_target_local_ned_get_coordinate_frame ( const mavlink_message_t *  msg)
inlinestatic

Get field coordinate_frame from set_position_target_local_ned message.

Returns
Valid options are: MAV_FRAME_LOCAL_NED = 1, MAV_FRAME_LOCAL_OFFSET_NED = 7, MAV_FRAME_BODY_NED = 8, MAV_FRAME_BODY_OFFSET_NED = 9

Definition at line 416 of file mavlink_msg_set_position_target_local_ned.h.

static uint8_t mavlink_msg_set_position_target_local_ned_get_target_component ( const mavlink_message_t *  msg)
inlinestatic

Get field target_component from set_position_target_local_ned message.

Returns
Component ID

Definition at line 406 of file mavlink_msg_set_position_target_local_ned.h.

static uint8_t mavlink_msg_set_position_target_local_ned_get_target_system ( const mavlink_message_t *  msg)
inlinestatic

Get field target_system from set_position_target_local_ned message.

Returns
System ID

Definition at line 396 of file mavlink_msg_set_position_target_local_ned.h.

static uint32_t mavlink_msg_set_position_target_local_ned_get_time_boot_ms ( const mavlink_message_t *  msg)
inlinestatic

Send a set_position_target_local_ned message.

Parameters
chanMAVLink channel to send the message
time_boot_msTimestamp in milliseconds since system boot
target_systemSystem ID
target_componentComponent ID
coordinate_frameValid options are: MAV_FRAME_LOCAL_NED = 1, MAV_FRAME_LOCAL_OFFSET_NED = 7, MAV_FRAME_BODY_NED = 8, MAV_FRAME_BODY_OFFSET_NED = 9
type_maskBitmask to indicate which dimensions should be ignored by the vehicle: a value of 0b0000000000000000 or 0b0000001000000000 indicates that none of the setpoint dimensions should be ignored. If bit 10 is set the floats afx afy afz should be interpreted as force instead of acceleration. Mapping: bit 1: x, bit 2: y, bit 3: z, bit 4: vx, bit 5: vy, bit 6: vz, bit 7: ax, bit 8: ay, bit 9: az, bit 10: is force setpoint, bit 11: yaw, bit 12: yaw rate
xX Position in NED frame in meters
yY Position in NED frame in meters
zZ Position in NED frame in meters (note, altitude is negative in NED)
vxX velocity in NED frame in meter / s
vyY velocity in NED frame in meter / s
vzZ velocity in NED frame in meter / s
afxX acceleration or force (if bit 10 of type_mask is set) in NED frame in meter / s^2 or N
afyY acceleration or force (if bit 10 of type_mask is set) in NED frame in meter / s^2 or N
afzZ acceleration or force (if bit 10 of type_mask is set) in NED frame in meter / s^2 or N
yawyaw setpoint in rad
yaw_rateyaw rate setpoint in rad/s Get field time_boot_ms from set_position_target_local_ned message
Returns
Timestamp in milliseconds since system boot

Definition at line 386 of file mavlink_msg_set_position_target_local_ned.h.

static uint16_t mavlink_msg_set_position_target_local_ned_get_type_mask ( const mavlink_message_t *  msg)
inlinestatic

Get field type_mask from set_position_target_local_ned message.

Returns
Bitmask to indicate which dimensions should be ignored by the vehicle: a value of 0b0000000000000000 or 0b0000001000000000 indicates that none of the setpoint dimensions should be ignored. If bit 10 is set the floats afx afy afz should be interpreted as force instead of acceleration. Mapping: bit 1: x, bit 2: y, bit 3: z, bit 4: vx, bit 5: vy, bit 6: vz, bit 7: ax, bit 8: ay, bit 9: az, bit 10: is force setpoint, bit 11: yaw, bit 12: yaw rate

Definition at line 426 of file mavlink_msg_set_position_target_local_ned.h.

static float mavlink_msg_set_position_target_local_ned_get_vx ( const mavlink_message_t *  msg)
inlinestatic

Get field vx from set_position_target_local_ned message.

Returns
X velocity in NED frame in meter / s

Definition at line 466 of file mavlink_msg_set_position_target_local_ned.h.

static float mavlink_msg_set_position_target_local_ned_get_vy ( const mavlink_message_t *  msg)
inlinestatic

Get field vy from set_position_target_local_ned message.

Returns
Y velocity in NED frame in meter / s

Definition at line 476 of file mavlink_msg_set_position_target_local_ned.h.

static float mavlink_msg_set_position_target_local_ned_get_vz ( const mavlink_message_t *  msg)
inlinestatic

Get field vz from set_position_target_local_ned message.

Returns
Z velocity in NED frame in meter / s

Definition at line 486 of file mavlink_msg_set_position_target_local_ned.h.

static float mavlink_msg_set_position_target_local_ned_get_x ( const mavlink_message_t *  msg)
inlinestatic

Get field x from set_position_target_local_ned message.

Returns
X Position in NED frame in meters

Definition at line 436 of file mavlink_msg_set_position_target_local_ned.h.

static float mavlink_msg_set_position_target_local_ned_get_y ( const mavlink_message_t *  msg)
inlinestatic

Get field y from set_position_target_local_ned message.

Returns
Y Position in NED frame in meters

Definition at line 446 of file mavlink_msg_set_position_target_local_ned.h.

static float mavlink_msg_set_position_target_local_ned_get_yaw ( const mavlink_message_t *  msg)
inlinestatic

Get field yaw from set_position_target_local_ned message.

Returns
yaw setpoint in rad

Definition at line 526 of file mavlink_msg_set_position_target_local_ned.h.

static float mavlink_msg_set_position_target_local_ned_get_yaw_rate ( const mavlink_message_t *  msg)
inlinestatic

Get field yaw_rate from set_position_target_local_ned message.

Returns
yaw rate setpoint in rad/s

Definition at line 536 of file mavlink_msg_set_position_target_local_ned.h.

static float mavlink_msg_set_position_target_local_ned_get_z ( const mavlink_message_t *  msg)
inlinestatic

Get field z from set_position_target_local_ned message.

Returns
Z Position in NED frame in meters (note, altitude is negative in NED)

Definition at line 456 of file mavlink_msg_set_position_target_local_ned.h.

static uint16_t mavlink_msg_set_position_target_local_ned_pack ( uint8_t  system_id,
uint8_t  component_id,
mavlink_message_t *  msg,
uint32_t  time_boot_ms,
uint8_t  target_system,
uint8_t  target_component,
uint8_t  coordinate_frame,
uint16_t  type_mask,
float  x,
float  y,
float  z,
float  vx,
float  vy,
float  vz,
float  afx,
float  afy,
float  afz,
float  yaw,
float  yaw_rate
)
inlinestatic

Pack a set_position_target_local_ned message.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
msgThe MAVLink message to compress the data into
time_boot_msTimestamp in milliseconds since system boot
target_systemSystem ID
target_componentComponent ID
coordinate_frameValid options are: MAV_FRAME_LOCAL_NED = 1, MAV_FRAME_LOCAL_OFFSET_NED = 7, MAV_FRAME_BODY_NED = 8, MAV_FRAME_BODY_OFFSET_NED = 9
type_maskBitmask to indicate which dimensions should be ignored by the vehicle: a value of 0b0000000000000000 or 0b0000001000000000 indicates that none of the setpoint dimensions should be ignored. If bit 10 is set the floats afx afy afz should be interpreted as force instead of acceleration. Mapping: bit 1: x, bit 2: y, bit 3: z, bit 4: vx, bit 5: vy, bit 6: vz, bit 7: ax, bit 8: ay, bit 9: az, bit 10: is force setpoint, bit 11: yaw, bit 12: yaw rate
xX Position in NED frame in meters
yY Position in NED frame in meters
zZ Position in NED frame in meters (note, altitude is negative in NED)
vxX velocity in NED frame in meter / s
vyY velocity in NED frame in meter / s
vzZ velocity in NED frame in meter / s
afxX acceleration or force (if bit 10 of type_mask is set) in NED frame in meter / s^2 or N
afyY acceleration or force (if bit 10 of type_mask is set) in NED frame in meter / s^2 or N
afzZ acceleration or force (if bit 10 of type_mask is set) in NED frame in meter / s^2 or N
yawyaw setpoint in rad
yaw_rateyaw rate setpoint in rad/s
Returns
length of the message in bytes (excluding serial stream start sign)

Definition at line 80 of file mavlink_msg_set_position_target_local_ned.h.

static uint16_t mavlink_msg_set_position_target_local_ned_pack_chan ( uint8_t  system_id,
uint8_t  component_id,
uint8_t  chan,
mavlink_message_t *  msg,
uint32_t  time_boot_ms,
uint8_t  target_system,
uint8_t  target_component,
uint8_t  coordinate_frame,
uint16_t  type_mask,
float  x,
float  y,
float  z,
float  vx,
float  vy,
float  vz,
float  afx,
float  afy,
float  afz,
float  yaw,
float  yaw_rate
)
inlinestatic

Pack a set_position_target_local_ned message on a channel.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
chanThe MAVLink channel this message will be sent over
msgThe MAVLink message to compress the data into
time_boot_msTimestamp in milliseconds since system boot
target_systemSystem ID
target_componentComponent ID
coordinate_frameValid options are: MAV_FRAME_LOCAL_NED = 1, MAV_FRAME_LOCAL_OFFSET_NED = 7, MAV_FRAME_BODY_NED = 8, MAV_FRAME_BODY_OFFSET_NED = 9
type_maskBitmask to indicate which dimensions should be ignored by the vehicle: a value of 0b0000000000000000 or 0b0000001000000000 indicates that none of the setpoint dimensions should be ignored. If bit 10 is set the floats afx afy afz should be interpreted as force instead of acceleration. Mapping: bit 1: x, bit 2: y, bit 3: z, bit 4: vx, bit 5: vy, bit 6: vz, bit 7: ax, bit 8: ay, bit 9: az, bit 10: is force setpoint, bit 11: yaw, bit 12: yaw rate
xX Position in NED frame in meters
yY Position in NED frame in meters
zZ Position in NED frame in meters (note, altitude is negative in NED)
vxX velocity in NED frame in meter / s
vyY velocity in NED frame in meter / s
vzZ velocity in NED frame in meter / s
afxX acceleration or force (if bit 10 of type_mask is set) in NED frame in meter / s^2 or N
afyY acceleration or force (if bit 10 of type_mask is set) in NED frame in meter / s^2 or N
afzZ acceleration or force (if bit 10 of type_mask is set) in NED frame in meter / s^2 or N
yawyaw setpoint in rad
yaw_rateyaw rate setpoint in rad/s
Returns
length of the message in bytes (excluding serial stream start sign)

Definition at line 157 of file mavlink_msg_set_position_target_local_ned.h.



rosflight
Author(s): Daniel Koch , James Jackson
autogenerated on Wed Jul 3 2019 20:00:14
