mavlink_msg_safety_set_allowed_area.h File Reference

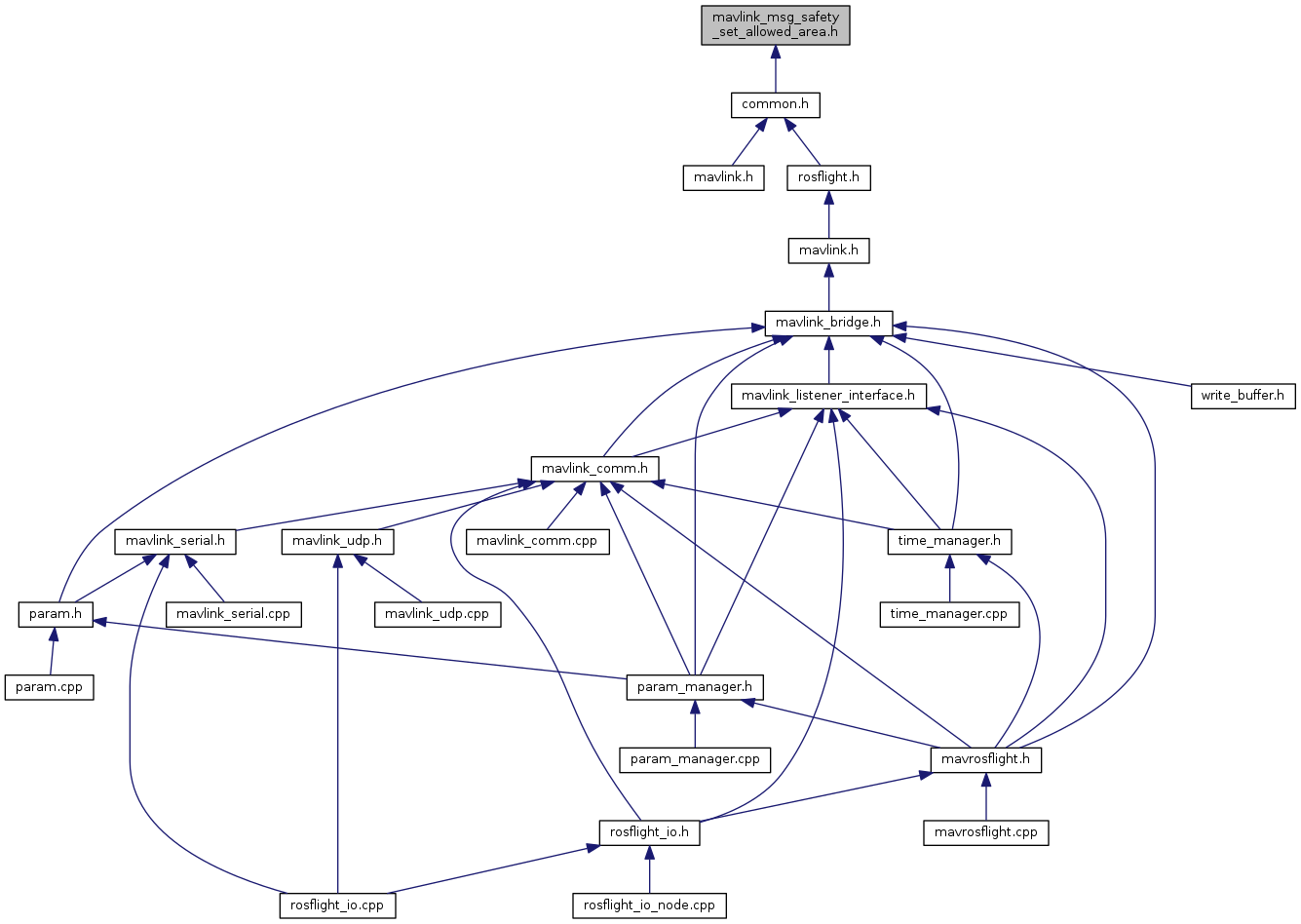

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  __mavlink_safety_set_allowed_area_t


Macros

#define MAVLINK_MESSAGE_INFO_SAFETY_SET_ALLOWED_AREA

#define MAVLINK_MSG_ID_54_CRC   15

#define MAVLINK_MSG_ID_54_LEN   27

#define MAVLINK_MSG_ID_SAFETY_SET_ALLOWED_AREA   54

#define MAVLINK_MSG_ID_SAFETY_SET_ALLOWED_AREA_CRC   15

#define MAVLINK_MSG_ID_SAFETY_SET_ALLOWED_AREA_LEN   27


Typedefs

typedef struct __mavlink_safety_set_allowed_area_t mavlink_safety_set_allowed_area_t


Functions

static void mavlink_msg_safety_set_allowed_area_decode (const mavlink_message_t *msg, mavlink_safety_set_allowed_area_t *safety_set_allowed_area)
 Decode a safety_set_allowed_area message into a struct. More...

static uint16_t mavlink_msg_safety_set_allowed_area_encode (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, const mavlink_safety_set_allowed_area_t *safety_set_allowed_area)
 Encode a safety_set_allowed_area struct. More...

static uint16_t mavlink_msg_safety_set_allowed_area_encode_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, const mavlink_safety_set_allowed_area_t *safety_set_allowed_area)
 Encode a safety_set_allowed_area struct on a channel. More...

static uint8_t mavlink_msg_safety_set_allowed_area_get_frame (const mavlink_message_t *msg)
 Get field frame from safety_set_allowed_area message. More...

static float mavlink_msg_safety_set_allowed_area_get_p1x (const mavlink_message_t *msg)
 Get field p1x from safety_set_allowed_area message. More...

static float mavlink_msg_safety_set_allowed_area_get_p1y (const mavlink_message_t *msg)
 Get field p1y from safety_set_allowed_area message. More...

static float mavlink_msg_safety_set_allowed_area_get_p1z (const mavlink_message_t *msg)
 Get field p1z from safety_set_allowed_area message. More...

static float mavlink_msg_safety_set_allowed_area_get_p2x (const mavlink_message_t *msg)
 Get field p2x from safety_set_allowed_area message. More...

static float mavlink_msg_safety_set_allowed_area_get_p2y (const mavlink_message_t *msg)
 Get field p2y from safety_set_allowed_area message. More...

static float mavlink_msg_safety_set_allowed_area_get_p2z (const mavlink_message_t *msg)
 Get field p2z from safety_set_allowed_area message. More...

static uint8_t mavlink_msg_safety_set_allowed_area_get_target_component (const mavlink_message_t *msg)
 Get field target_component from safety_set_allowed_area message. More...

static uint8_t mavlink_msg_safety_set_allowed_area_get_target_system (const mavlink_message_t *msg)
 Send a safety_set_allowed_area message. More...

static uint16_t mavlink_msg_safety_set_allowed_area_pack (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, uint8_t target_system, uint8_t target_component, uint8_t frame, float p1x, float p1y, float p1z, float p2x, float p2y, float p2z)
 Pack a safety_set_allowed_area message. More...

static uint16_t mavlink_msg_safety_set_allowed_area_pack_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, uint8_t target_system, uint8_t target_component, uint8_t frame, float p1x, float p1y, float p1z, float p2x, float p2y, float p2z)
 Pack a safety_set_allowed_area message on a channel. More...


Macro Definition Documentation

#define MAVLINK_MESSAGE_INFO_SAFETY_SET_ALLOWED_AREA
Value:
{ \
"SAFETY_SET_ALLOWED_AREA", \
9, \
{ { "p1x", NULL, MAVLINK_TYPE_FLOAT, 0, 0, offsetof(mavlink_safety_set_allowed_area_t, p1x) }, \
{ "p1y", NULL, MAVLINK_TYPE_FLOAT, 0, 4, offsetof(mavlink_safety_set_allowed_area_t, p1y) }, \
{ "p1z", NULL, MAVLINK_TYPE_FLOAT, 0, 8, offsetof(mavlink_safety_set_allowed_area_t, p1z) }, \
{ "p2x", NULL, MAVLINK_TYPE_FLOAT, 0, 12, offsetof(mavlink_safety_set_allowed_area_t, p2x) }, \
{ "p2y", NULL, MAVLINK_TYPE_FLOAT, 0, 16, offsetof(mavlink_safety_set_allowed_area_t, p2y) }, \
{ "p2z", NULL, MAVLINK_TYPE_FLOAT, 0, 20, offsetof(mavlink_safety_set_allowed_area_t, p2z) }, \
{ "target_system", NULL, MAVLINK_TYPE_UINT8_T, 0, 24, offsetof(mavlink_safety_set_allowed_area_t, target_system) }, \
{ "target_component", NULL, MAVLINK_TYPE_UINT8_T, 0, 25, offsetof(mavlink_safety_set_allowed_area_t, target_component) }, \
{ "frame", NULL, MAVLINK_TYPE_UINT8_T, 0, 26, offsetof(mavlink_safety_set_allowed_area_t, frame) }, \
} \
}

Definition at line 26 of file mavlink_msg_safety_set_allowed_area.h.

#define MAVLINK_MSG_ID_54_CRC   15

Definition at line 22 of file mavlink_msg_safety_set_allowed_area.h.

#define MAVLINK_MSG_ID_54_LEN   27

Definition at line 19 of file mavlink_msg_safety_set_allowed_area.h.

#define MAVLINK_MSG_ID_SAFETY_SET_ALLOWED_AREA   54

Definition at line 3 of file mavlink_msg_safety_set_allowed_area.h.

#define MAVLINK_MSG_ID_SAFETY_SET_ALLOWED_AREA_CRC   15

Definition at line 21 of file mavlink_msg_safety_set_allowed_area.h.

#define MAVLINK_MSG_ID_SAFETY_SET_ALLOWED_AREA_LEN   27

Definition at line 18 of file mavlink_msg_safety_set_allowed_area.h.

Typedef Documentation

Function Documentation

static void mavlink_msg_safety_set_allowed_area_decode ( const mavlink_message_t *  msg,
mavlink_safety_set_allowed_area_t safety_set_allowed_area
)
inlinestatic

Decode a safety_set_allowed_area message into a struct.

Parameters
msgThe message to decode
safety_set_allowed_areaC-struct to decode the message contents into

Definition at line 386 of file mavlink_msg_safety_set_allowed_area.h.

static uint16_t mavlink_msg_safety_set_allowed_area_encode ( uint8_t  system_id,
uint8_t  component_id,
mavlink_message_t *  msg,
const mavlink_safety_set_allowed_area_t safety_set_allowed_area
)
inlinestatic

Encode a safety_set_allowed_area struct.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
msgThe MAVLink message to compress the data into
safety_set_allowed_areaC-struct to read the message contents from

Definition at line 163 of file mavlink_msg_safety_set_allowed_area.h.

static uint16_t mavlink_msg_safety_set_allowed_area_encode_chan ( uint8_t  system_id,
uint8_t  component_id,
uint8_t  chan,
mavlink_message_t *  msg,
const mavlink_safety_set_allowed_area_t safety_set_allowed_area
)
inlinestatic

Encode a safety_set_allowed_area struct on a channel.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
chanThe MAVLink channel this message will be sent over
msgThe MAVLink message to compress the data into
safety_set_allowed_areaC-struct to read the message contents from

Definition at line 177 of file mavlink_msg_safety_set_allowed_area.h.

static uint8_t mavlink_msg_safety_set_allowed_area_get_frame ( const mavlink_message_t *  msg)
inlinestatic

Get field frame from safety_set_allowed_area message.

Returns
Coordinate frame, as defined by MAV_FRAME enum in mavlink_types.h. Can be either global, GPS, right-handed with Z axis up or local, right handed, Z axis down.

Definition at line 315 of file mavlink_msg_safety_set_allowed_area.h.

static float mavlink_msg_safety_set_allowed_area_get_p1x ( const mavlink_message_t *  msg)
inlinestatic

Get field p1x from safety_set_allowed_area message.

Returns
x position 1 / Latitude 1

Definition at line 325 of file mavlink_msg_safety_set_allowed_area.h.

static float mavlink_msg_safety_set_allowed_area_get_p1y ( const mavlink_message_t *  msg)
inlinestatic

Get field p1y from safety_set_allowed_area message.

Returns
y position 1 / Longitude 1

Definition at line 335 of file mavlink_msg_safety_set_allowed_area.h.

static float mavlink_msg_safety_set_allowed_area_get_p1z ( const mavlink_message_t *  msg)
inlinestatic

Get field p1z from safety_set_allowed_area message.

Returns
z position 1 / Altitude 1

Definition at line 345 of file mavlink_msg_safety_set_allowed_area.h.

static float mavlink_msg_safety_set_allowed_area_get_p2x ( const mavlink_message_t *  msg)
inlinestatic

Get field p2x from safety_set_allowed_area message.

Returns
x position 2 / Latitude 2

Definition at line 355 of file mavlink_msg_safety_set_allowed_area.h.

static float mavlink_msg_safety_set_allowed_area_get_p2y ( const mavlink_message_t *  msg)
inlinestatic

Get field p2y from safety_set_allowed_area message.

Returns
y position 2 / Longitude 2

Definition at line 365 of file mavlink_msg_safety_set_allowed_area.h.

static float mavlink_msg_safety_set_allowed_area_get_p2z ( const mavlink_message_t *  msg)
inlinestatic

Get field p2z from safety_set_allowed_area message.

Returns
z position 2 / Altitude 2

Definition at line 375 of file mavlink_msg_safety_set_allowed_area.h.

static uint8_t mavlink_msg_safety_set_allowed_area_get_target_component ( const mavlink_message_t *  msg)
inlinestatic

Get field target_component from safety_set_allowed_area message.

Returns
Component ID

Definition at line 305 of file mavlink_msg_safety_set_allowed_area.h.

static uint8_t mavlink_msg_safety_set_allowed_area_get_target_system ( const mavlink_message_t *  msg)
inlinestatic

Send a safety_set_allowed_area message.

Parameters
chanMAVLink channel to send the message
target_systemSystem ID
target_componentComponent ID
frameCoordinate frame, as defined by MAV_FRAME enum in mavlink_types.h. Can be either global, GPS, right-handed with Z axis up or local, right handed, Z axis down.
p1xx position 1 / Latitude 1
p1yy position 1 / Longitude 1
p1zz position 1 / Altitude 1
p2xx position 2 / Latitude 2
p2yy position 2 / Longitude 2
p2zz position 2 / Altitude 2 Get field target_system from safety_set_allowed_area message
Returns
System ID

Definition at line 295 of file mavlink_msg_safety_set_allowed_area.h.

static uint16_t mavlink_msg_safety_set_allowed_area_pack ( uint8_t  system_id,
uint8_t  component_id,
mavlink_message_t *  msg,
uint8_t  target_system,
uint8_t  target_component,
uint8_t  frame,
float  p1x,
float  p1y,
float  p1z,
float  p2x,
float  p2y,
float  p2z
)
inlinestatic

Pack a safety_set_allowed_area message.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
msgThe MAVLink message to compress the data into
target_systemSystem ID
target_componentComponent ID
frameCoordinate frame, as defined by MAV_FRAME enum in mavlink_types.h. Can be either global, GPS, right-handed with Z axis up or local, right handed, Z axis down.
p1xx position 1 / Latitude 1
p1yy position 1 / Longitude 1
p1zz position 1 / Altitude 1
p2xx position 2 / Latitude 2
p2yy position 2 / Longitude 2
p2zz position 2 / Altitude 2
Returns
length of the message in bytes (excluding serial stream start sign)

Definition at line 59 of file mavlink_msg_safety_set_allowed_area.h.

static uint16_t mavlink_msg_safety_set_allowed_area_pack_chan ( uint8_t  system_id,
uint8_t  component_id,
uint8_t  chan,
mavlink_message_t *  msg,
uint8_t  target_system,
uint8_t  target_component,
uint8_t  frame,
float  p1x,
float  p1y,
float  p1z,
float  p2x,
float  p2y,
float  p2z
)
inlinestatic

Pack a safety_set_allowed_area message on a channel.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
chanThe MAVLink channel this message will be sent over
msgThe MAVLink message to compress the data into
target_systemSystem ID
target_componentComponent ID
frameCoordinate frame, as defined by MAV_FRAME enum in mavlink_types.h. Can be either global, GPS, right-handed with Z axis up or local, right handed, Z axis down.
p1xx position 1 / Latitude 1
p1yy position 1 / Longitude 1
p1zz position 1 / Altitude 1
p2xx position 2 / Latitude 2
p2yy position 2 / Longitude 2
p2zz position 2 / Altitude 2
Returns
length of the message in bytes (excluding serial stream start sign)

Definition at line 115 of file mavlink_msg_safety_set_allowed_area.h.
