Classes | Macros | Typedefs | Functions
mavlink_msg_rosflight_status.h File Reference

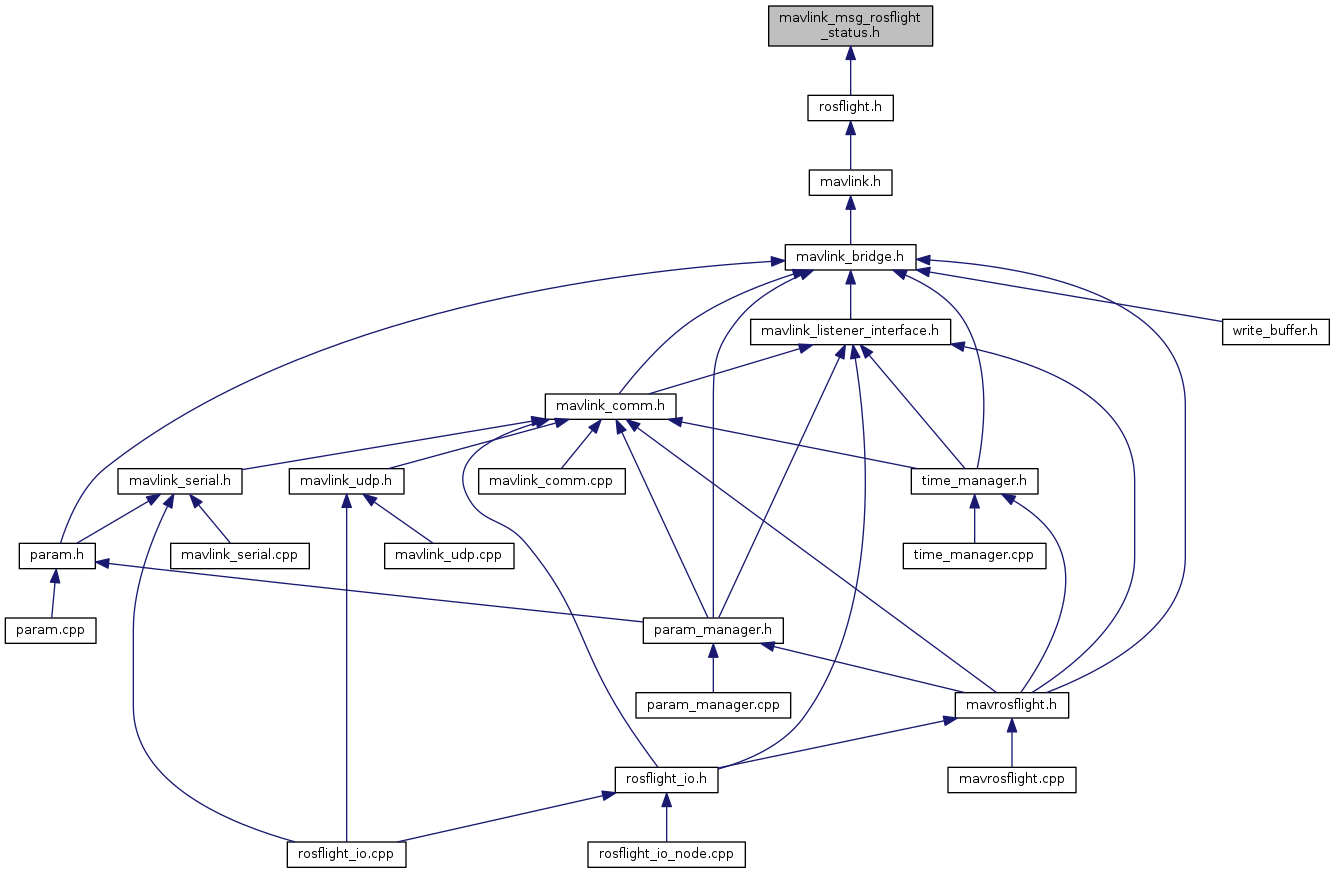

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  __mavlink_rosflight_status_t


Macros

#define MAVLINK_MESSAGE_INFO_ROSFLIGHT_STATUS

#define MAVLINK_MSG_ID_191_CRC   183

#define MAVLINK_MSG_ID_191_LEN   10

#define MAVLINK_MSG_ID_ROSFLIGHT_STATUS   191

#define MAVLINK_MSG_ID_ROSFLIGHT_STATUS_CRC   183

#define MAVLINK_MSG_ID_ROSFLIGHT_STATUS_LEN   10


Typedefs

typedef struct __mavlink_rosflight_status_t mavlink_rosflight_status_t


Functions

static void mavlink_msg_rosflight_status_decode (const mavlink_message_t *msg, mavlink_rosflight_status_t *rosflight_status)
 Decode a rosflight_status message into a struct. More...

static uint16_t mavlink_msg_rosflight_status_encode (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, const mavlink_rosflight_status_t *rosflight_status)
 Encode a rosflight_status struct. More...

static uint16_t mavlink_msg_rosflight_status_encode_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, const mavlink_rosflight_status_t *rosflight_status)
 Encode a rosflight_status struct on a channel. More...

static uint8_t mavlink_msg_rosflight_status_get_armed (const mavlink_message_t *msg)
 Send a rosflight_status message. More...

static uint8_t mavlink_msg_rosflight_status_get_control_mode (const mavlink_message_t *msg)
 Get field control_mode from rosflight_status message. More...

static uint8_t mavlink_msg_rosflight_status_get_error_code (const mavlink_message_t *msg)
 Get field error_code from rosflight_status message. More...

static uint8_t mavlink_msg_rosflight_status_get_failsafe (const mavlink_message_t *msg)
 Get field failsafe from rosflight_status message. More...

static int16_t mavlink_msg_rosflight_status_get_loop_time_us (const mavlink_message_t *msg)
 Get field loop_time_us from rosflight_status message. More...

static int16_t mavlink_msg_rosflight_status_get_num_errors (const mavlink_message_t *msg)
 Get field num_errors from rosflight_status message. More...

static uint8_t mavlink_msg_rosflight_status_get_offboard (const mavlink_message_t *msg)
 Get field offboard from rosflight_status message. More...

static uint8_t mavlink_msg_rosflight_status_get_rc_override (const mavlink_message_t *msg)
 Get field rc_override from rosflight_status message. More...

static uint16_t mavlink_msg_rosflight_status_pack (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, uint8_t armed, uint8_t failsafe, uint8_t rc_override, uint8_t offboard, uint8_t error_code, uint8_t control_mode, int16_t num_errors, int16_t loop_time_us)
 Pack a rosflight_status message. More...

static uint16_t mavlink_msg_rosflight_status_pack_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, uint8_t armed, uint8_t failsafe, uint8_t rc_override, uint8_t offboard, uint8_t error_code, uint8_t control_mode, int16_t num_errors, int16_t loop_time_us)
 Pack a rosflight_status message on a channel. More...


Macro Definition Documentation

#define MAVLINK_MESSAGE_INFO_ROSFLIGHT_STATUS
Value:
{ \
"ROSFLIGHT_STATUS", \
8, \
{ { "num_errors", NULL, MAVLINK_TYPE_INT16_T, 0, 0, offsetof(mavlink_rosflight_status_t, num_errors) }, \
{ "loop_time_us", NULL, MAVLINK_TYPE_INT16_T, 0, 2, offsetof(mavlink_rosflight_status_t, loop_time_us) }, \
{ "armed", NULL, MAVLINK_TYPE_UINT8_T, 0, 4, offsetof(mavlink_rosflight_status_t, armed) }, \
{ "failsafe", NULL, MAVLINK_TYPE_UINT8_T, 0, 5, offsetof(mavlink_rosflight_status_t, failsafe) }, \
{ "rc_override", NULL, MAVLINK_TYPE_UINT8_T, 0, 6, offsetof(mavlink_rosflight_status_t, rc_override) }, \
{ "offboard", NULL, MAVLINK_TYPE_UINT8_T, 0, 7, offsetof(mavlink_rosflight_status_t, offboard) }, \
{ "error_code", NULL, MAVLINK_TYPE_UINT8_T, 0, 8, offsetof(mavlink_rosflight_status_t, error_code) }, \
{ "control_mode", NULL, MAVLINK_TYPE_UINT8_T, 0, 9, offsetof(mavlink_rosflight_status_t, control_mode) }, \
} \
}

Definition at line 25 of file mavlink_msg_rosflight_status.h.

#define MAVLINK_MSG_ID_191_CRC   183

Definition at line 21 of file mavlink_msg_rosflight_status.h.

#define MAVLINK_MSG_ID_191_LEN   10

Definition at line 18 of file mavlink_msg_rosflight_status.h.

#define MAVLINK_MSG_ID_ROSFLIGHT_STATUS   191

Definition at line 3 of file mavlink_msg_rosflight_status.h.

#define MAVLINK_MSG_ID_ROSFLIGHT_STATUS_CRC   183

Definition at line 20 of file mavlink_msg_rosflight_status.h.

#define MAVLINK_MSG_ID_ROSFLIGHT_STATUS_LEN   10

Definition at line 17 of file mavlink_msg_rosflight_status.h.

Typedef Documentation

Function Documentation

static void mavlink_msg_rosflight_status_decode ( const mavlink_message_t *  msg,
mavlink_rosflight_status_t rosflight_status
)
inlinestatic

Decode a rosflight_status message into a struct.

Parameters
msgThe message to decode
rosflight_statusC-struct to decode the message contents into

Definition at line 363 of file mavlink_msg_rosflight_status.h.

static uint16_t mavlink_msg_rosflight_status_encode ( uint8_t  system_id,
uint8_t  component_id,
mavlink_message_t *  msg,
const mavlink_rosflight_status_t rosflight_status
)
inlinestatic

Encode a rosflight_status struct.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
msgThe MAVLink message to compress the data into
rosflight_statusC-struct to read the message contents from

Definition at line 155 of file mavlink_msg_rosflight_status.h.

static uint16_t mavlink_msg_rosflight_status_encode_chan ( uint8_t  system_id,
uint8_t  component_id,
uint8_t  chan,
mavlink_message_t *  msg,
const mavlink_rosflight_status_t rosflight_status
)
inlinestatic

Encode a rosflight_status struct on a channel.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
chanThe MAVLink channel this message will be sent over
msgThe MAVLink message to compress the data into
rosflight_statusC-struct to read the message contents from

Definition at line 169 of file mavlink_msg_rosflight_status.h.

static uint8_t mavlink_msg_rosflight_status_get_armed ( const mavlink_message_t *  msg)
inlinestatic

Send a rosflight_status message.

Parameters
chanMAVLink channel to send the message
armed
failsafe
rc_override
offboard
error_code
control_mode
num_errors
loop_time_usGet field armed from rosflight_status message
Returns

Definition at line 282 of file mavlink_msg_rosflight_status.h.

static uint8_t mavlink_msg_rosflight_status_get_control_mode ( const mavlink_message_t *  msg)
inlinestatic

Get field control_mode from rosflight_status message.

Returns

Definition at line 332 of file mavlink_msg_rosflight_status.h.

static uint8_t mavlink_msg_rosflight_status_get_error_code ( const mavlink_message_t *  msg)
inlinestatic

Get field error_code from rosflight_status message.

Returns

Definition at line 322 of file mavlink_msg_rosflight_status.h.

static uint8_t mavlink_msg_rosflight_status_get_failsafe ( const mavlink_message_t *  msg)
inlinestatic

Get field failsafe from rosflight_status message.

Returns

Definition at line 292 of file mavlink_msg_rosflight_status.h.

static int16_t mavlink_msg_rosflight_status_get_loop_time_us ( const mavlink_message_t *  msg)
inlinestatic

Get field loop_time_us from rosflight_status message.

Returns

Definition at line 352 of file mavlink_msg_rosflight_status.h.

static int16_t mavlink_msg_rosflight_status_get_num_errors ( const mavlink_message_t *  msg)
inlinestatic

Get field num_errors from rosflight_status message.

Returns

Definition at line 342 of file mavlink_msg_rosflight_status.h.

static uint8_t mavlink_msg_rosflight_status_get_offboard ( const mavlink_message_t *  msg)
inlinestatic

Get field offboard from rosflight_status message.

Returns

Definition at line 312 of file mavlink_msg_rosflight_status.h.

static uint8_t mavlink_msg_rosflight_status_get_rc_override ( const mavlink_message_t *  msg)
inlinestatic

Get field rc_override from rosflight_status message.

Returns

Definition at line 302 of file mavlink_msg_rosflight_status.h.

static uint16_t mavlink_msg_rosflight_status_pack ( uint8_t  system_id,
uint8_t  component_id,
mavlink_message_t *  msg,
uint8_t  armed,
uint8_t  failsafe,
uint8_t  rc_override,
uint8_t  offboard,
uint8_t  error_code,
uint8_t  control_mode,
int16_t  num_errors,
int16_t  loop_time_us
)
inlinestatic

Pack a rosflight_status message.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
msgThe MAVLink message to compress the data into
armed
failsafe
rc_override
offboard
error_code
control_mode
num_errors
loop_time_us
Returns
length of the message in bytes (excluding serial stream start sign)

Definition at line 56 of file mavlink_msg_rosflight_status.h.

static uint16_t mavlink_msg_rosflight_status_pack_chan ( uint8_t  system_id,
uint8_t  component_id,
uint8_t  chan,
mavlink_message_t *  msg,
uint8_t  armed,
uint8_t  failsafe,
uint8_t  rc_override,
uint8_t  offboard,
uint8_t  error_code,
uint8_t  control_mode,
int16_t  num_errors,
int16_t  loop_time_us
)
inlinestatic

Pack a rosflight_status message on a channel.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
chanThe MAVLink channel this message will be sent over
msgThe MAVLink message to compress the data into
armed
failsafe
rc_override
offboard
error_code
control_mode
num_errors
loop_time_us
Returns
length of the message in bytes (excluding serial stream start sign)

Definition at line 109 of file mavlink_msg_rosflight_status.h.



rosflight
Author(s): Daniel Koch , James Jackson
autogenerated on Wed Jul 3 2019 20:00:14
