mavlink_msg_param_value.h File Reference

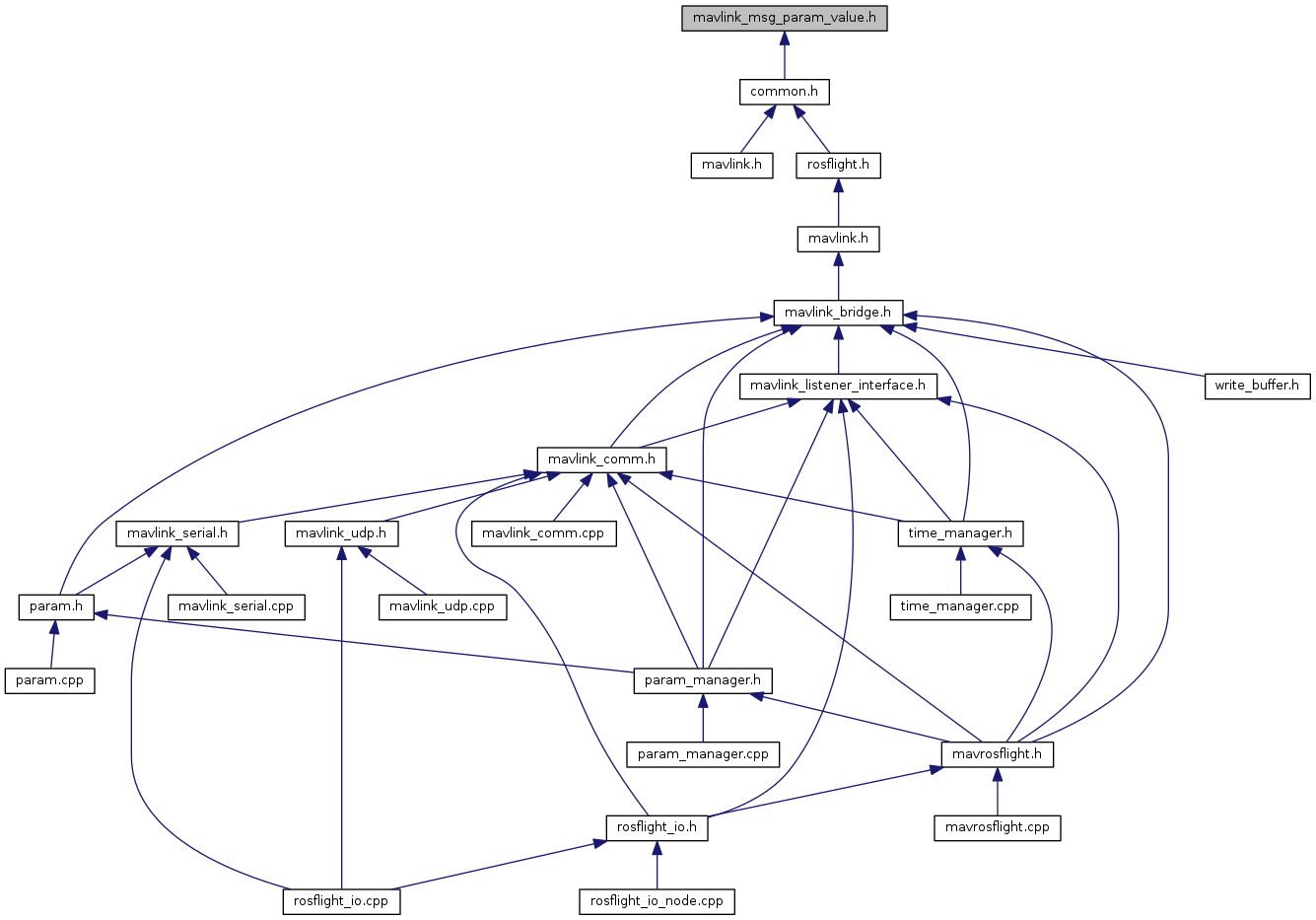

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  __mavlink_param_value_t


Macros

#define MAVLINK_MESSAGE_INFO_PARAM_VALUE

#define MAVLINK_MSG_ID_22_CRC   220

#define MAVLINK_MSG_ID_22_LEN   25

#define MAVLINK_MSG_ID_PARAM_VALUE   22

#define MAVLINK_MSG_ID_PARAM_VALUE_CRC   220

#define MAVLINK_MSG_ID_PARAM_VALUE_LEN   25

#define MAVLINK_MSG_PARAM_VALUE_FIELD_PARAM_ID_LEN   16


Typedefs

typedef struct __mavlink_param_value_t mavlink_param_value_t


Functions

static void mavlink_msg_param_value_decode (const mavlink_message_t *msg, mavlink_param_value_t *param_value)
 Decode a param_value message into a struct. More...

static uint16_t mavlink_msg_param_value_encode (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, const mavlink_param_value_t *param_value)
 Encode a param_value struct. More...

static uint16_t mavlink_msg_param_value_encode_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, const mavlink_param_value_t *param_value)
 Encode a param_value struct on a channel. More...

static uint16_t mavlink_msg_param_value_get_param_count (const mavlink_message_t *msg)
 Get field param_count from param_value message. More...

static uint16_t mavlink_msg_param_value_get_param_id (const mavlink_message_t *msg, char *param_id)
 Send a param_value message. More...

static uint16_t mavlink_msg_param_value_get_param_index (const mavlink_message_t *msg)
 Get field param_index from param_value message. More...

static uint8_t mavlink_msg_param_value_get_param_type (const mavlink_message_t *msg)
 Get field param_type from param_value message. More...

static float mavlink_msg_param_value_get_param_value (const mavlink_message_t *msg)
 Get field param_value from param_value message. More...

static uint16_t mavlink_msg_param_value_pack (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, const char *param_id, float param_value, uint8_t param_type, uint16_t param_count, uint16_t param_index)
 Pack a param_value message. More...

static uint16_t mavlink_msg_param_value_pack_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, const char *param_id, float param_value, uint8_t param_type, uint16_t param_count, uint16_t param_index)
 Pack a param_value message on a channel. More...


Macro Definition Documentation

#define MAVLINK_MESSAGE_INFO_PARAM_VALUE
Value:
{ \
"PARAM_VALUE", \
5, \
{ { "param_value", NULL, MAVLINK_TYPE_FLOAT, 0, 0, offsetof(mavlink_param_value_t, param_value) }, \
{ "param_count", NULL, MAVLINK_TYPE_UINT16_T, 0, 4, offsetof(mavlink_param_value_t, param_count) }, \
{ "param_index", NULL, MAVLINK_TYPE_UINT16_T, 0, 6, offsetof(mavlink_param_value_t, param_index) }, \
{ "param_id", NULL, MAVLINK_TYPE_CHAR, 16, 8, offsetof(mavlink_param_value_t, param_id) }, \
{ "param_type", NULL, MAVLINK_TYPE_UINT8_T, 0, 24, offsetof(mavlink_param_value_t, param_type) }, \
} \
}

Definition at line 22 of file mavlink_msg_param_value.h.

#define MAVLINK_MSG_ID_22_CRC   220

Definition at line 18 of file mavlink_msg_param_value.h.

#define MAVLINK_MSG_ID_22_LEN   25

Definition at line 15 of file mavlink_msg_param_value.h.

#define MAVLINK_MSG_ID_PARAM_VALUE   22

Definition at line 3 of file mavlink_msg_param_value.h.

#define MAVLINK_MSG_ID_PARAM_VALUE_CRC   220

Definition at line 17 of file mavlink_msg_param_value.h.

#define MAVLINK_MSG_ID_PARAM_VALUE_LEN   25

Definition at line 14 of file mavlink_msg_param_value.h.

#define MAVLINK_MSG_PARAM_VALUE_FIELD_PARAM_ID_LEN   16

Definition at line 20 of file mavlink_msg_param_value.h.

Typedef Documentation

Function Documentation

static void mavlink_msg_param_value_decode ( const mavlink_message_t *  msg,
mavlink_param_value_t param_value
)
inlinestatic

Decode a param_value message into a struct.

Parameters
msgThe message to decode
param_valueC-struct to decode the message contents into

Definition at line 286 of file mavlink_msg_param_value.h.

static uint16_t mavlink_msg_param_value_encode ( uint8_t  system_id,
uint8_t  component_id,
mavlink_message_t *  msg,
const mavlink_param_value_t param_value
)
inlinestatic

Encode a param_value struct.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
msgThe MAVLink message to compress the data into
param_valueC-struct to read the message contents from

Definition at line 127 of file mavlink_msg_param_value.h.

static uint16_t mavlink_msg_param_value_encode_chan ( uint8_t  system_id,
uint8_t  component_id,
uint8_t  chan,
mavlink_message_t *  msg,
const mavlink_param_value_t param_value
)
inlinestatic

Encode a param_value struct on a channel.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
chanThe MAVLink channel this message will be sent over
msgThe MAVLink message to compress the data into
param_valueC-struct to read the message contents from

Definition at line 141 of file mavlink_msg_param_value.h.

static uint16_t mavlink_msg_param_value_get_param_count ( const mavlink_message_t *  msg)
inlinestatic

Get field param_count from param_value message.

Returns
Total number of onboard parameters

Definition at line 265 of file mavlink_msg_param_value.h.

static uint16_t mavlink_msg_param_value_get_param_id ( const mavlink_message_t *  msg,
char *  param_id
)
inlinestatic

Send a param_value message.

Parameters
chanMAVLink channel to send the message
param_idOnboard parameter id, terminated by NULL if the length is less than 16 human-readable chars and WITHOUT null termination (NULL) byte if the length is exactly 16 chars - applications have to provide 16+1 bytes storage if the ID is stored as string
param_valueOnboard parameter value
param_typeOnboard parameter type: see the MAV_PARAM_TYPE enum for supported data types.
param_countTotal number of onboard parameters
param_indexIndex of this onboard parameter Get field param_id from param_value message
Returns
Onboard parameter id, terminated by NULL if the length is less than 16 human-readable chars and WITHOUT null termination (NULL) byte if the length is exactly 16 chars - applications have to provide 16+1 bytes storage if the ID is stored as string

Definition at line 235 of file mavlink_msg_param_value.h.

static uint16_t mavlink_msg_param_value_get_param_index ( const mavlink_message_t *  msg)
inlinestatic

Get field param_index from param_value message.

Returns
Index of this onboard parameter

Definition at line 275 of file mavlink_msg_param_value.h.

static uint8_t mavlink_msg_param_value_get_param_type ( const mavlink_message_t *  msg)
inlinestatic

Get field param_type from param_value message.

Returns
Onboard parameter type: see the MAV_PARAM_TYPE enum for supported data types.

Definition at line 255 of file mavlink_msg_param_value.h.

static float mavlink_msg_param_value_get_param_value ( const mavlink_message_t *  msg)
inlinestatic

Get field param_value from param_value message.

Returns
Onboard parameter value

Definition at line 245 of file mavlink_msg_param_value.h.

static uint16_t mavlink_msg_param_value_pack ( uint8_t  system_id,
uint8_t  component_id,
mavlink_message_t *  msg,
const char *  param_id,
float  param_value,
uint8_t  param_type,
uint16_t  param_count,
uint16_t  param_index
)
inlinestatic

Pack a param_value message.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
msgThe MAVLink message to compress the data into
param_idOnboard parameter id, terminated by NULL if the length is less than 16 human-readable chars and WITHOUT null termination (NULL) byte if the length is exactly 16 chars - applications have to provide 16+1 bytes storage if the ID is stored as string
param_valueOnboard parameter value
param_typeOnboard parameter type: see the MAV_PARAM_TYPE enum for supported data types.
param_countTotal number of onboard parameters
param_indexIndex of this onboard parameter
Returns
length of the message in bytes (excluding serial stream start sign)

Definition at line 47 of file mavlink_msg_param_value.h.

static uint16_t mavlink_msg_param_value_pack_chan ( uint8_t  system_id,
uint8_t  component_id,
uint8_t  chan,
mavlink_message_t *  msg,
const char *  param_id,
float  param_value,
uint8_t  param_type,
uint16_t  param_count,
uint16_t  param_index
)
inlinestatic

Pack a param_value message on a channel.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
chanThe MAVLink channel this message will be sent over
msgThe MAVLink message to compress the data into
param_idOnboard parameter id, terminated by NULL if the length is less than 16 human-readable chars and WITHOUT null termination (NULL) byte if the length is exactly 16 chars - applications have to provide 16+1 bytes storage if the ID is stored as string
param_valueOnboard parameter value
param_typeOnboard parameter type: see the MAV_PARAM_TYPE enum for supported data types.
param_countTotal number of onboard parameters
param_indexIndex of this onboard parameter
Returns
length of the message in bytes (excluding serial stream start sign)

Definition at line 89 of file mavlink_msg_param_value.h.
