Classes | Macros | Typedefs | Functions
mavlink_msg_mission_write_partial_list.h File Reference

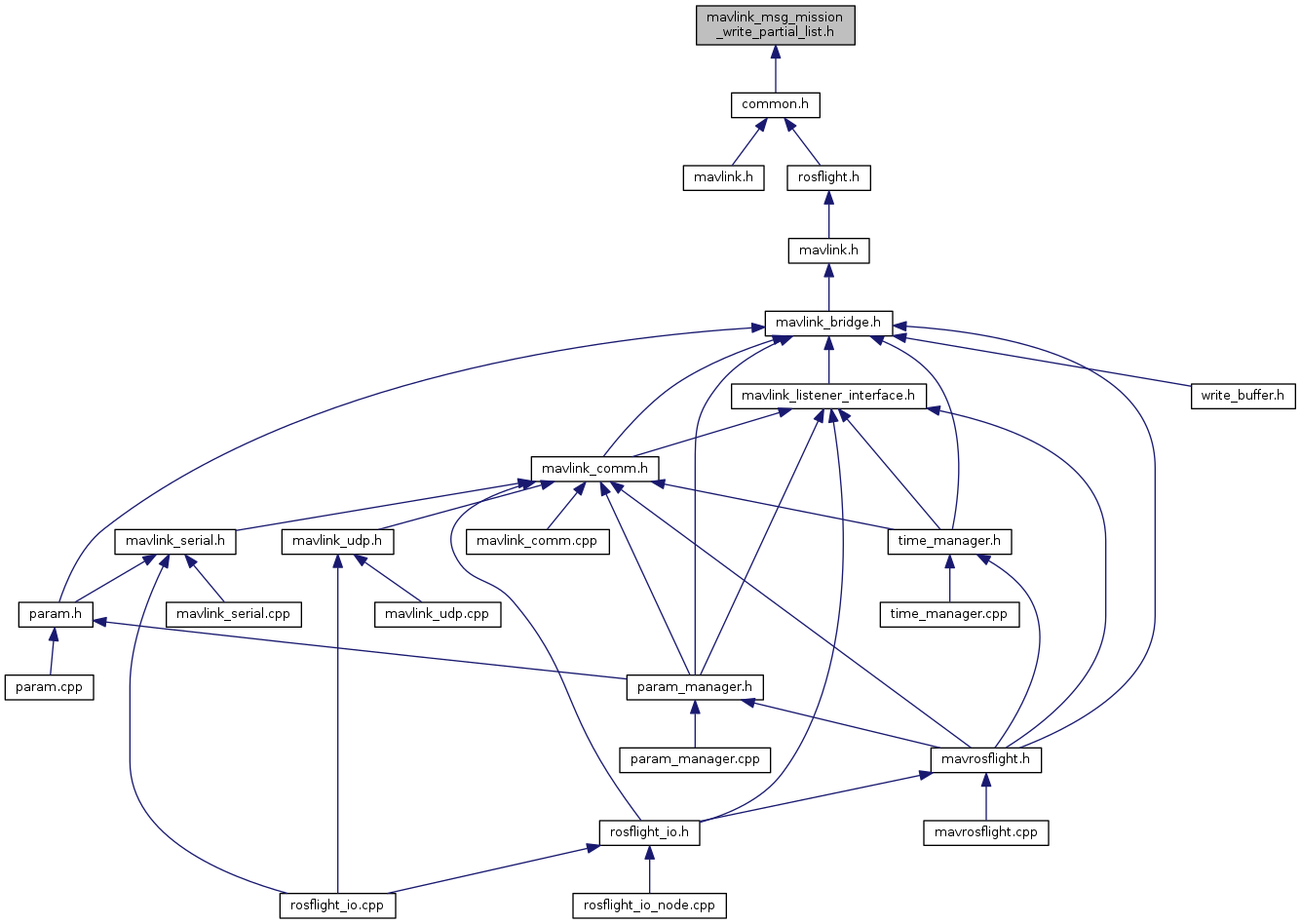

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  __mavlink_mission_write_partial_list_t


Macros

#define MAVLINK_MESSAGE_INFO_MISSION_WRITE_PARTIAL_LIST

#define MAVLINK_MSG_ID_38_CRC   9

#define MAVLINK_MSG_ID_38_LEN   6

#define MAVLINK_MSG_ID_MISSION_WRITE_PARTIAL_LIST   38

#define MAVLINK_MSG_ID_MISSION_WRITE_PARTIAL_LIST_CRC   9

#define MAVLINK_MSG_ID_MISSION_WRITE_PARTIAL_LIST_LEN   6


Typedefs

typedef struct __mavlink_mission_write_partial_list_t mavlink_mission_write_partial_list_t


Functions

static void mavlink_msg_mission_write_partial_list_decode (const mavlink_message_t *msg, mavlink_mission_write_partial_list_t *mission_write_partial_list)
 Decode a mission_write_partial_list message into a struct. More...

static uint16_t mavlink_msg_mission_write_partial_list_encode (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, const mavlink_mission_write_partial_list_t *mission_write_partial_list)
 Encode a mission_write_partial_list struct. More...

static uint16_t mavlink_msg_mission_write_partial_list_encode_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, const mavlink_mission_write_partial_list_t *mission_write_partial_list)
 Encode a mission_write_partial_list struct on a channel. More...

static int16_t mavlink_msg_mission_write_partial_list_get_end_index (const mavlink_message_t *msg)
 Get field end_index from mission_write_partial_list message. More...

static int16_t mavlink_msg_mission_write_partial_list_get_start_index (const mavlink_message_t *msg)
 Get field start_index from mission_write_partial_list message. More...

static uint8_t mavlink_msg_mission_write_partial_list_get_target_component (const mavlink_message_t *msg)
 Get field target_component from mission_write_partial_list message. More...

static uint8_t mavlink_msg_mission_write_partial_list_get_target_system (const mavlink_message_t *msg)
 Send a mission_write_partial_list message. More...

static uint16_t mavlink_msg_mission_write_partial_list_pack (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, uint8_t target_system, uint8_t target_component, int16_t start_index, int16_t end_index)
 Pack a mission_write_partial_list message. More...

static uint16_t mavlink_msg_mission_write_partial_list_pack_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, uint8_t target_system, uint8_t target_component, int16_t start_index, int16_t end_index)
 Pack a mission_write_partial_list message on a channel. More...


Macro Definition Documentation

#define MAVLINK_MESSAGE_INFO_MISSION_WRITE_PARTIAL_LIST
Value:
{ \
"MISSION_WRITE_PARTIAL_LIST", \
4, \
{ { "start_index", NULL, MAVLINK_TYPE_INT16_T, 0, 0, offsetof(mavlink_mission_write_partial_list_t, start_index) }, \
{ "end_index", NULL, MAVLINK_TYPE_INT16_T, 0, 2, offsetof(mavlink_mission_write_partial_list_t, end_index) }, \
{ "target_system", NULL, MAVLINK_TYPE_UINT8_T, 0, 4, offsetof(mavlink_mission_write_partial_list_t, target_system) }, \
{ "target_component", NULL, MAVLINK_TYPE_UINT8_T, 0, 5, offsetof(mavlink_mission_write_partial_list_t, target_component) }, \
} \
}

Definition at line 21 of file mavlink_msg_mission_write_partial_list.h.

#define MAVLINK_MSG_ID_38_CRC   9

Definition at line 17 of file mavlink_msg_mission_write_partial_list.h.

#define MAVLINK_MSG_ID_38_LEN   6

Definition at line 14 of file mavlink_msg_mission_write_partial_list.h.

#define MAVLINK_MSG_ID_MISSION_WRITE_PARTIAL_LIST   38

Definition at line 3 of file mavlink_msg_mission_write_partial_list.h.

#define MAVLINK_MSG_ID_MISSION_WRITE_PARTIAL_LIST_CRC   9

Definition at line 16 of file mavlink_msg_mission_write_partial_list.h.

#define MAVLINK_MSG_ID_MISSION_WRITE_PARTIAL_LIST_LEN   6

Definition at line 13 of file mavlink_msg_mission_write_partial_list.h.

Typedef Documentation

Function Documentation

static void mavlink_msg_mission_write_partial_list_decode ( const mavlink_message_t *  msg,
mavlink_mission_write_partial_list_t mission_write_partial_list
)
inlinestatic

Decode a mission_write_partial_list message into a struct.

Parameters
msgThe message to decode
mission_write_partial_listC-struct to decode the message contents into

Definition at line 271 of file mavlink_msg_mission_write_partial_list.h.

static uint16_t mavlink_msg_mission_write_partial_list_encode ( uint8_t  system_id,
uint8_t  component_id,
mavlink_message_t *  msg,
const mavlink_mission_write_partial_list_t mission_write_partial_list
)
inlinestatic

Encode a mission_write_partial_list struct.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
msgThe MAVLink message to compress the data into
mission_write_partial_listC-struct to read the message contents from

Definition at line 123 of file mavlink_msg_mission_write_partial_list.h.

static uint16_t mavlink_msg_mission_write_partial_list_encode_chan ( uint8_t  system_id,
uint8_t  component_id,
uint8_t  chan,
mavlink_message_t *  msg,
const mavlink_mission_write_partial_list_t mission_write_partial_list
)
inlinestatic

Encode a mission_write_partial_list struct on a channel.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
chanThe MAVLink channel this message will be sent over
msgThe MAVLink message to compress the data into
mission_write_partial_listC-struct to read the message contents from

Definition at line 137 of file mavlink_msg_mission_write_partial_list.h.

static int16_t mavlink_msg_mission_write_partial_list_get_end_index ( const mavlink_message_t *  msg)
inlinestatic

Get field end_index from mission_write_partial_list message.

Returns
End index, equal or greater than start index.

Definition at line 260 of file mavlink_msg_mission_write_partial_list.h.

static int16_t mavlink_msg_mission_write_partial_list_get_start_index ( const mavlink_message_t *  msg)
inlinestatic

Get field start_index from mission_write_partial_list message.

Returns
Start index, 0 by default and smaller / equal to the largest index of the current onboard list.

Definition at line 250 of file mavlink_msg_mission_write_partial_list.h.

static uint8_t mavlink_msg_mission_write_partial_list_get_target_component ( const mavlink_message_t *  msg)
inlinestatic

Get field target_component from mission_write_partial_list message.

Returns
Component ID

Definition at line 240 of file mavlink_msg_mission_write_partial_list.h.

static uint8_t mavlink_msg_mission_write_partial_list_get_target_system ( const mavlink_message_t *  msg)
inlinestatic

Send a mission_write_partial_list message.

Parameters
chanMAVLink channel to send the message
target_systemSystem ID
target_componentComponent ID
start_indexStart index, 0 by default and smaller / equal to the largest index of the current onboard list.
end_indexEnd index, equal or greater than start index. Get field target_system from mission_write_partial_list message
Returns
System ID

Definition at line 230 of file mavlink_msg_mission_write_partial_list.h.

static uint16_t mavlink_msg_mission_write_partial_list_pack ( uint8_t  system_id,
uint8_t  component_id,
mavlink_message_t *  msg,
uint8_t  target_system,
uint8_t  target_component,
int16_t  start_index,
int16_t  end_index
)
inlinestatic

Pack a mission_write_partial_list message.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
msgThe MAVLink message to compress the data into
target_systemSystem ID
target_componentComponent ID
start_indexStart index, 0 by default and smaller / equal to the largest index of the current onboard list.
end_indexEnd index, equal or greater than start index.
Returns
length of the message in bytes (excluding serial stream start sign)

Definition at line 44 of file mavlink_msg_mission_write_partial_list.h.

static uint16_t mavlink_msg_mission_write_partial_list_pack_chan ( uint8_t  system_id,
uint8_t  component_id,
uint8_t  chan,
mavlink_message_t *  msg,
uint8_t  target_system,
uint8_t  target_component,
int16_t  start_index,
int16_t  end_index
)
inlinestatic

Pack a mission_write_partial_list message on a channel.

Parameters
system_idID of this system
component_idID of this component (e.g. 200 for IMU)
chanThe MAVLink channel this message will be sent over
msgThe MAVLink message to compress the data into
target_systemSystem ID
target_componentComponent ID
start_indexStart index, 0 by default and smaller / equal to the largest index of the current onboard list.
end_indexEnd index, equal or greater than start index.
Returns
length of the message in bytes (excluding serial stream start sign)

Definition at line 85 of file mavlink_msg_mission_write_partial_list.h.
