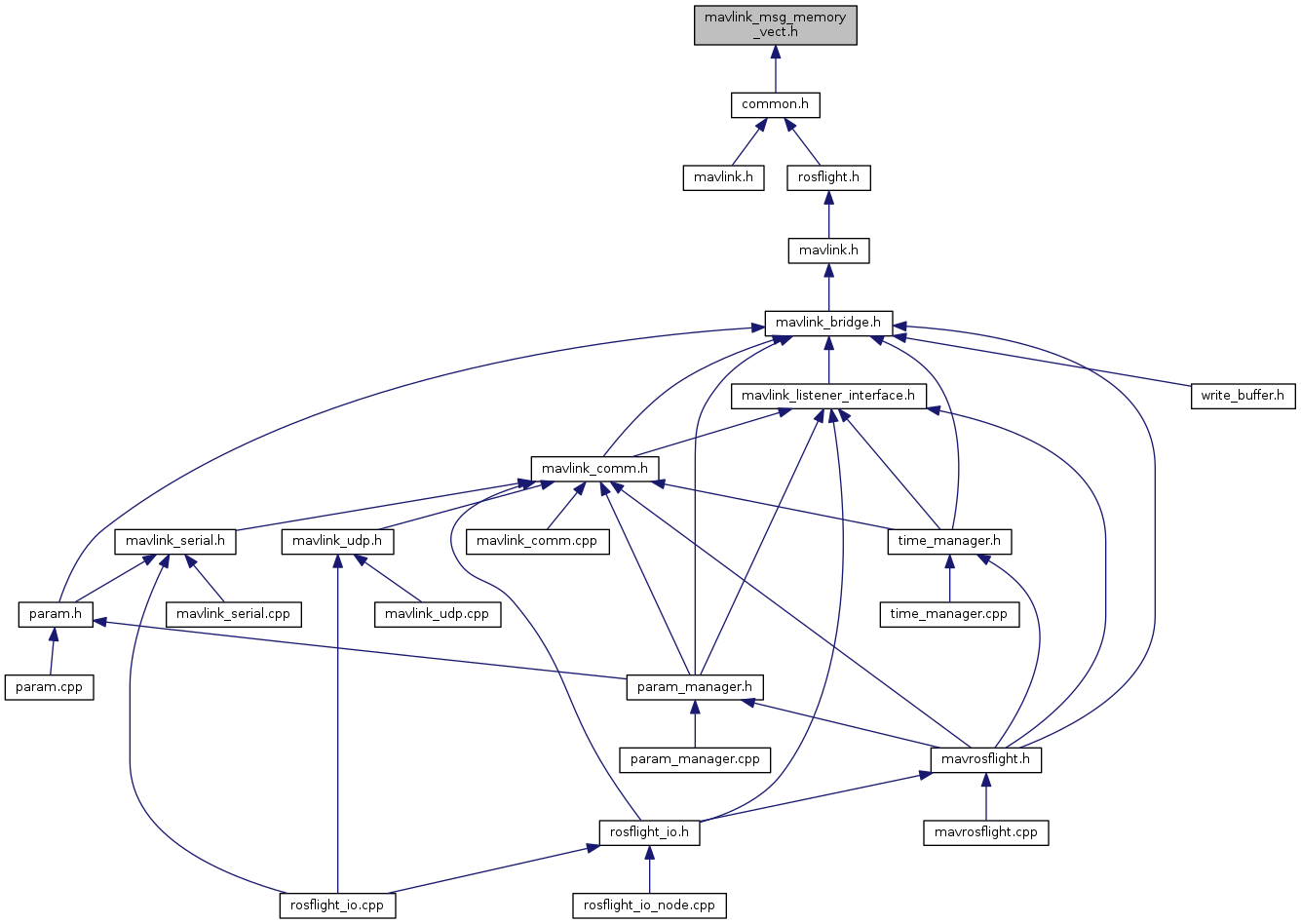

This graph shows which files directly or indirectly include this file:

Classes
struct	__mavlink_memory_vect_t

Macros
#define	MAVLINK_MESSAGE_INFO_MEMORY_VECT

#define	MAVLINK_MSG_ID_249_CRC 204

#define	MAVLINK_MSG_ID_249_LEN 36

#define	MAVLINK_MSG_ID_MEMORY_VECT 249

#define	MAVLINK_MSG_ID_MEMORY_VECT_CRC 204

#define	MAVLINK_MSG_ID_MEMORY_VECT_LEN 36

#define	MAVLINK_MSG_MEMORY_VECT_FIELD_VALUE_LEN 32

Typedefs
typedef struct __mavlink_memory_vect_t	mavlink_memory_vect_t

Functions
static void	mavlink_msg_memory_vect_decode (const mavlink_message_t msg, mavlink_memory_vect_t memory_vect)
	Decode a memory_vect message into a struct. More...

static uint16_t	mavlink_msg_memory_vect_encode (uint8_t system_id, uint8_t component_id, mavlink_message_t msg, const mavlink_memory_vect_t memory_vect)
	Encode a memory_vect struct. More...

static uint16_t	mavlink_msg_memory_vect_encode_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t msg, const mavlink_memory_vect_t memory_vect)
	Encode a memory_vect struct on a channel. More...

static uint16_t	mavlink_msg_memory_vect_get_address (const mavlink_message_t *msg)
	Send a memory_vect message. More...

static uint8_t	mavlink_msg_memory_vect_get_type (const mavlink_message_t *msg)
	Get field type from memory_vect message. More...

static uint16_t	mavlink_msg_memory_vect_get_value (const mavlink_message_t msg, int8_t value)
	Get field value from memory_vect message. More...

static uint8_t	mavlink_msg_memory_vect_get_ver (const mavlink_message_t *msg)
	Get field ver from memory_vect message. More...

static uint16_t	mavlink_msg_memory_vect_pack (uint8_t system_id, uint8_t component_id, mavlink_message_t msg, uint16_t address, uint8_t ver, uint8_t type, const int8_t value)
	Pack a memory_vect message. More...

static uint16_t	mavlink_msg_memory_vect_pack_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t msg, uint16_t address, uint8_t ver, uint8_t type, const int8_t value)
	Pack a memory_vect message on a channel. More...

Macro Definition Documentation

#define MAVLINK_MESSAGE_INFO_MEMORY_VECT

Value:

{ \
        "MEMORY_VECT", \
        4, \
        {  { "address", NULL, MAVLINK_TYPE_UINT16_T, 0, 0, offsetof(mavlink_memory_vect_t, address) }, \
         { "ver", NULL, MAVLINK_TYPE_UINT8_T, 0, 2, offsetof(mavlink_memory_vect_t, ver) }, \
         { "type", NULL, MAVLINK_TYPE_UINT8_T, 0, 3, offsetof(mavlink_memory_vect_t, type) }, \
         { "value", NULL, MAVLINK_TYPE_INT8_T, 32, 4, offsetof(mavlink_memory_vect_t, value) }, \
         } \
}

Definition at line 21 of file mavlink_msg_memory_vect.h.

#define MAVLINK_MSG_ID_249_CRC 204

Definition at line 17 of file mavlink_msg_memory_vect.h.

#define MAVLINK_MSG_ID_249_LEN 36

Definition at line 14 of file mavlink_msg_memory_vect.h.

#define MAVLINK_MSG_ID_MEMORY_VECT 249

Definition at line 3 of file mavlink_msg_memory_vect.h.

#define MAVLINK_MSG_ID_MEMORY_VECT_CRC 204

Definition at line 16 of file mavlink_msg_memory_vect.h.

#define MAVLINK_MSG_ID_MEMORY_VECT_LEN 36

Definition at line 13 of file mavlink_msg_memory_vect.h.

#define MAVLINK_MSG_MEMORY_VECT_FIELD_VALUE_LEN 32

Definition at line 19 of file mavlink_msg_memory_vect.h.

Typedef Documentation

typedef struct __mavlink_memory_vect_t mavlink_memory_vect_t

Function Documentation

static void mavlink_msg_memory_vect_decode	(	const mavlink_message_t *	msg,
		mavlink_memory_vect_t *	memory_vect
	)

inlinestatic

Decode a memory_vect message into a struct.

Parameters

msg	The message to decode
memory_vect	C-struct to decode the message contents into

Definition at line 263 of file mavlink_msg_memory_vect.h.

static uint16_t mavlink_msg_memory_vect_encode	(	uint8_t	system_id,
		uint8_t	component_id,
		mavlink_message_t *	msg,
		const mavlink_memory_vect_t *	memory_vect
	)

inlinestatic

Encode a memory_vect struct.

Parameters

system_id	ID of this system
component_id	ID of this component (e.g. 200 for IMU)
msg	The MAVLink message to compress the data into
memory_vect	C-struct to read the message contents from

Definition at line 119 of file mavlink_msg_memory_vect.h.

static uint16_t mavlink_msg_memory_vect_encode_chan	(	uint8_t	system_id,
		uint8_t	component_id,
		uint8_t	chan,
		mavlink_message_t *	msg,
		const mavlink_memory_vect_t *	memory_vect
	)

inlinestatic

Encode a memory_vect struct on a channel.

Parameters

system_id	ID of this system
component_id	ID of this component (e.g. 200 for IMU)
chan	The MAVLink channel this message will be sent over
msg	The MAVLink message to compress the data into
memory_vect	C-struct to read the message contents from

Definition at line 133 of file mavlink_msg_memory_vect.h.

static uint16_t mavlink_msg_memory_vect_get_address ( const mavlink_message_t * msg )

inlinestatic

Send a memory_vect message.

Parameters

chan	MAVLink channel to send the message
address	Starting address of the debug variables
ver	Version code of the type variable. 0=unknown, type ignored and assumed int16_t. 1=as below
type	Type code of the memory variables. for ver = 1: 0=16 x int16_t, 1=16 x uint16_t, 2=16 x Q15, 3=16 x 1Q14
value	Memory contents at specified address Get field address from memory_vect message

Returns: Starting address of the debug variables

Definition at line 222 of file mavlink_msg_memory_vect.h.

static uint8_t mavlink_msg_memory_vect_get_type ( const mavlink_message_t * msg )

inlinestatic

Get field type from memory_vect message.

Returns: Type code of the memory variables. for ver = 1: 0=16 x int16_t, 1=16 x uint16_t, 2=16 x Q15, 3=16 x 1Q14

Definition at line 242 of file mavlink_msg_memory_vect.h.

static uint16_t mavlink_msg_memory_vect_get_value	(	const mavlink_message_t *	msg,
		int8_t *	value
	)

inlinestatic

Get field value from memory_vect message.

Returns: Memory contents at specified address

Definition at line 252 of file mavlink_msg_memory_vect.h.

static uint8_t mavlink_msg_memory_vect_get_ver ( const mavlink_message_t * msg )

inlinestatic

Get field ver from memory_vect message.

Returns: Version code of the type variable. 0=unknown, type ignored and assumed int16_t. 1=as below

Definition at line 232 of file mavlink_msg_memory_vect.h.

static uint16_t mavlink_msg_memory_vect_pack	(	uint8_t	system_id,
		uint8_t	component_id,
		mavlink_message_t *	msg,
		uint16_t	address,
		uint8_t	ver,
		uint8_t	type,
		const int8_t *	value
	)

inlinestatic

Pack a memory_vect message.

Parameters

system_id	ID of this system
component_id	ID of this component (e.g. 200 for IMU)
msg	The MAVLink message to compress the data into
address	Starting address of the debug variables
ver	Version code of the type variable. 0=unknown, type ignored and assumed int16_t. 1=as below
type	Type code of the memory variables. for ver = 1: 0=16 x int16_t, 1=16 x uint16_t, 2=16 x Q15, 3=16 x 1Q14
value	Memory contents at specified address

Returns: length of the message in bytes (excluding serial stream start sign)

Definition at line 44 of file mavlink_msg_memory_vect.h.

static uint16_t mavlink_msg_memory_vect_pack_chan	(	uint8_t	system_id,
		uint8_t	component_id,
		uint8_t	chan,
		mavlink_message_t *	msg,
		uint16_t	address,
		uint8_t	ver,
		uint8_t	type,
		const int8_t *	value
	)

inlinestatic

Pack a memory_vect message on a channel.

Parameters

system_id	ID of this system
component_id	ID of this component (e.g. 200 for IMU)
chan	The MAVLink channel this message will be sent over
msg	The MAVLink message to compress the data into
address	Starting address of the debug variables
ver	Version code of the type variable. 0=unknown, type ignored and assumed int16_t. 1=as below
type	Type code of the memory variables. for ver = 1: 0=16 x int16_t, 1=16 x uint16_t, 2=16 x Q15, 3=16 x 1Q14
value	Memory contents at specified address

Returns: length of the message in bytes (excluding serial stream start sign)

Definition at line 83 of file mavlink_msg_memory_vect.h.
