#include "Base/GCException.h"
#include "INodePrivate.h"

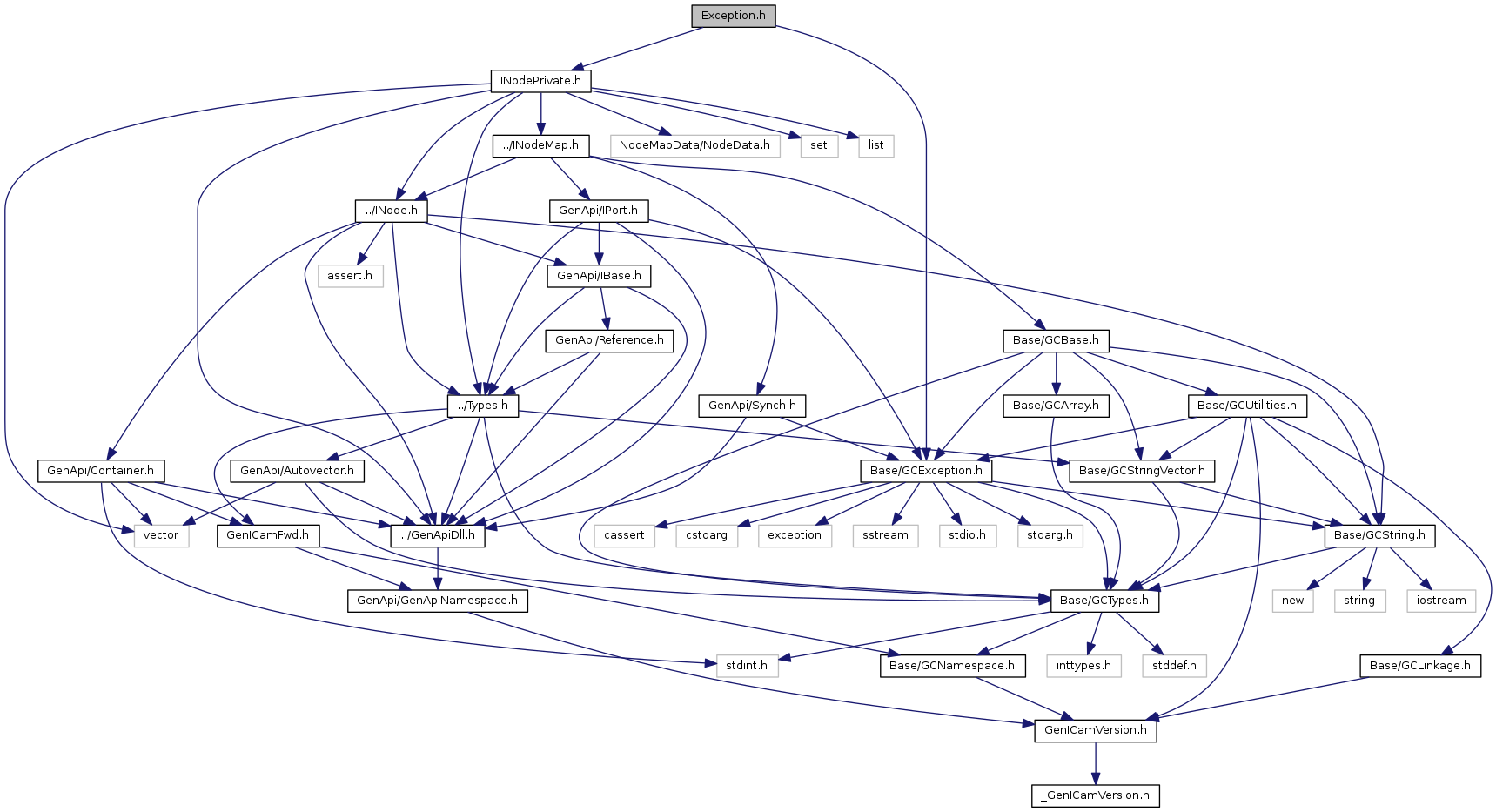

Include dependency graph for Exception.h:

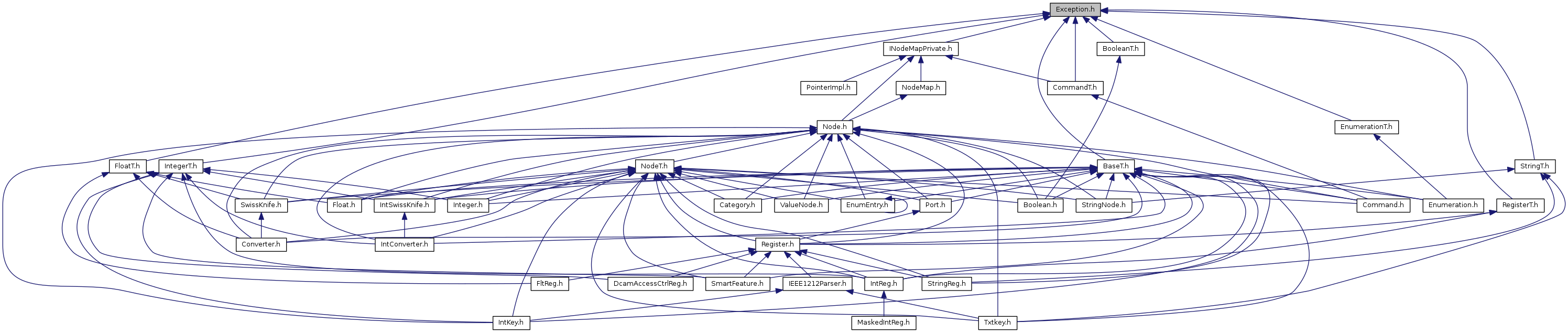

This graph shows which files directly or indirectly include this file:

Classes
class	GENAPI_NAMESPACE::EMethodClass

class	GENAPI_NAMESPACE::ExceptionReporterNode< E >

Namespaces
	GENAPI_NAMESPACE
	Part of the generic device API.

Macros
#define	ACCESS_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::AccessException>(__FILE__, __LINE__, this, "AccessException" ).Report
	Fires a access error exception, e.g. throw ACCESS_ERROR_EXCEPTION("Not everybody") More...

#define	CHECK_RANGE_FLT_NODE(_Value, _Min, _Max)
	Range check for float. More...

#define	CHECK_RANGE_I64_NODE(_Value, _Min, _Max, _Inc)
	Range check for int64. More...

#define	DYNAMICCAST_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::DynamicCastException>(__FILE__, __LINE__, this, "DynamicCastException" ).Report
	Fires a dynamic cast exception, e.g. throw DYNAMICCAST_EXCEPTION("Not everybody") More...

#define	GENERIC_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::GenericException>(__FILE__, __LINE__, this, "GenericException" ).Report
	Fires an exception, e.g. throw EXCEPTION("%ld too large", Value);. More...

#define	INVALID_ARGUMENT_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::InvalidArgumentException>(__FILE__, __LINE__, this, "InvalidArgumentException" ).Report
	Fires an invalid argument exception, e.g. throw INVALID_ARGUMENT("%ld too large", Value);. More...

#define	LOGICAL_ERROR_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::LogicalErrorException>(__FILE__, __LINE__, this, "LogicalErrorException" ).Report
	Fires a logical error exception, e.g. throw LOGICAL_ERROR_EXCEPTION("Should never reach this point") More...

#define	OUT_OF_RANGE_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::OutOfRangeException>(__FILE__, __LINE__, this, "OutOfRangeException" ).Report
	Fires an out of range exception, e.g. throw OUT_OF_RANGE_EXCEPTION("%ld too large", Value);. More...

#define	PROPERTY_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::PropertyException>(__FILE__, __LINE__, this, "PropertyException" ).Report
	Fires an property exception, e.g. throw PROPERTY_EXCEPTION("%ld too large", Value);. More...

#define	RUNTIME_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::RuntimeException>(__FILE__, __LINE__, this, "RuntimeException" ).Report
	Fires a runtime exception, e.g. throw RUNTIME_EXCEPTION("buh!") More...

#define	TIMEOUT_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::TimeoutException>(__FILE__, __LINE__, this, "TimeoutException" ).Report
	Fires a timeout error exception, e.g. throw TIMEOUT_EXCEPTION("Not everybody") More...

Functions
GENICAM_NAMESPACE::gcstring	GENAPI_NAMESPACE::getEntryPoint (INodeMap *nodeMap)

Macro Definition Documentation

#define ACCESS_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::AccessException>(__FILE__, __LINE__, this, "AccessException" ).Report

Fires a access error exception, e.g. throw ACCESS_ERROR_EXCEPTION("Not everybody")

Definition at line 172 of file Exception.h.

#define CHECK_RANGE_FLT_NODE	(	_Value,
		_Min,
		_Max
	)

Value:

if ((_Value) < (_Min)) \
            throw OUT_OF_RANGE_EXCEPTION_NODE( "Value %f must be greater than or equal %f.", (_Value), (_Min) ); \
        else if ((_Value) > (_Max)) \
            throw OUT_OF_RANGE_EXCEPTION_NODE( "Value %f must be smaller than or equal %f.", (_Value), (_Max) );

Range check for float.

Definition at line 192 of file Exception.h.

#define CHECK_RANGE_I64_NODE	(	_Value,
		_Min,
		_Max,
		_Inc
	)

Value:

if((int64_t)(_Value) < (int64_t)(_Min)) \
            throw OUT_OF_RANGE_EXCEPTION_NODE("Value = %" FMT_I64 "d must be equal or greater than Min = %" FMT_I64 "d.", (int64_t)(_Value), (int64_t)(_Min)); \
        else if((int64_t)(_Value) > (int64_t)(_Max)) \
            throw OUT_OF_RANGE_EXCEPTION_NODE("Value = %" FMT_I64 "d must be equal or smaller than Max = %" FMT_I64 "d.", (int64_t)(_Value), (int64_t)(_Max)); \
        else if ( 0 >= _Inc ) \
            throw LOGICAL_ERROR_EXCEPTION_NODE("Increment must be larger than 0."); \
        else if( ((int64_t)(_Value) - (int64_t)(_Min)) % (int64_t)(_Inc) != 0) \
            throw OUT_OF_RANGE_EXCEPTION_NODE("The difference between Value = %" FMT_I64 "d and Min = %" FMT_I64 "d must be dividable without rest by Inc = %" FMT_I64 "d.", (int64_t)(_Value), (int64_t)(_Min), (int64_t)(_Inc));

Range check for int64.

Definition at line 181 of file Exception.h.

#define DYNAMICCAST_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::DynamicCastException>(__FILE__, __LINE__, this, "DynamicCastException" ).Report

Fires a dynamic cast exception, e.g. throw DYNAMICCAST_EXCEPTION("Not everybody")

Definition at line 178 of file Exception.h.

#define GENERIC_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::GenericException>(__FILE__, __LINE__, this, "GenericException" ).Report

Fires an exception, e.g. throw EXCEPTION("%ld too large", Value);.

Definition at line 154 of file Exception.h.

#define INVALID_ARGUMENT_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::InvalidArgumentException>(__FILE__, __LINE__, this, "InvalidArgumentException" ).Report

Fires an invalid argument exception, e.g. throw INVALID_ARGUMENT("%ld too large", Value);.

Definition at line 157 of file Exception.h.

#define LOGICAL_ERROR_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::LogicalErrorException>(__FILE__, __LINE__, this, "LogicalErrorException" ).Report

Fires a logical error exception, e.g. throw LOGICAL_ERROR_EXCEPTION("Should never reach this point")

Definition at line 169 of file Exception.h.

#define OUT_OF_RANGE_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::OutOfRangeException>(__FILE__, __LINE__, this, "OutOfRangeException" ).Report

Fires an out of range exception, e.g. throw OUT_OF_RANGE_EXCEPTION("%ld too large", Value);.

Definition at line 160 of file Exception.h.

#define PROPERTY_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::PropertyException>(__FILE__, __LINE__, this, "PropertyException" ).Report

Fires an property exception, e.g. throw PROPERTY_EXCEPTION("%ld too large", Value);.

Definition at line 163 of file Exception.h.

#define RUNTIME_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::RuntimeException>(__FILE__, __LINE__, this, "RuntimeException" ).Report

Fires a runtime exception, e.g. throw RUNTIME_EXCEPTION("buh!")

Definition at line 166 of file Exception.h.

#define TIMEOUT_EXCEPTION_NODE GENAPI_NAMESPACE::ExceptionReporterNode<GENICAM_NAMESPACE::TimeoutException>(__FILE__, __LINE__, this, "TimeoutException" ).Report

Fires a timeout error exception, e.g. throw TIMEOUT_EXCEPTION("Not everybody")

Definition at line 175 of file Exception.h.

Enumerations
enum	GENAPI_NAMESPACE::EMethod { GENAPI_NAMESPACE::meUndefined, GENAPI_NAMESPACE::meGetAccessMode, GENAPI_NAMESPACE::meToString, GENAPI_NAMESPACE::meFromString, GENAPI_NAMESPACE::meGetValue, GENAPI_NAMESPACE::meSetValue, GENAPI_NAMESPACE::meGetMin, GENAPI_NAMESPACE::meGetMax, GENAPI_NAMESPACE::meGetInc, GENAPI_NAMESPACE::meExecute, GENAPI_NAMESPACE::meIsDone, GENAPI_NAMESPACE::meSetIntValue, GENAPI_NAMESPACE::meGetIntValue, GENAPI_NAMESPACE::meSet, GENAPI_NAMESPACE::meGet, GENAPI_NAMESPACE::meGetIncMode, GENAPI_NAMESPACE::meGetListOfValidValues }
	denotes through which method call the node tree was entered More...
