Public Member Functions | Protected Attributes | List of all members
BT::ControlNode Class Reference

#include <control_node.h>

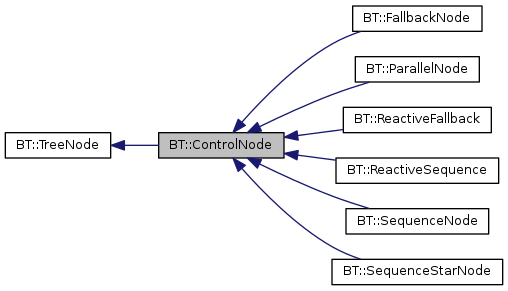

Inheritance diagram for BT::ControlNode:
Inheritance graph
[legend]

Public Member Functions

void addChild (TreeNode *child)
 The method used to add nodes to the children vector. More...

const TreeNodechild (unsigned index) const

const std::vector< TreeNode * > & children () const

unsigned childrenCount () const

 ControlNode (const std::string &name, const NodeConfiguration &config)

virtual void halt () override

void haltChildren (unsigned i)
 call halt() for all the children in the range [i, childrenCount() ) More...

virtual NodeType type () const overridefinal

virtual ~ControlNode () override=default

- Public Member Functions inherited from BT::TreeNode
const NodeConfigurationconfig () const

virtual BT::NodeStatus executeTick ()
 The method that should be used to invoke tick() and setStatus();. More...

template<typename T >
Result getInput (const std::string &key, T &destination) const

template<typename T >
Optional< T > getInput (const std::string &key) const

bool isHalted () const

const std::string & name () const
 Name of the instance, not the type. More...

const std::string & registrationName () const
 registrationName is the ID used by BehaviorTreeFactory to create an instance. More...

template<typename T >
Result setOutput (const std::string &key, const T &value)

void setStatus (NodeStatus new_status)

NodeStatus status () const

StatusChangeSubscriber subscribeToStatusChange (StatusChangeCallback callback)
 subscribeToStatusChange is used to attach a callback to a status change. When StatusChangeSubscriber goes out of scope (it is a shared_ptr) the callback is unsubscribed automatically. More...

 TreeNode (std::string name, NodeConfiguration config)
 TreeNode main constructor. More...

uint16_t UID () const

BT::NodeStatus waitValidStatus ()

virtual ~TreeNode ()=default


Protected Attributes

std::vector< TreeNode * > children_nodes_


Additional Inherited Members

- Public Types inherited from BT::TreeNode
typedef std::shared_ptr< TreeNodePtr

using StatusChangeCallback = StatusChangeSignal::CallableFunction

using StatusChangeSignal = Signal< TimePoint, const TreeNode &, NodeStatus, NodeStatus >

using StatusChangeSubscriber = StatusChangeSignal::Subscriber

- Static Public Member Functions inherited from BT::TreeNode
static Optional< StringViewgetRemappedKey (StringView port_name, StringView remapping_value)

static bool isBlackboardPointer (StringView str)

static StringView stripBlackboardPointer (StringView str)

- Protected Member Functions inherited from BT::TreeNode
void modifyPortsRemapping (const PortsRemapping &new_remapping)

void setRegistrationID (StringView ID)

virtual BT::NodeStatus tick ()=0
 Method to be implemented by the user. More...


Detailed Description

Definition at line 22 of file control_node.h.

Constructor & Destructor Documentation

BT::ControlNode::ControlNode ( const std::string &  name,
const NodeConfiguration config
)

Definition at line 18 of file control_node.cpp.

virtual BT::ControlNode::~ControlNode ( )
overridevirtualdefault

Member Function Documentation

void BT::ControlNode::addChild ( TreeNode child)

The method used to add nodes to the children vector.

Definition at line 23 of file control_node.cpp.

const TreeNode* BT::ControlNode::child ( unsigned  index) const
inline

Definition at line 39 of file control_node.h.

const std::vector< TreeNode * > & BT::ControlNode::children ( ) const

Definition at line 39 of file control_node.cpp.

unsigned BT::ControlNode::childrenCount ( ) const

Definition at line 28 of file control_node.cpp.

void BT::ControlNode::halt ( )
overridevirtual

The method used to interrupt the execution of a RUNNING node. Only Async nodes that may return RUNNING should implement it.

Implements BT::TreeNode.

Reimplemented in BT::SequenceStarNode, BT::SequenceNode, BT::FallbackNode, and BT::ParallelNode.

Definition at line 33 of file control_node.cpp.

void BT::ControlNode::haltChildren ( unsigned  i)

call halt() for all the children in the range [i, childrenCount() )

Definition at line 44 of file control_node.cpp.

virtual NodeType BT::ControlNode::type ( ) const
inlinefinaloverridevirtual

Implements BT::TreeNode.

Definition at line 49 of file control_node.h.

Member Data Documentation

std::vector<TreeNode*> BT::ControlNode::children_nodes_
protected

Definition at line 25 of file control_node.h.


The documentation for this class was generated from the following files:


behaviortree_cpp
Author(s): Michele Colledanchise, Davide Faconti
autogenerated on Sat Jun 8 2019 18:04:06
