yocto_watchdog.h File Reference

#include "yocto_api.h"
#include <cfloat>
#include <cmath>
#include <map>

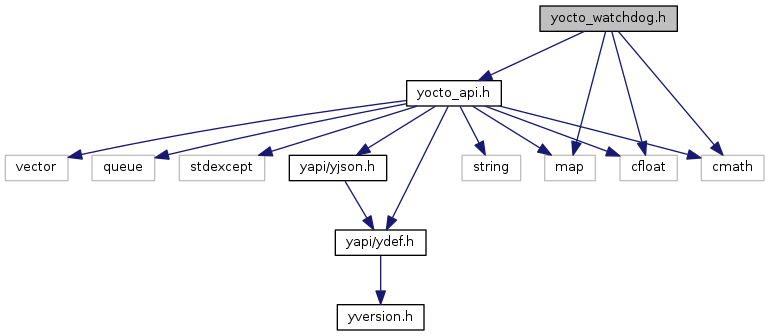

Include dependency graph for yocto_watchdog.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	YDelayedPulse
class	YWatchdog

Macros
#define	_CLASS_YDELAYEDPULSE
#define	_Y_OUTPUT_ENUM
#define	_Y_RUNNING_ENUM
#define	_Y_STATE_ENUM
#define	_Y_STATEATPOWERON_ENUM
#define	Y_COUNTDOWN_INVALID   (YAPI_INVALID_LONG)
#define	Y_MAXTIMEONSTATEA_INVALID   (YAPI_INVALID_LONG)
#define	Y_MAXTIMEONSTATEB_INVALID   (YAPI_INVALID_LONG)
#define	Y_PULSETIMER_INVALID   (YAPI_INVALID_LONG)
#define	Y_TRIGGERDELAY_INVALID   (YAPI_INVALID_LONG)
#define	Y_TRIGGERDURATION_INVALID   (YAPI_INVALID_LONG)

Typedefs
typedef void(*	YWatchdogValueCallback) (YWatchdog *func, const string &functionValue)

Enumerations
enum	Y_OUTPUT_enum {   Y_OUTPUT_OFF = 0, Y_OUTPUT_ON = 1, Y_OUTPUT_INVALID = -1, Y_OUTPUT_OFF = 0,   Y_OUTPUT_ON = 1, Y_OUTPUT_INVALID = -1 }
enum	Y_RUNNING_enum { Y_RUNNING_OFF = 0, Y_RUNNING_ON = 1, Y_RUNNING_INVALID = -1 }
enum	Y_STATE_enum {   Y_STATE_A = 0, Y_STATE_B = 1, Y_STATE_INVALID = -1, Y_STATE_A = 0,   Y_STATE_B = 1, Y_STATE_INVALID = -1 }
enum	Y_STATEATPOWERON_enum {   Y_STATEATPOWERON_UNCHANGED = 0, Y_STATEATPOWERON_A = 1, Y_STATEATPOWERON_B = 2, Y_STATEATPOWERON_INVALID = -1,   Y_STATEATPOWERON_UNCHANGED = 0, Y_STATEATPOWERON_A = 1, Y_STATEATPOWERON_B = 2, Y_STATEATPOWERON_INVALID = -1 }

Functions
YWatchdog *	yFindWatchdog (const string &func)
YWatchdog *	yFirstWatchdog (void)

Macro Definition Documentation

#define _CLASS_YDELAYEDPULSE

Definition at line 81 of file yocto_watchdog.h.

#define _Y_OUTPUT_ENUM

Definition at line 73 of file yocto_watchdog.h.

#define _Y_RUNNING_ENUM

Definition at line 106 of file yocto_watchdog.h.

#define _Y_STATE_ENUM

Definition at line 56 of file yocto_watchdog.h.

#define _Y_STATEATPOWERON_ENUM

Definition at line 64 of file yocto_watchdog.h.

#define Y_COUNTDOWN_INVALID   (YAPI_INVALID_LONG)

Definition at line 116 of file yocto_watchdog.h.

#define Y_MAXTIMEONSTATEA_INVALID   (YAPI_INVALID_LONG)

Definition at line 113 of file yocto_watchdog.h.

#define Y_MAXTIMEONSTATEB_INVALID   (YAPI_INVALID_LONG)

Definition at line 114 of file yocto_watchdog.h.

#define Y_PULSETIMER_INVALID   (YAPI_INVALID_LONG)

Definition at line 115 of file yocto_watchdog.h.

#define Y_TRIGGERDELAY_INVALID   (YAPI_INVALID_LONG)

Definition at line 117 of file yocto_watchdog.h.

#define Y_TRIGGERDURATION_INVALID   (YAPI_INVALID_LONG)

Definition at line 118 of file yocto_watchdog.h.

Typedef Documentation

typedef void(* YWatchdogValueCallback) (YWatchdog *func, const string &functionValue)

Definition at line 54 of file yocto_watchdog.h.

Enumeration Type Documentation

enum Y_OUTPUT_enum

Enumerator
Y_OUTPUT_OFF
Y_OUTPUT_ON
Y_OUTPUT_INVALID
Y_OUTPUT_OFF
Y_OUTPUT_ON
Y_OUTPUT_INVALID

Definition at line 74 of file yocto_watchdog.h.

enum Y_RUNNING_enum

Enumerator
Y_RUNNING_OFF
Y_RUNNING_ON
Y_RUNNING_INVALID

Definition at line 107 of file yocto_watchdog.h.

enum Y_STATE_enum

Enumerator
Y_STATE_A
Y_STATE_B
Y_STATE_INVALID
Y_STATE_A
Y_STATE_B
Y_STATE_INVALID

Definition at line 57 of file yocto_watchdog.h.

enum Y_STATEATPOWERON_enum

Enumerator
Y_STATEATPOWERON_UNCHANGED
Y_STATEATPOWERON_A
Y_STATEATPOWERON_B
Y_STATEATPOWERON_INVALID
Y_STATEATPOWERON_UNCHANGED
Y_STATEATPOWERON_A
Y_STATEATPOWERON_B
Y_STATEATPOWERON_INVALID

Definition at line 65 of file yocto_watchdog.h.

Function Documentation

YWatchdog* yFindWatchdog ( const string &  func )

inline

Retrieves a watchdog for a given identifier. The identifier can be specified using several formats:

• FunctionLogicalName
• ModuleSerialNumber.FunctionIdentifier
• ModuleSerialNumber.FunctionLogicalName
• ModuleLogicalName.FunctionIdentifier
• ModuleLogicalName.FunctionLogicalName

This function does not require that the watchdog is online at the time it is invoked. The returned object is nevertheless valid. Use the method YWatchdog.isOnline() to test if the watchdog is indeed online at a given time. In case of ambiguity when looking for a watchdog by logical name, no error is notified: the first instance found is returned. The search is performed first by hardware name, then by logical name.

If a call to this object's is_online() method returns FALSE although you are certain that the matching device is plugged, make sure that you did call registerHub() at application initialization time.

Parameters

func	: a string that uniquely characterizes the watchdog

Returns

a YWatchdog object allowing you to drive the watchdog.

Definition at line 618 of file yocto_watchdog.h.

YWatchdog* yFirstWatchdog ( void  )

inline

Starts the enumeration of watchdog currently accessible. Use the method YWatchdog.nextWatchdog() to iterate on next watchdog.

Returns

a pointer to a YWatchdog object, corresponding to the first watchdog currently online, or a NULL pointer if there are none.

Definition at line 629 of file yocto_watchdog.h.
